Removal and Installation

  1. Remove the integrated control panel (18C858). For additional information, refer to CLIMATE CONTROL ASSEMBLY  .
  2. While pressing the retaining tabs inward, remove the in-car temperature sensor (19C734).

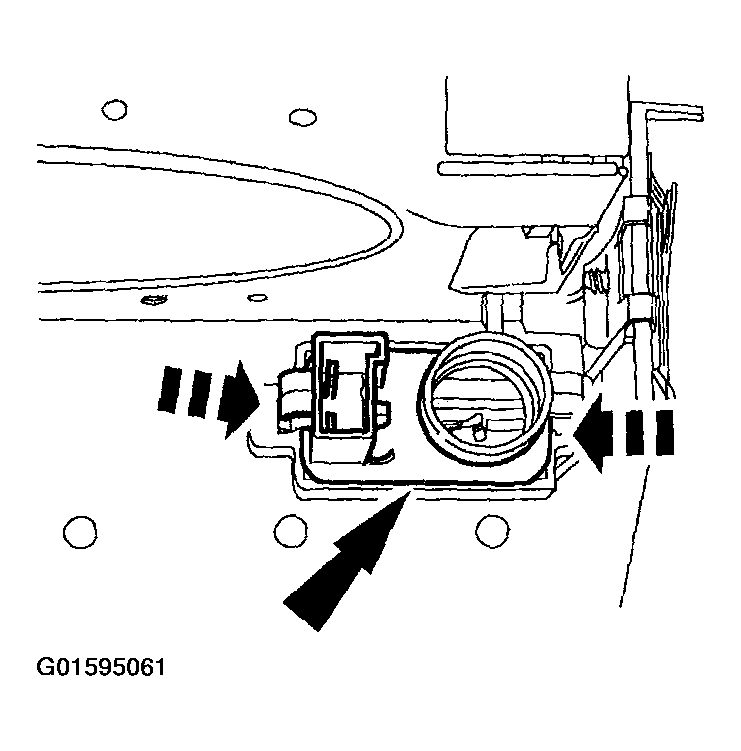

    Fig 1: Removing In-Car Temperature Sensor (19C734)
    G01595061Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
