Instrument Cluster: Disassembly

Remove the instrument cluster, refer to INSTRUMENT CLUSTER .
Remove the fuel gauge and fuel indicator module.

Fig 1: Removing Fuel Gauge And Fuel Indicator Module
Courtesy of FORD MOTOR CO.

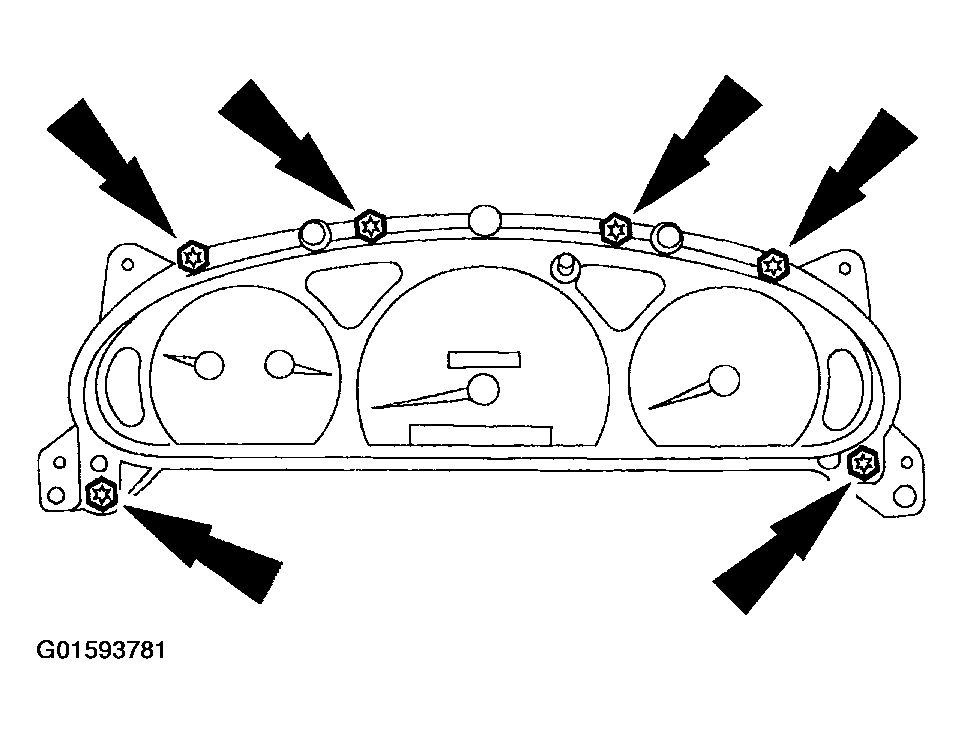

Remove the instrument cluster lens screws.

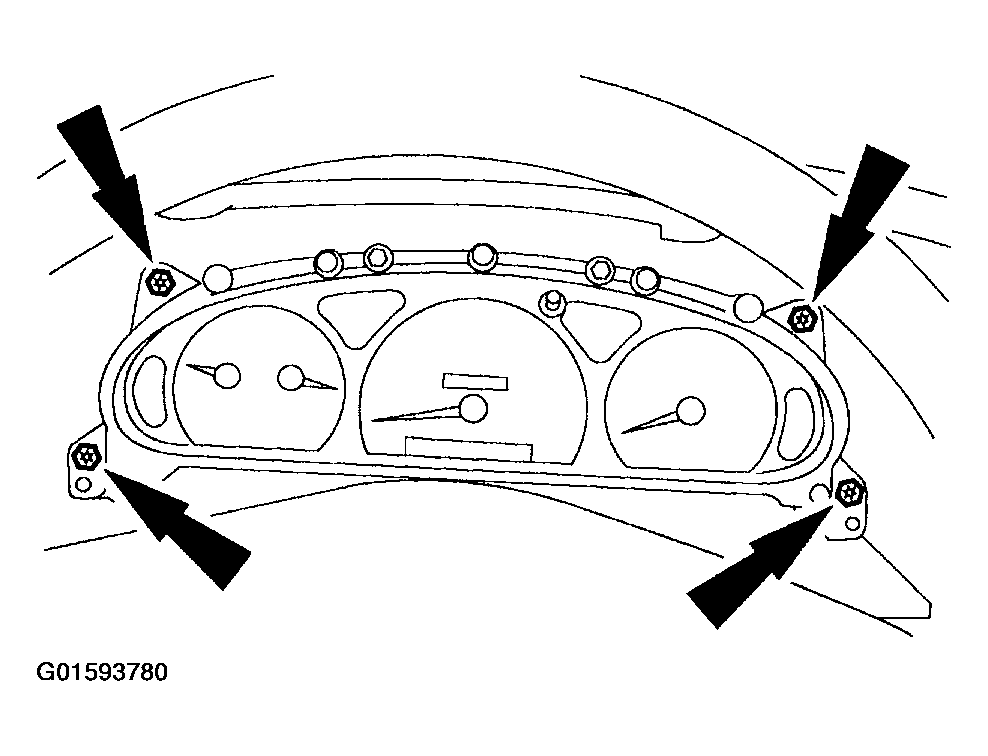

Fig 2: Removing Instrument Cluster Lens Screws
Courtesy of FORD MOTOR CO.
Remove the range indicator screws and remove the range indicator and cluster mask.

Fig 3: Removing Range Indicator Screws And Range Indicator And Cluster Mask
Courtesy of FORD MOTOR CO.

CAUTION: Handle gauges and components with care to avoid possible damage.

Fig 4: Removing Speedometer, Fuel/Temperature And Tachometer

Courtesy of FORD MOTOR CO.

Carefully remove following gauges:
1. speedometer
2. fuel/temperature
3. tachometer

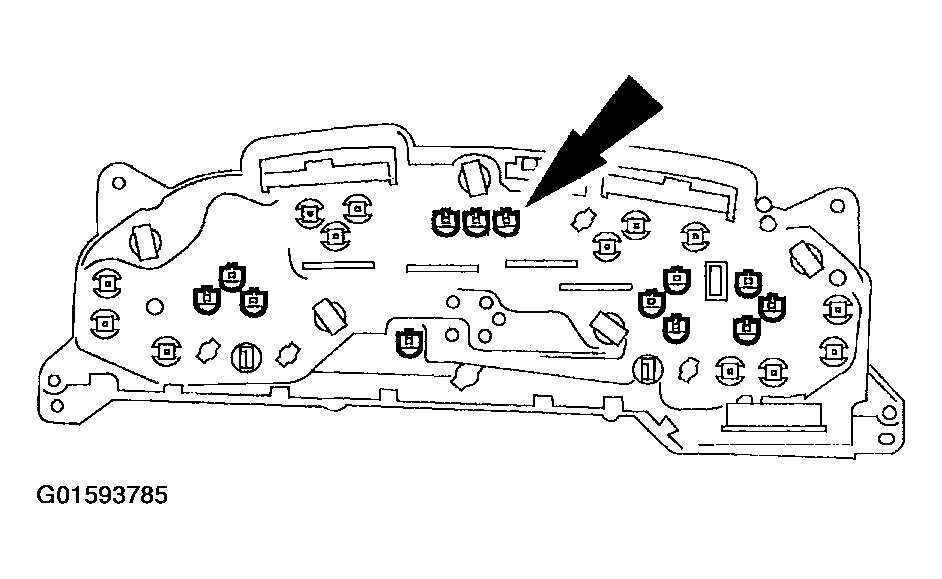

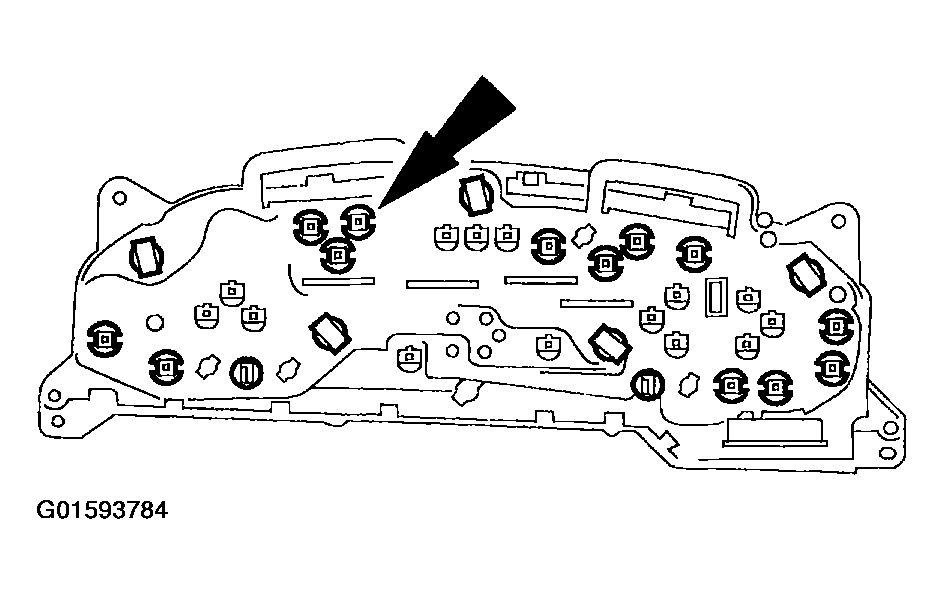

Remove the indicator bulbs and lighting bulbs.

Fig 5: Removing Indicator Bulbs And Lighting Bulbs
Courtesy of FORD MOTOR CO.

CAUTION: Care must be exercised when removing the instrument gauge contact clips to avoid damaging the printed circuit.

Fig 6: Removing Instrument Gauge Retaining Clips

Courtesy of FORD MOTOR CO.

Remove the instrument gauge retaining clips by compressing the clip ends together and pushing them through the back of the cluster.
Carefully remove the printed circuit from the instrument cluster.
