Battery, Mounting And Cables
>>
Specifications
>>
Torque Specifications
Torque Specifications

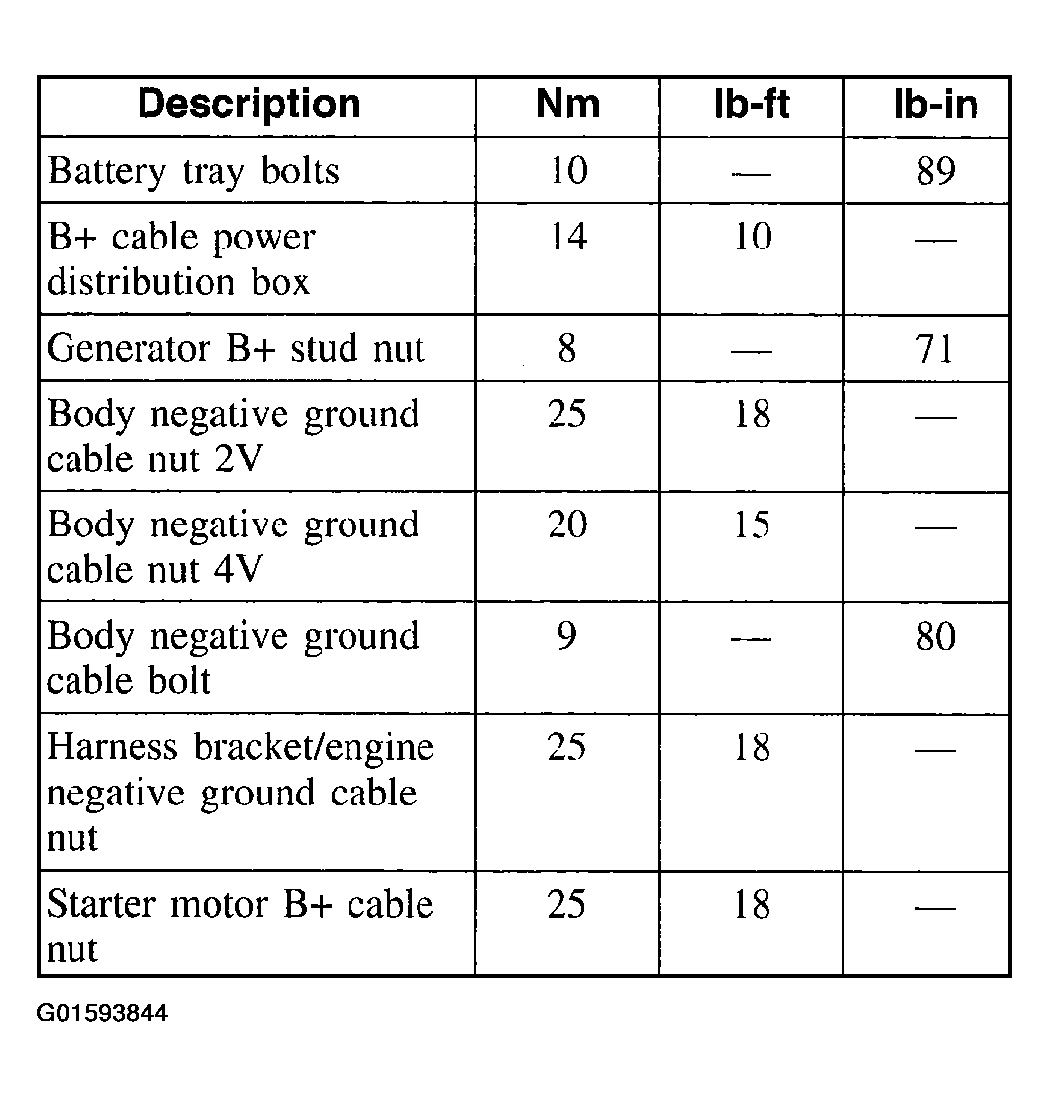

Fig 1: Torque Specifications Chart (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Torque Specifications Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
