Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function

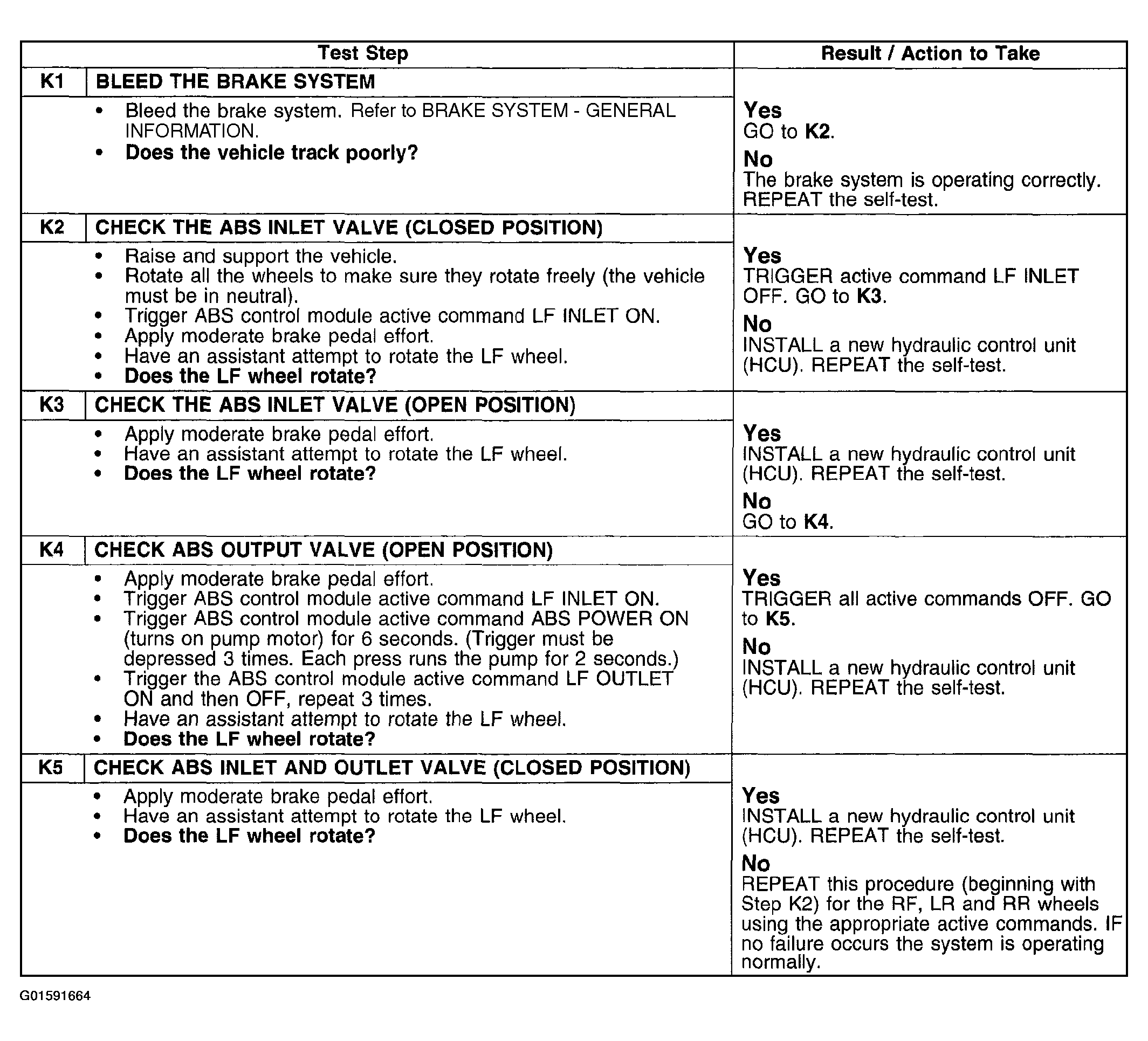

Fig 1: Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function (Steps K1-K5)

G01591664

Courtesy of FORD MOTOR CO.
