Home
>>
Ford
>>
2003
>>
Taurus SES, 3.0 S
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Steering Column Switches
>>
Specifications
>>
Torque Specifications
Torque Specifications

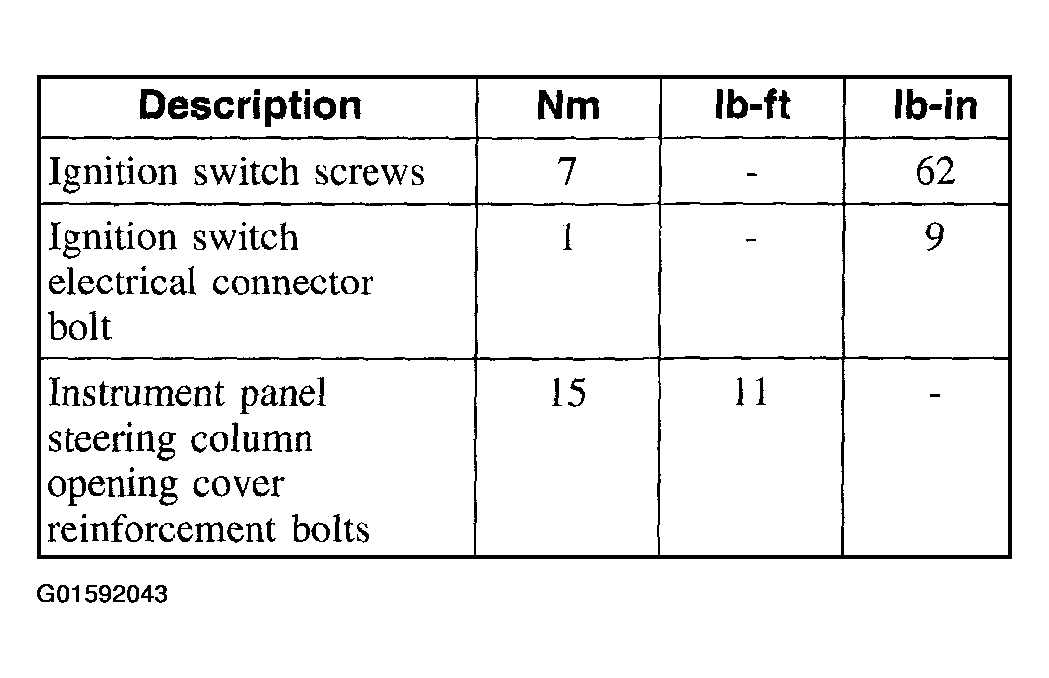

Fig 1: Steering Column Switches Torque Specification (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Steering Column Switches Torque Specification (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
