Automatic Transmission - Ax4S
>>
Disassembly And Assembly Of Subassemblies
>>
Intermediate Clutch Cylinder
>>
Notes
Intermediate Clutch Cylinder: Notes

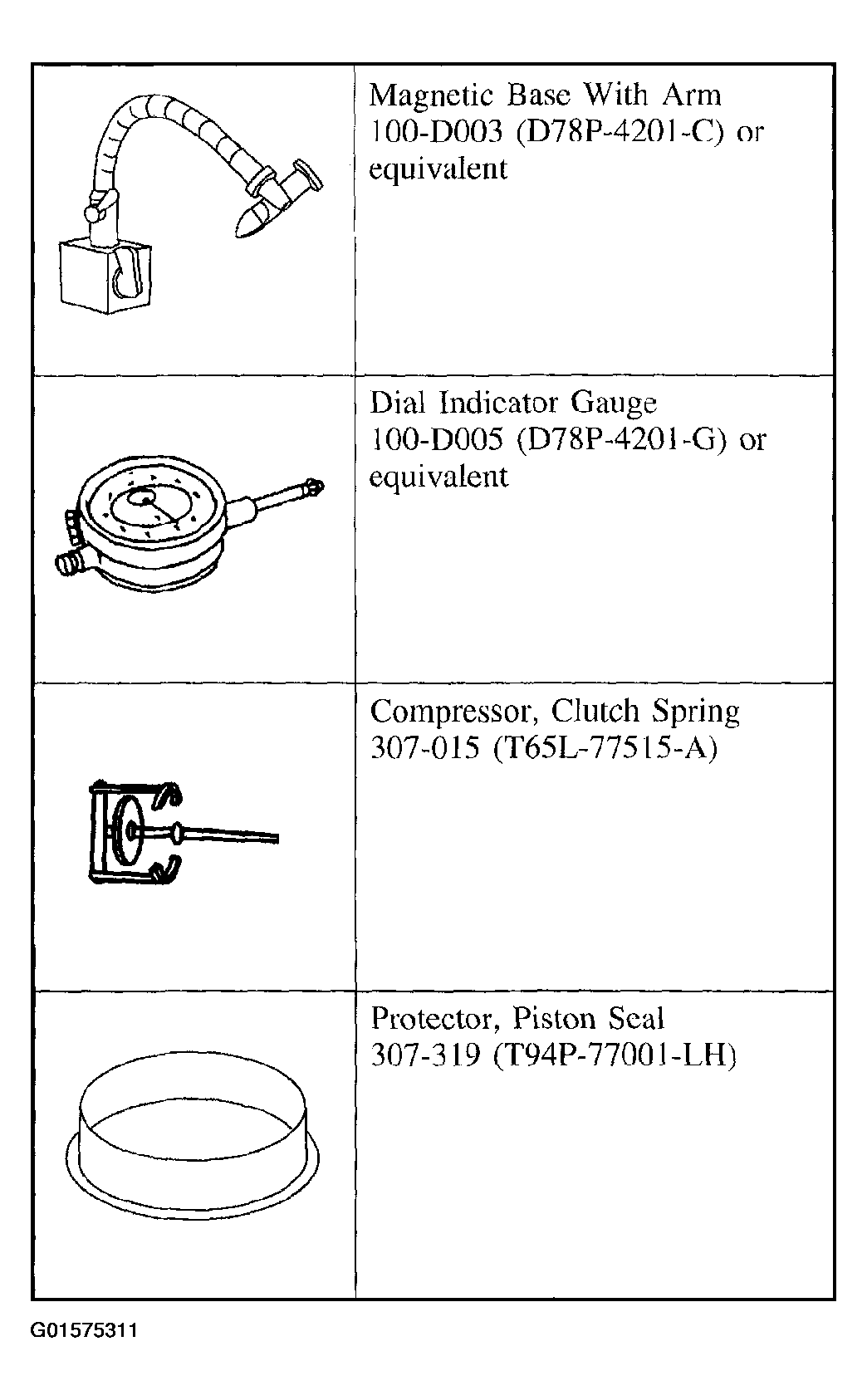

Fig 1: Identifying Special Tools
Courtesy of FORD MOTOR CO.

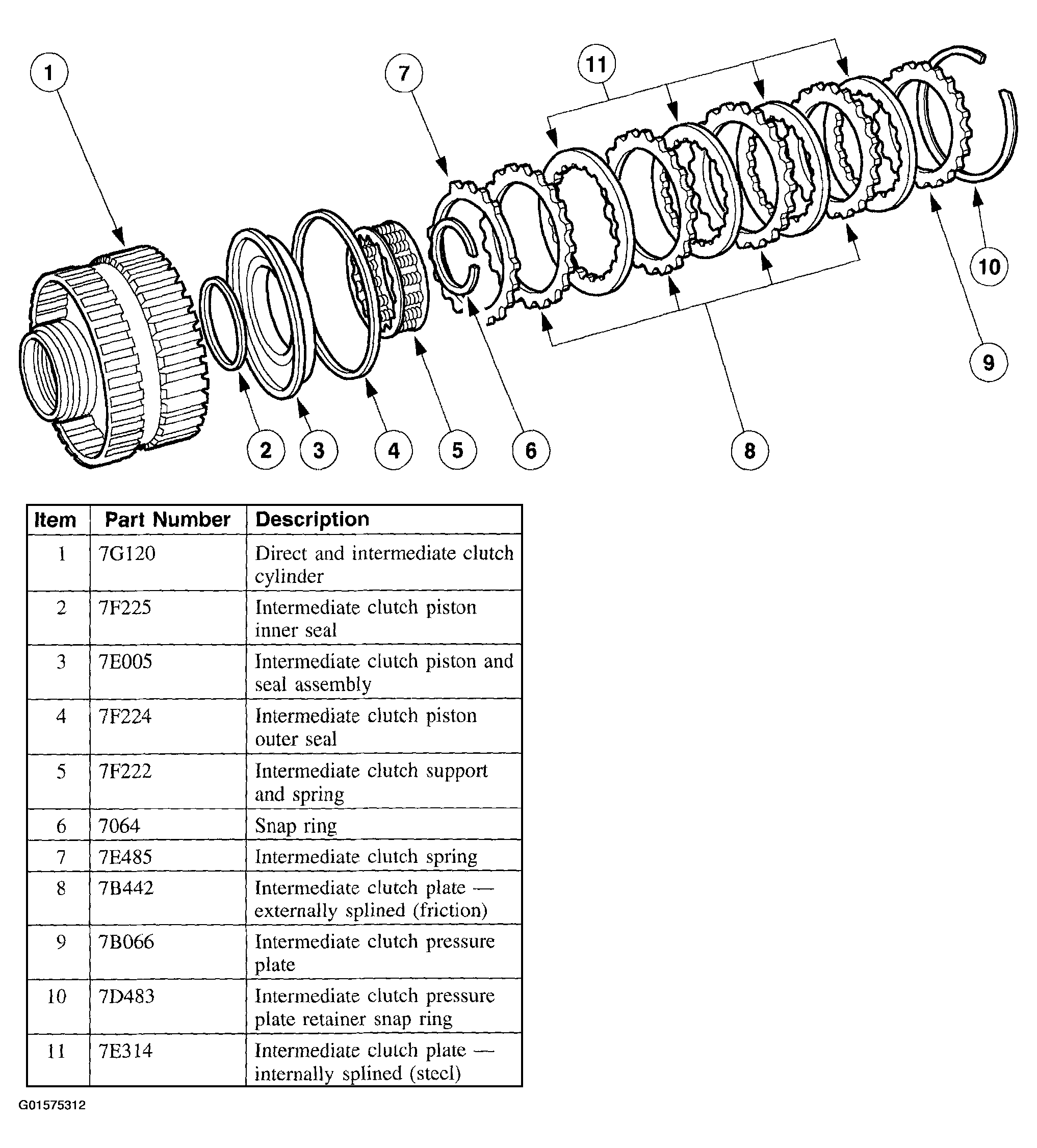

Fig 2: Exploded View Of Intermediate Clutch Cylinder
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
