Main Components And Functions

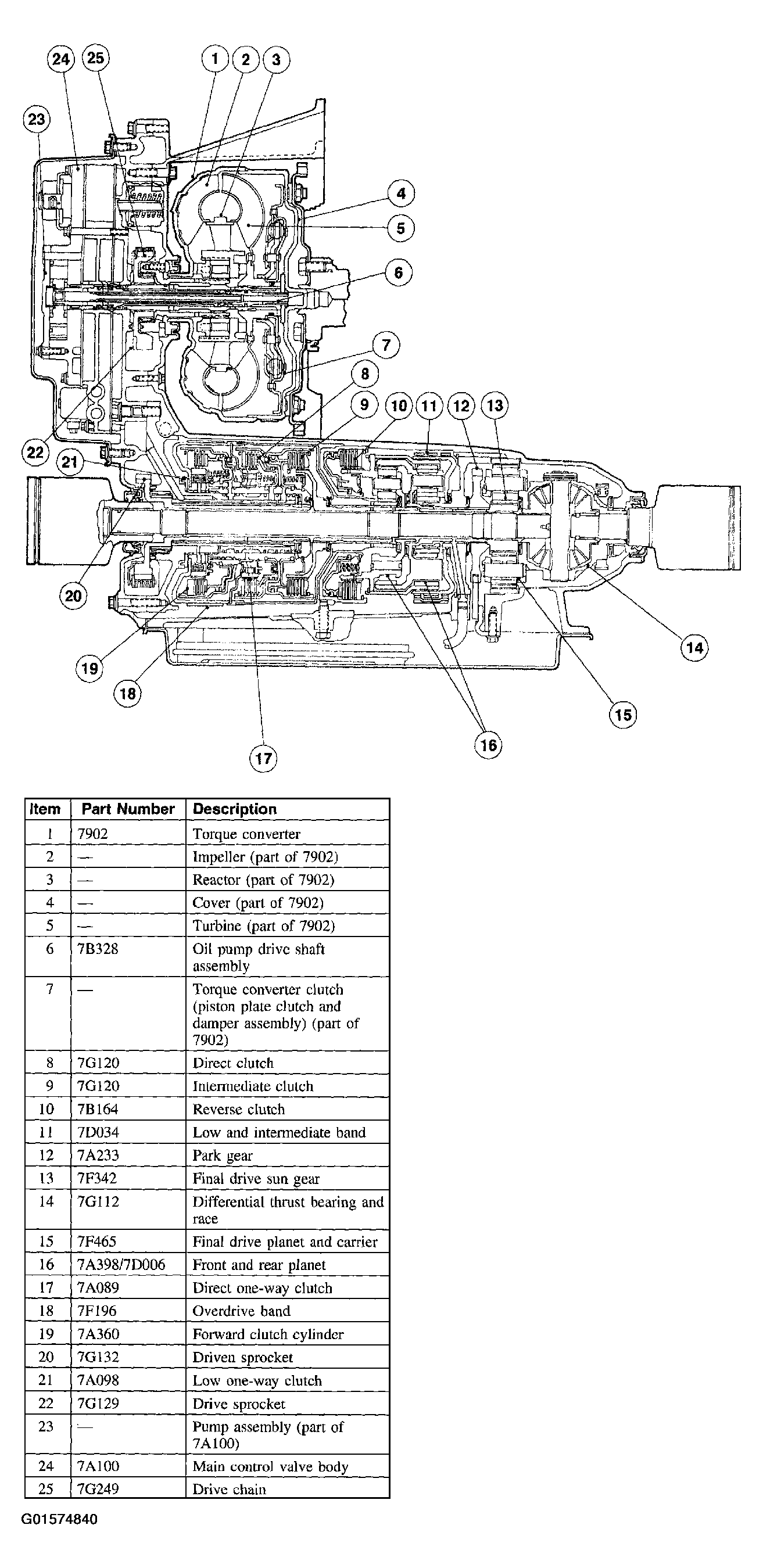

Fig 1: Identifying Main Components And Functions
G01574840Courtesy of FORD MOTOR CO.
