Specifications
>>
Torque Specifications
Torque Specifications

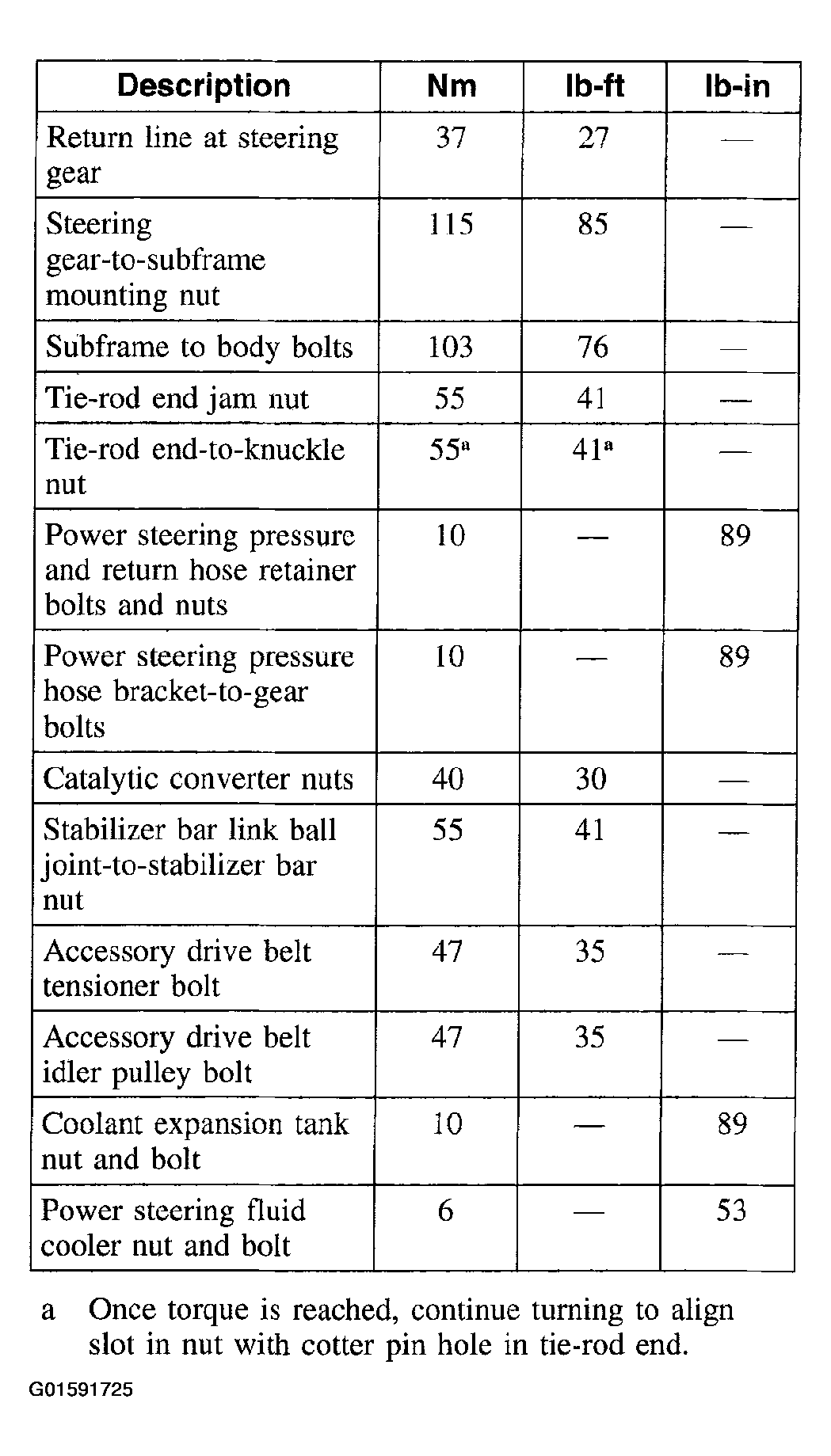

Fig 1: Power Steering Torque Specifications Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

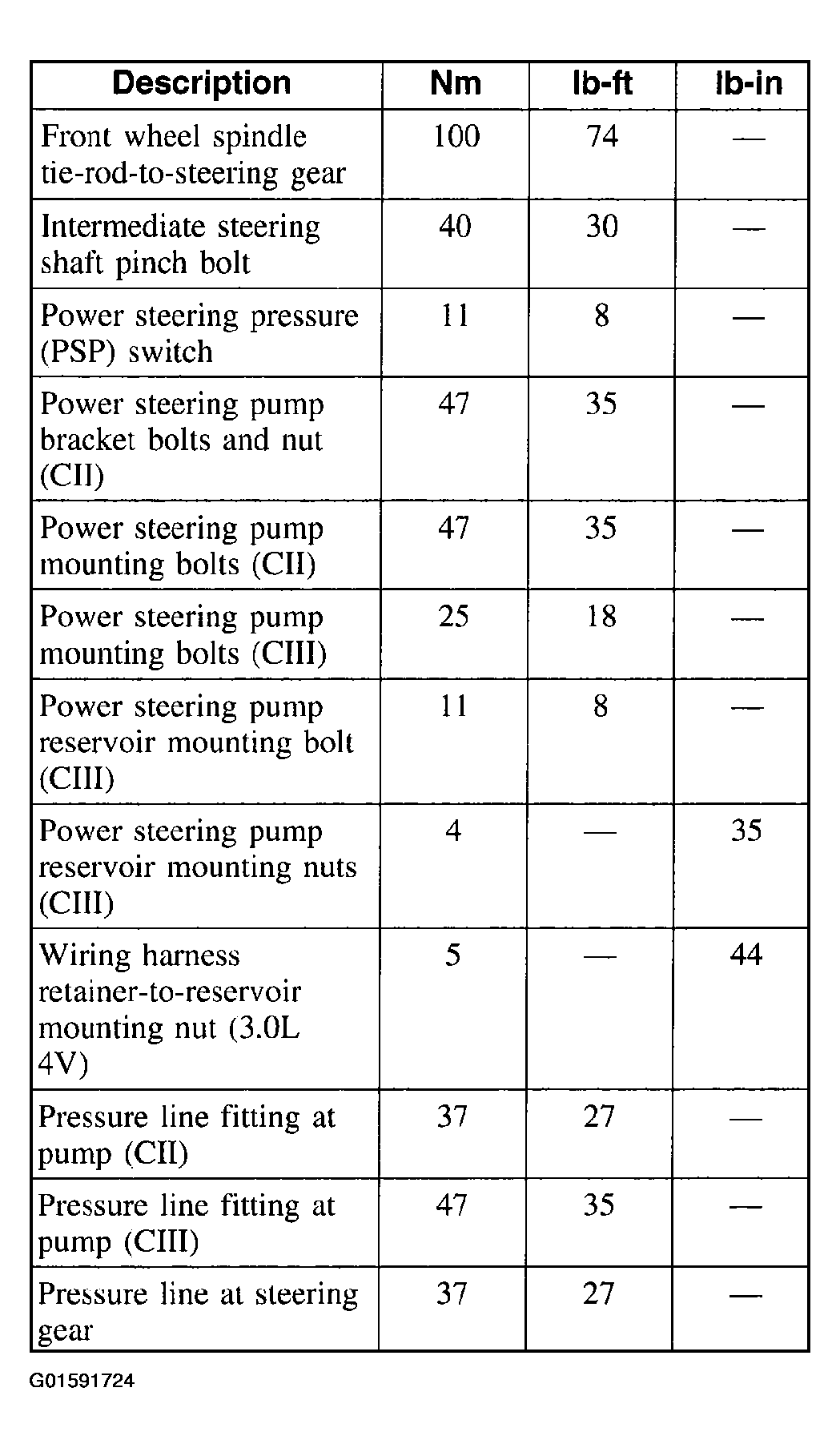

Fig 2: Power Steering Torque Specifications Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
