LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2003
>>
Taurus SES, 3.0 2, 4F50N
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Exhaust System
>>
Specifications
>>
Torque Specifications
Torque Specifications

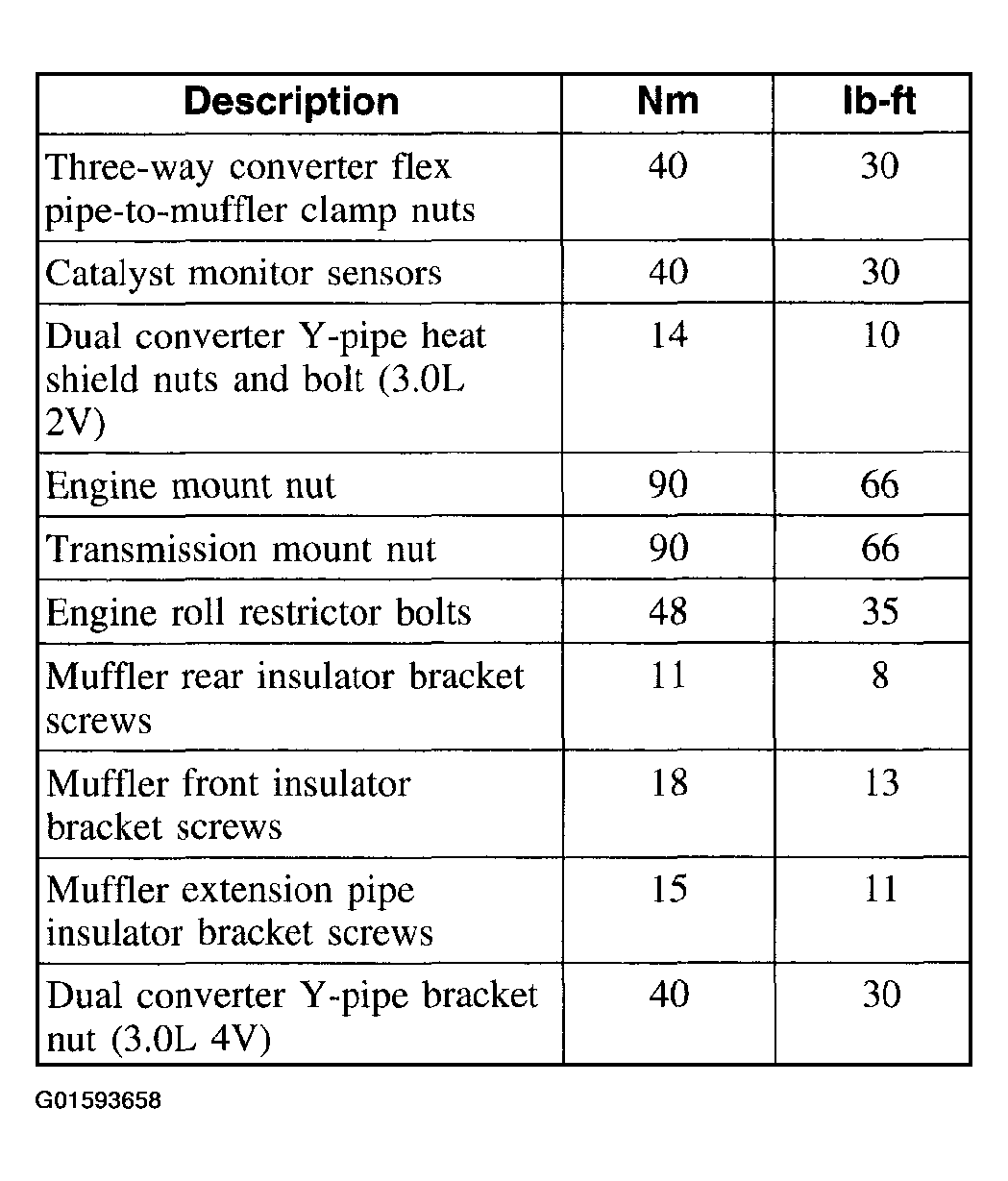

Fig 1: Torque Specifications Table (1 Of 2)
Courtesy of FORD MOTOR CO.

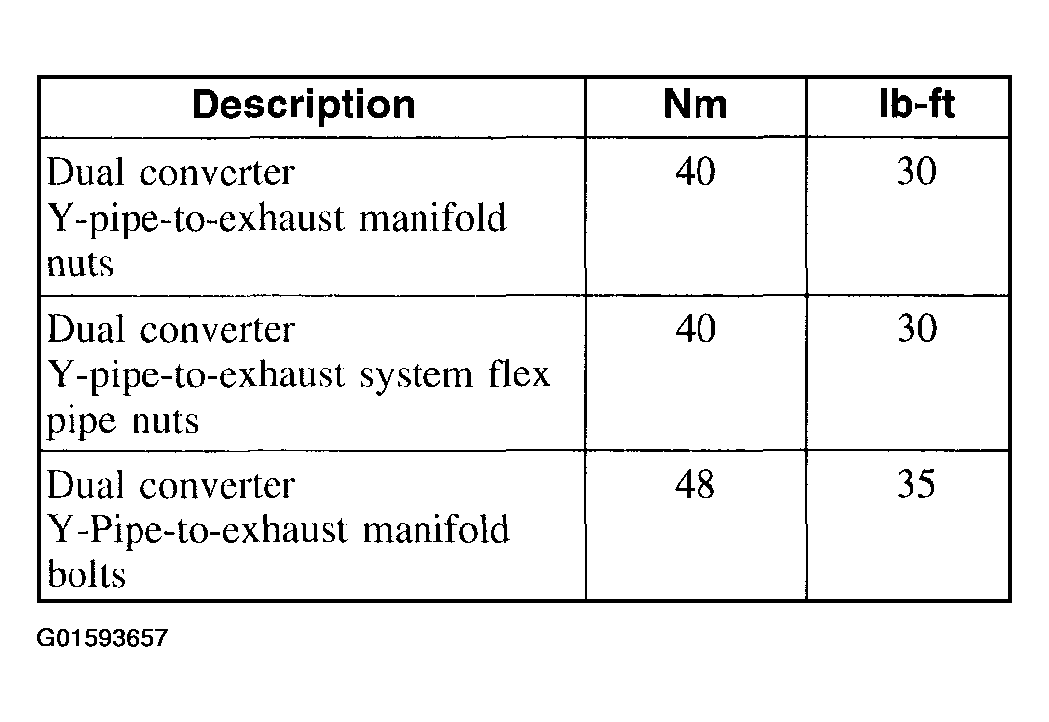

Fig 2: Torque Specifications Table (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
