Upper Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

Clean all the sealing surfaces.
Inspect the upper intake manifold gaskets. Install new gasket as necessary.

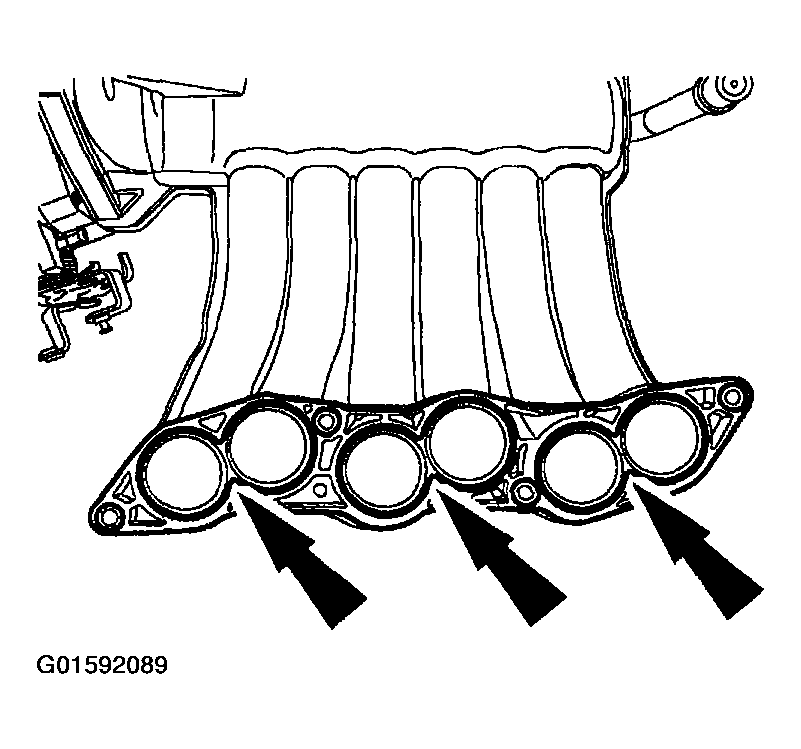

Fig 1: Identifying Upper Intake Manifold Gaskets
Courtesy of FORD MOTOR CO.
Install the upper intake manifold. Tighten bolts in two stages in the sequence shown.
1. Stage 1: Tighten the bolts hand tight.
2. Stage 2: Tighten the bolts to 10 Nm (89 lb-in).

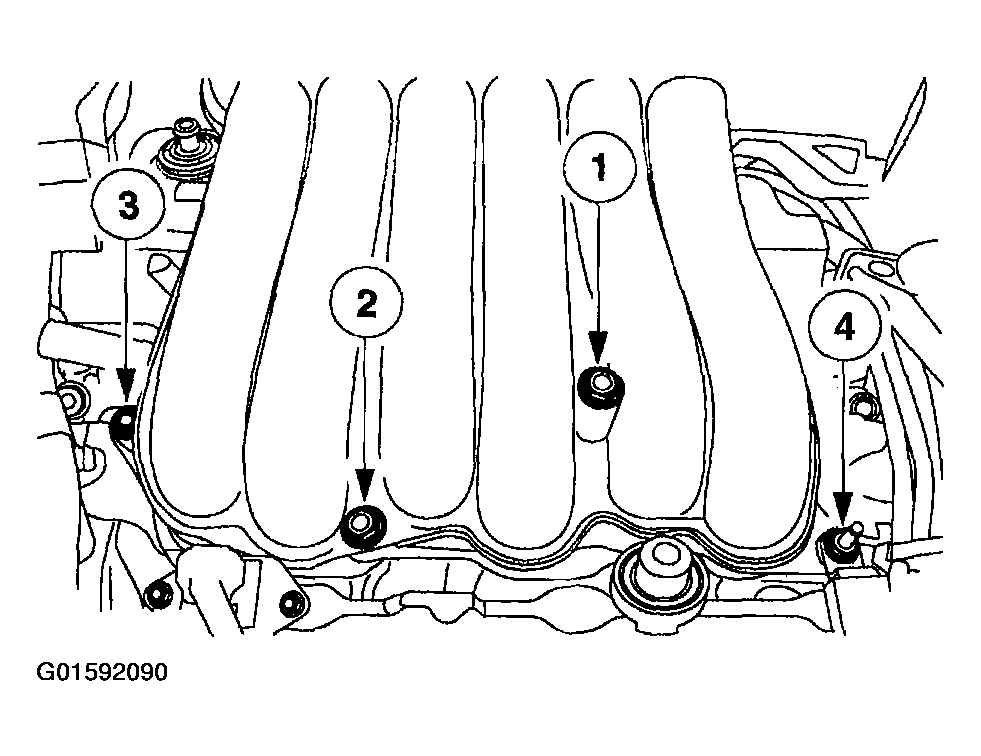

Fig 2: Identifying Bolts Of Upper Intake Manifold
Courtesy of FORD MOTOR CO.
Connect the spark plug holder and the radio interference capacitor electrical connector.

Fig 3: Connecting Spark Plug Holder And Radio Interference Capacitor Electrical Connector
Courtesy of FORD MOTOR CO.

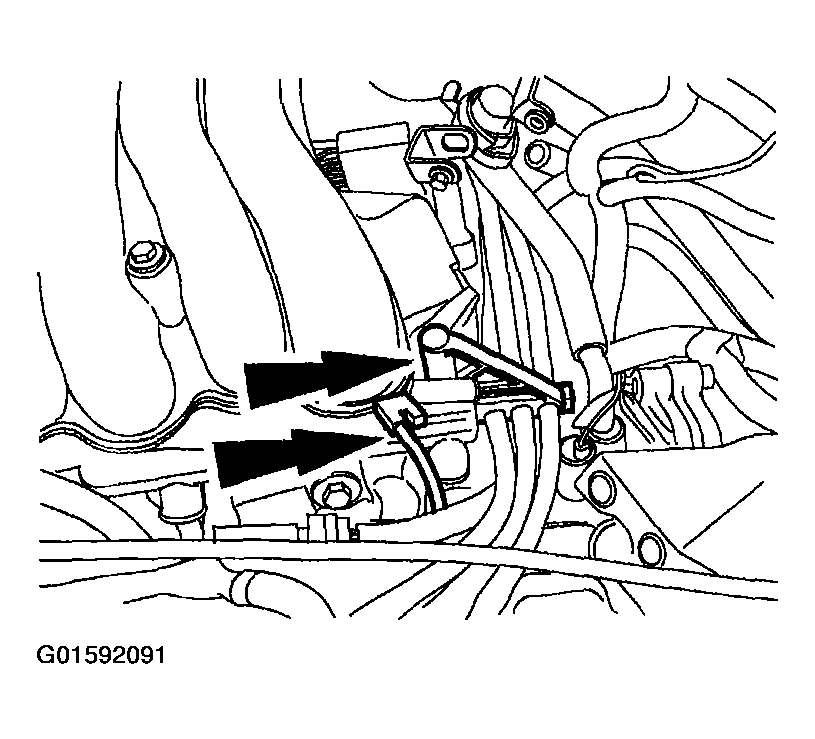

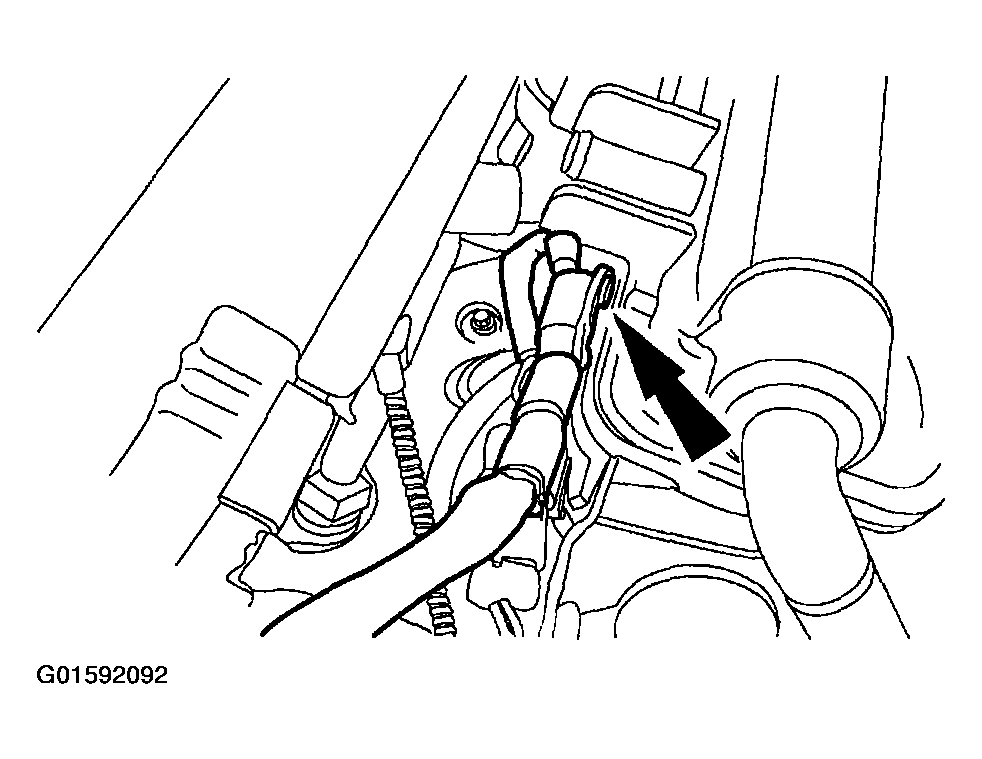

Connect the wire harness retaining clip.

Fig 4: Connecting Wire Harness Retaining Clip
Courtesy of FORD MOTOR CO.

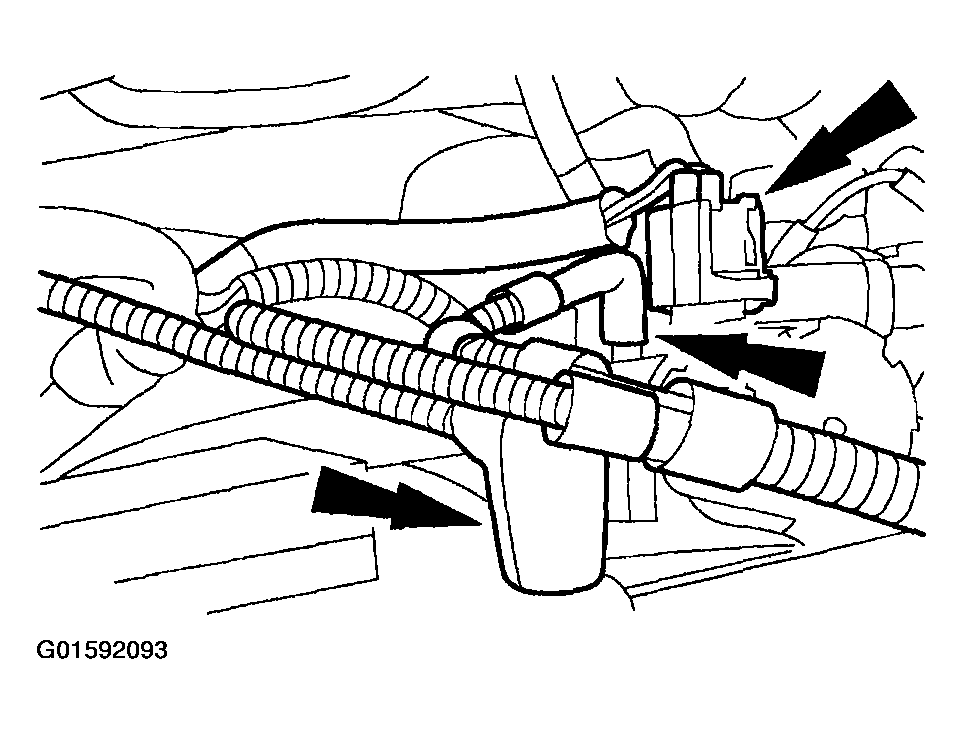

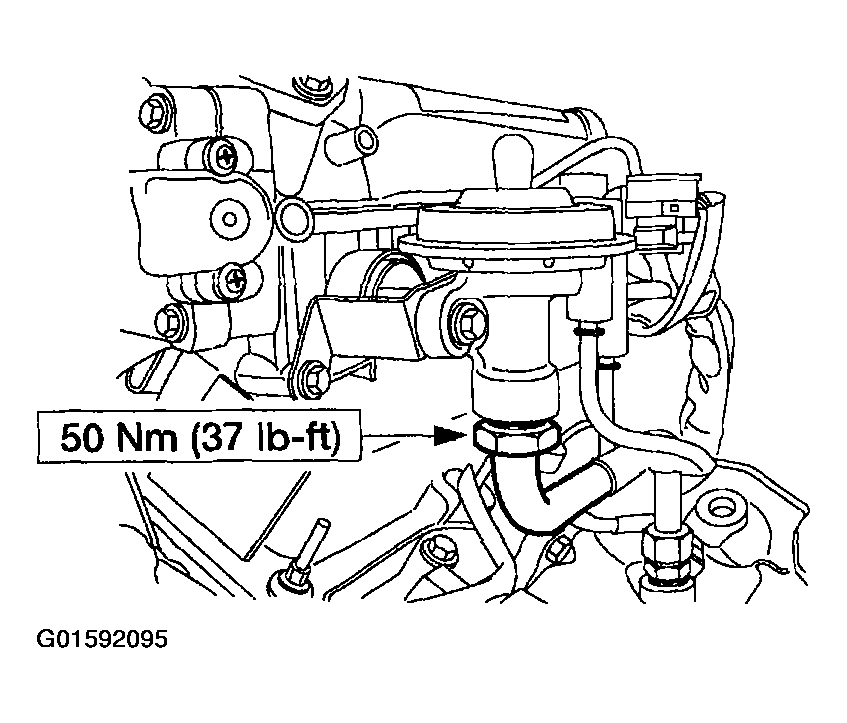

Connect the vacuum regulator solenoid vacuum and electrical connections. Connect the vacuum hose to the upper intake manifold.

Fig 5: Connecting Vacuum Regulator Solenoid Vacuum And Electrical Connections
Courtesy of FORD MOTOR CO.

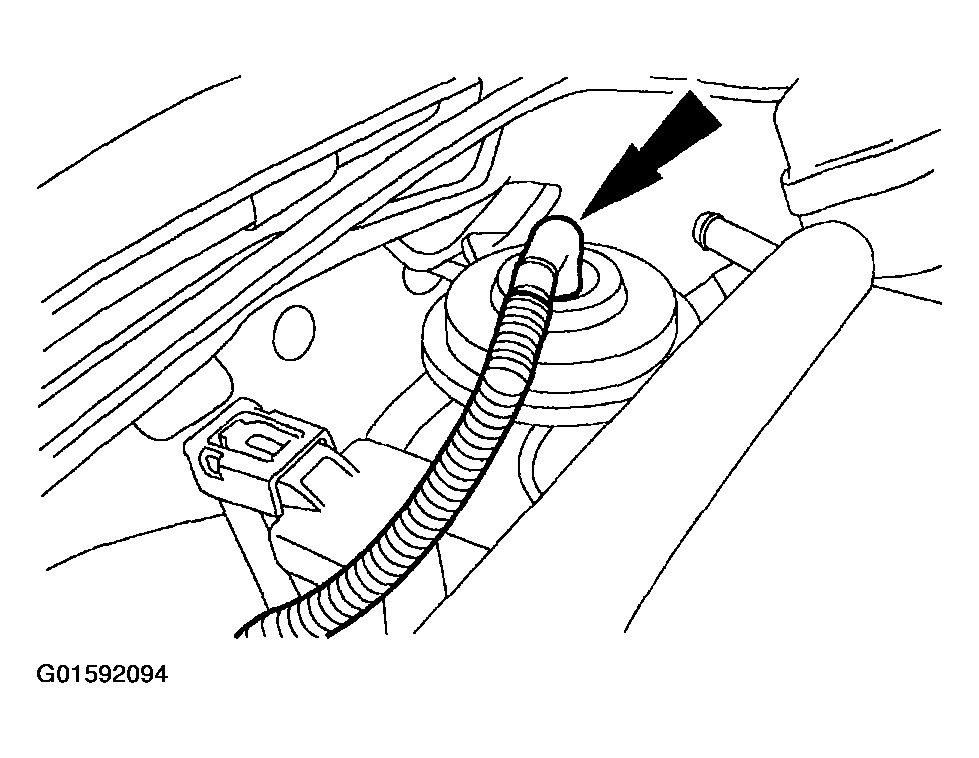

Connect the vacuum hose to the EGR valve.

Fig 6: Connecting Vacuum Hose
Courtesy of FORD MOTOR CO.
Connect the EGR tube to the EGR valve.

Fig 7: Connecting EGR Tube Of Upper Intake Manifold
Courtesy of FORD MOTOR CO.
Connect the PCV tube to the upper intake manifold.

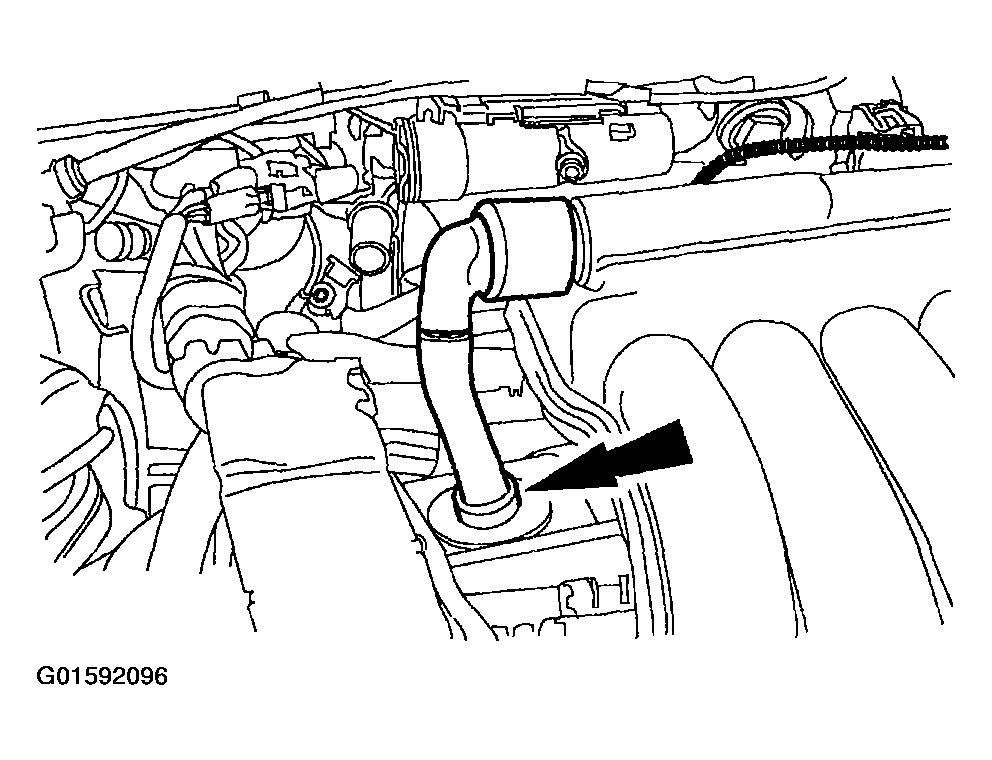

Fig 8: Connecting PCV Tube Of Upper Intake Manifold
Courtesy of FORD MOTOR CO.
Install the upper intake manifold support bracket.

Fig 9: Installing Upper Intake Manifold Support Bracket
Courtesy of FORD MOTOR CO.

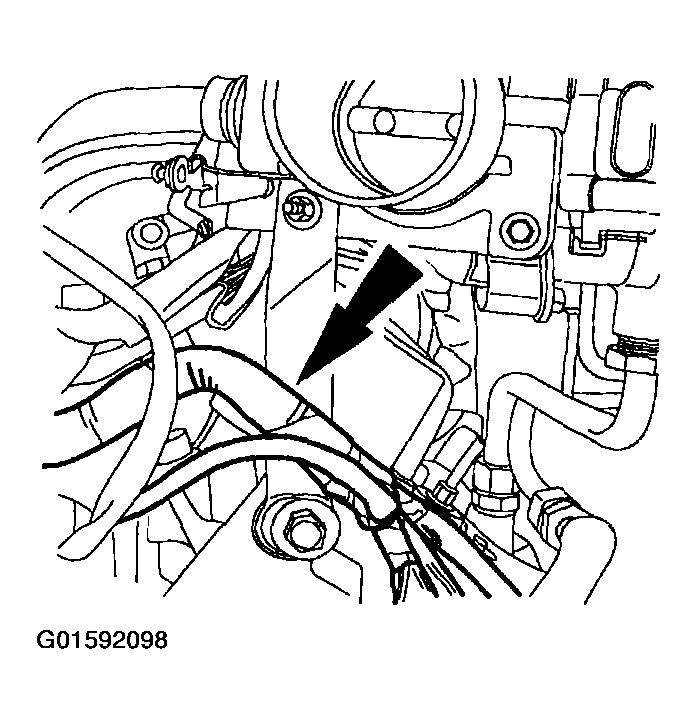

Connect the engine wiring harness to the intake manifold support bracket.

Fig 10: Connecting Engine Wiring Harness Of Upper Intake Manifold
Courtesy of FORD MOTOR CO.

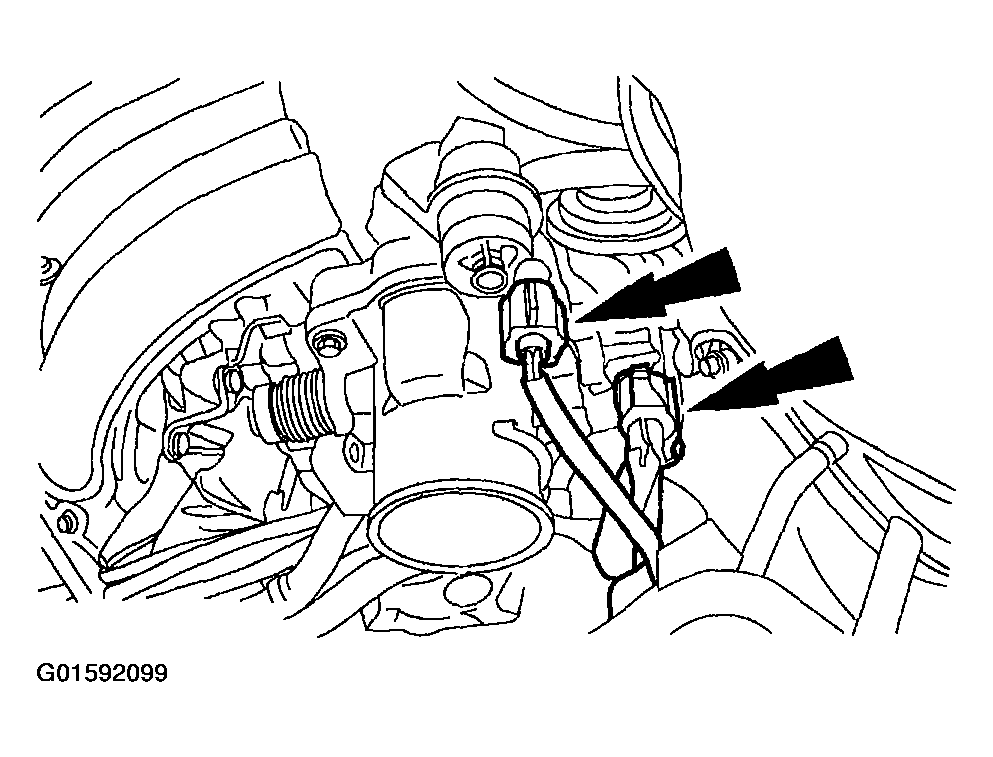

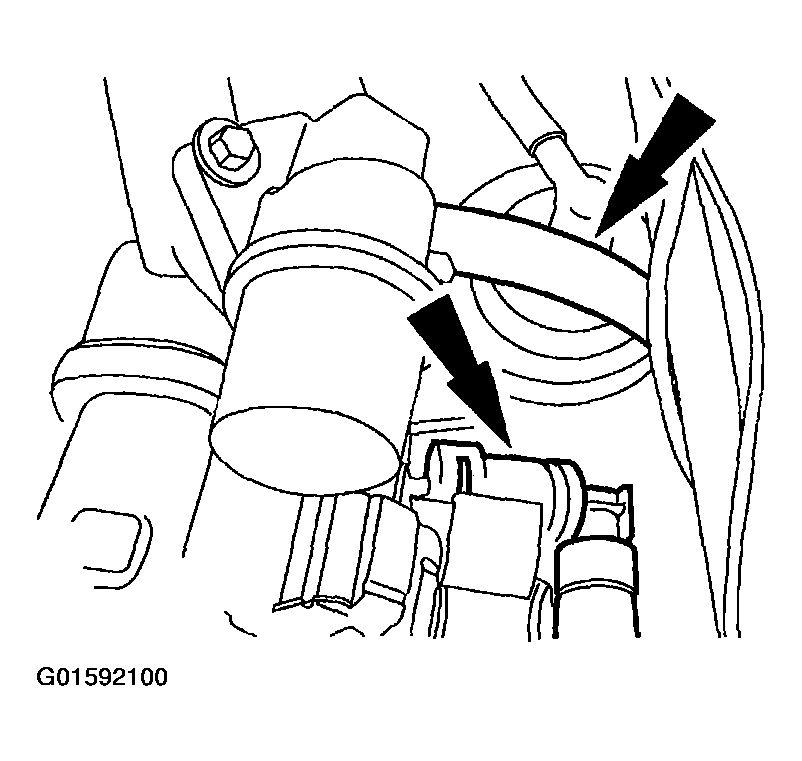

Connect the IAC and TP sensor electrical connectors.

Fig 11: Connecting IAC And TP Sensor Electrical Connectors Of Upper Intake Manifold
Courtesy of FORD MOTOR CO.
Connect the evaporative emissions return tube and the vacuum hose.

Fig 12: Connecting Evaporative Emissions Return Tube And Vacuum Hose
Courtesy of FORD MOTOR CO.

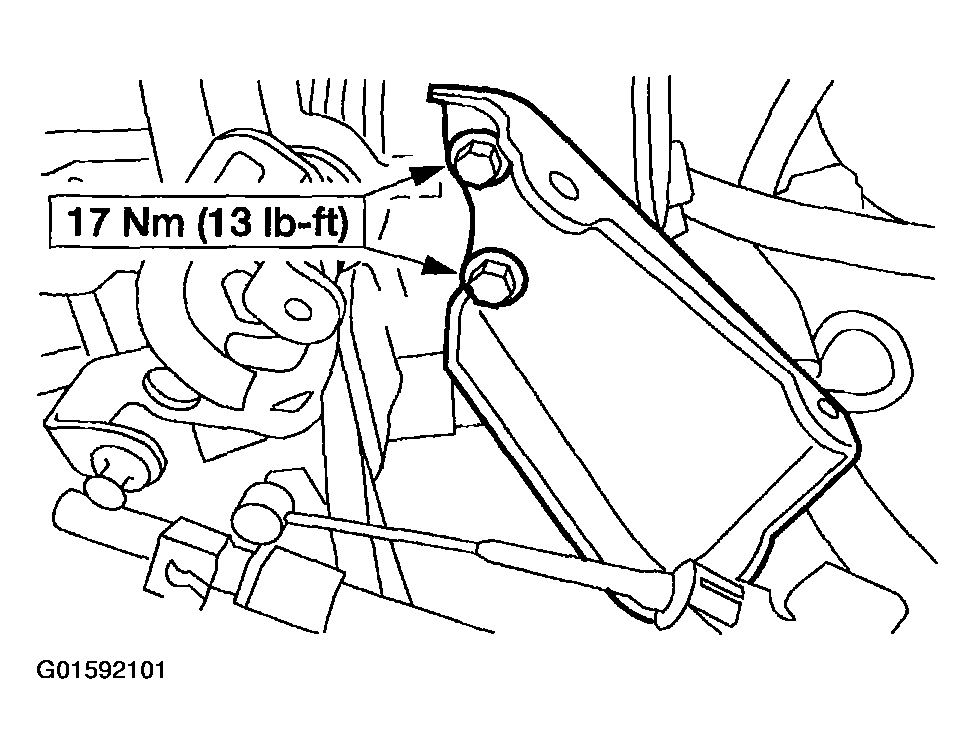

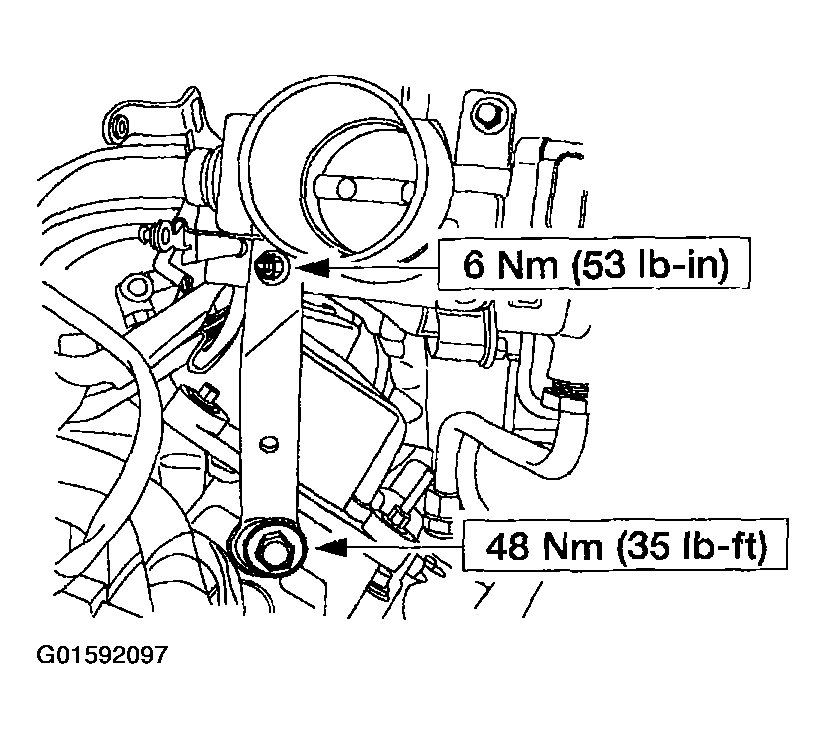

Position the accelerator cable bracket and install the bolts.

Fig 13: Positioning Bolts Of Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.

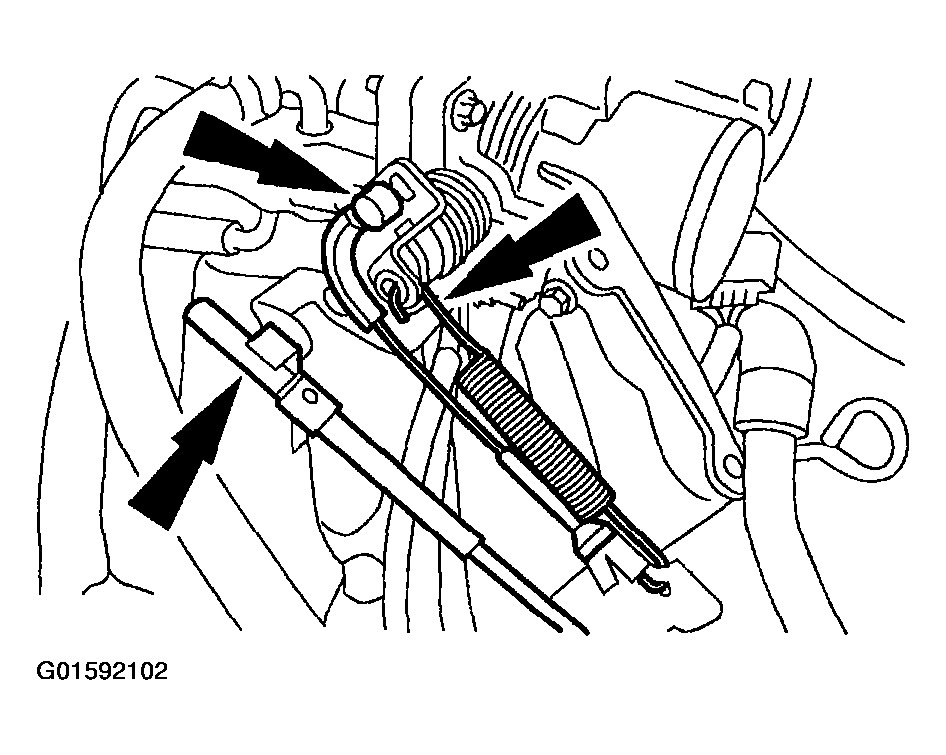

Connect the accelerator control cable, speed control cable and the throttle return spring.

Fig 14: Connecting Accelerator Control Cable, Speed Control Cable And Throttle Return Spring
Courtesy of FORD MOTOR CO.

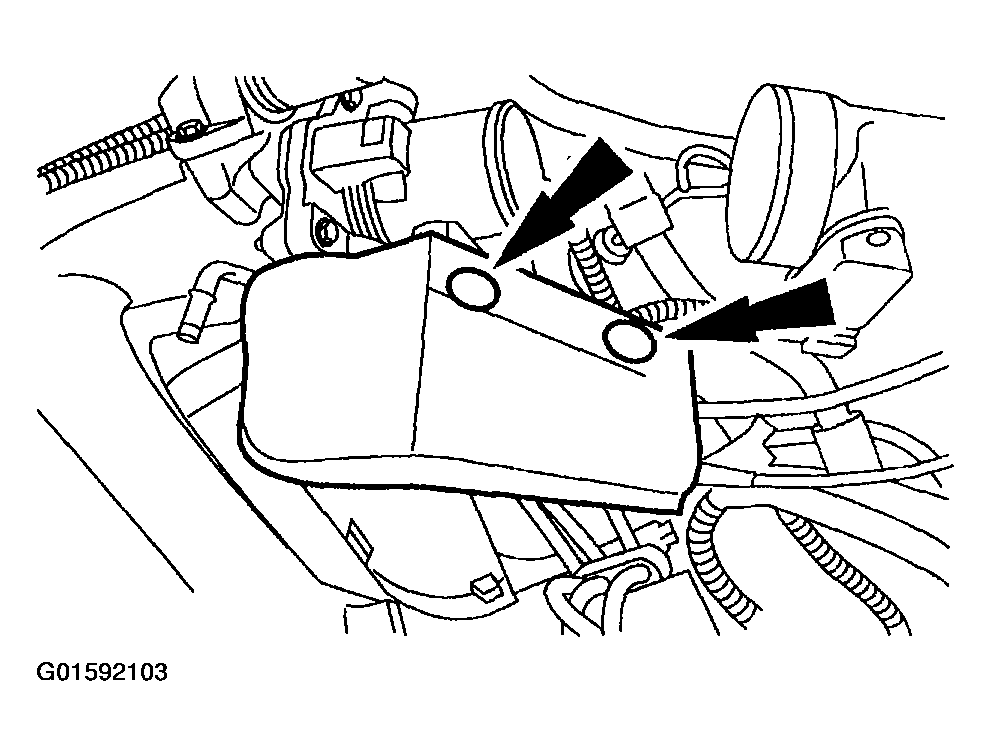

Install the snow shield.

Fig 15: Installing Snow Shield
Courtesy of FORD MOTOR CO.
Install the air cleaner assembly and the air cleaner outlet tube. For additional information, refer to REMOVAL & INSTALLATION .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
