Major Upper Engine Components

WARNING: This page is about a different variant/trim than selected.

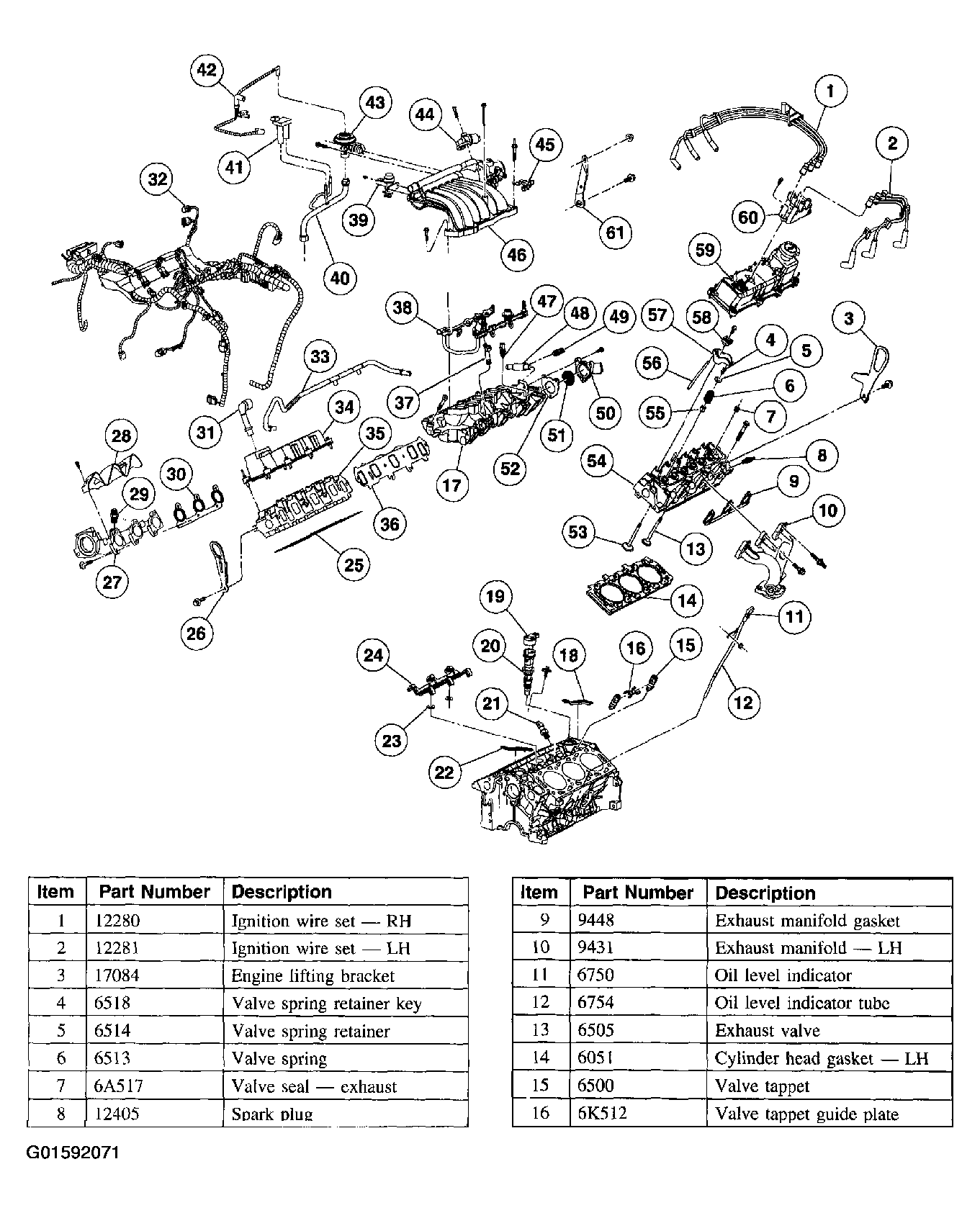

Fig 1: Locating Major Upper Engine Components
G01592071Courtesy of FORD MOTOR CO.

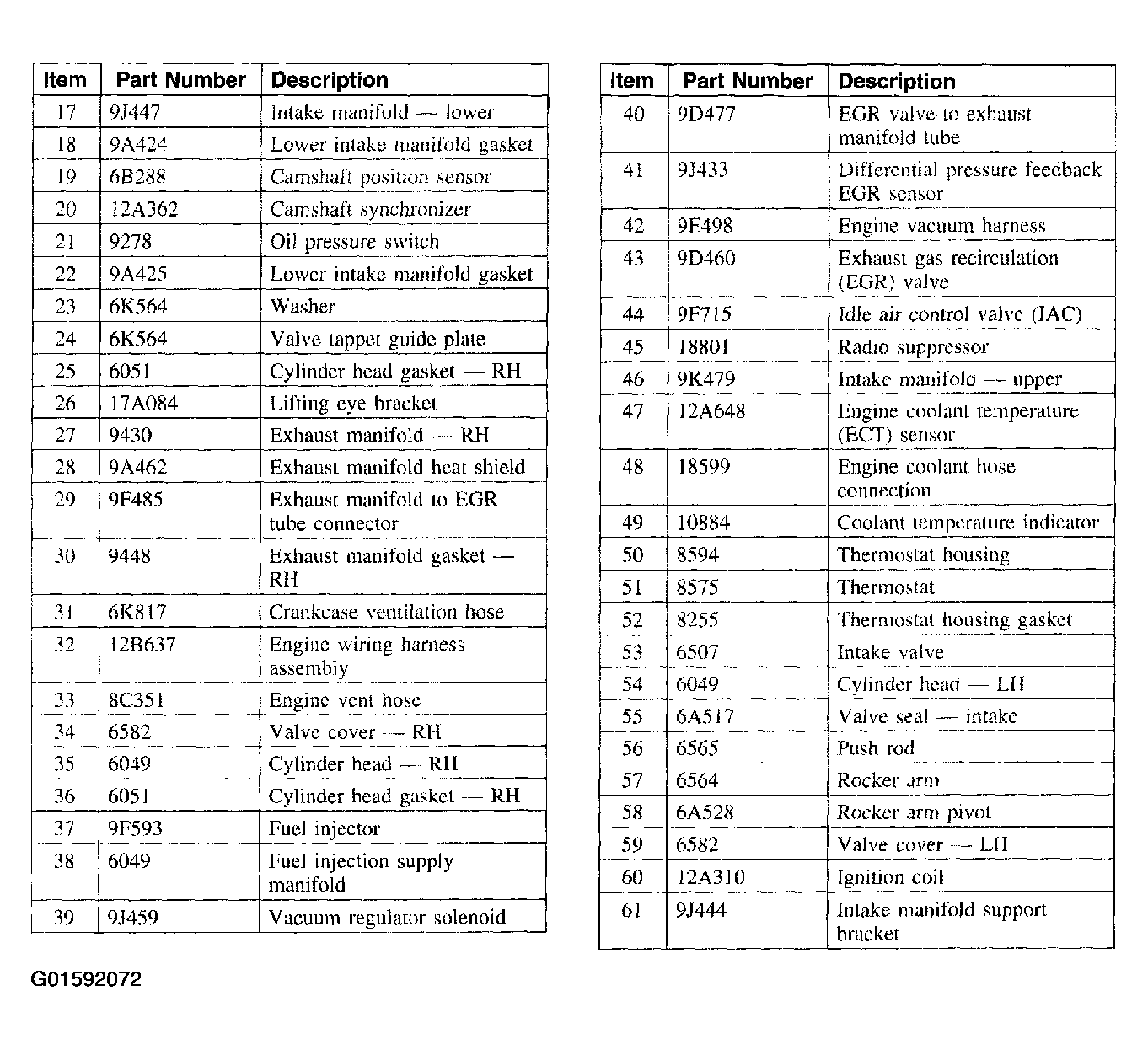

Fig 2: Identifying Parts Description Table
G01592072Courtesy of FORD MOTOR CO.
