Camshaft Lobe Lift

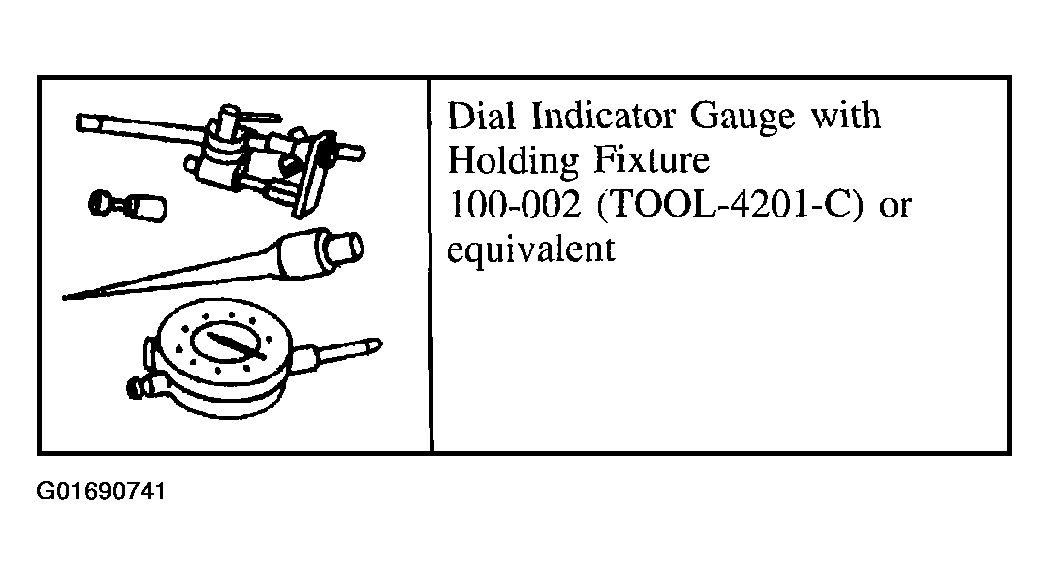

Fig 1: Identifying Special Tool
G01690741Courtesy of FORD MOTOR CO.
  1. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft intake/exhaust lobe lift.
    • Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading to figure the camshaft lobe lift.
    • Refer to the appropriate ENGINE article for the procedure.

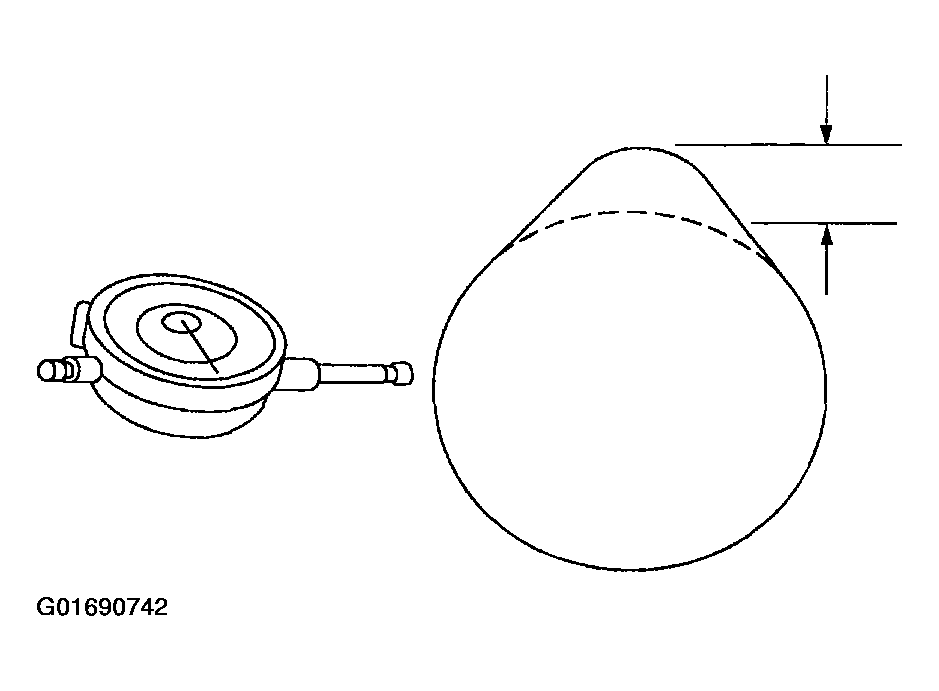

    Fig 2: Measuring Camshaft Intake/Exhaust Lobe
    G01690742Courtesy of FORD MOTOR CO.
