Lamp Assembly - Map/Dome: Removal

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the lamp lens from the lamp assembly.

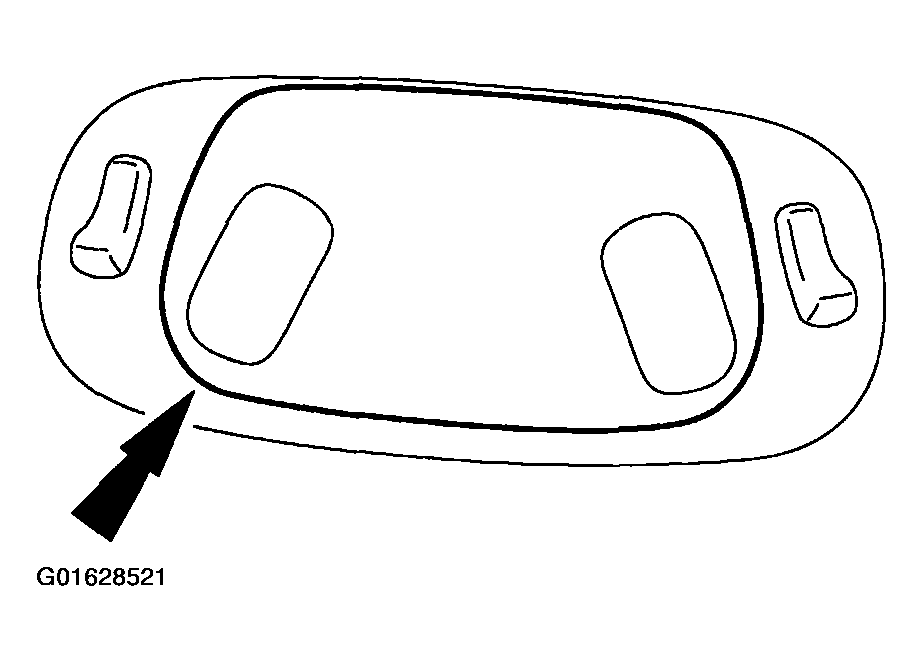

    Fig 1: Removing Lamp Lens From Lamp Assembly
    G01628521Courtesy of FORD MOTOR CO.
  3. Remove the lamp assembly.
    1. Remove the screws.
    2. Remove the lamp assembly.
    • Disconnect the electrical connectors.

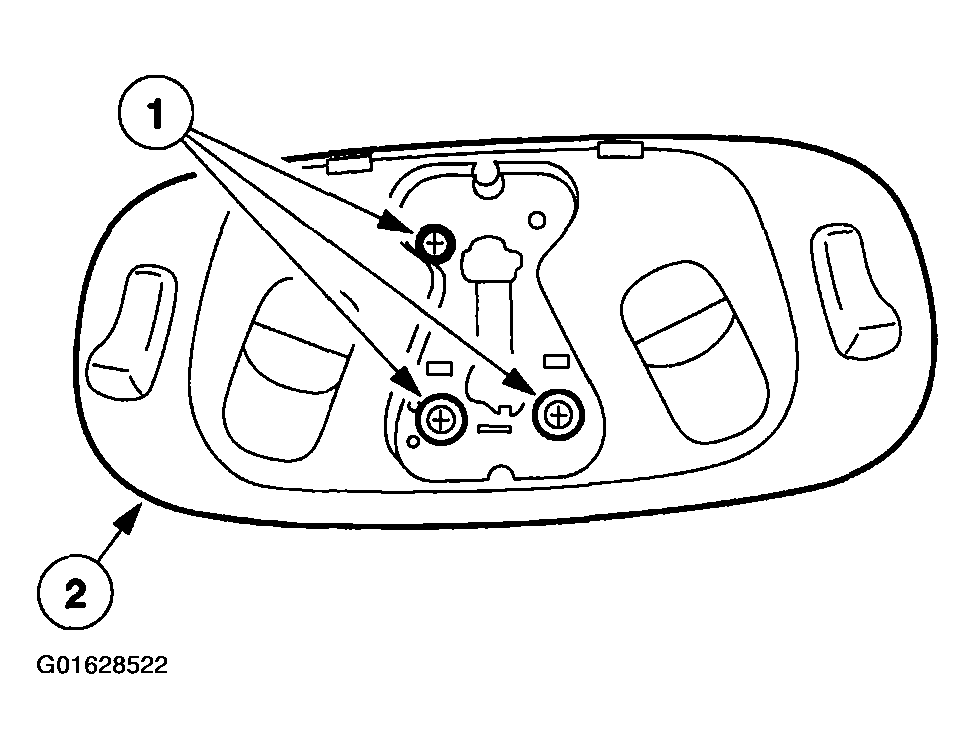

    Fig 2: Removing Lamp Assembly
    G01628522Courtesy of FORD MOTOR CO.
