Symptom Chart: Notes

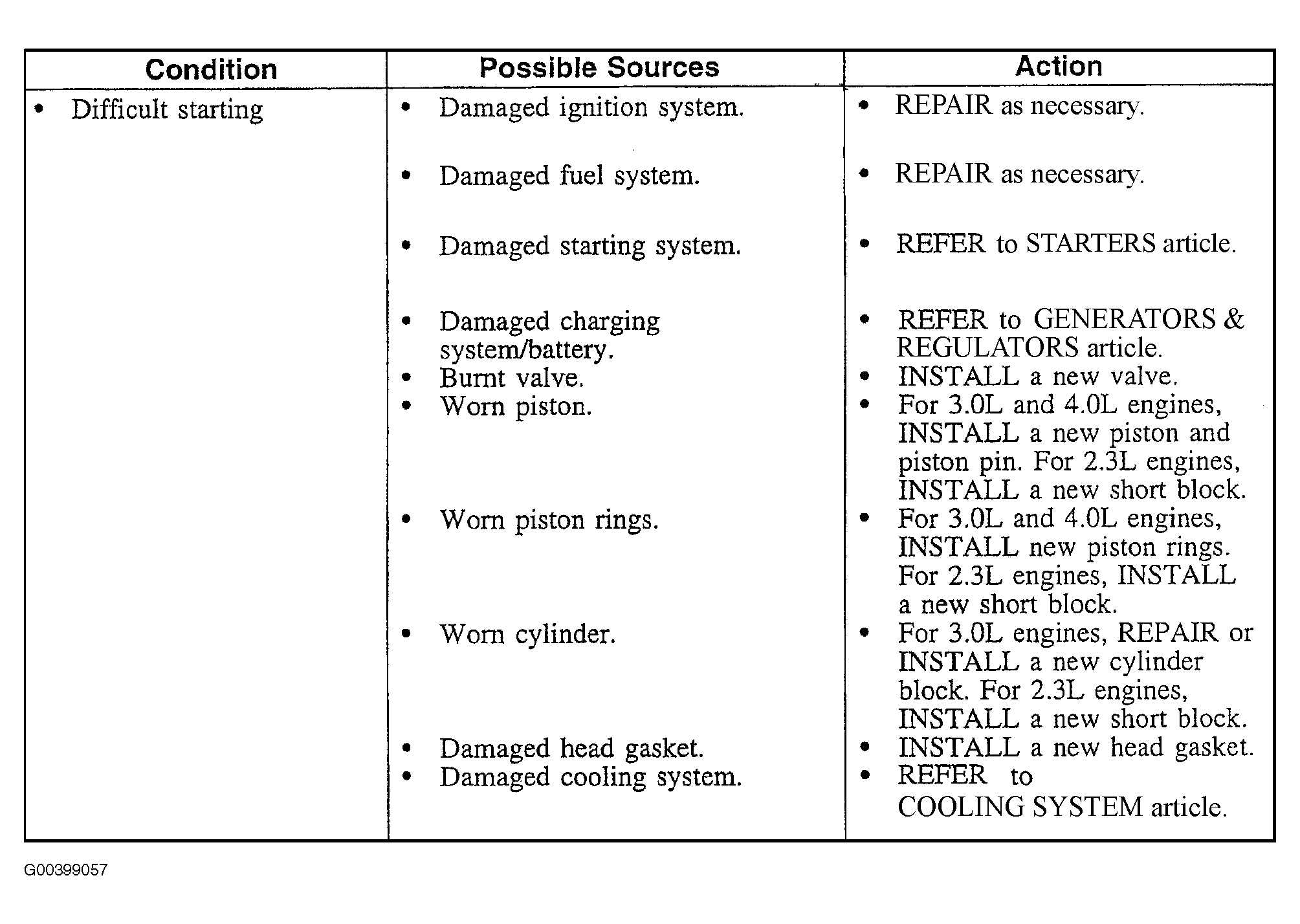

Fig 1: Symptom Chart (1 Of 6)
G00399057Courtesy of FORD MOTOR CO.
Fig 2: Symptom Chart (2 Of 6)
G00399058Courtesy of FORD MOTOR CO.

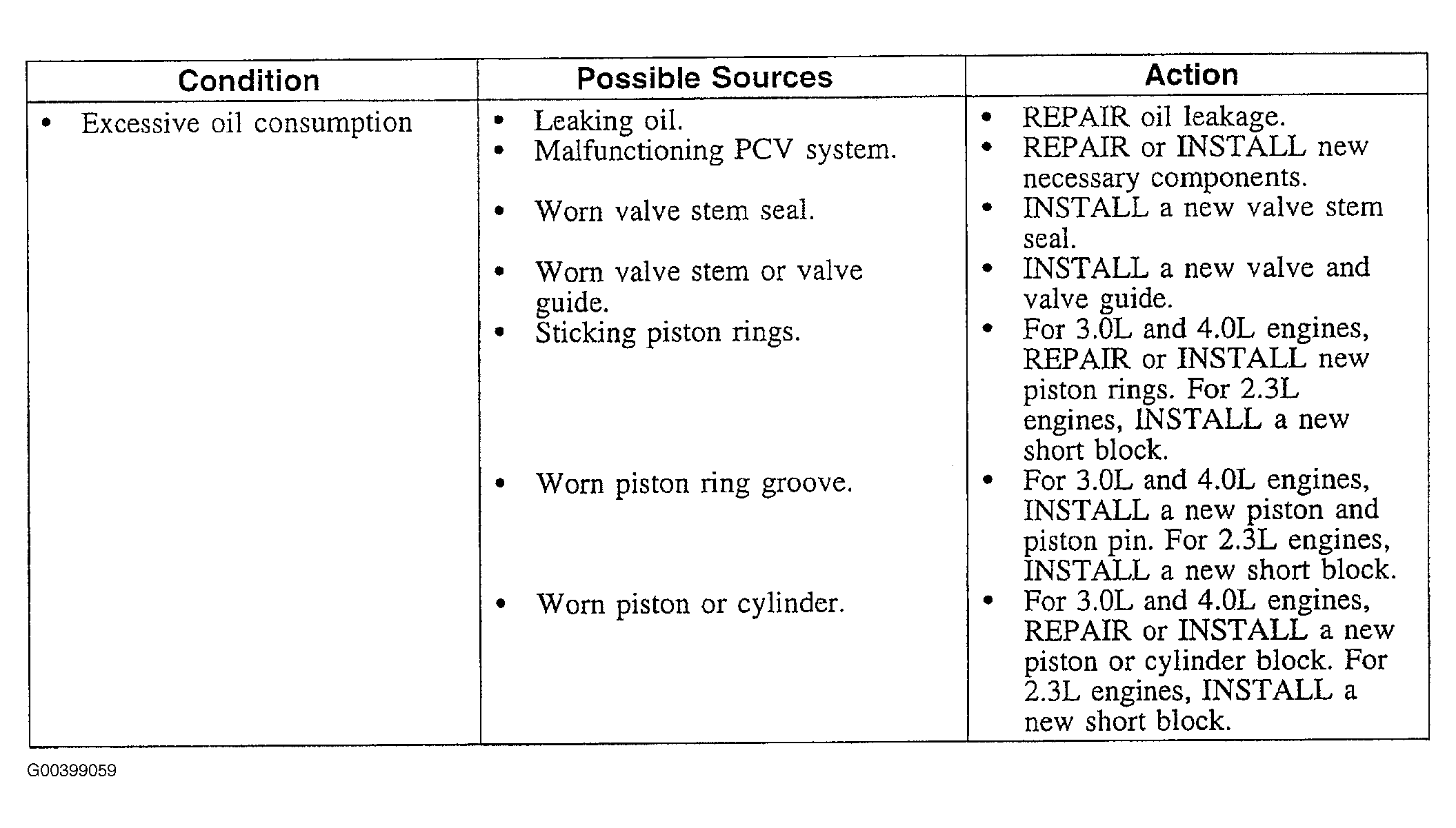

Fig 3: Symptom Chart (3 Of 6)
G00399059Courtesy of FORD MOTOR CO.

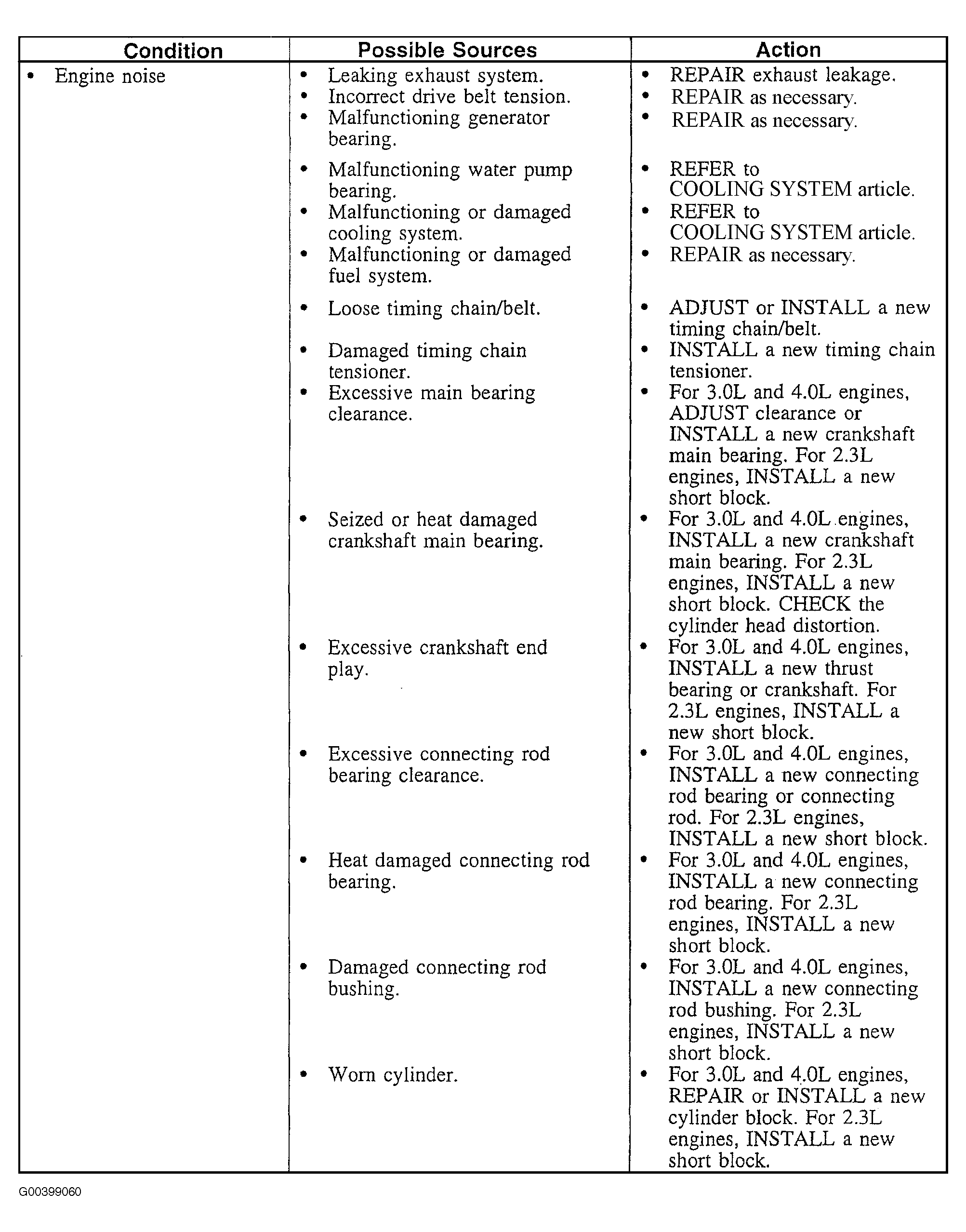

Fig 4: Symptom Chart (4 Of 6)
G00399060Courtesy of FORD MOTOR CO.

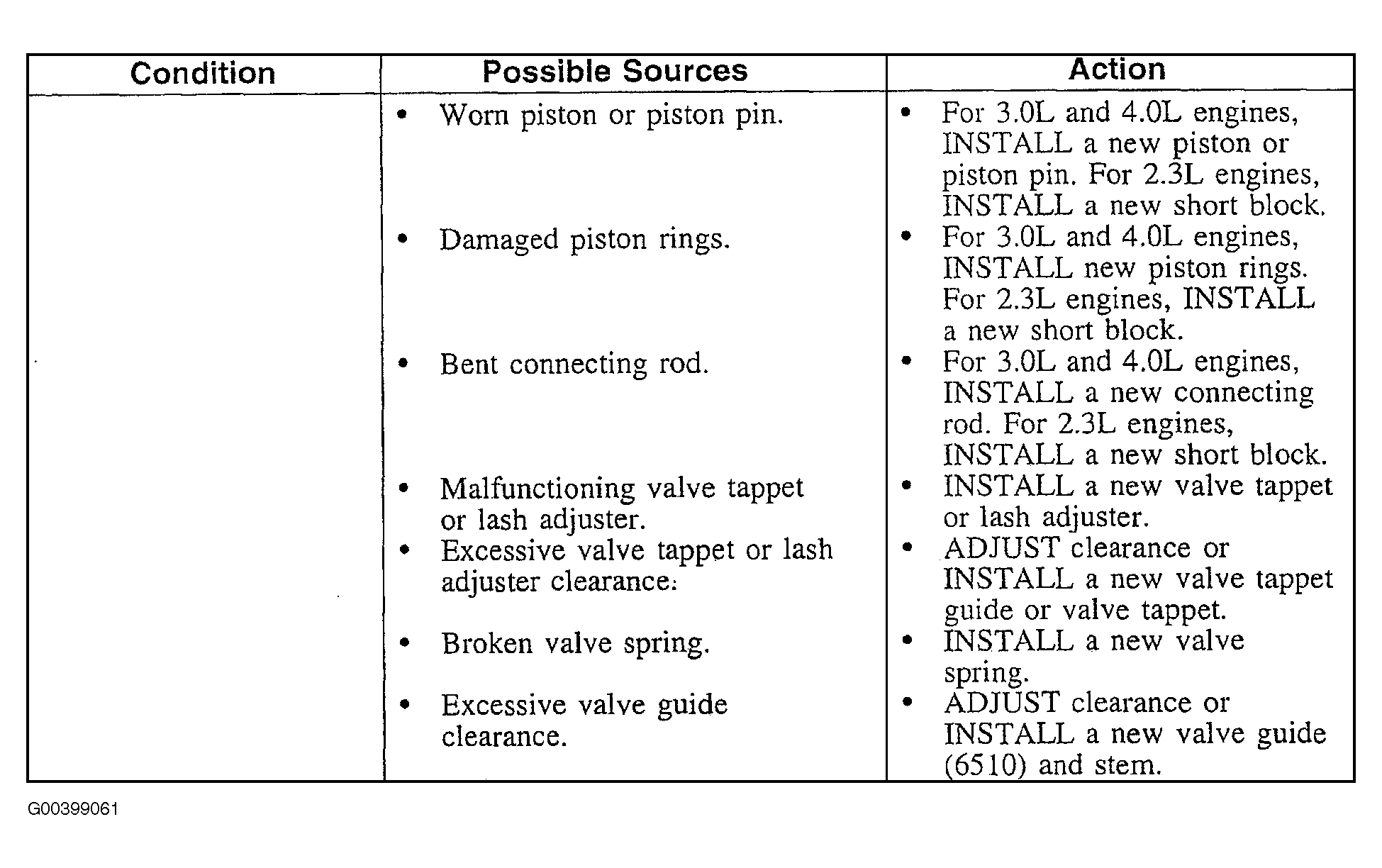

Fig 5: Symptom Chart (5 Of 6)
G00399061Courtesy of FORD MOTOR CO.

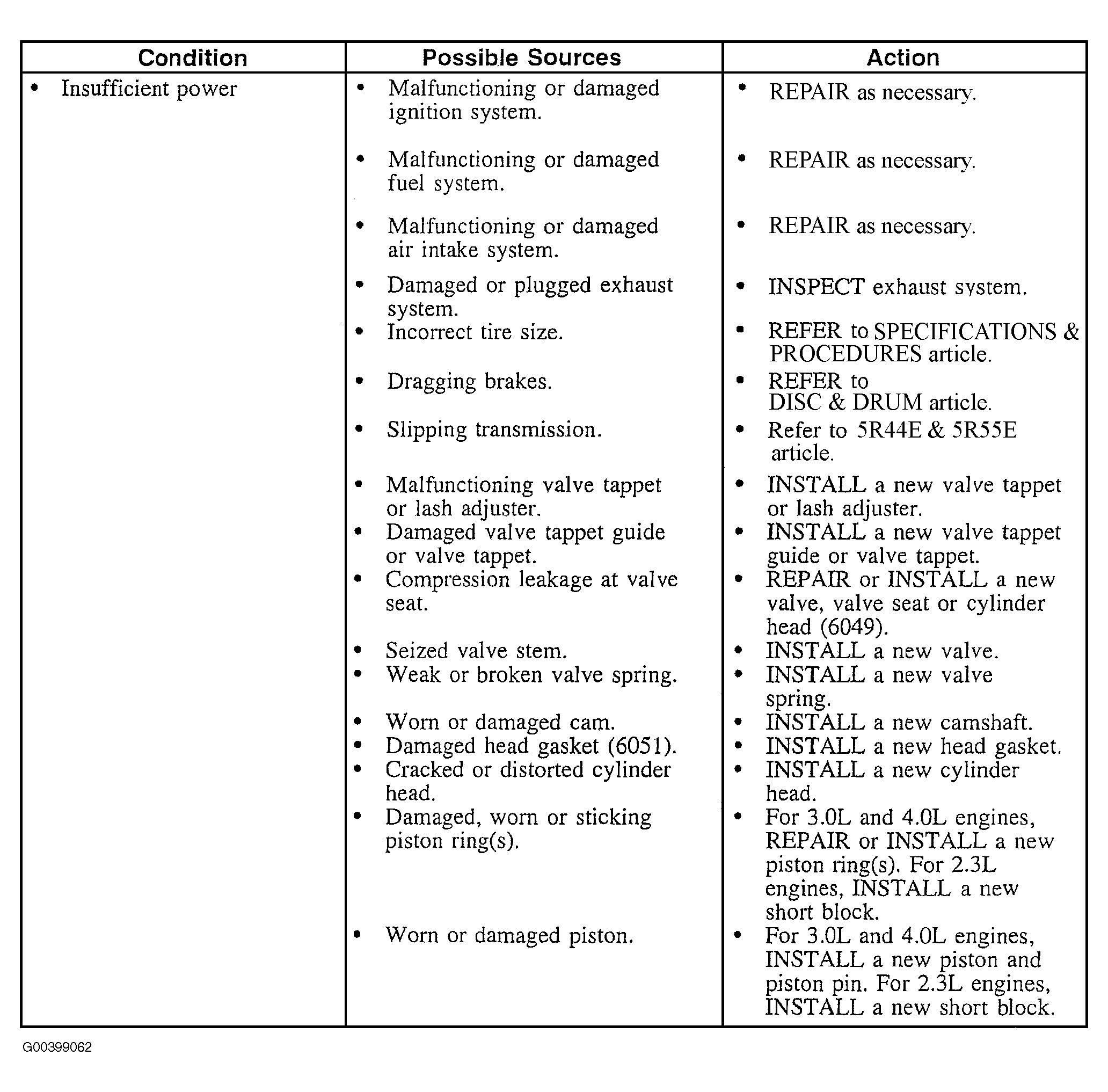

Fig 6: Symptom Chart (6 Of 6)
G00399062Courtesy of FORD MOTOR CO.
