Connecting Rod - Bend

  1. Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
    • If out of specification, install new components as necessary.

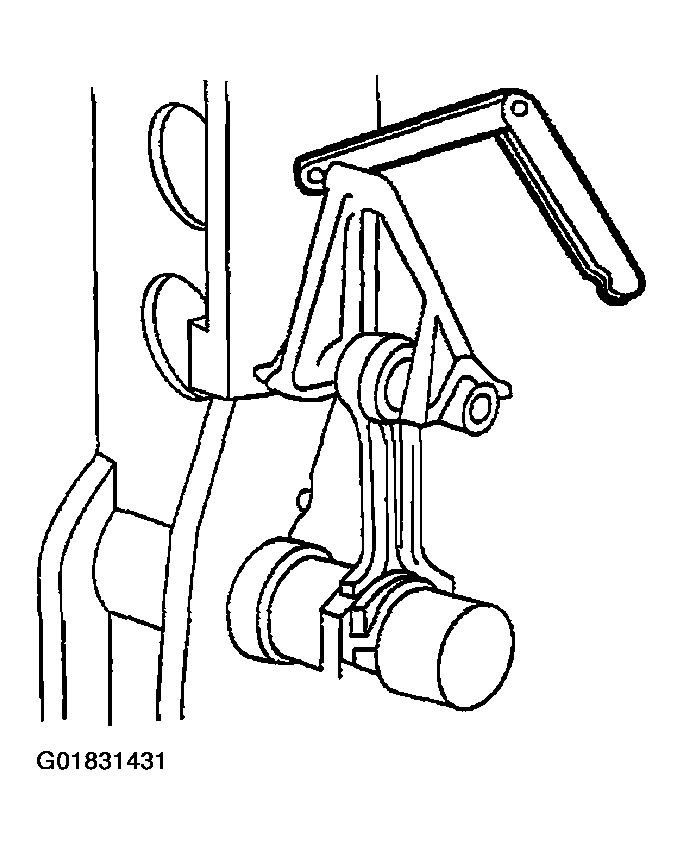

    Fig 1: Measuring Connecting Rod Bend
    G01831431Courtesy of FORD MOTOR CO.
