Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Control Module

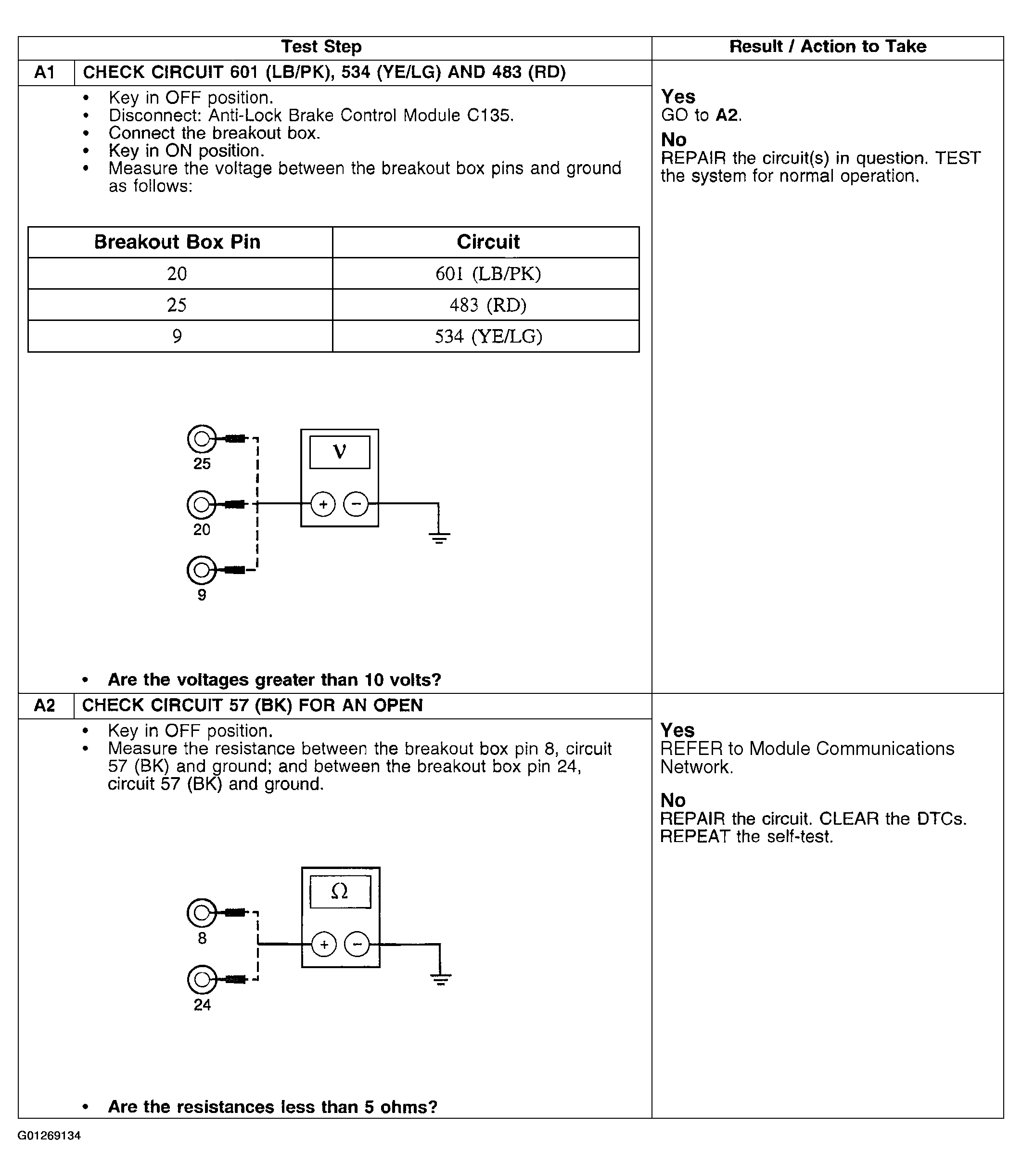

Fig 1: Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Control Module
G01269134Courtesy of FORD MOTOR CO.
