Anti-Lock Brake Control Module Parameter Identification (PID) Index
Anti-Lock Brake Control Module Parameter Identification (PID) Index

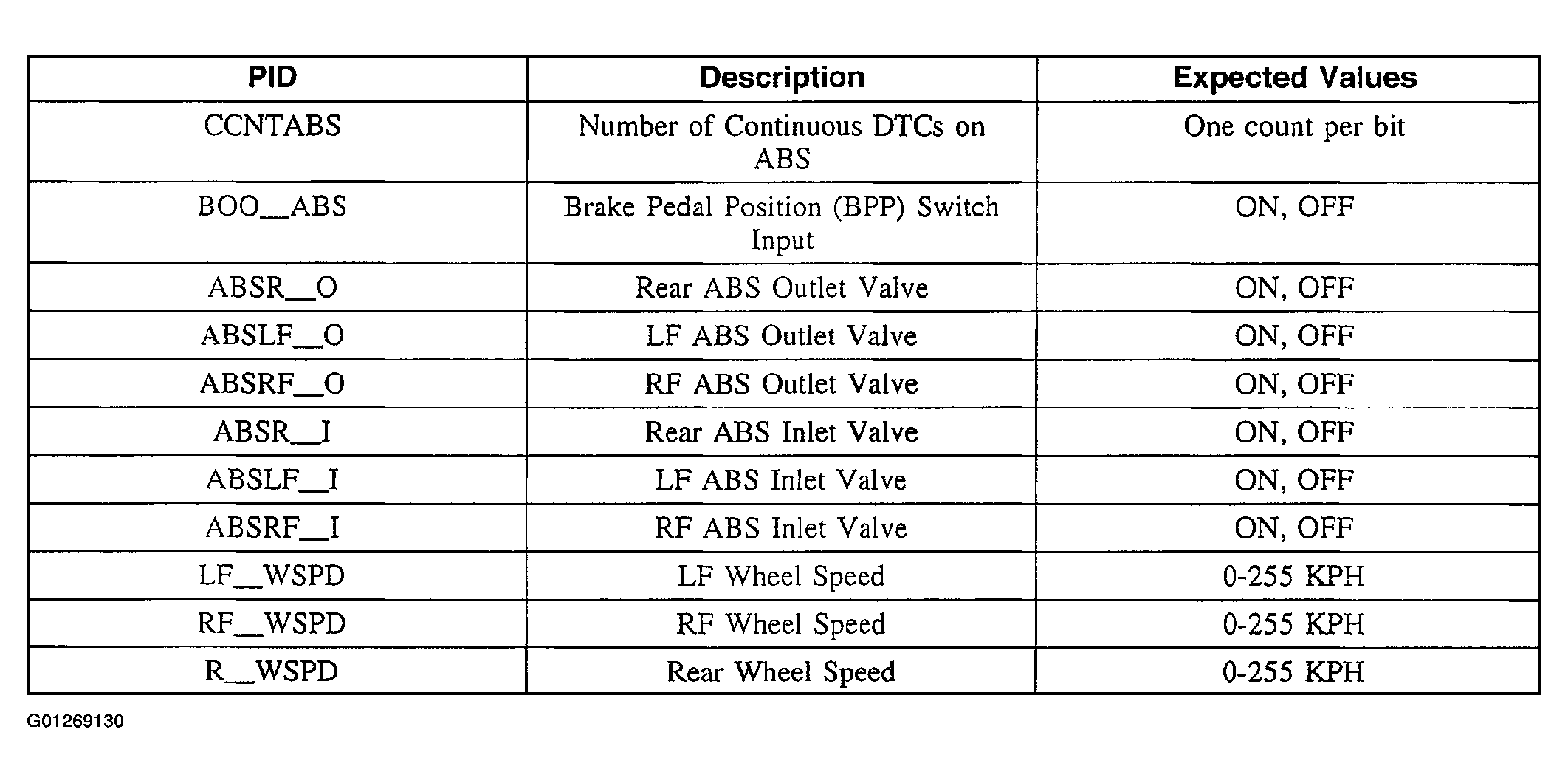

Fig 1: Anti-Lock Brake Control Module Parameter Identification (PID) Index Table
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
