Automatic Transmission
>>
Specifications
>>
Shift Speed
Shift Speed
NOTE:
Shift speed ranges are approximate for all applications.

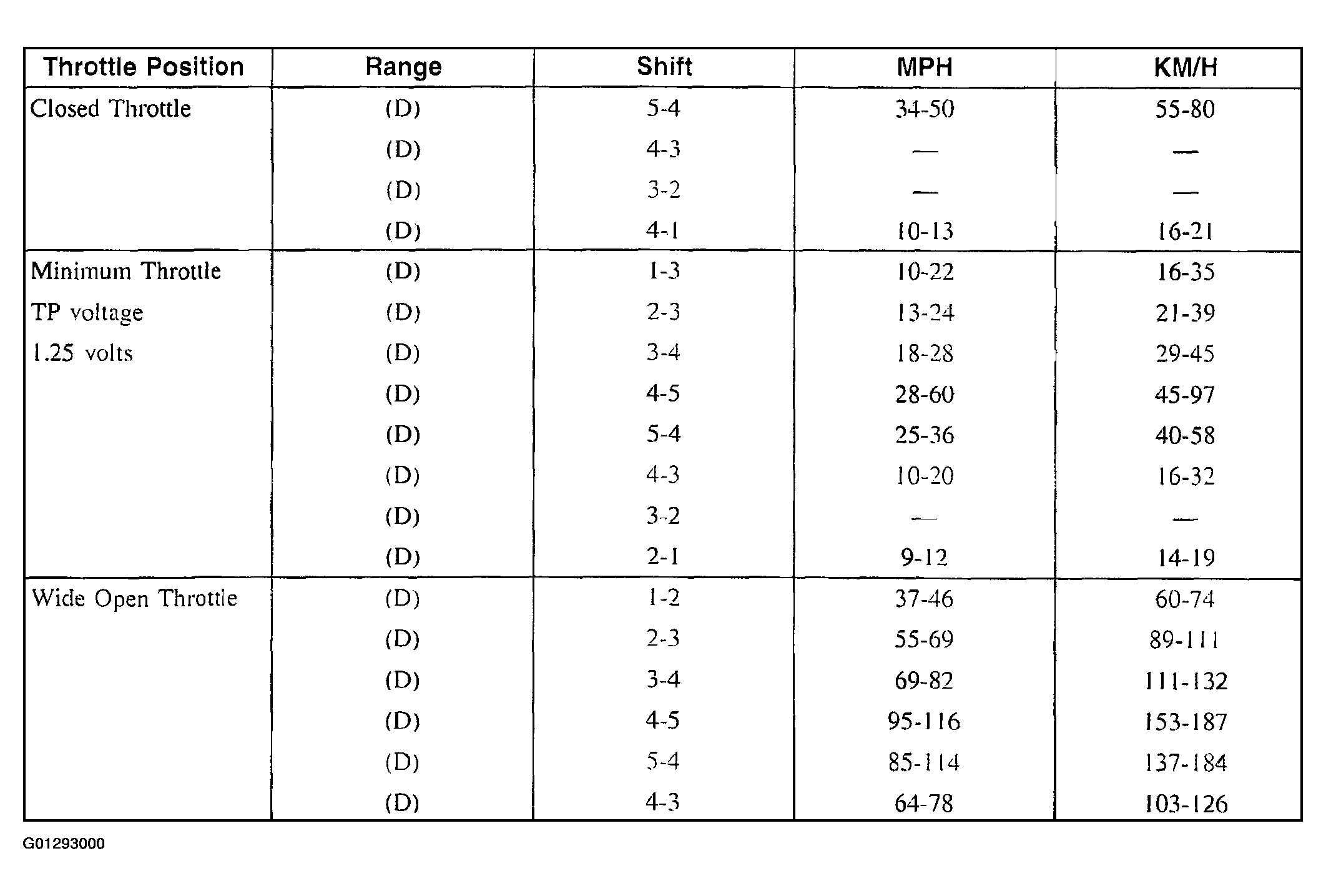

Fig 1: Shift Speed Table (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Shift Speed Table (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
