Automatic Transmission
>>
Specifications
>>
Line Pressure Chart
Line Pressure Chart

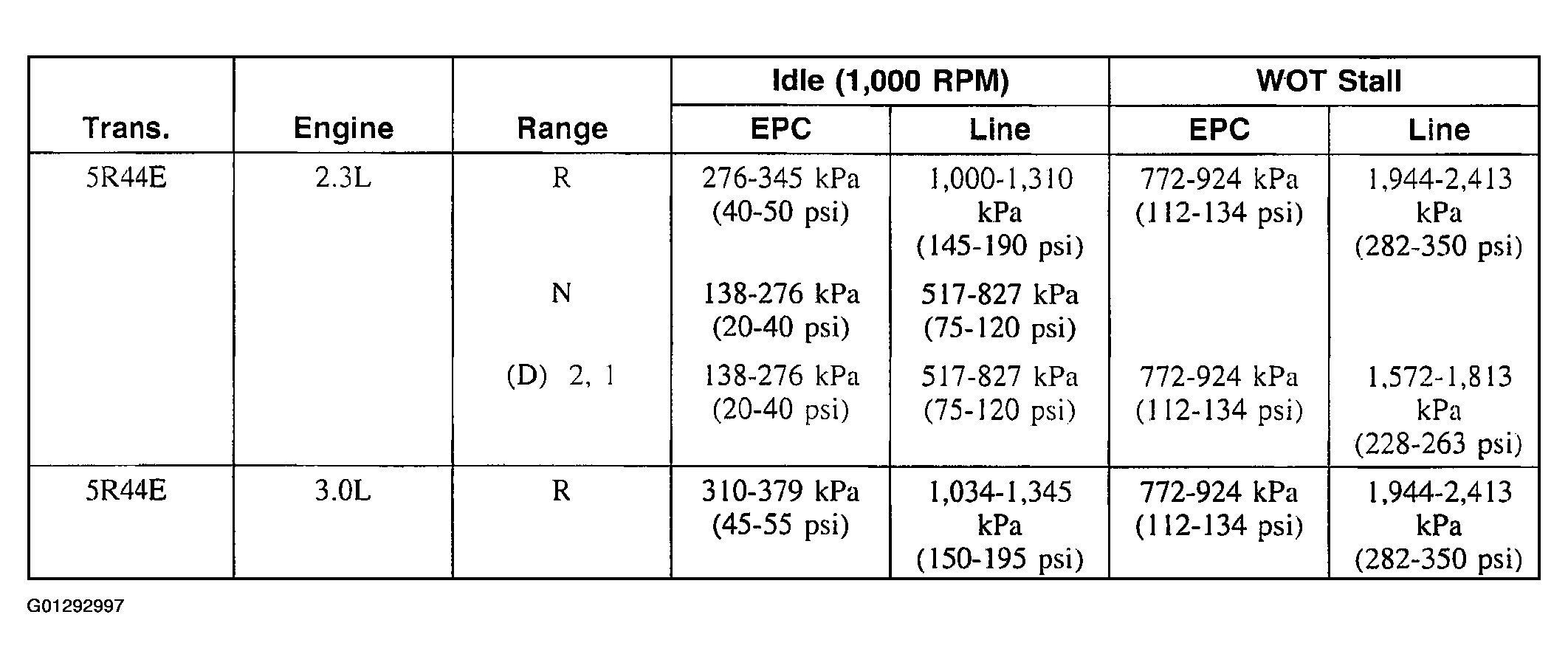

Fig 1: Line Pressure Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

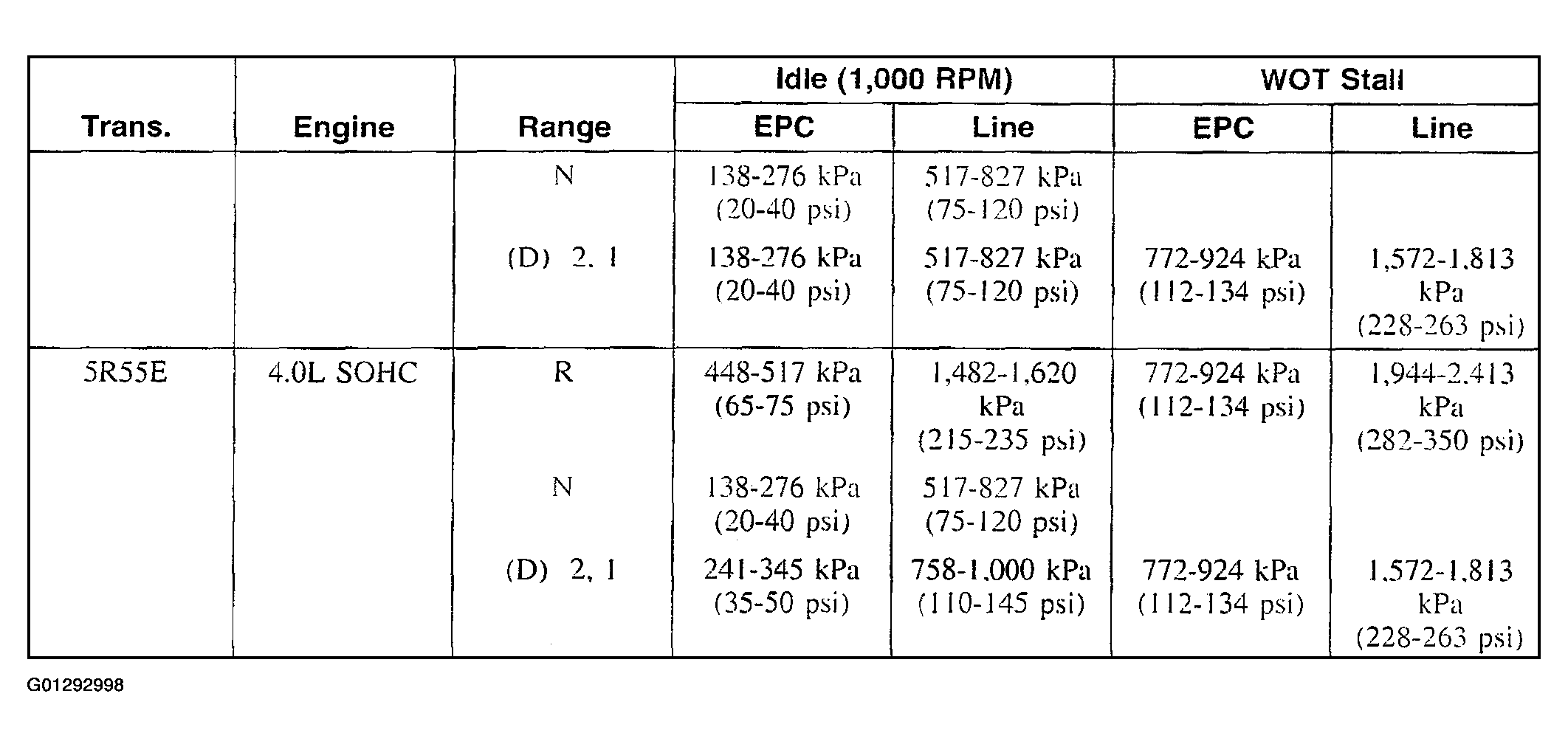

Fig 2: Line Pressure Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
