Intermediate Servo: Installation

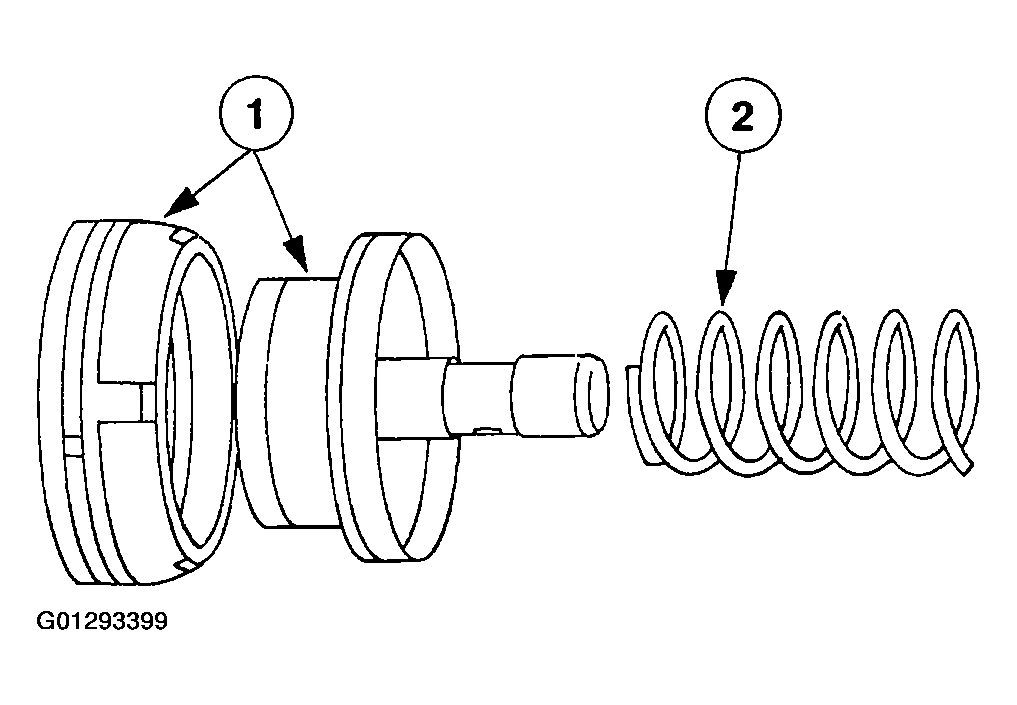

- Assemble the intermediate band servo cover, intermediate band servo piston and the servo piston spring.
- Install the intermediate band servo piston into the intermediate band servo cover.
- Install the servo piston spring on the intermediate band servo piston.

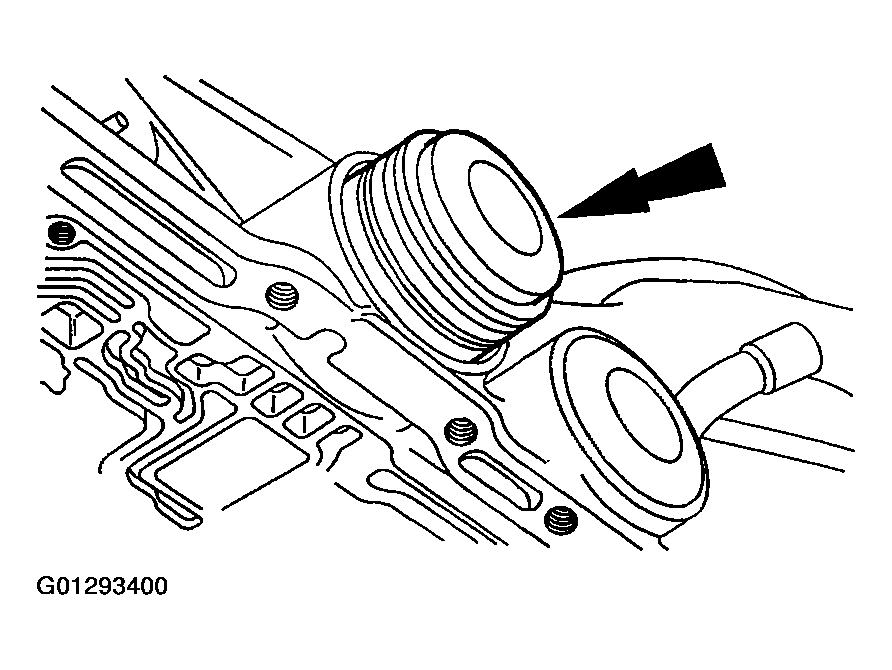

- Install the intermediate band servo piston assembly into the transmission case.
- Lubricate intermediate band servo cover O-ring with petroleum jelly.

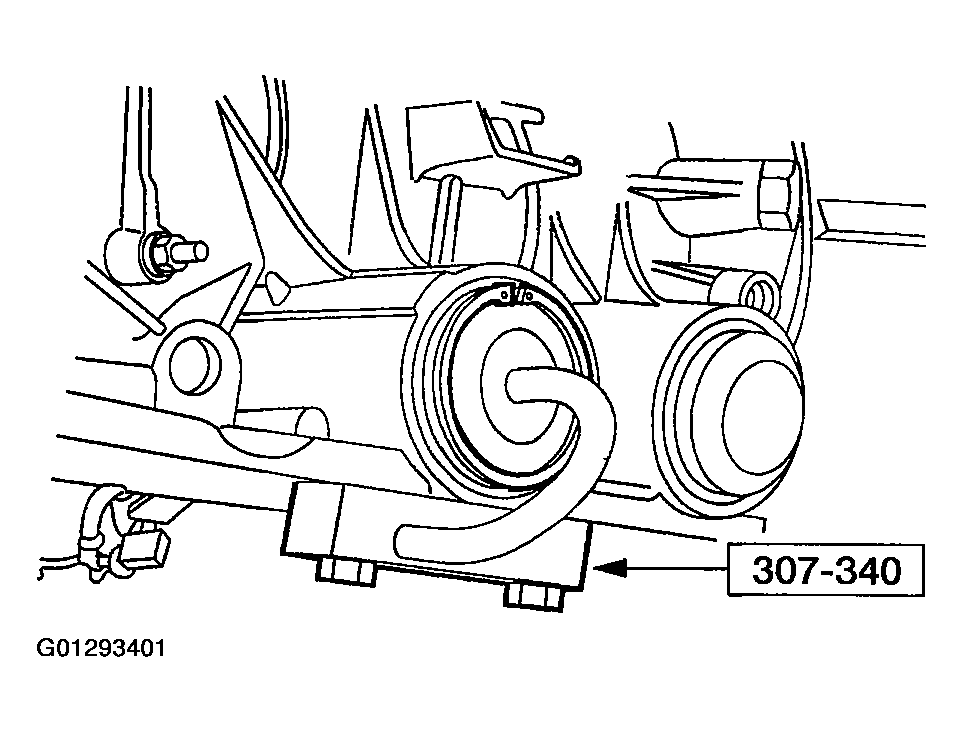

- Using the special tool, install the intermediate band servo cover retaining ring.
- Adjust the intermediate band. Refer toINTERMEDIATE BAND ADJUSTMENT .
- Install the main control valve body.
- Install the digital transmission range (TR) sensor.

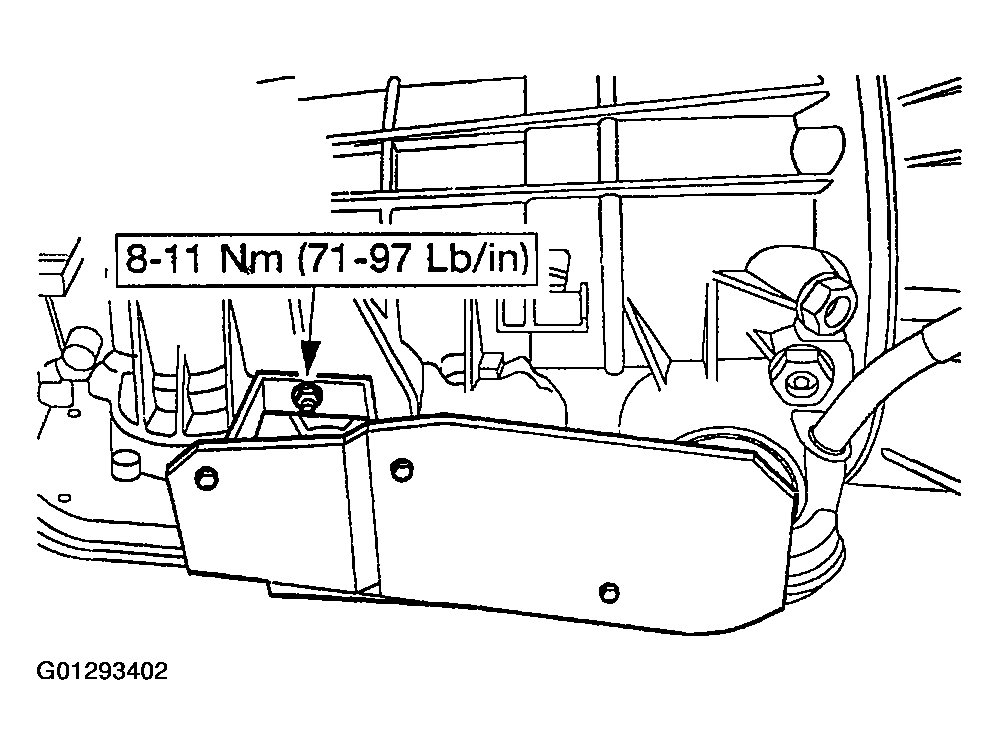

- If equipped, position the transmission servo heat shield on the transmission and install the nut.

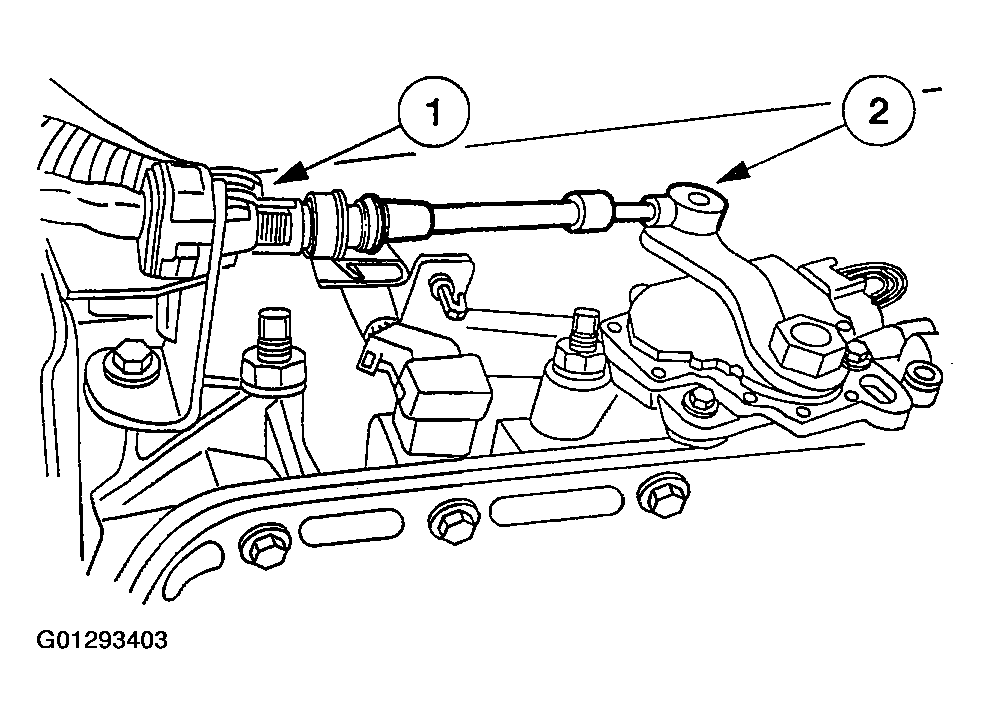

- Install the shift cable.
- Install the shift cable.
- Install the shift cable to the manual control lever.
- Install the three-way catalytic converter.
- Lower the vehicle.
- Connect the battery ground cable.
- Fill the transmission to the correct fluid level and check for correct transmission operation.
CAUTION:
Do not damage O-ring during installation. Do not press servo cover and O-ring past relief hole in case, or O-ring damage may occur.
NOTE:
When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts, either soft or firm, and that this is a temporary condition. The vehicle will eventually return to normal operating condition.
