Section 6 (Automatic Transmission): Installation: Transmission

WARNING: This page is about a different variant/trim than selected.

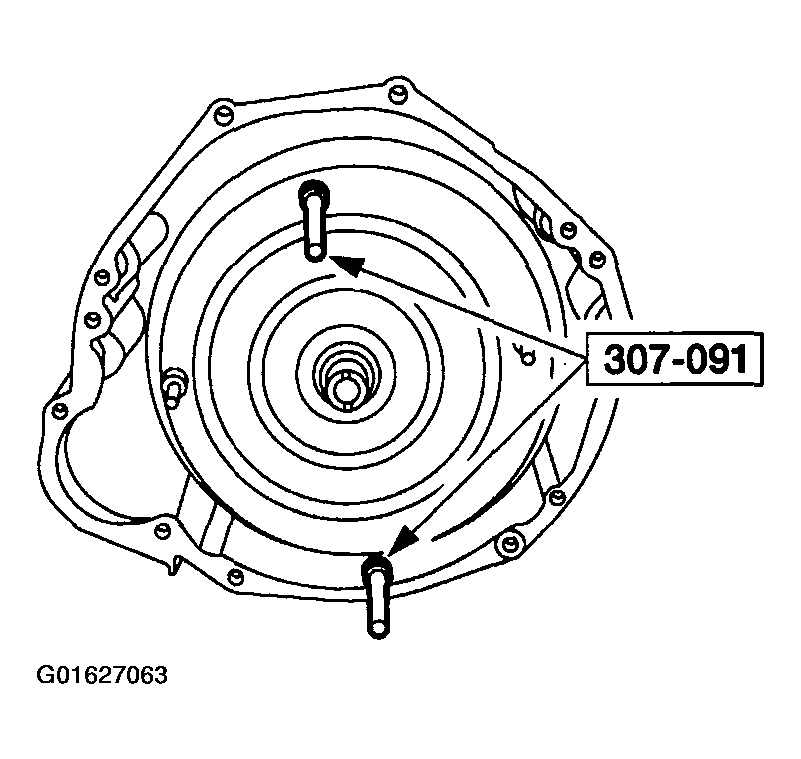

Fig 1: Identifying Special Tool
G01627063Courtesy of FORD MOTOR CO.

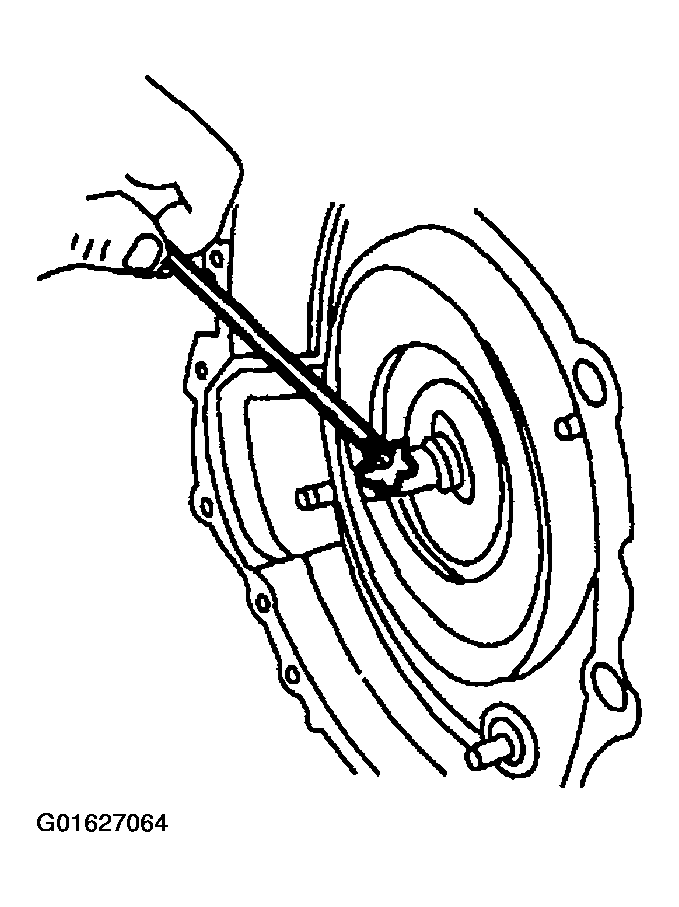

Fig 2: Identifying Material Specification
G01627064Courtesy of FORD MOTOR CO.
    CAUTION: During this move, to avoid damage, do not allow the transmission to get into a nose-down position as this will cause the torque converter to move forward and disengage from the pump gear. The converter housing is piloted into position by dowels in the rear of the engine block. The torque converter must rest squarely against the flexplate. This indicates that the converter pilot is not binding in the engine crankshaft.
  1. Position and secure the transmission on the high-lift transmission jack.
    2. CAUTION: Make sure the torque converter is fully seated in the transmission before positioning the transmission to the engine.

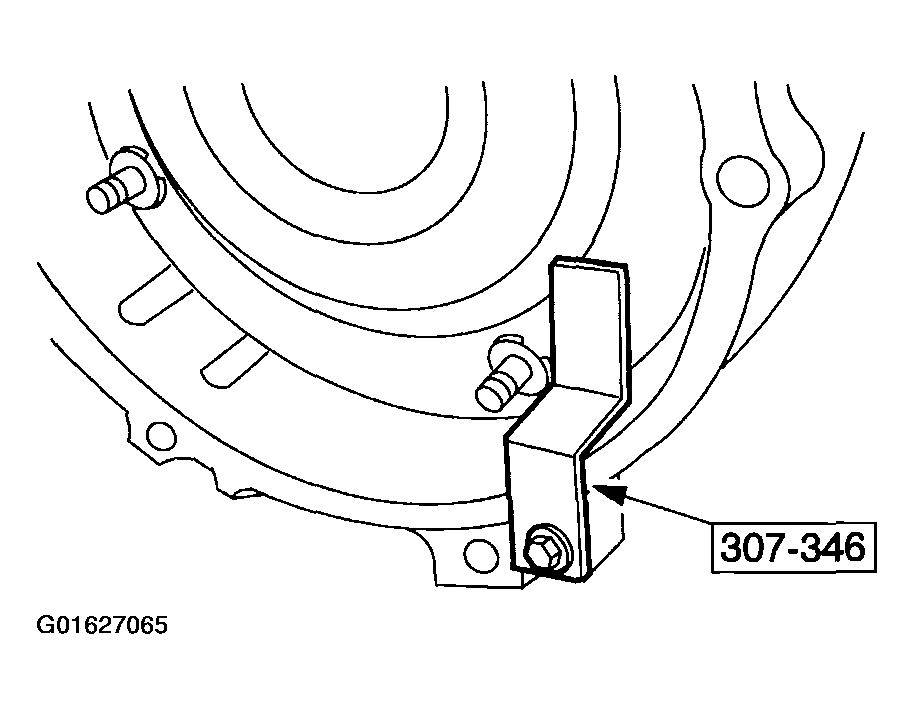

    Fig 3: Aligning Orange Balancing Marks On Converter Stud And Flexplate Bolt Hole
    G01627065Courtesy of FORD MOTOR CO.
  2. Using the special tool, install the transmission to the engine.
    • Align the orange balancing marks on the converter stud and the flexplate bolt hole.
  3. Reconnect the harness.

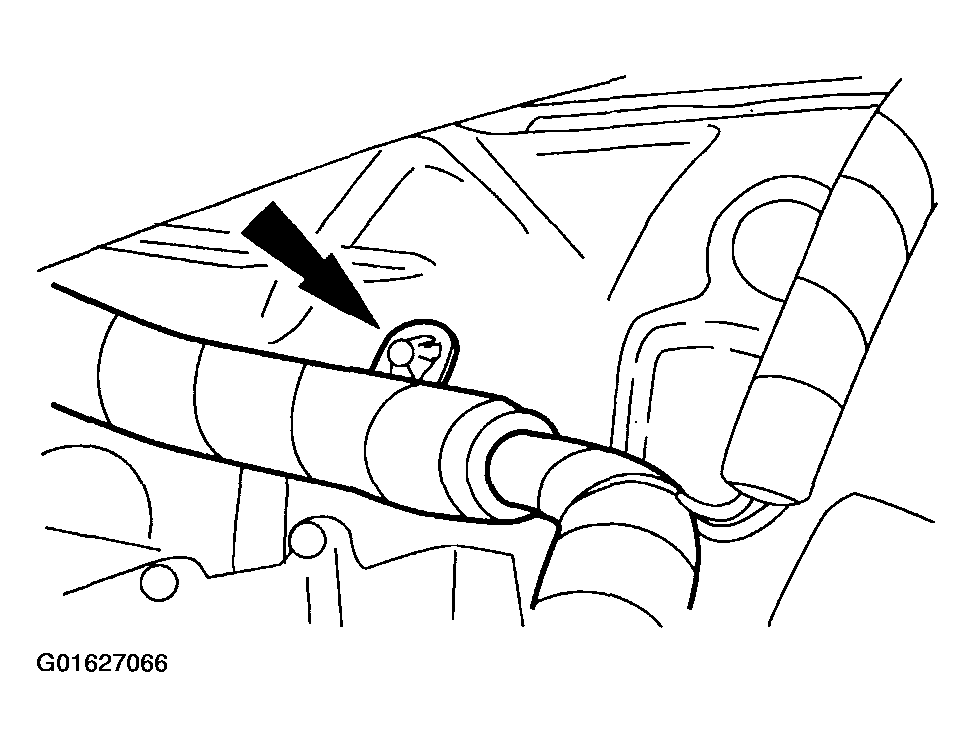

    Fig 4: Reconnecting Harness
    G01627066Courtesy of FORD MOTOR CO.
  4. Install the bolts.

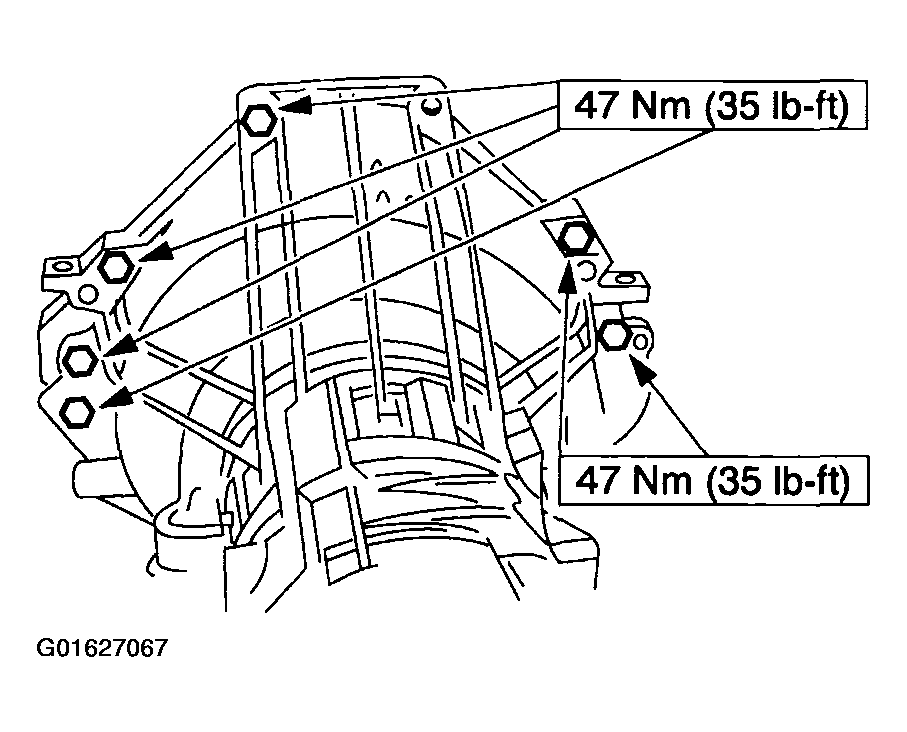

    Fig 5: Installing Bolts
    G01627067Courtesy of FORD MOTOR CO.
  5. Install the bolt.

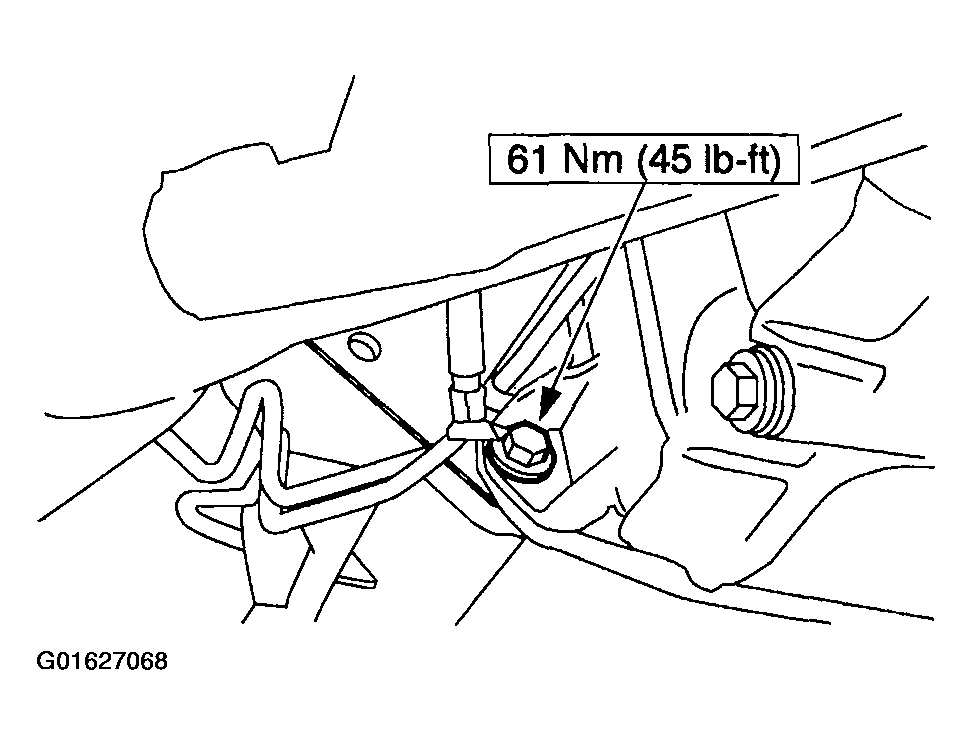

    Fig 6: Identifying Bolt
    G01627068Courtesy of FORD MOTOR CO.
  6. Install the bolts.

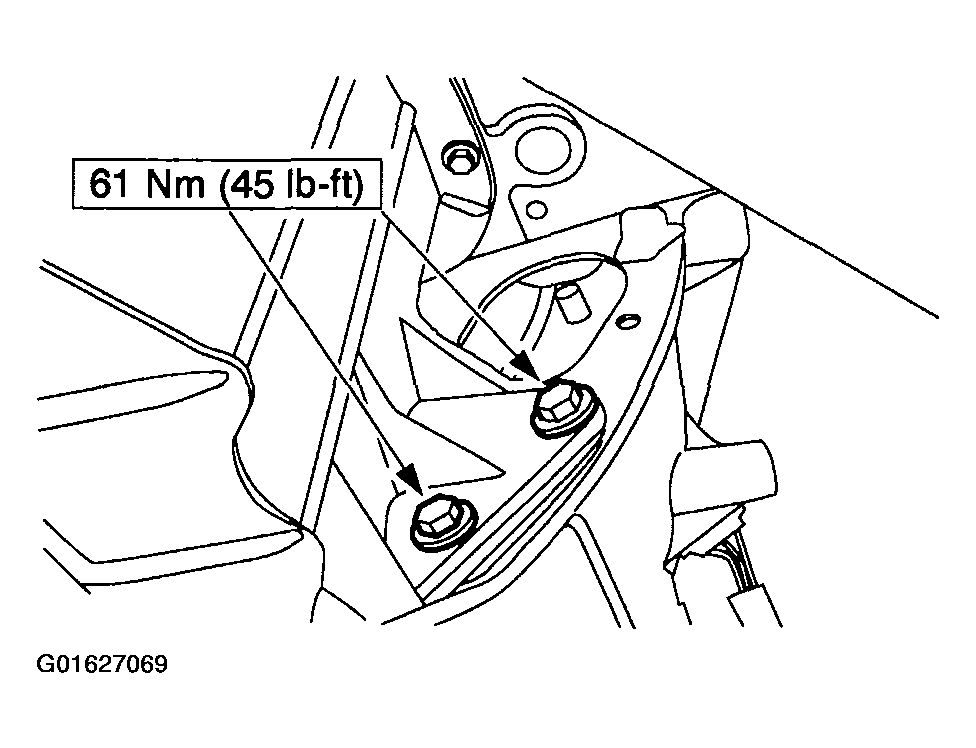

    Fig 7: Installing Bolts
    G01627069Courtesy of FORD MOTOR CO.
  7. Install the bolts.

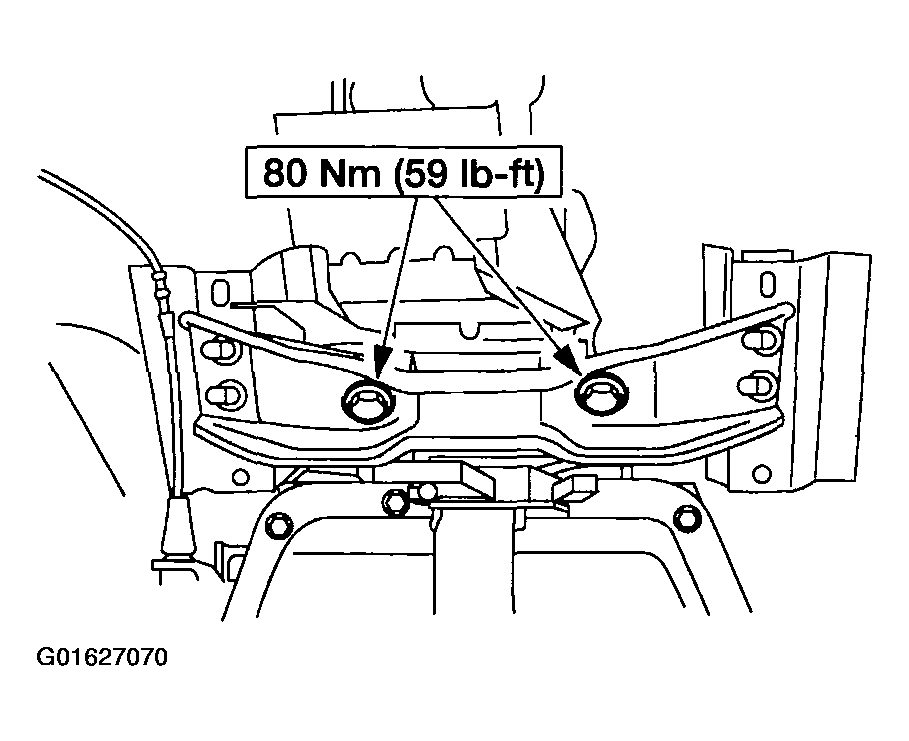

    Fig 8: Identifying Bolt
    G01627070Courtesy of FORD MOTOR CO.
  8. Install the bolts.

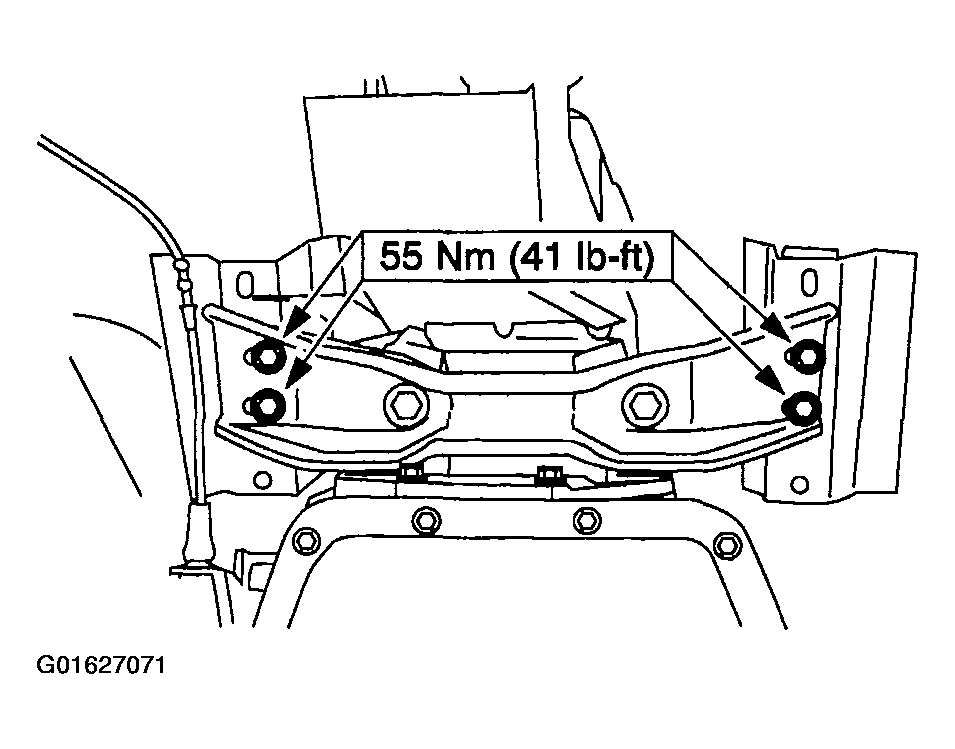

    Fig 9: Installing Bolts
    G01627071Courtesy of FORD MOTOR CO.
  9. Reconnect the connectors.

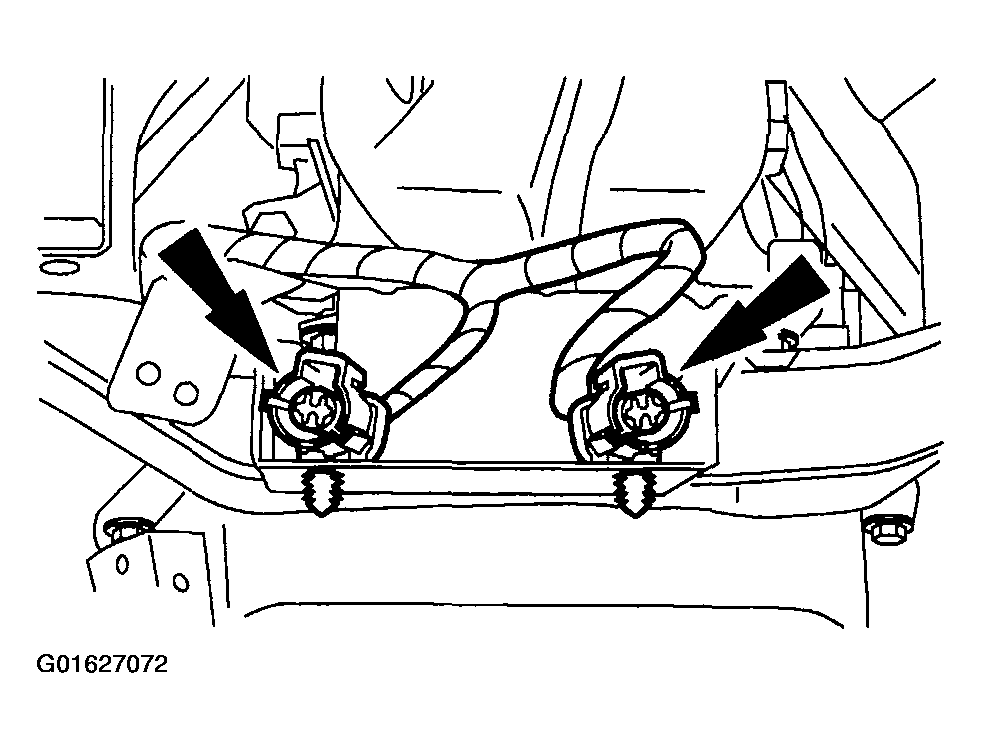

    Fig 10: Reconnecting Connectors
    G01627072Courtesy of FORD MOTOR CO.
  10. Connect the transmission fluid cooler tubes.

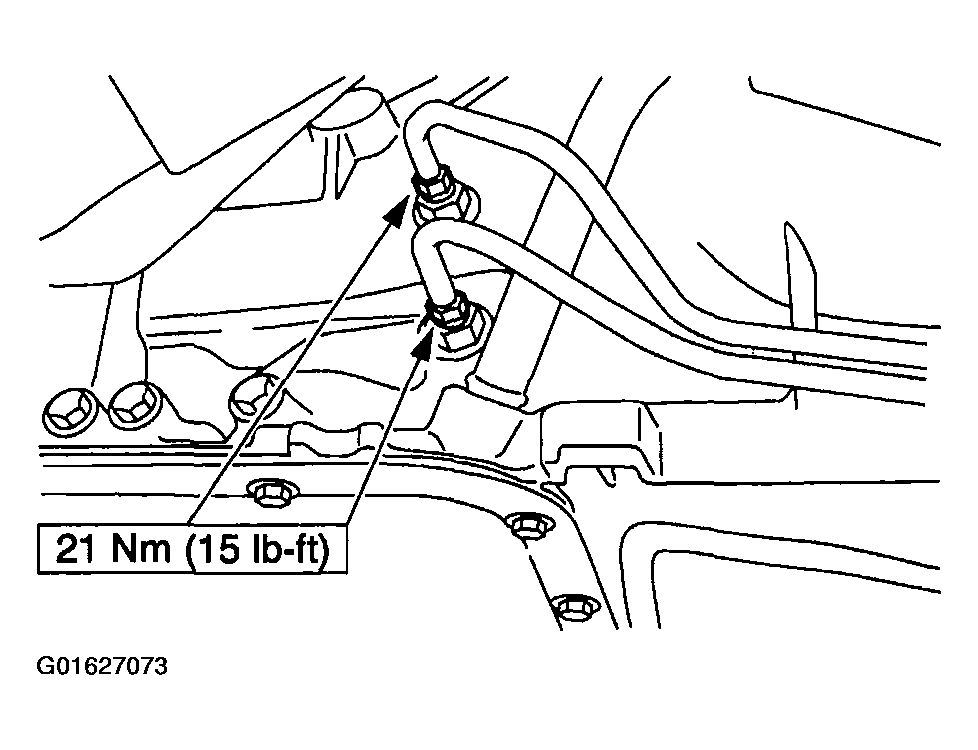

    Fig 11: Connecting Transmission Fluid Cooler Tubes
    G01627073Courtesy of FORD MOTOR CO.
  11. Install the shift cable.

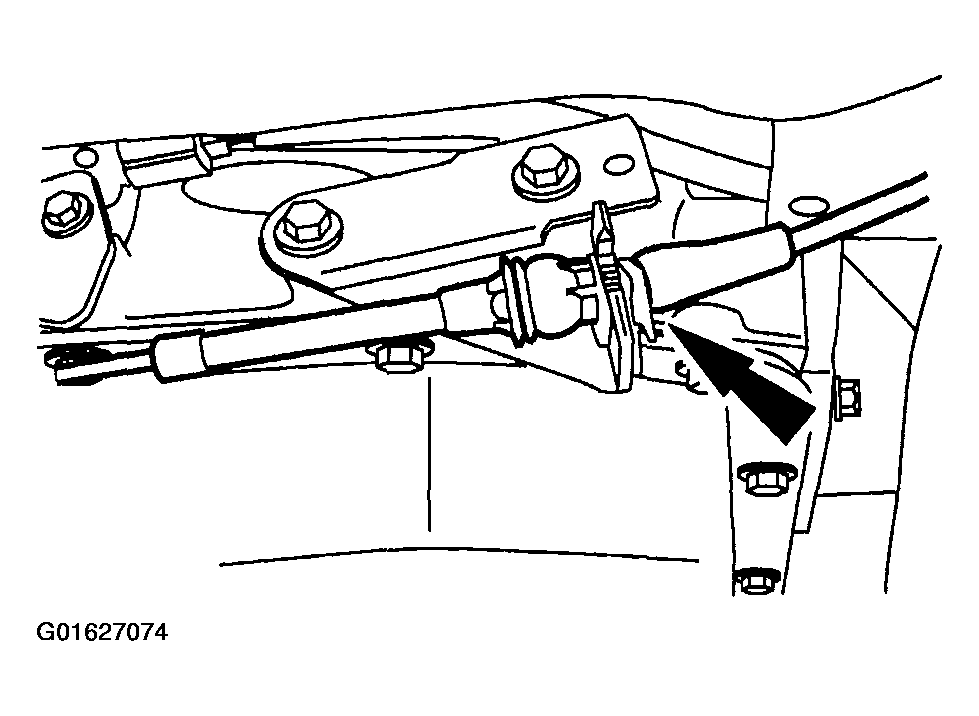

    Fig 12: Installing Shift Cable
    G01627074Courtesy of FORD MOTOR CO.
    12. NOTE: The manual lever must be in the overdrive position.

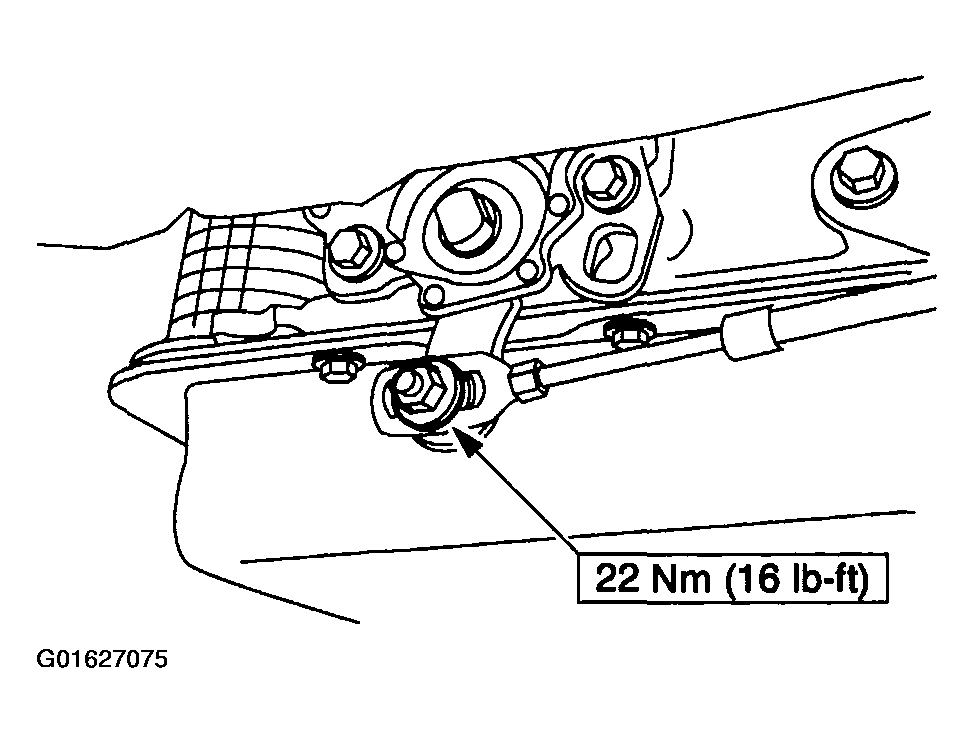

    Fig 13: Connecting Cable At Manual Lever
    G01627075Courtesy of FORD MOTOR CO.
  12. Connect the shift cable at the manual lever.
  13. Install the starter.
    1. Position the starter.
    2. Install the bolts.
    3. Connect the wires.

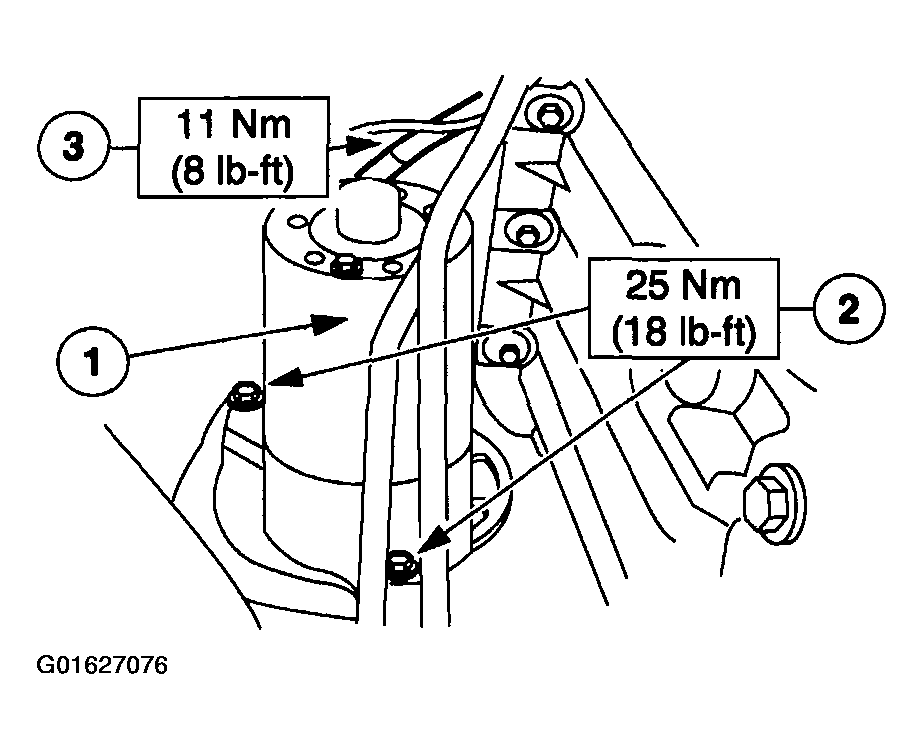

      Fig 14: Installing Starter
      G01627076Courtesy of FORD MOTOR CO.
  14. Install the four nuts.

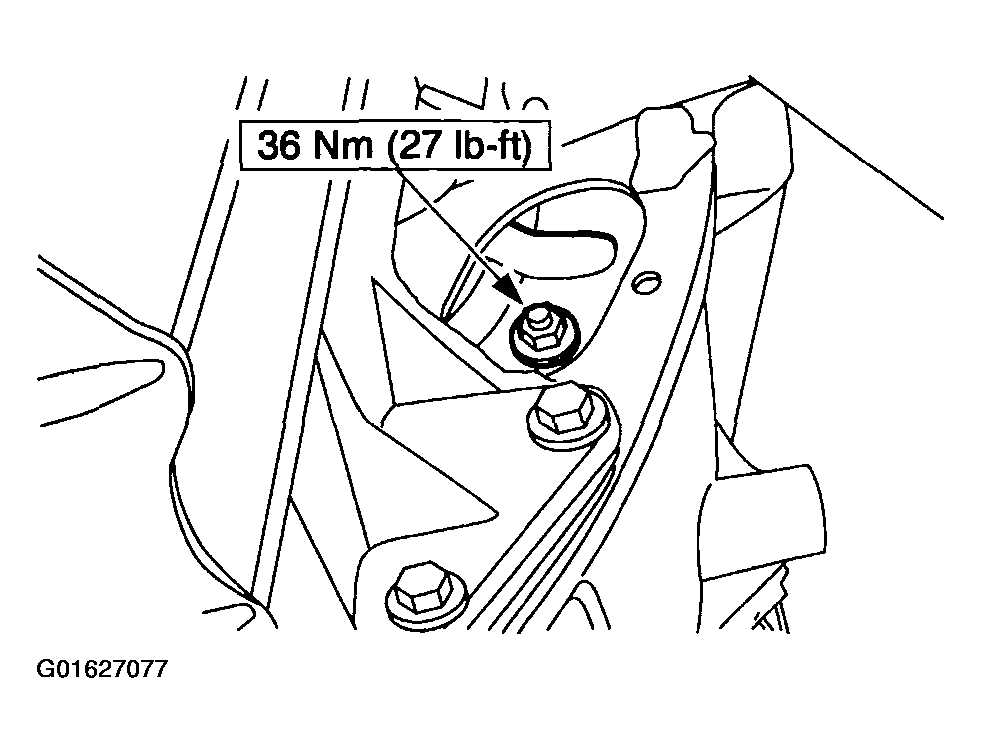

    Fig 15: Installing Four Nuts
    G01627077Courtesy of FORD MOTOR CO.
  15. Install the cover.

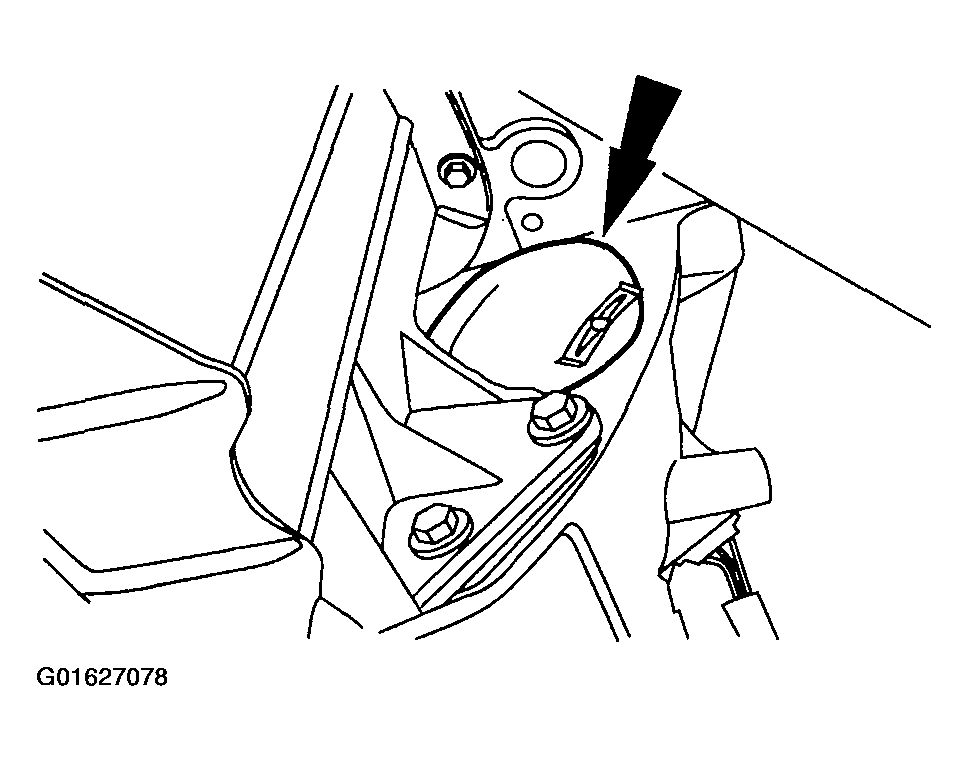

    Fig 16: Installing Cover
    G01627078Courtesy of FORD MOTOR CO.
  16. Reconnect the connector.

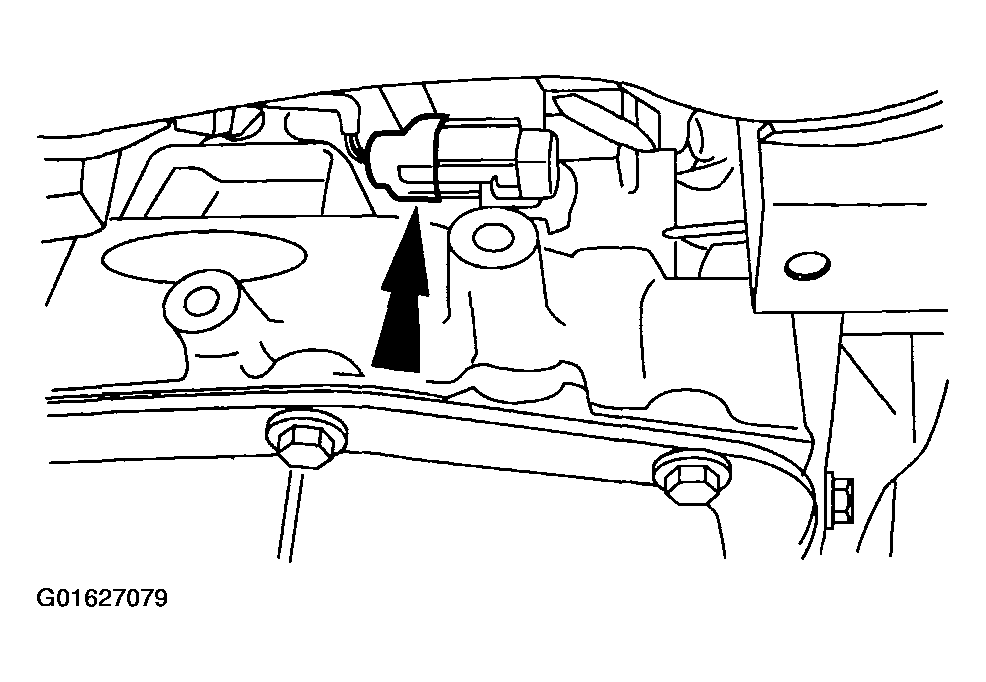

    Fig 17: Reconnecting Connector
    G01627079Courtesy of FORD MOTOR CO.
  17. Reconnect the connector.
    Fig 18: Reconnecting Connector
    G01627080Courtesy of FORD MOTOR CO.
  18. Install the dual converter Y pipe.
    19. NOTE: The output shaft and the drive shaft are a balanced assembly.
  19. Install the driveshaft.
    • Align the yellow dots and position the driveshaft on the transmission.
    • Position the driveshaft to the rear differential.
      Fig 19: Installing Driveshaft
      G03463867Courtesy of FORD MOTOR CO.
  20. Install the bolts.

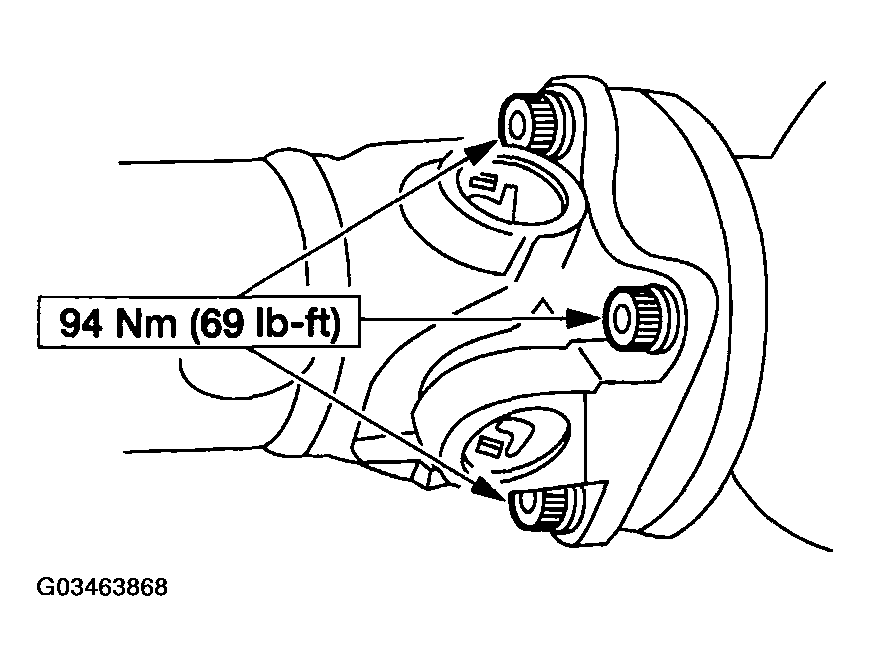

    Fig 20: Installing Bolts
    G03463868Courtesy of FORD MOTOR CO.
  21. Connect the connector.

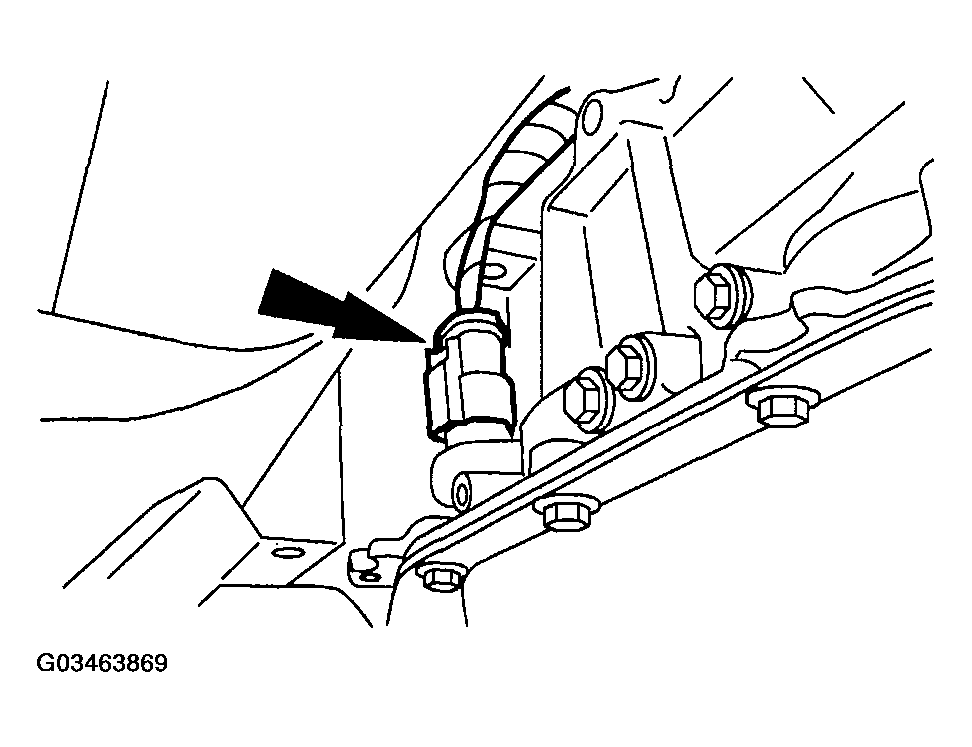

    Fig 21: Connecting Connector
    G03463869Courtesy of FORD MOTOR CO.
  22. Use the following guidelines for the in-line transmission fluid filter:
    • If the transmission was overhauled and the vehicle was equipped with an in-line fluid filter, install a new in-line fluid filter.
    • If the transmission was overhauled and the vehicle was not equipped with an in-line fluid filter, install a new in-line fluid filter kit.
    • If the transmission is being installed for a non-internal repair, do not install an in-line filter or filter kit.
    • If installing a Ford authorized remanufactured transmission, install the in-line transmission fluid filter that is supplied.

    Prior to lowering the vehicle, install a new in-line transmission filter or a filter kit.

    Fig 22: Installing A New In-Line Transmission Filter
    G03463870Courtesy of FORD MOTOR CO.
    23. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more until the vehicle relearns the strategy.
  23. Connect the battery ground cable.
  24. If required, fill the transmission with clean automatic transmission fluid.
  25. Check the transmission for correct operation.
