In-Vehicle Repair: FLEXPLATE

  1. Remove the transmission. For additional information, refer to TRANSMISSION .
  2. Remove the bolts in the sequence shown, and remove the flexplate.

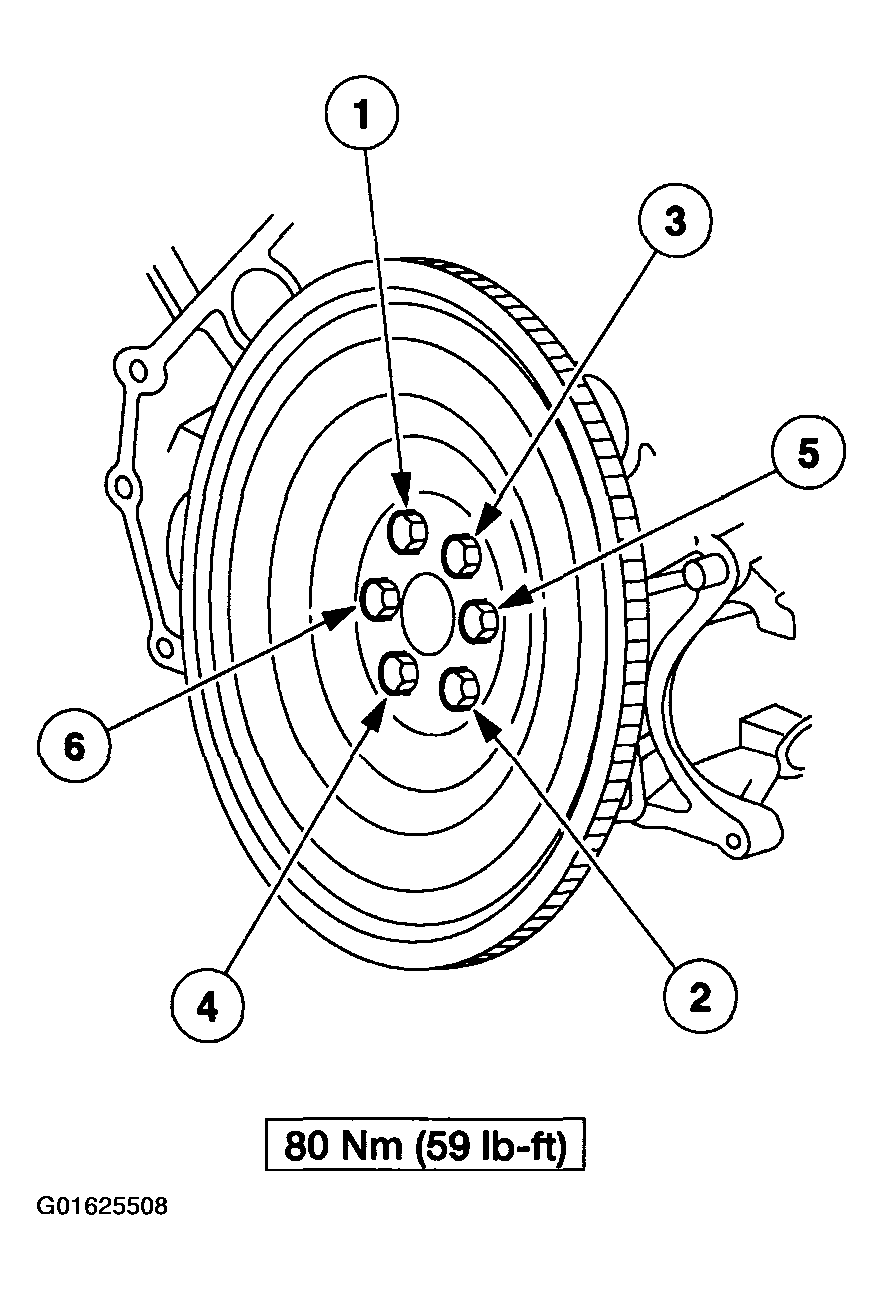

    Fig 1: Identifying Removal Sequence Of Flexplate Bolts
    G01625508Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
