Battery Junction Box
NOTE:

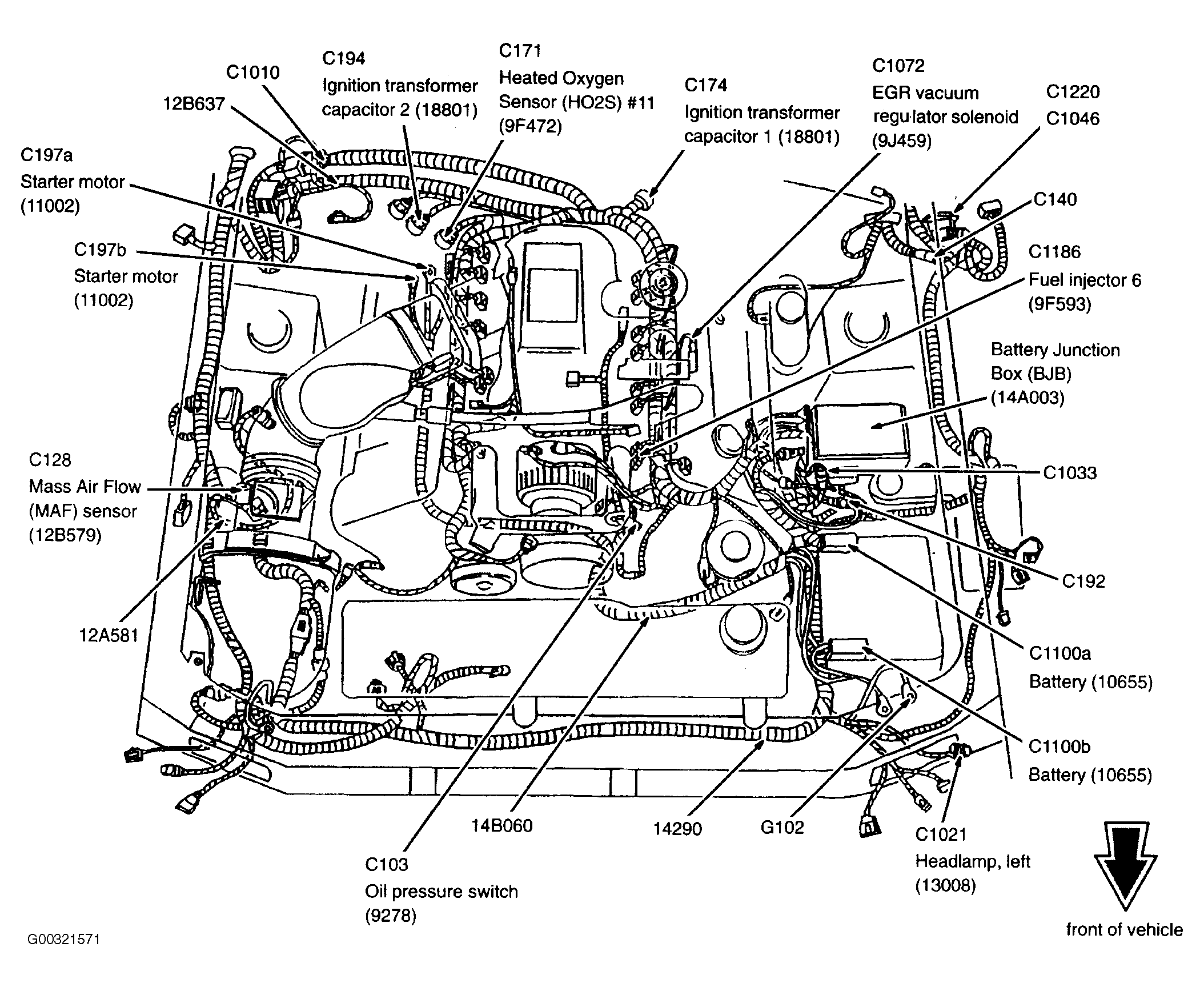

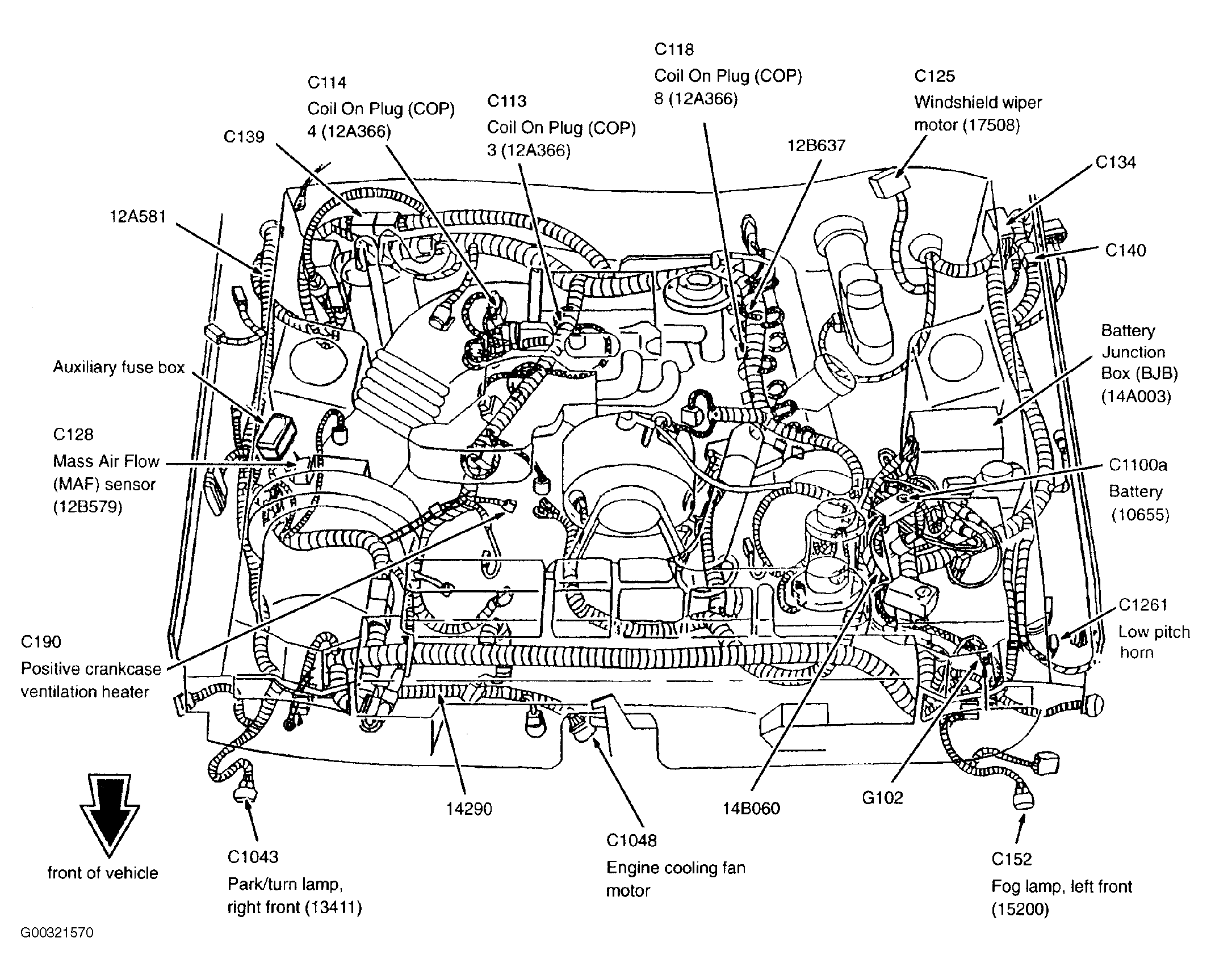

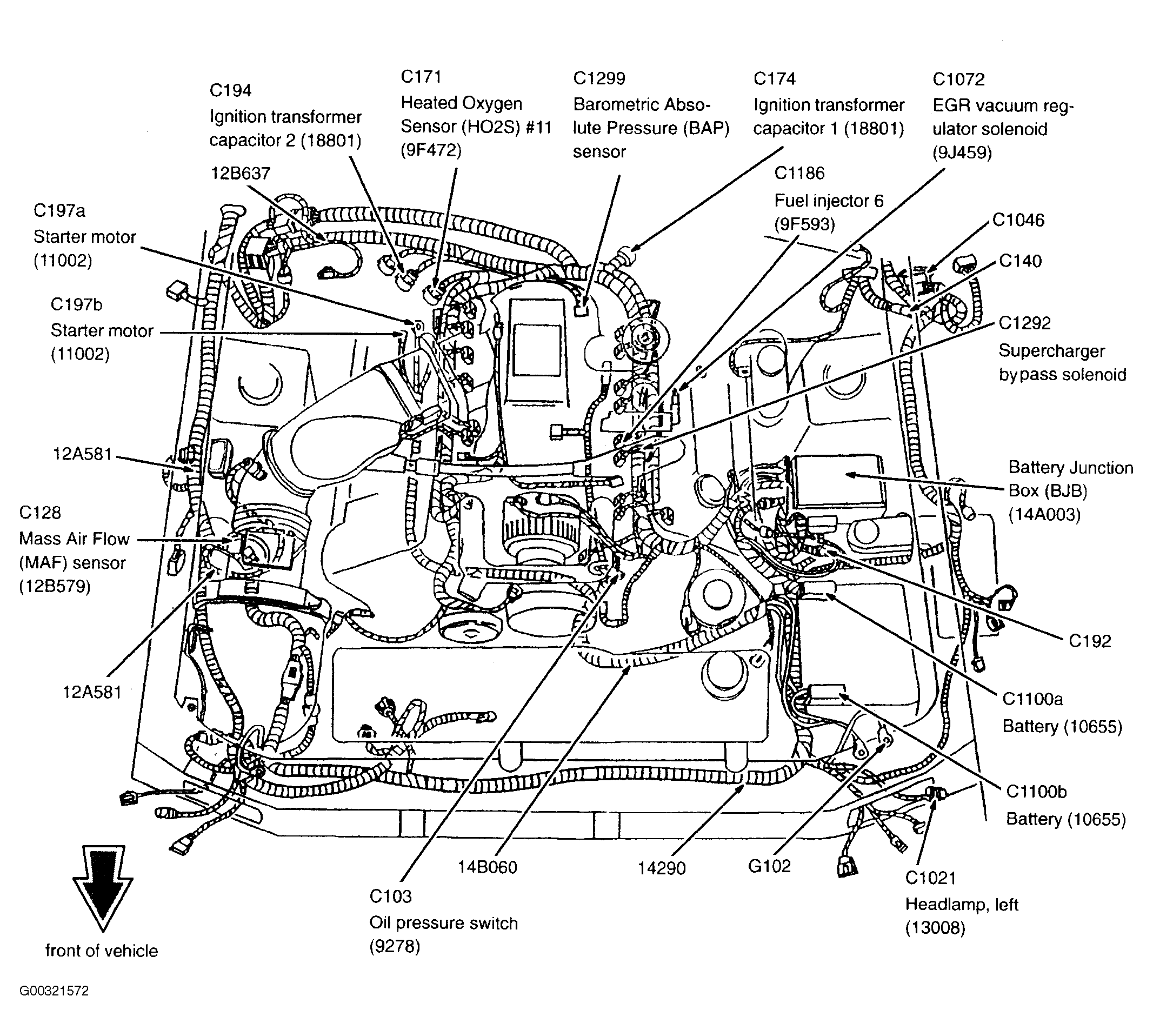

Battery junction box is located on driver's side of engine compartment. See Figure, Fig 1, Fig 2 or Fig 3
.
ENGINE COMPARTMENT FUSE BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| RELAY 1 | Fog Lamp Interrupt Relay |
| RELAY 2 | Interval Wiper Relay |
| RELAY 3 | Wiper HI/LO Relay |
| RELAY 4 | Starter Relay |
| RELAY 5 | Fog Lamps Relay |
ENGINE COMPARTMENT FUSE BOX FUSE IDENTIFICATION LEGEND
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description | ||
|---|---|---|---|---|
| Relay 1 | - | Fog lamp interrupt | ||
| Relay 2 | - | Interval wiper | ||
| Relay 3 | - | Wiper HI/LO | ||
| Relay 4 | - | Starter | ||
| Relay 5 | - | Fog lamps | ||
| 1 | 50A(2) (V8 engine), 30A CB (V6 engine) | Electric cooling fan motor | ||
| 2 | 30A(2) | Headlamps | ||
| 3 | 40A(2) | Starter motor relay, Ignition switch | ||
| 4 | 40A(2) | Ignition switch | ||
| 5 | 40A(2) | Ignition switch | ||
| 6 | 40A(2) | I/P fuse panel, Instrument cluster, Powertrain Control Module (PCM) | ||
| 7 | - | Not used | ||
| 8 | 50A(2) | Anti-lock Brake System (ABS) module | ||
| 9 | 20A(2) | Auxiliary power point | ||
| 10 | 30A(2) | Parklamps | ||
| 11 | 30A(2) | Rear window defrost control | ||
| 12 | 40A(2) | Power locks | ||
| 13 | 30A(1) | MACH 1000 right amplifiers | ||
| 14 | 20A(1) | Fuel pump | ||
| 15 | 30A(1) | MACH 1000 left, amplifiers | ||
| 16 | 20A(1) | Horn | ||
| 17 | 20A(1) | ABS | ||
| 18 | 30A(1) | Power seats | ||
| 19 | 10A(1) | Intercooler pump (Cobra only) | ||
| 20 | 20A(1) | Alternator | ||
| 21 | - | Not used | ||
| 22 | - | Not used | ||
| 23 | - | Not used | ||
| 24 | 20A(1) | A/C pressure | ||
| 25 | - | Not used | ||
| 26 | 30A(2) | PCM | ||
| 27 | 20A(2) | Daytime Running Lamps (DRL) module, Foglamp relay | ||
| 28 | 25A CB | Convertible top circuit breaker | ||
| 29 | - | Not used | ||
|
||||
|
||||
