Auxiliary Fuse Box

NOTE: Auxiliary fuse box is located in engine compartment, right side. See Fig 1, Fig 2 or Fig 3 .

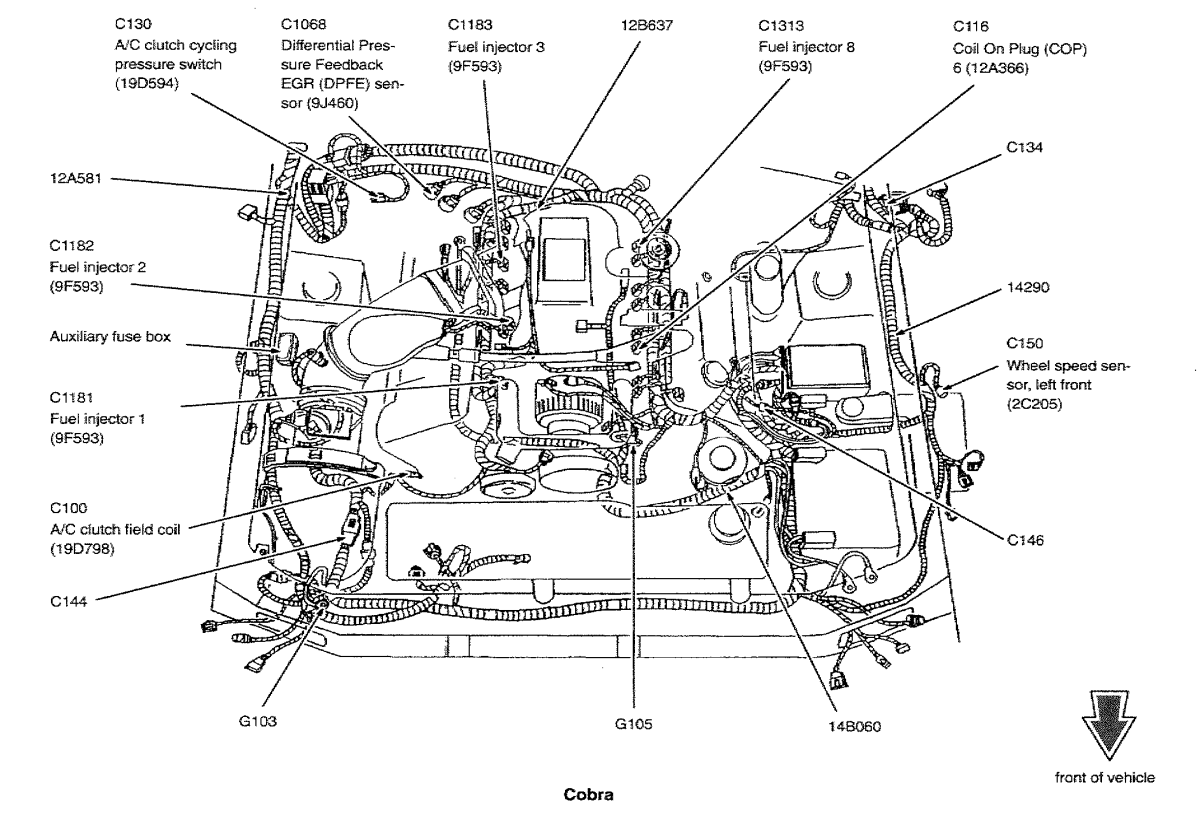

Fig 1: Locating Engine Compartment Electrical Components (Cobra)

Courtesy of FORD MOTOR CO.

Fig 2: Locating Engine Compartment Electrical Components (Mach I)

Courtesy of FORD MOTOR CO.

Fig 3: Locating Engine Compartment Electrical Components (4.6L 2V)

Courtesy of FORD MOTOR CO.

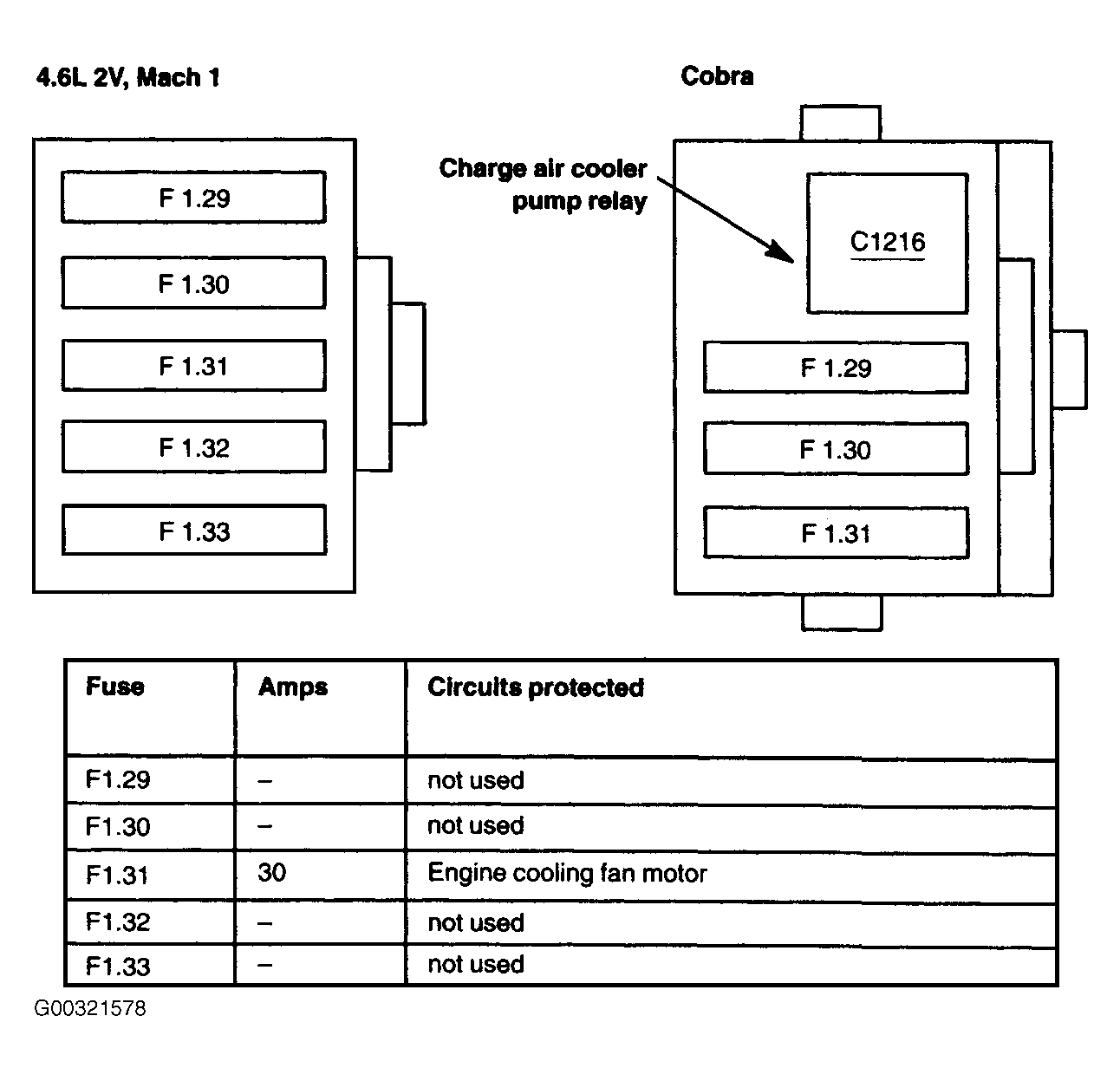

Fig 4: Identifying Auxiliary Fuse Box Components And Relays

Courtesy of FORD MOTOR CO.

AUXILIARY FUSE BOX RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C1216	Charge air cooler pump relay
