Window Regulator - Power: Removal

  1. Remove the door window glass. For additional information, refer to WINDOW GLASS, DOOR .
  2. Disconnect the electrical connector.

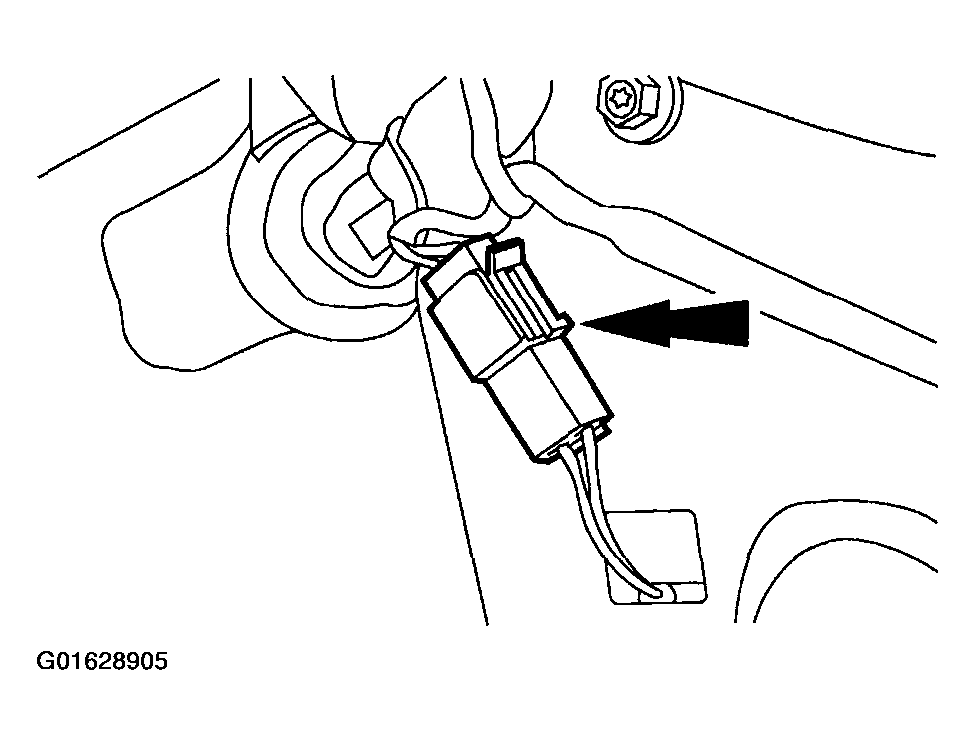

    Fig 1: Disconnecting Electrical Connector
    G01628905Courtesy of FORD MOTOR CO.
  3. Remove the channel.

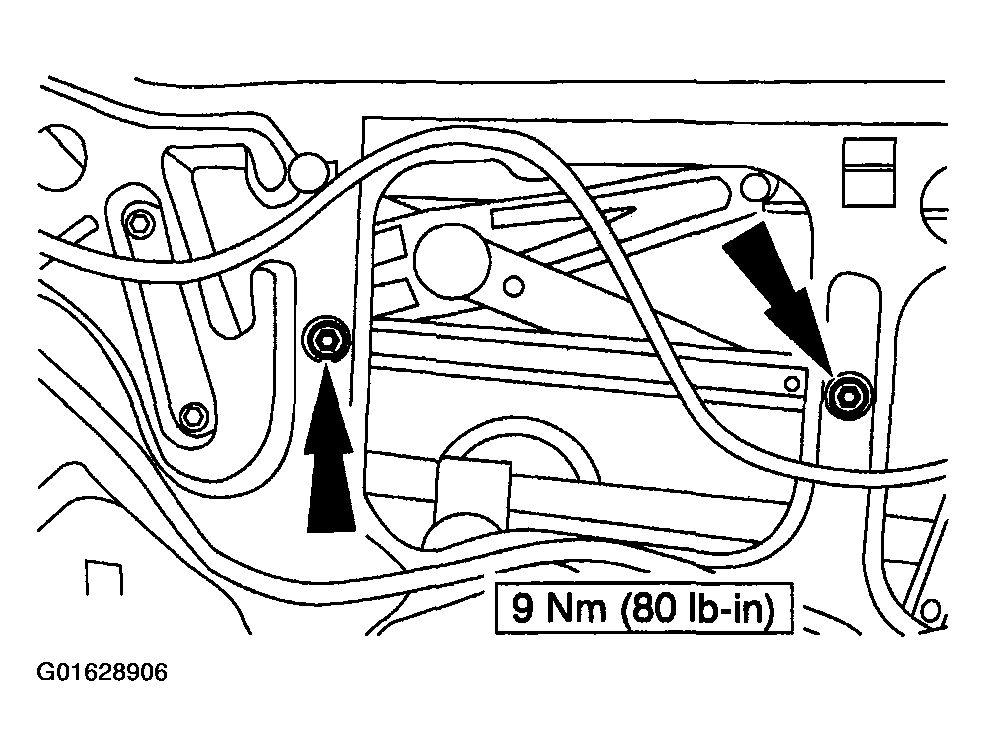

    Fig 2: Removing Channel
    G01628906Courtesy of FORD MOTOR CO.
  4. Remove the regulator.

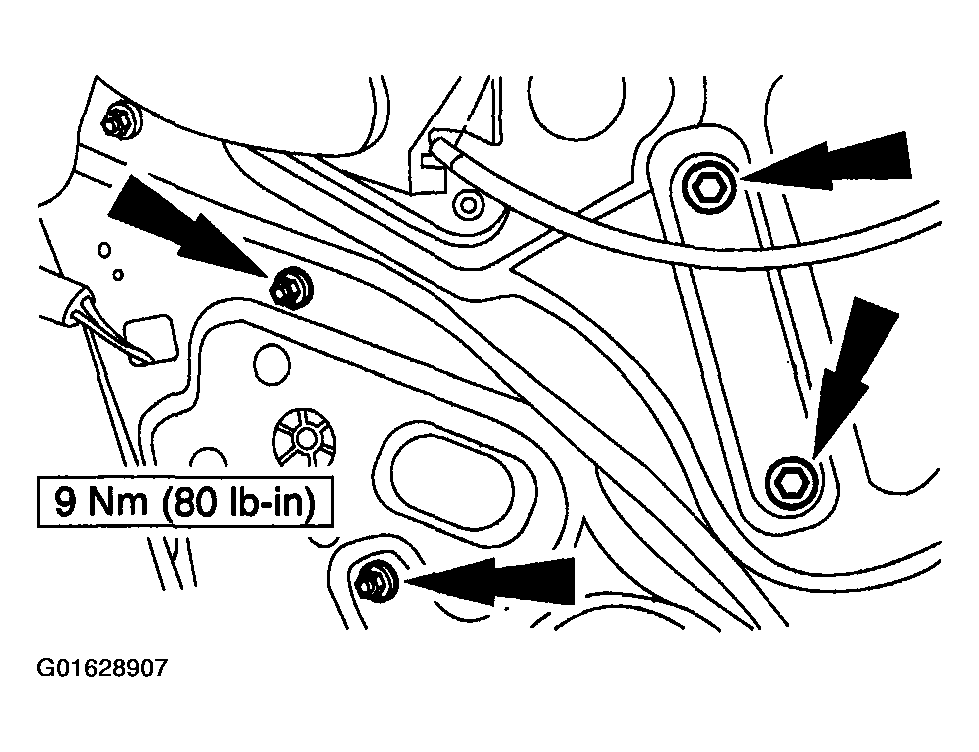

    Fig 3: Removing Regulator
    G01628907Courtesy of FORD MOTOR CO.
