Cable And Bracket: Removal

  1. Raise the vehicle on a hoist.
  2. Remove the cable shift from the shifter lever and bracket and discard the clip.
    Fig 1: Removing Cable Shift From Shifter Lever And Bracket
    G01627120Courtesy of FORD MOTOR CO.
  3. Remove the bolt from the cable.
    Fig 2: Removing Bolt From Cable
    G01627121Courtesy of FORD MOTOR CO.
  4. Remove the bolt from the cable.

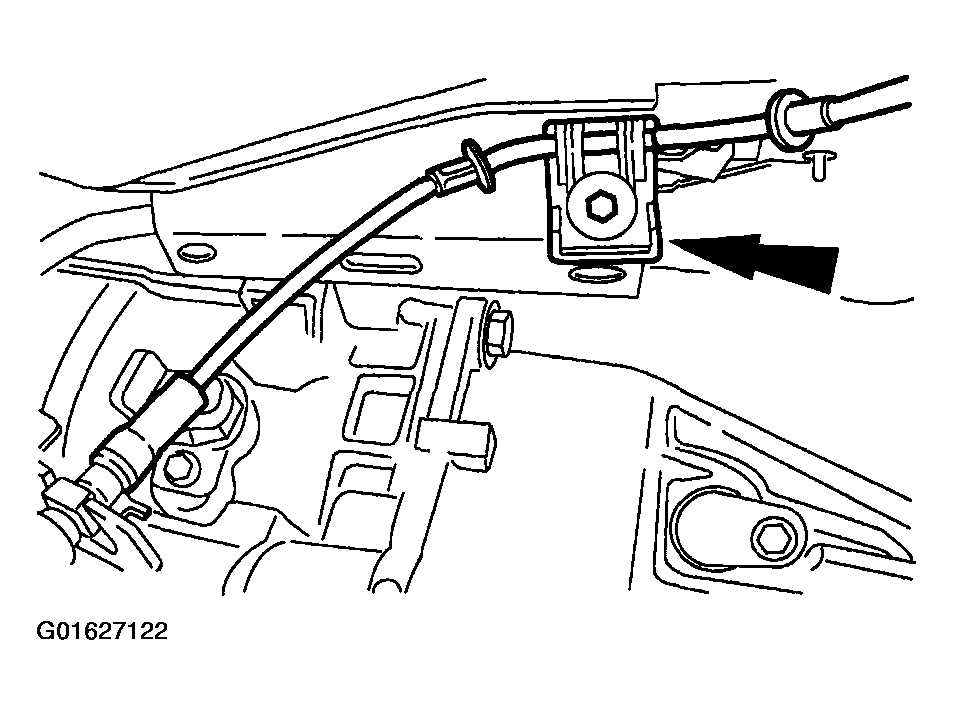

    Fig 3: Identifying Bolt From Cable
    G01627122Courtesy of FORD MOTOR CO.
  5. Disconnect the transmission range selector lever cable from the TR lever.

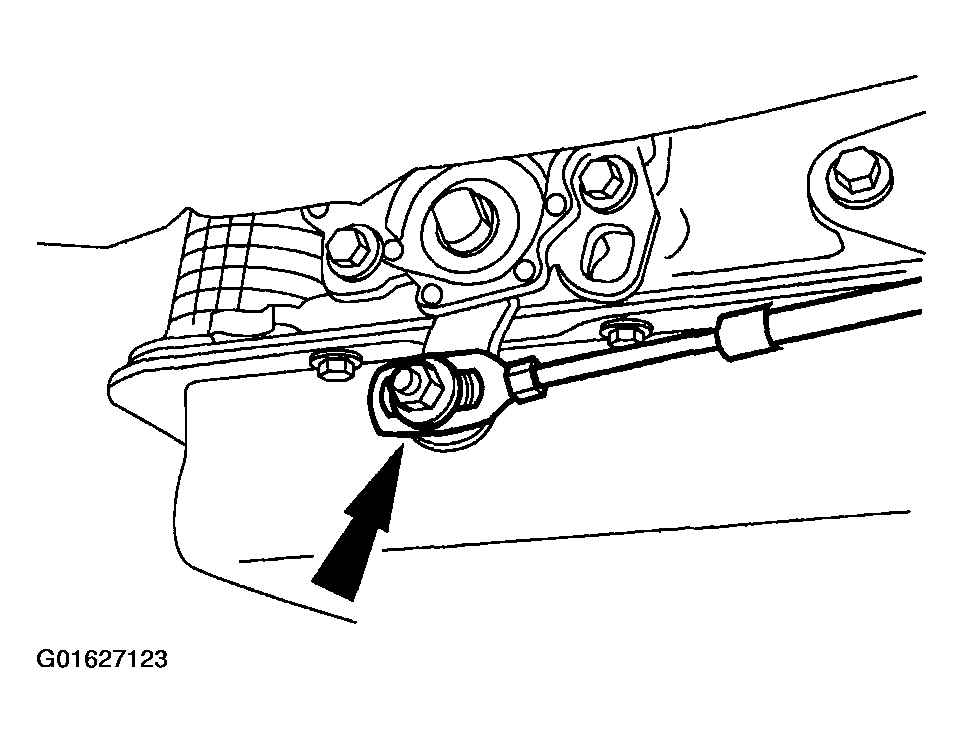

    Fig 4: Disconnecting Transmission Range Selector Lever Cable
    G01627123Courtesy of FORD MOTOR CO.
  6. Remove the transmission shift cable bracket (7B229) from the transmission.
    1. Remove the bolts.
    2. Remove the bracket.
      Fig 5: Removing Bolts
      G01627124Courtesy of FORD MOTOR CO.
