Reverse Sun Gear: Disassembly

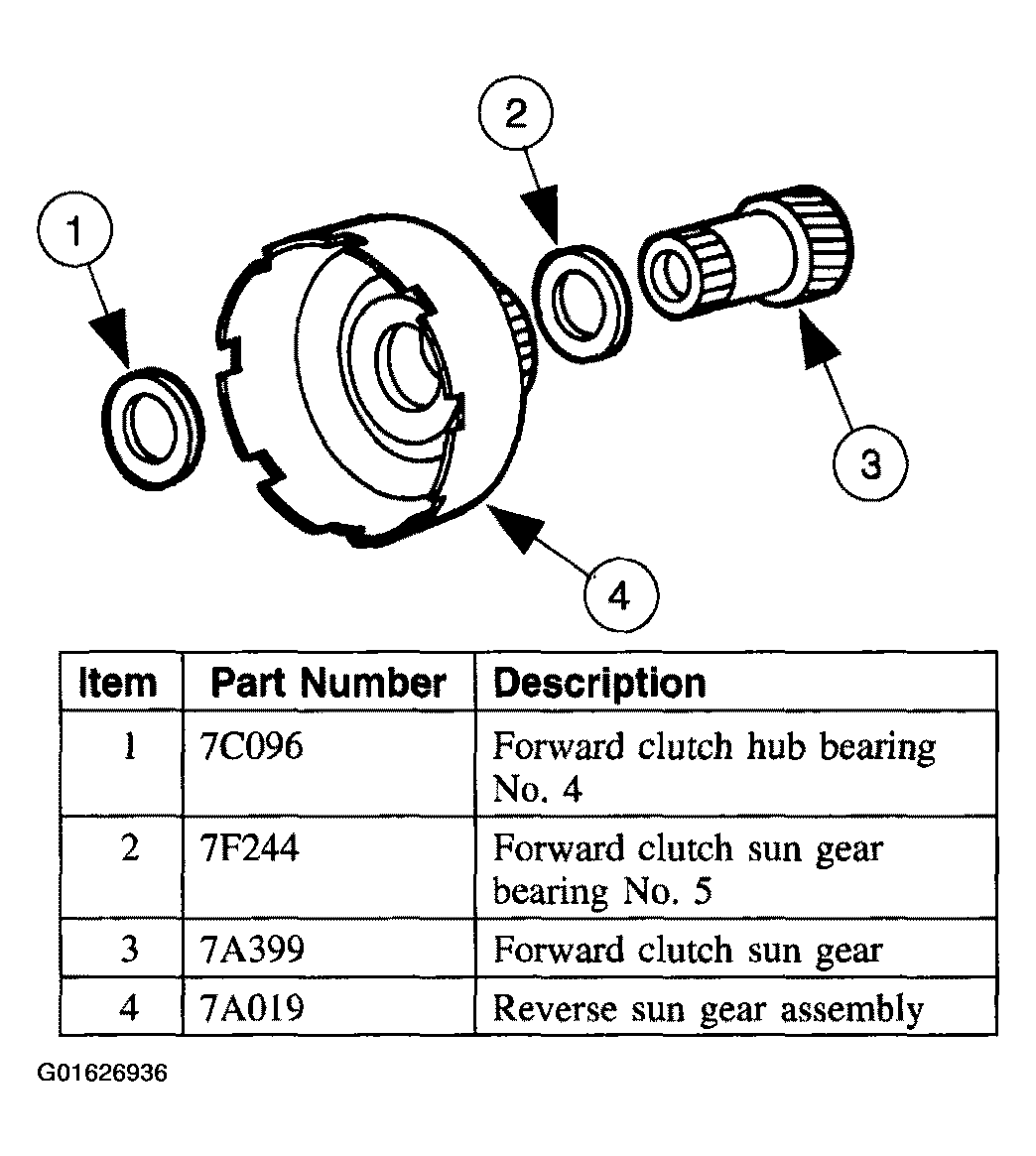

Fig 1: Disassembling Procedure
G01626936Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.

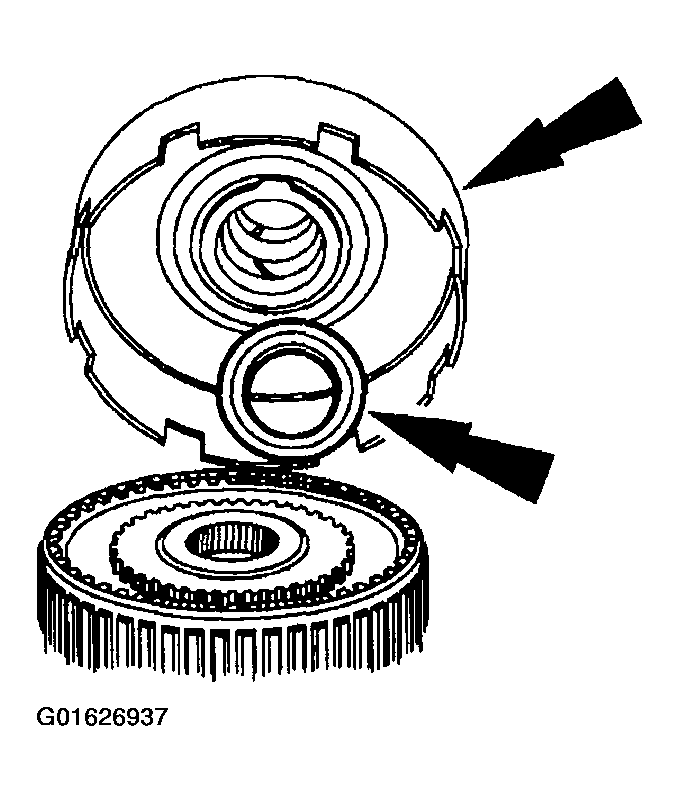

    Fig 2: Removing Reverse Clutch Sun Gear Assembly
    G01626937Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.
    Fig 3: Removing Forward Clutch Sun Gear Assembly
    G01626938Courtesy of FORD MOTOR CO.
