Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

Clean and inspect the mating surfaces.

NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure may result in future oil leakage.

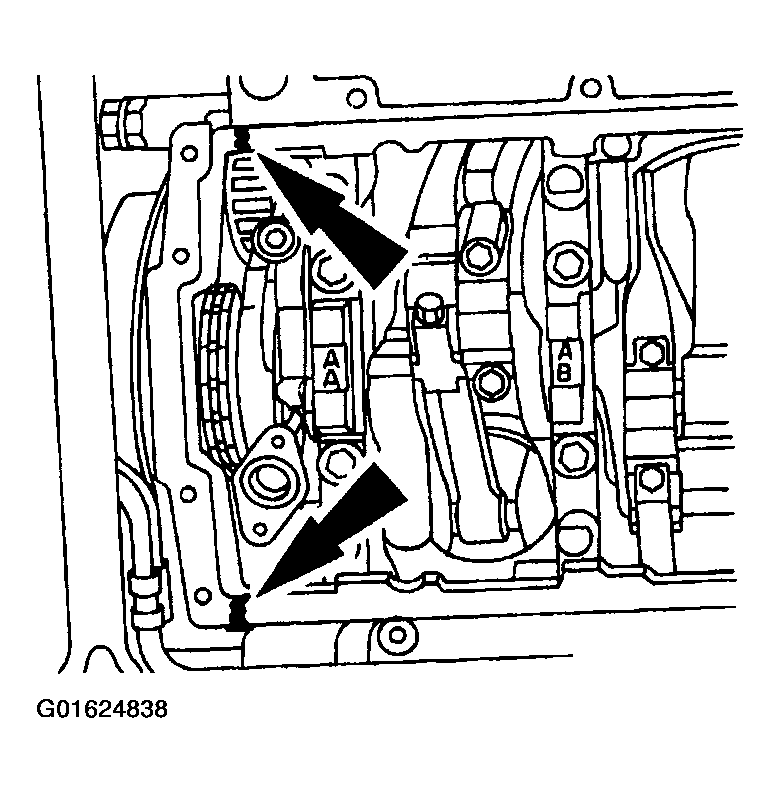

Fig 1: Applying Silicone Gasket And Sealant At Engine Front Cover-To-Cylinder Block Mating Surface

Courtesy of FORD MOTOR CO.

Apply silicone gasket and sealant at the engine front cover-to-cylinder block mating surface.

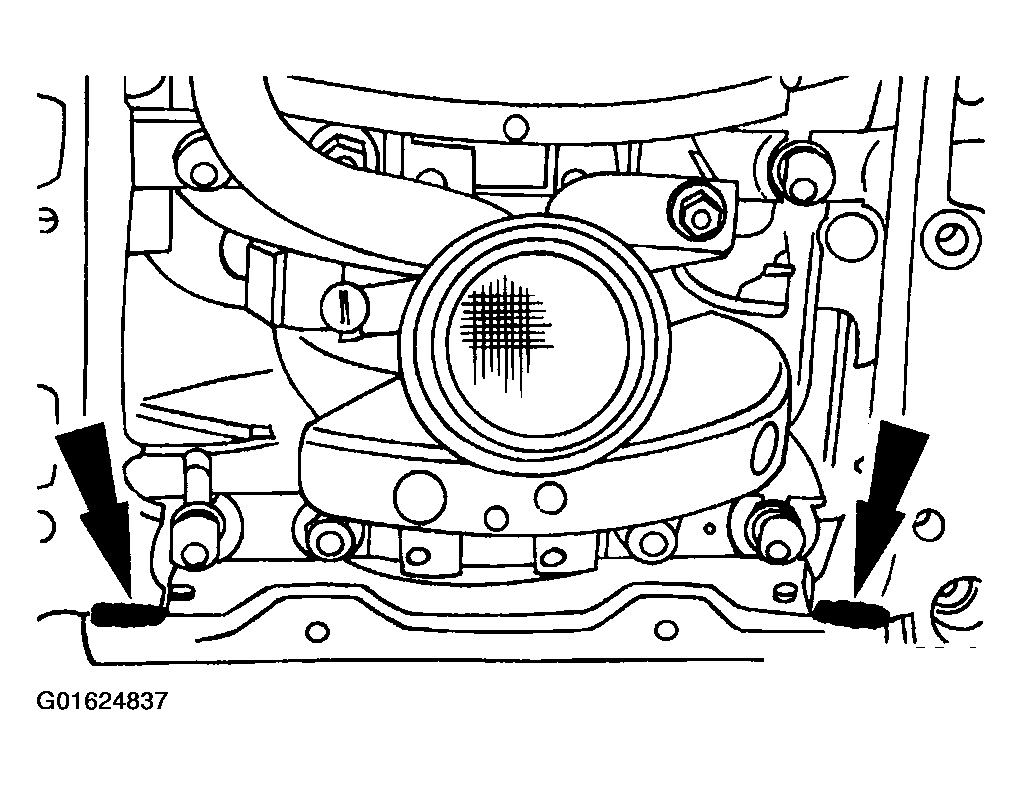

Fig 2: Applying Silicone Gasket And Sealant At Rear Oil Seal Retainer-To-Cylinder Block Sealing Surface

Courtesy of FORD MOTOR CO.

Apply silicone gasket and sealant at the rear oil seal retainer-to-cylinder block sealing surface.
Install the oil pan and gasket and loosely install the bolts.

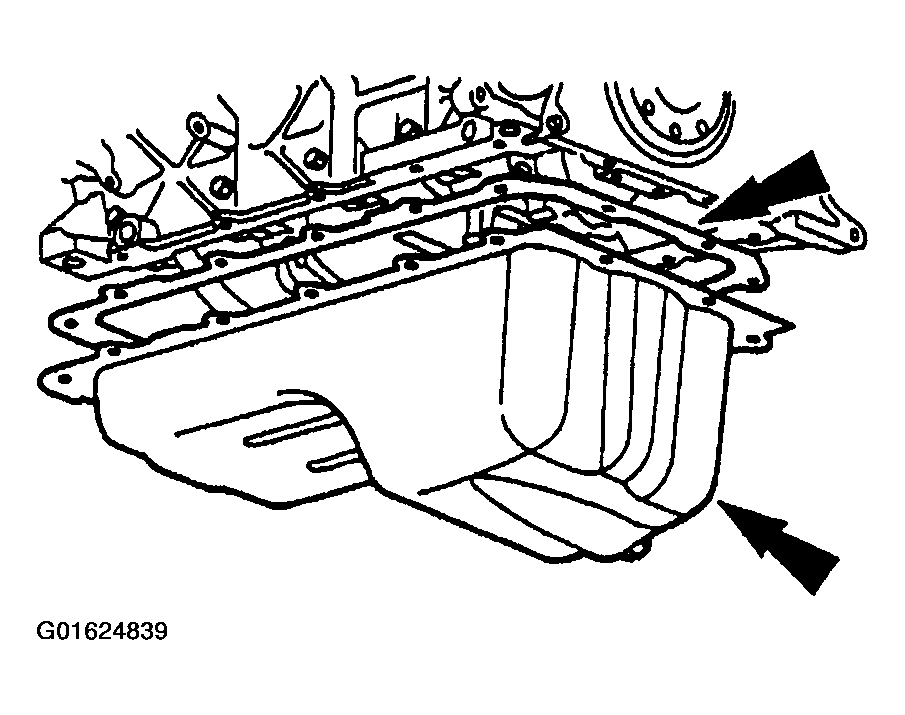

Fig 3: Installing Oil Pan And Gasket
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown in three stages.
- Stage 1: Tighten to 2 Nm (18 lb-in).
- Stage 2: Tighten to 20 Nm (15 lb-ft).
- Stage 3: Tighten an additional 60 degrees.

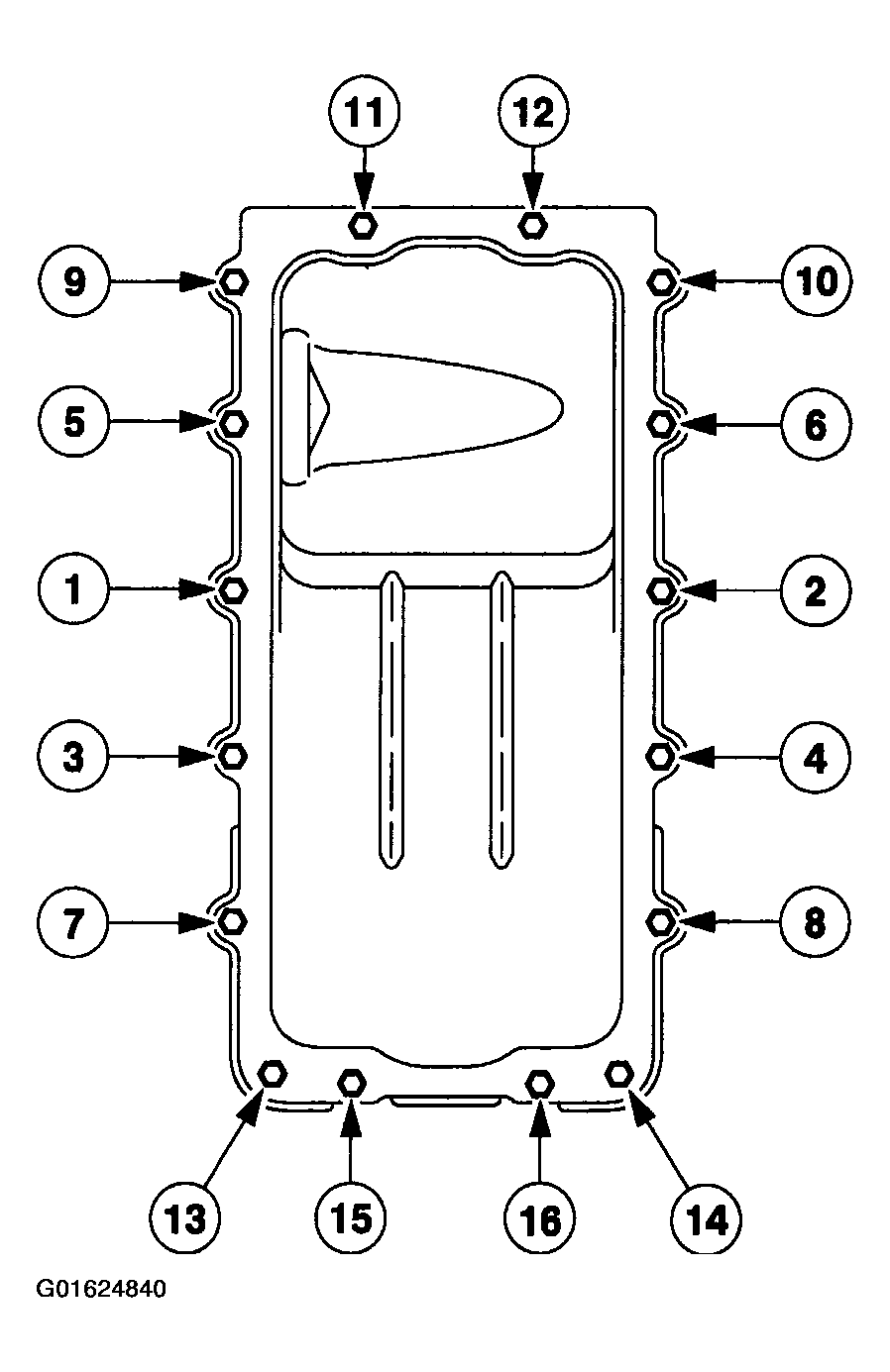

  Fig 4: Identifying Tightening Sequence Oil Pan Bolts
  Courtesy of FORD MOTOR CO.
Install the oil pan drain plug.

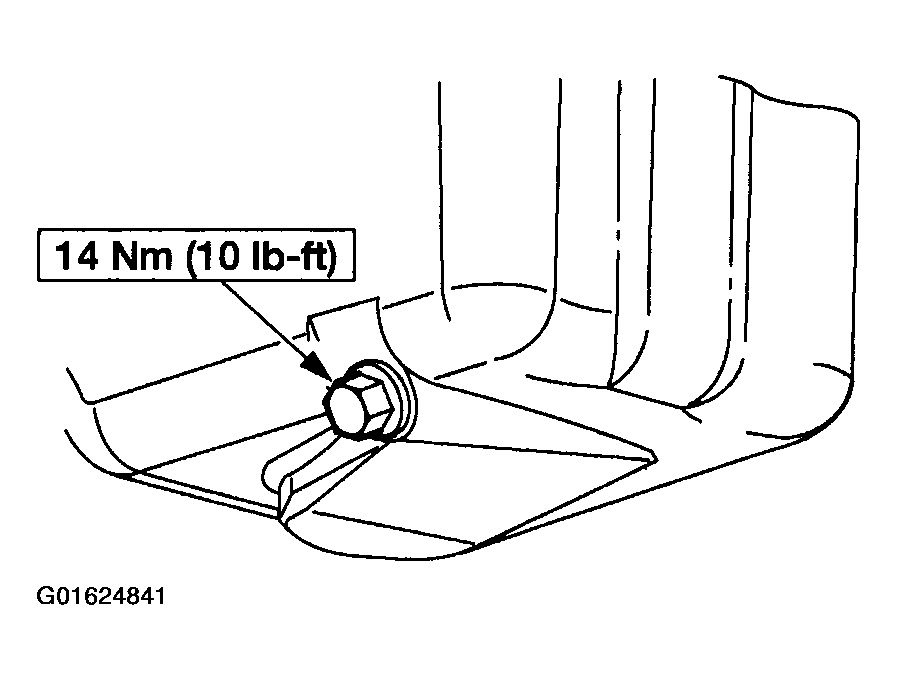

Fig 5: Identifying Tightening Torque For Installing Oil Pan Drain Plug
Courtesy of FORD MOTOR CO.
Position the starter wiring harness and install the wiring harness nuts.

Fig 6: Identifying Tightening Torque For Installing Starter Wiring Harness Nuts
Courtesy of FORD MOTOR CO.
Install the sub-frame brace.

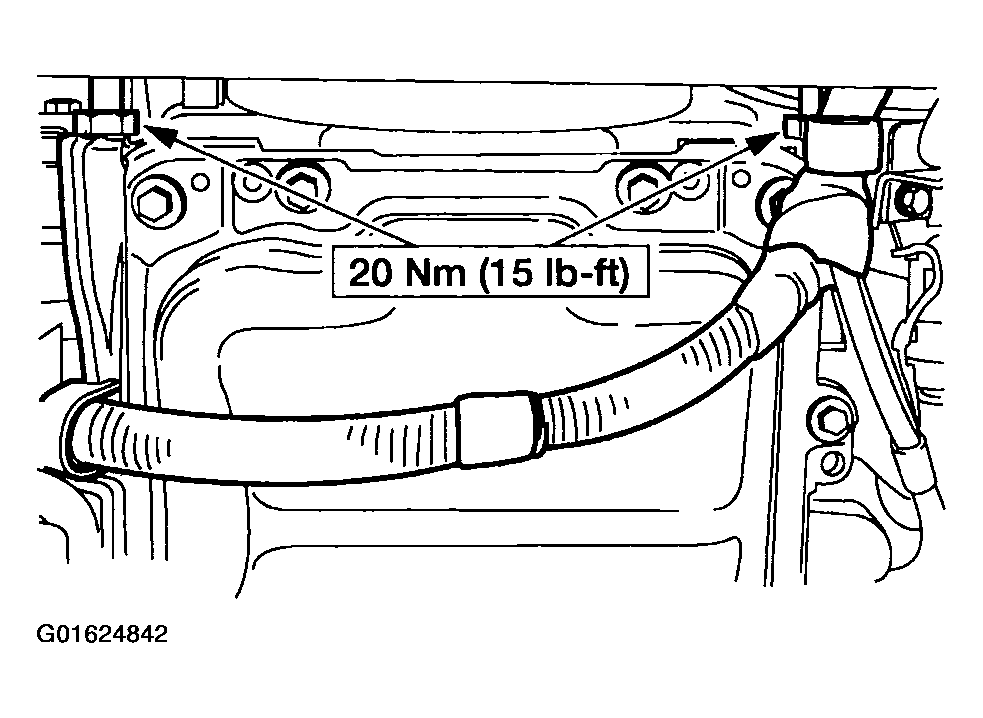

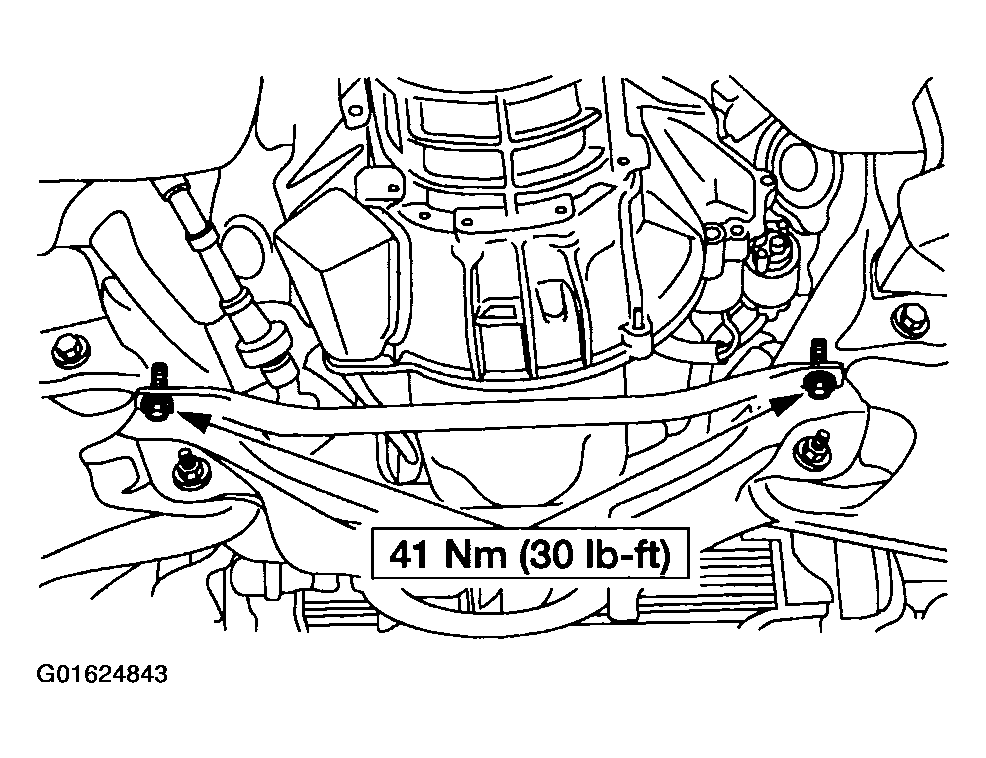

Fig 7: Identifying Tightening Torque For Installing Sub-Frame Brace
Courtesy of FORD MOTOR CO.
Raise the front sub-frame into position.

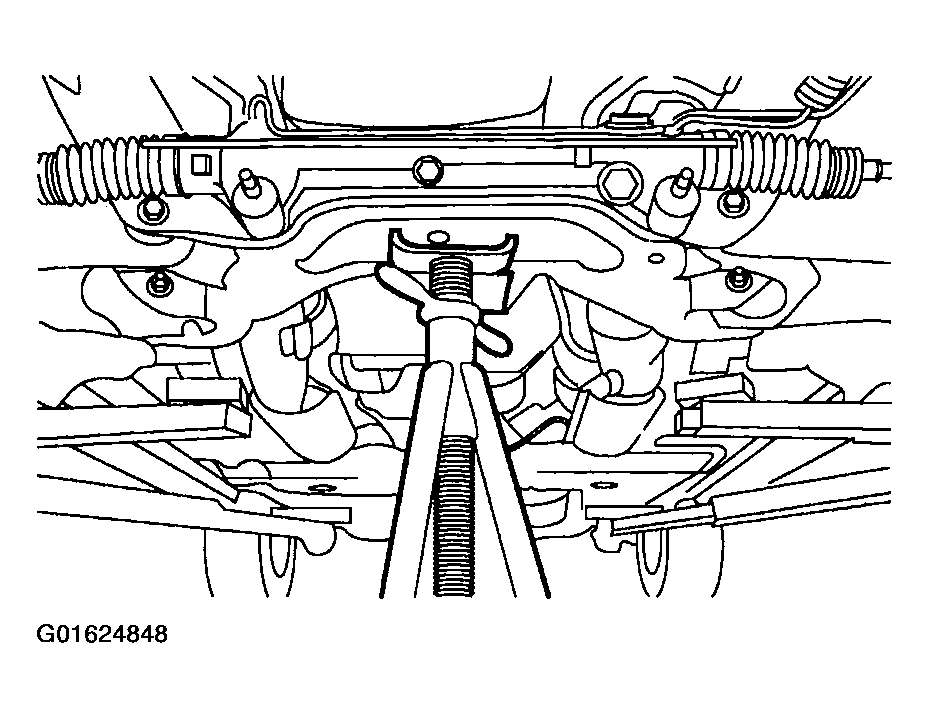

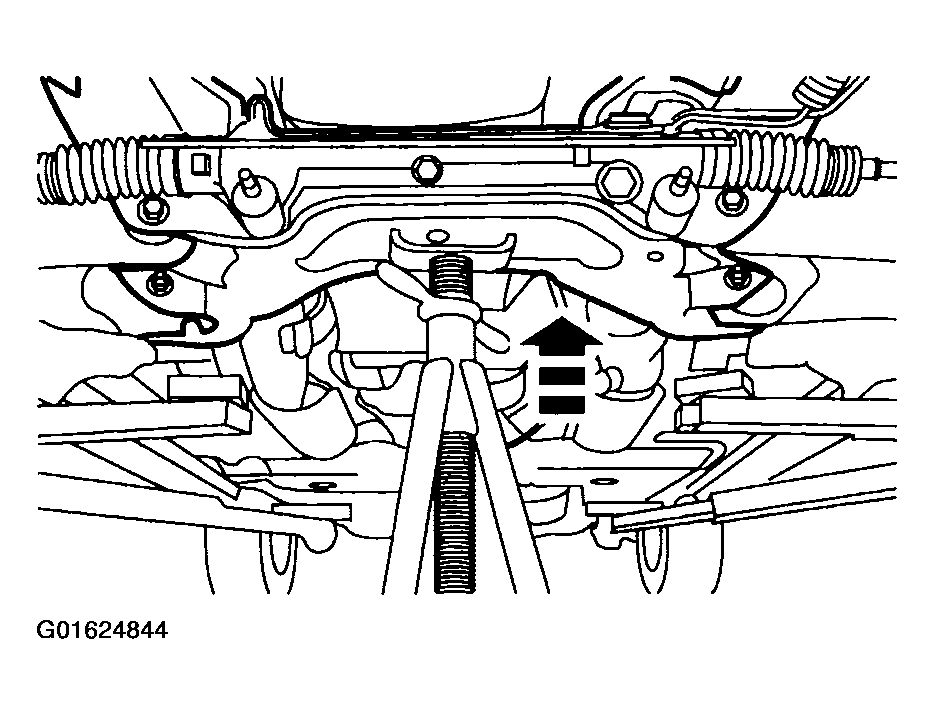

Fig 8: Raising Front Sub-Frame Into Position
Courtesy of FORD MOTOR CO.
Install the two bolts.

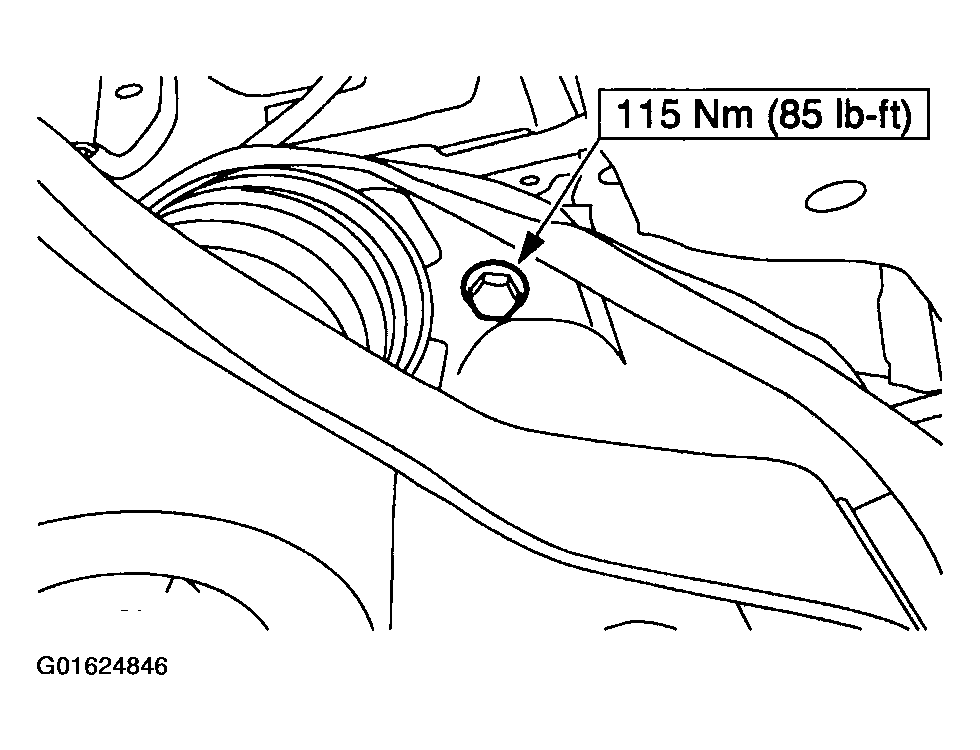

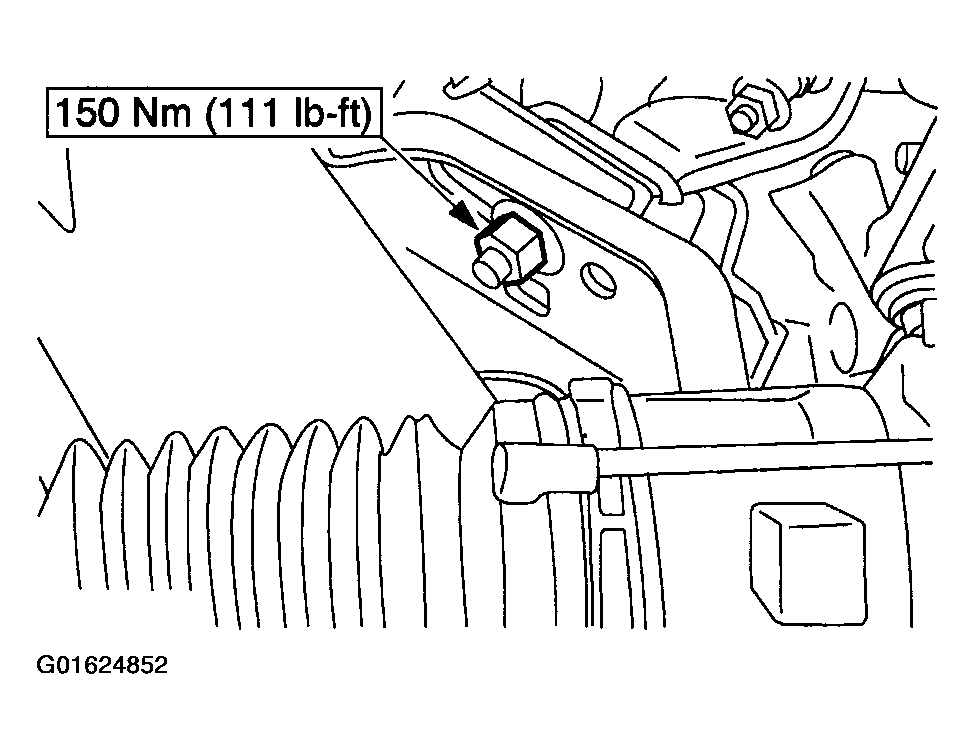

Fig 9: Identifying Tightening Torque Of Bolt
Courtesy of FORD MOTOR CO.
Install the two bolts.

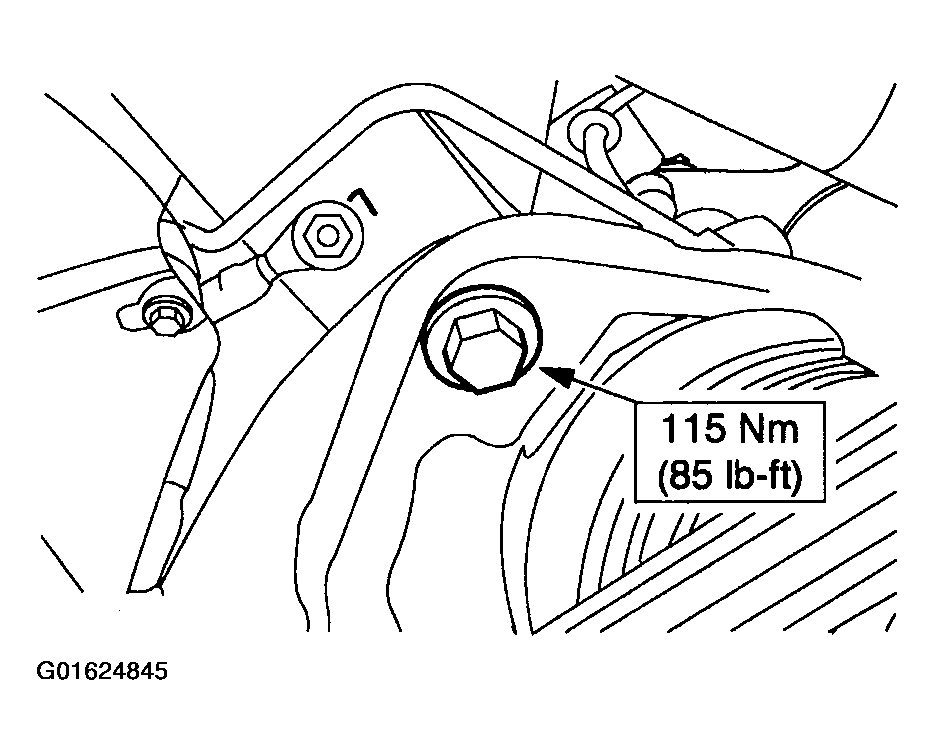

Fig 10: Identifying Tightening Torque For Installing Bolt
Courtesy of FORD MOTOR CO.
Install the four bolts.

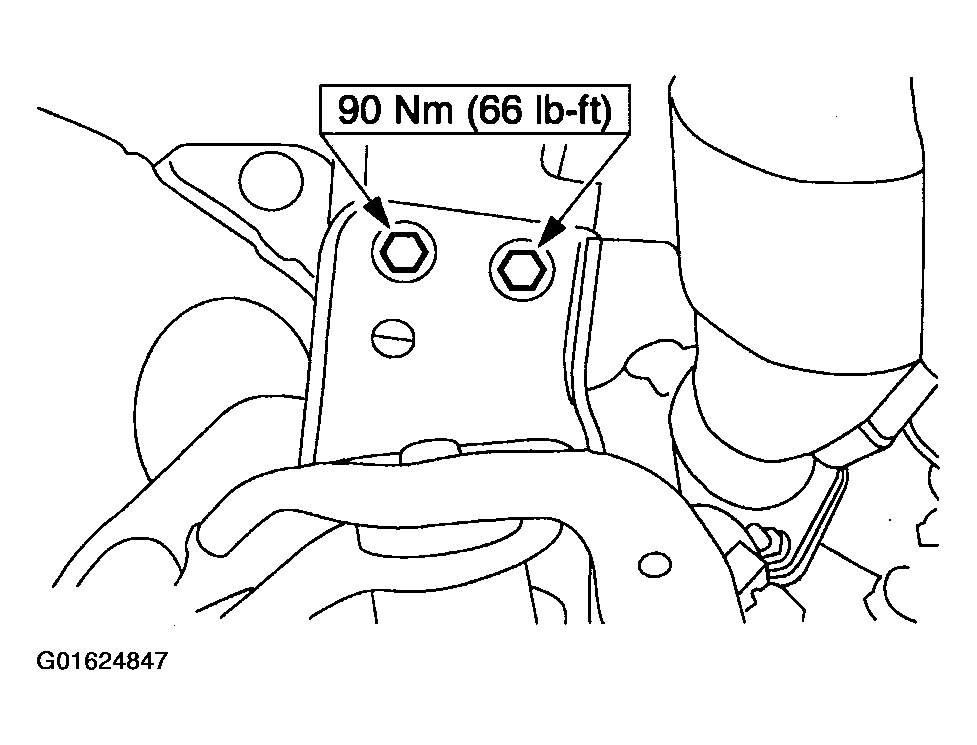

Fig 11: Identifying Tightening Torque For Installing Bolt
Courtesy of FORD MOTOR CO.
Position the safety stand aside.

Fig 12: Positioning Safety Stand Aside
Courtesy of FORD MOTOR CO.
Release the tension from the front coil springs and remove the special tool.

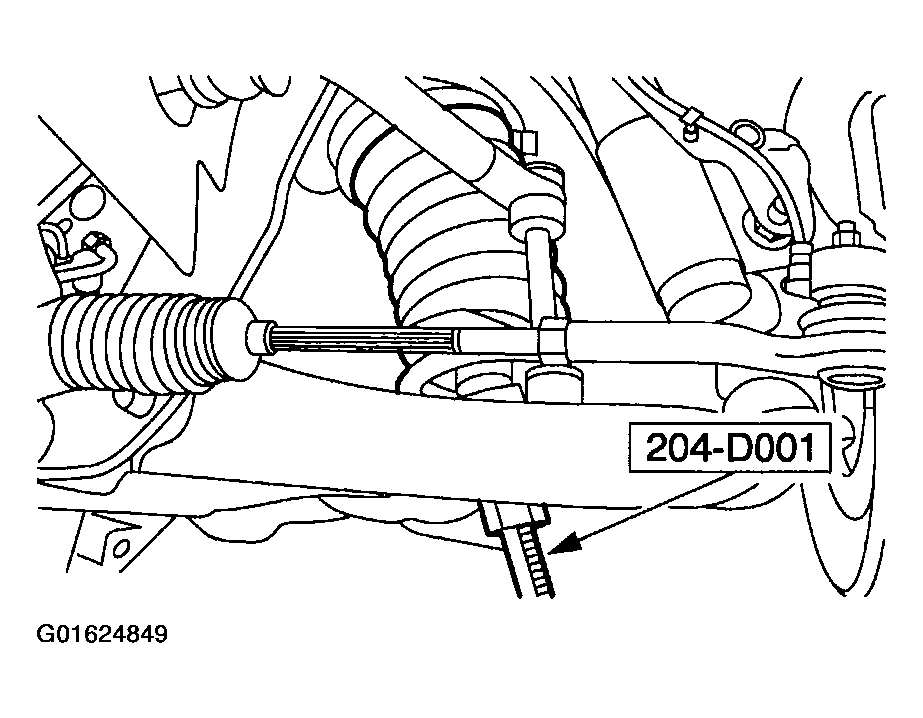

Fig 13: Releasing Tension From Front Coil Springs
Courtesy of FORD MOTOR CO.
Raise the vehicle.
Using the special tool, lower the engine and remove the special tool.

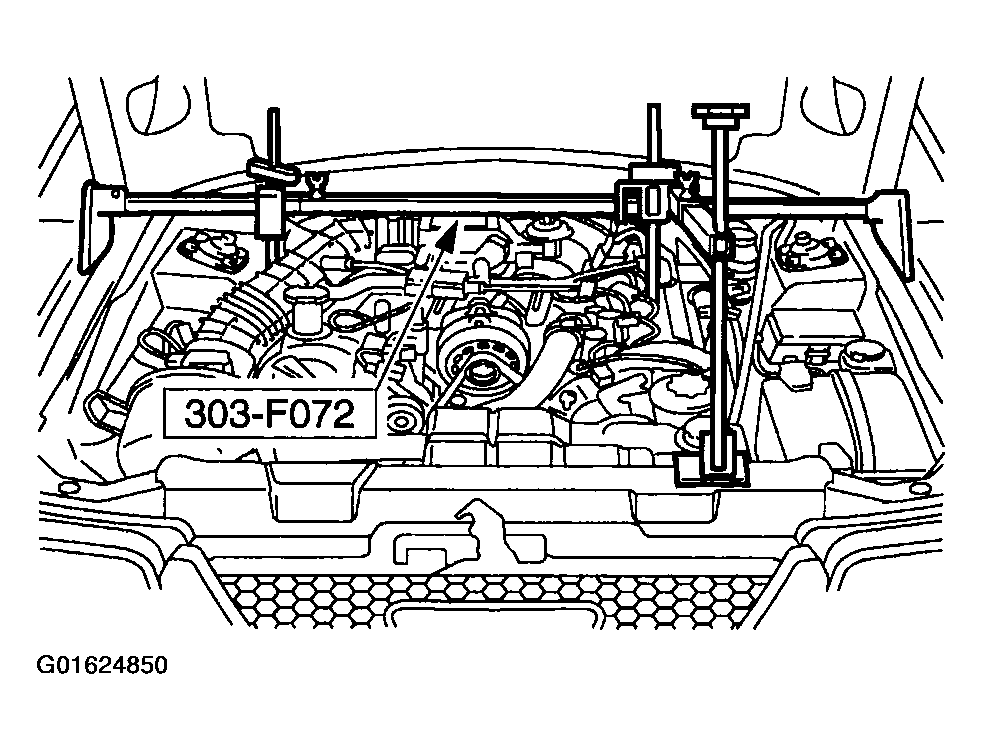

Fig 14: Lowering Engine
Courtesy of FORD MOTOR CO.
Remove the special tools.

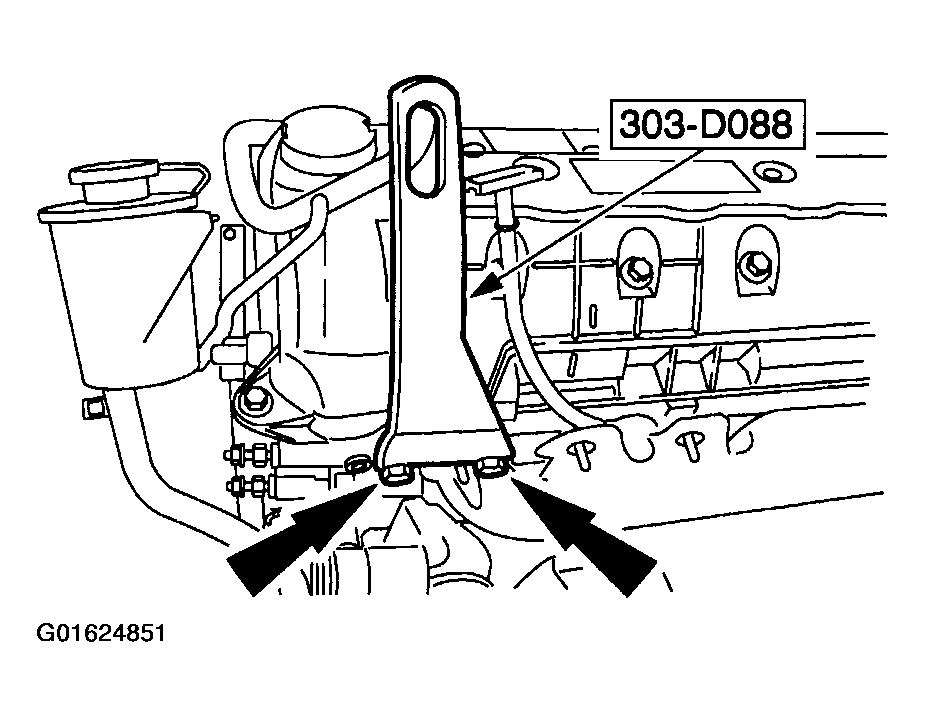

Fig 15: Removing Special Tool
Courtesy of FORD MOTOR CO.
Install the two nuts.

Fig 16: Identifying Tightening Torque For Installing Nut
Courtesy of FORD MOTOR CO.
Install the transmission. For additional information, refer to MANUAL TRANSAXLE-TR3650 .
Lower the vehicle.
Fill the engine crankcase with clean engine oil.
Install the A/C line. For additional information, refer to AIR CONDITIONING .
Install the manifold and tube assembly-accumulator to compressor, 4.6L. For additional information, refer to AIR CONDITIONING .
Install the radiator sight shield.
Install the air cleaner outlet tube. .
Install the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Start the engine and check for leaks.
