Oil Level Indicator And Tube: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, follow the removal procedure in reverse.

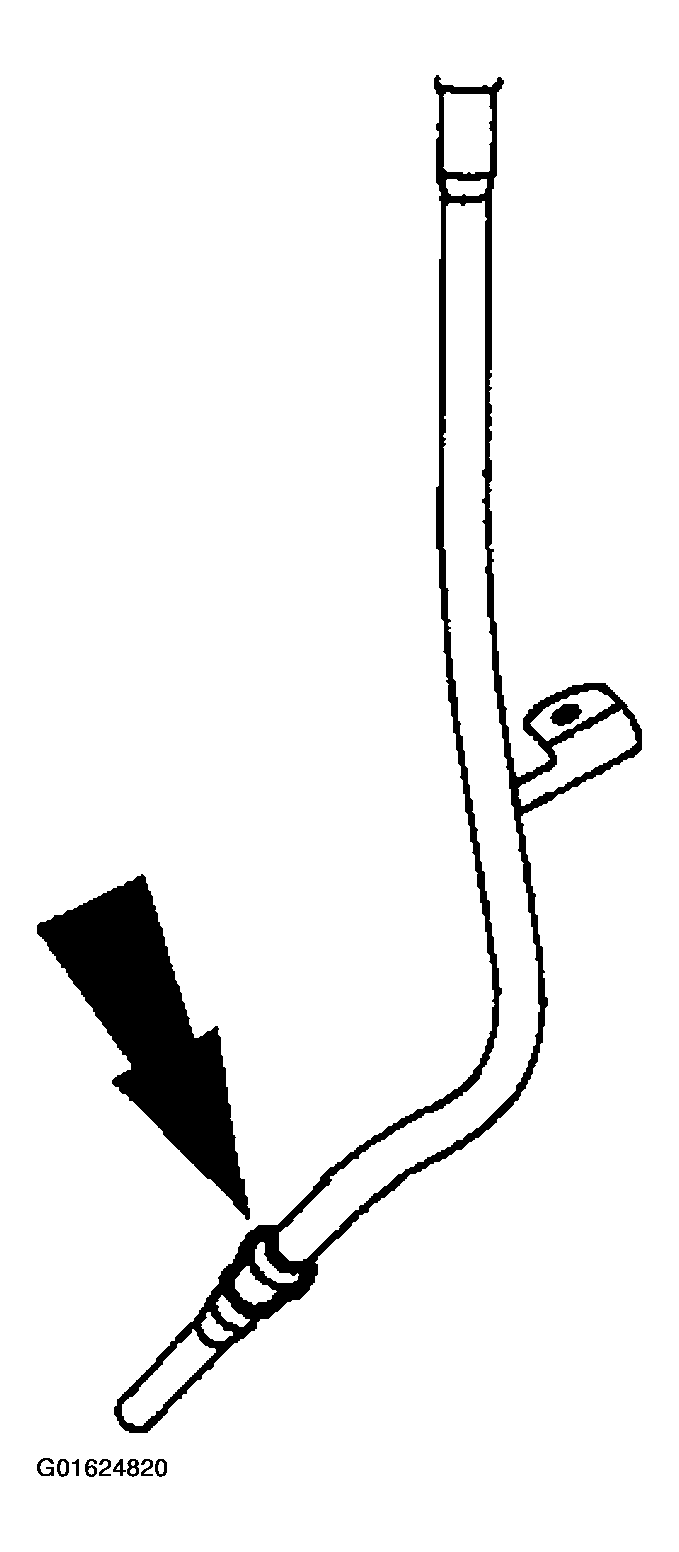

    Fig 1: Identifying O-Ring On Oil Indicator Tube
    G01624820Courtesy of FORD MOTOR CO.

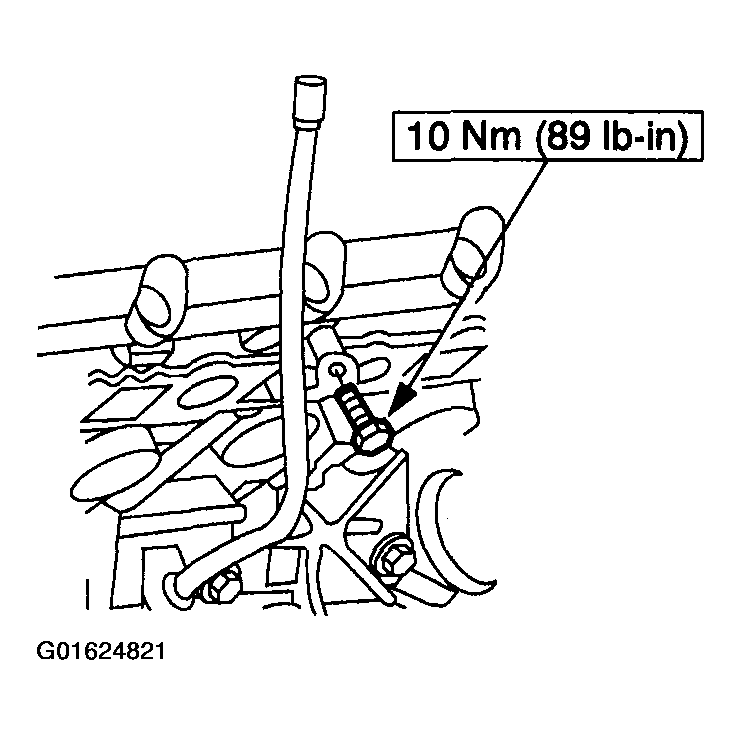

    Fig 2: Identifying Tightening Torque For Installing Oil Level Indicator Tube Bolt
    G01624821Courtesy of FORD MOTOR CO.
