In-Vehicle Repair: Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch components. For additional information, refer to CLUTCH .
  2. Remove the bolts and the flywheel.

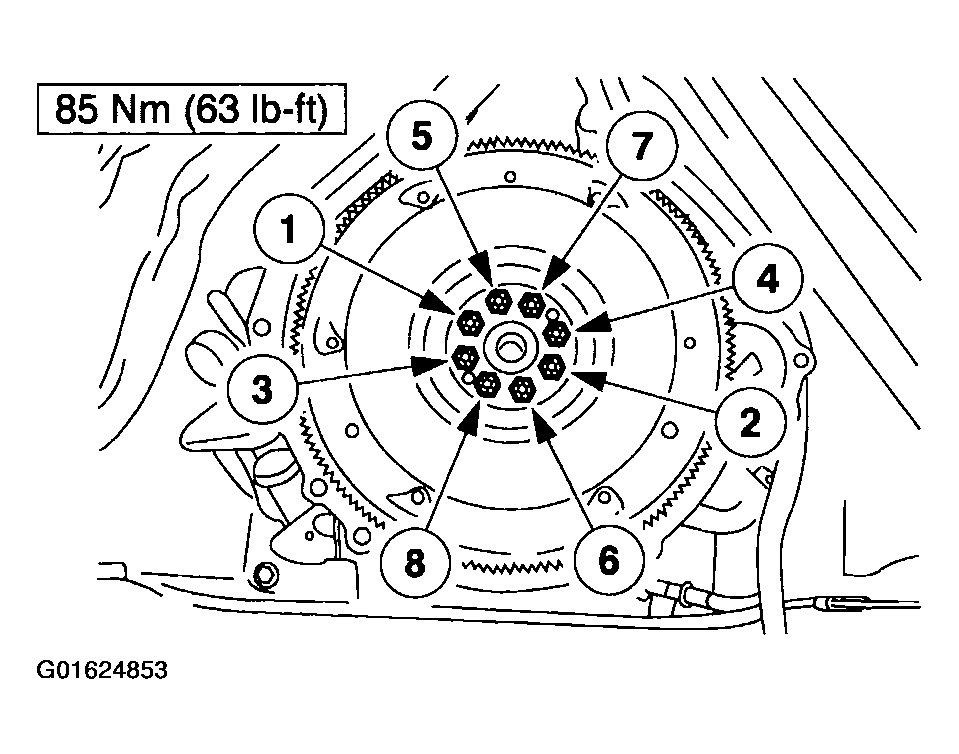

    Fig 1: Identifying Removal Sequence Of Flywheel Bolts
    G01624853Courtesy of FORD MOTOR CO.
