Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.

Install the special tools.

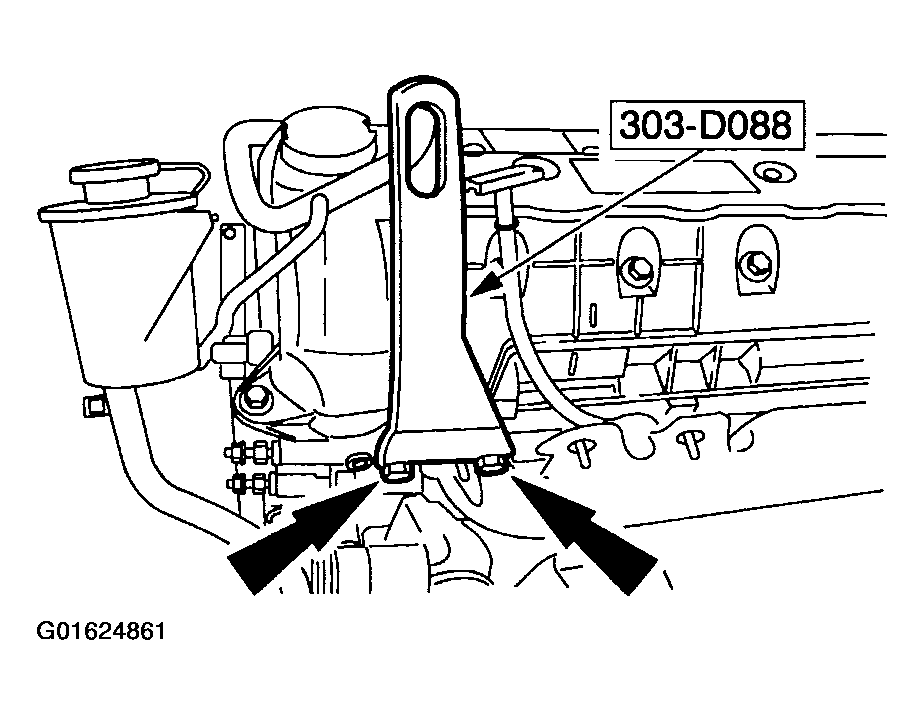

Fig 1: Installing Special Tool
Courtesy of FORD MOTOR CO.
Install the special tool.

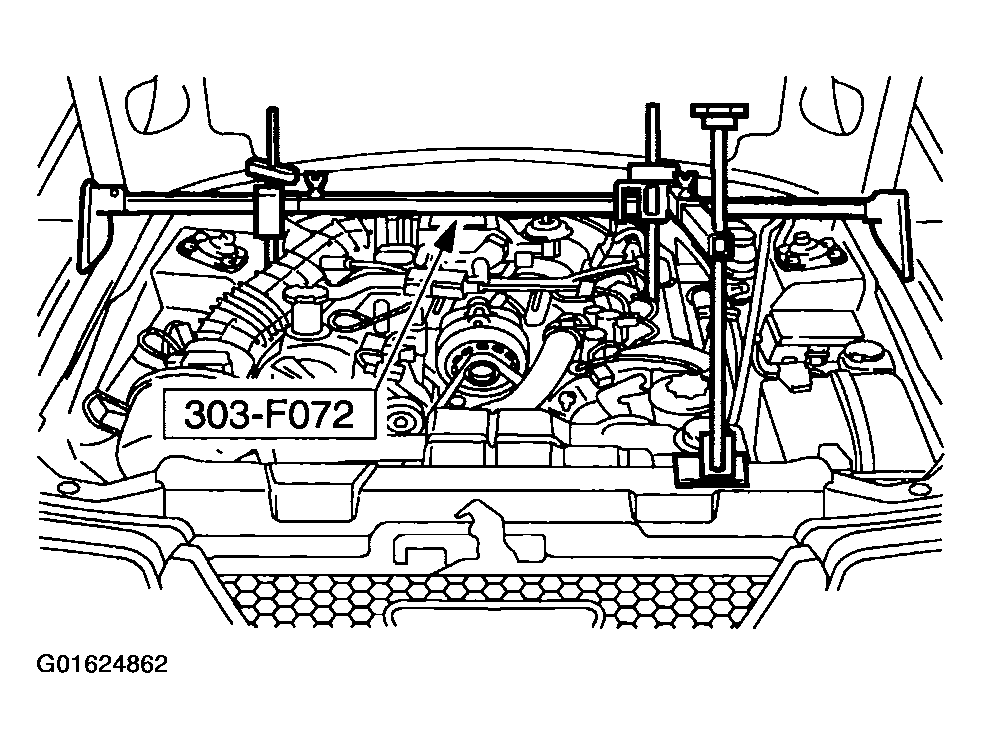

Fig 2: Installing Special Tool
Courtesy of FORD MOTOR CO.
Raise the vehicle.
Remove the two nuts.

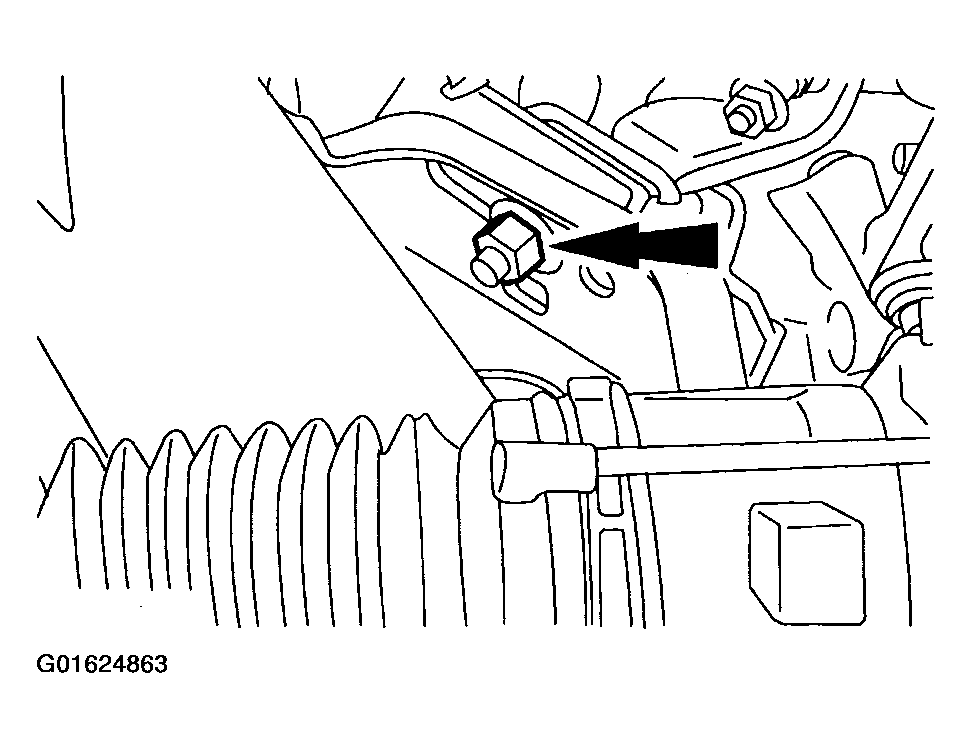

Fig 3: Removing Nut
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Using the special tool, raise the engine.

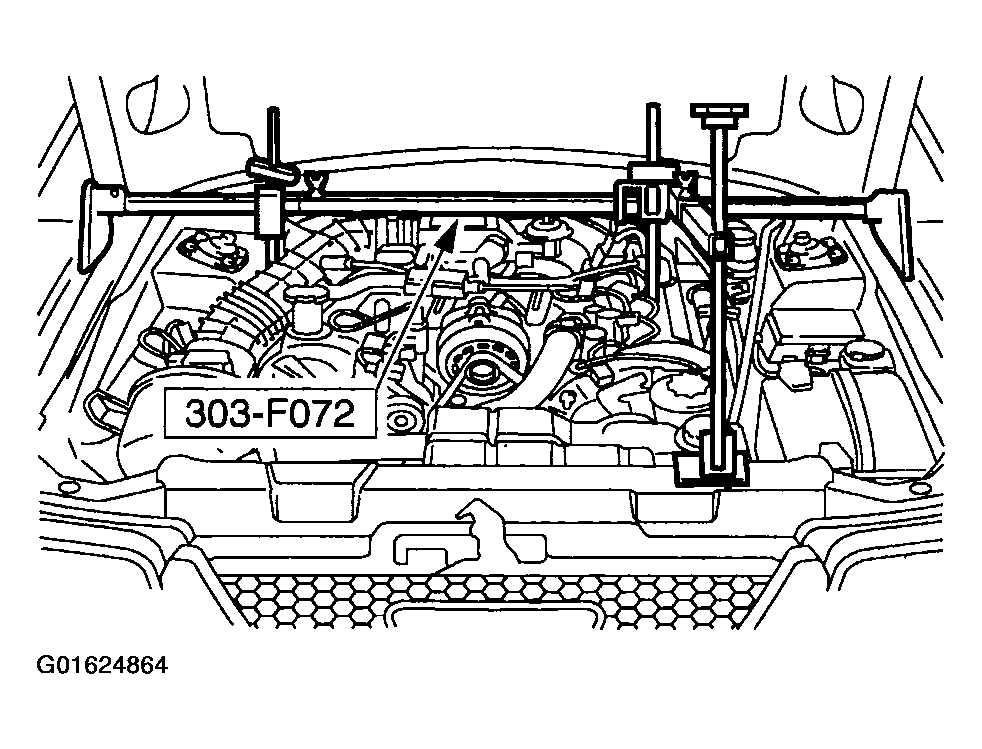

Fig 4: Raising Engine
Courtesy of FORD MOTOR CO.
Raise the vehicle.
Remove the engine mount.

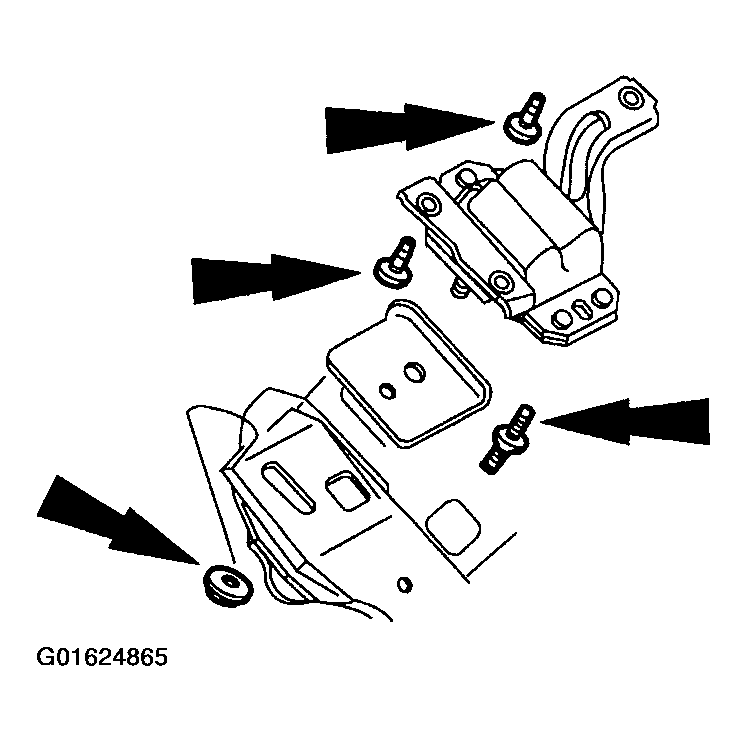

Fig 5: Removing Engine Mount
Courtesy of FORD MOTOR CO.
