Engine Mount LH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Install the special tools.

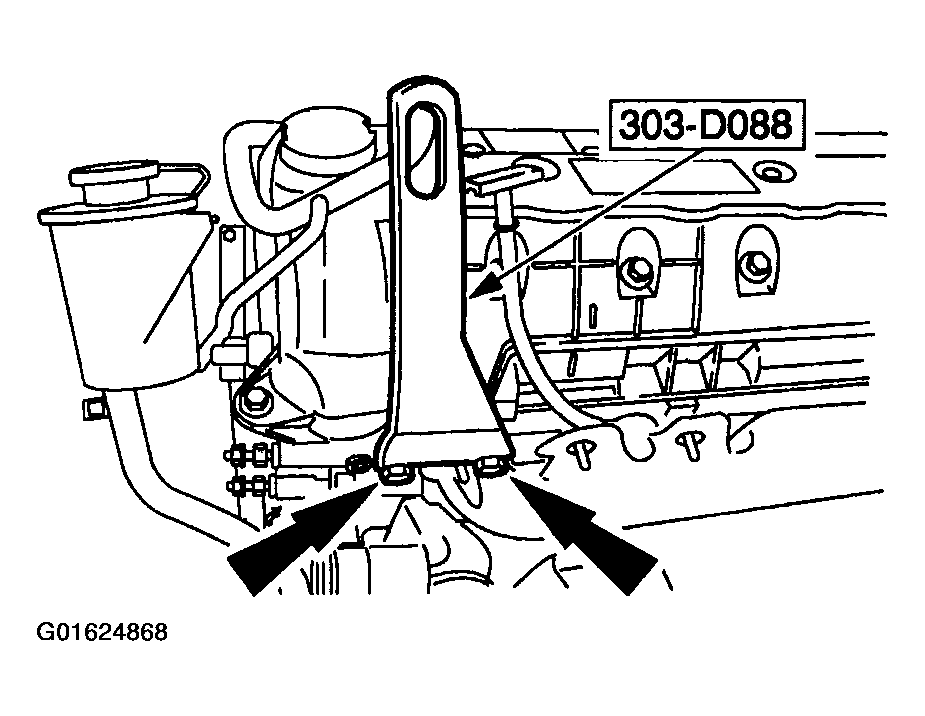

    Fig 1: Installing Special Tool
    G01624868Courtesy of FORD MOTOR CO.
  2. Install the special tool.
    Fig 2: Installing Special Tool
    G01624869Courtesy of FORD MOTOR CO.
  3. Raise the vehicle.
  4. Remove the two nuts.

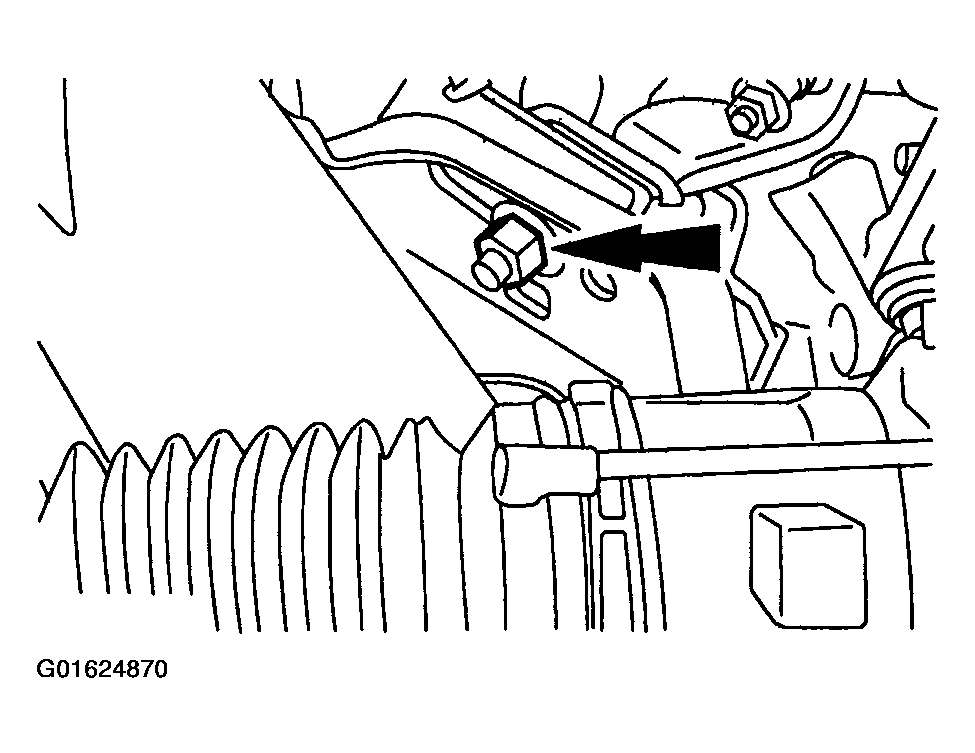

    Fig 3: Removing Nut
    G01624870Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
  6. Using the special tool, raise the engine.

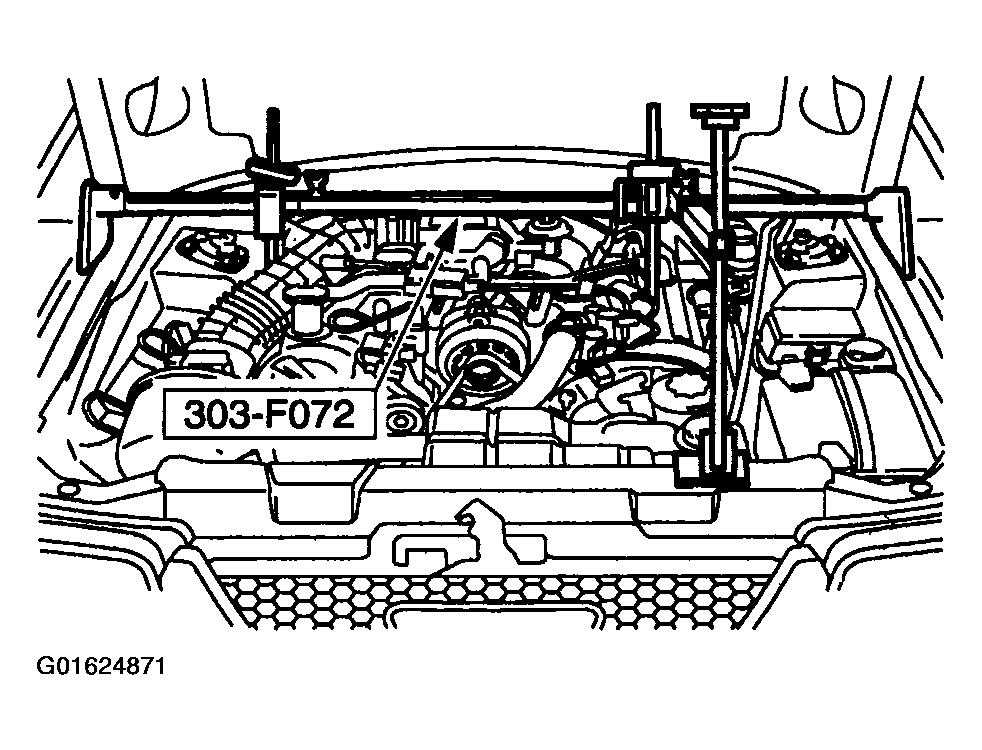

    Fig 4: Raising Engine
    G01624871Courtesy of FORD MOTOR CO.
  7. Raise the vehicle on a hoist.
  8. Remove the engine mount.

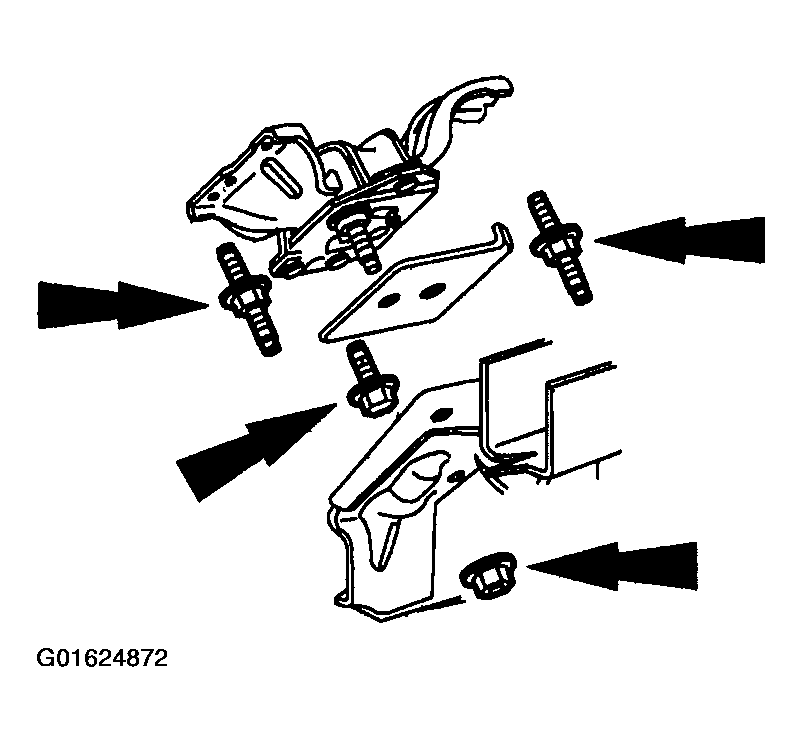

    Fig 5: Removing Engine Mount
    G01624872Courtesy of FORD MOTOR CO.
