Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Connecting rod must be installed into piston with identification markings toward front.

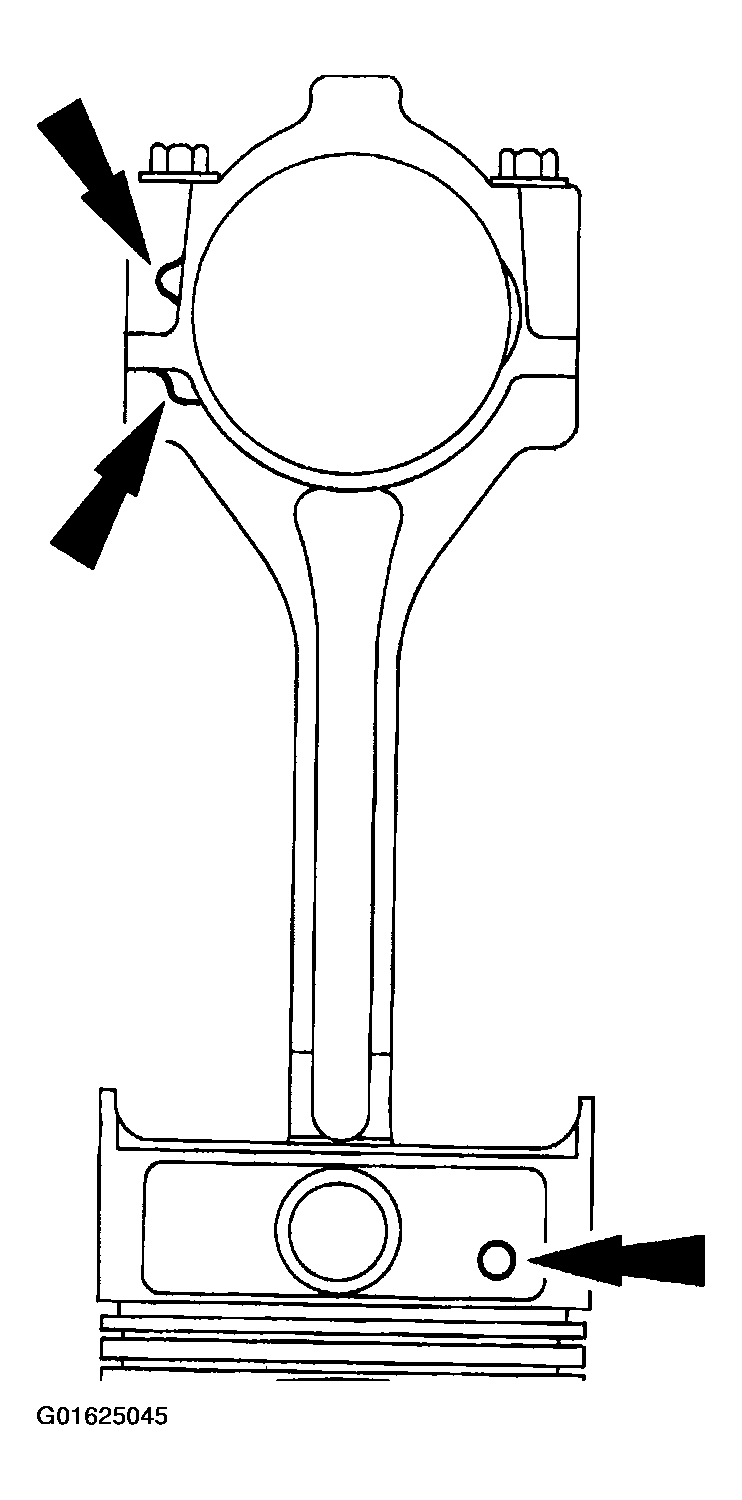

Fig 1: Positioning Connecting Rod In Piston

Courtesy of FORD MOTOR CO.

Position the connecting rod in the piston.
Lubricate the piston pin and pin bore with clean engine oil.

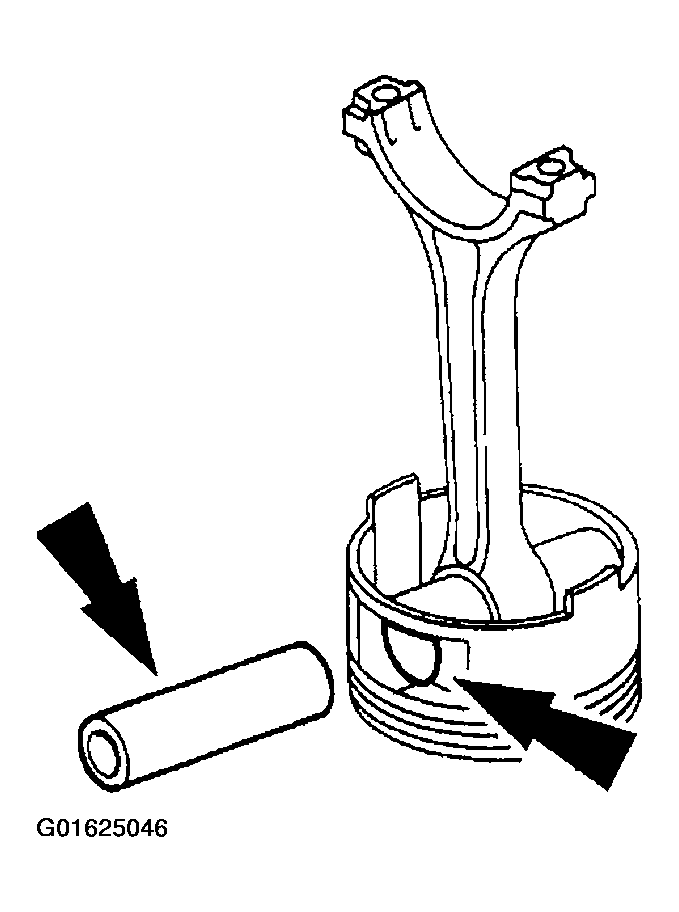

Fig 2: Locating Piston Pin And Pin Bore For Lubrication
Courtesy of FORD MOTOR CO.
Install the piston pin in the piston and connecting rod assembly.

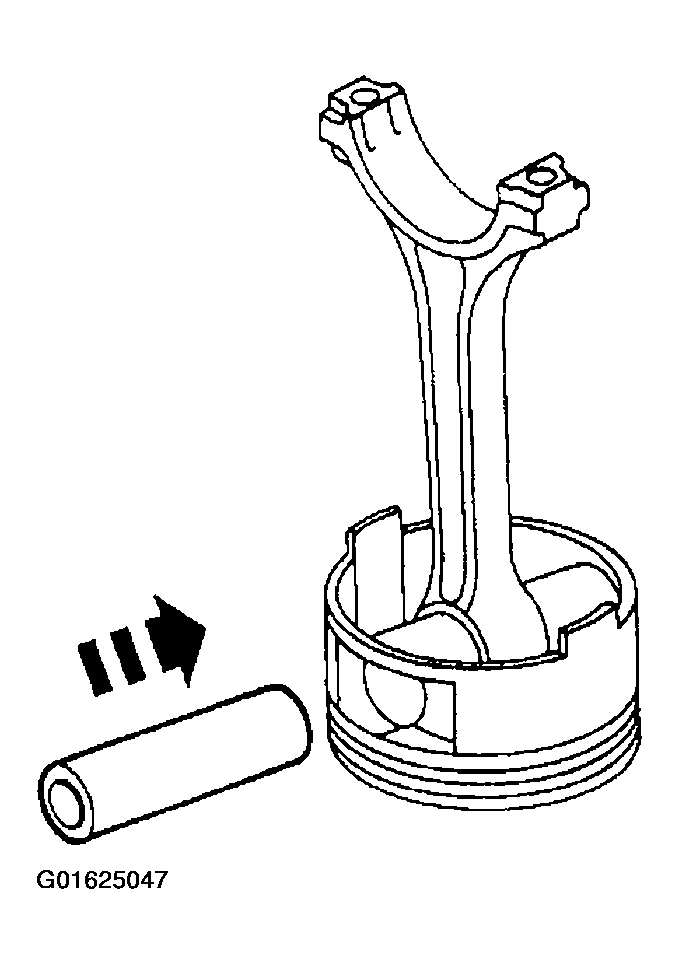

Fig 3: Installing Piston Pin In Piston And Connecting Rod Assembly
Courtesy of FORD MOTOR CO.
Install the piston pin retaining clips in the piston.

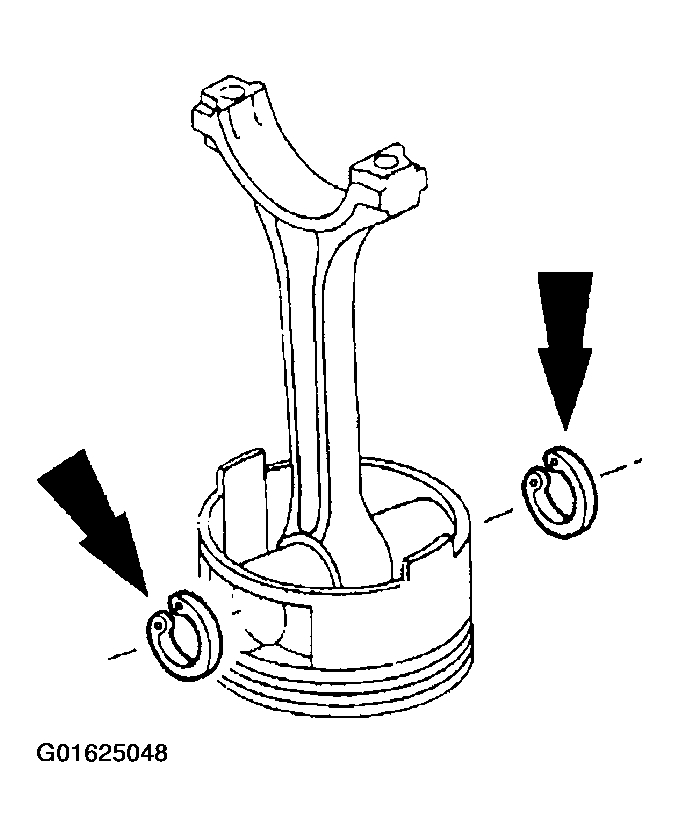

Fig 4: Installing Piston Pin Retaining Clips In Piston
Courtesy of FORD MOTOR CO.
