Drive Belt System

The 4.6L (4V) DOHC engine is equipped with a serpentine drive belt. To ensure maximum life, a replacement drive belt should be of the same type as originally installed.

• The accessories mounted on the front of the engine are belt-driven by the crankshaft.
• The serpentine drive belt is routed over each accessory pulley, driven by the crankshaft pulley bolted to the crankshaft.

For service procedures, including tensioning, refer to ACCESSORY DRIVE .

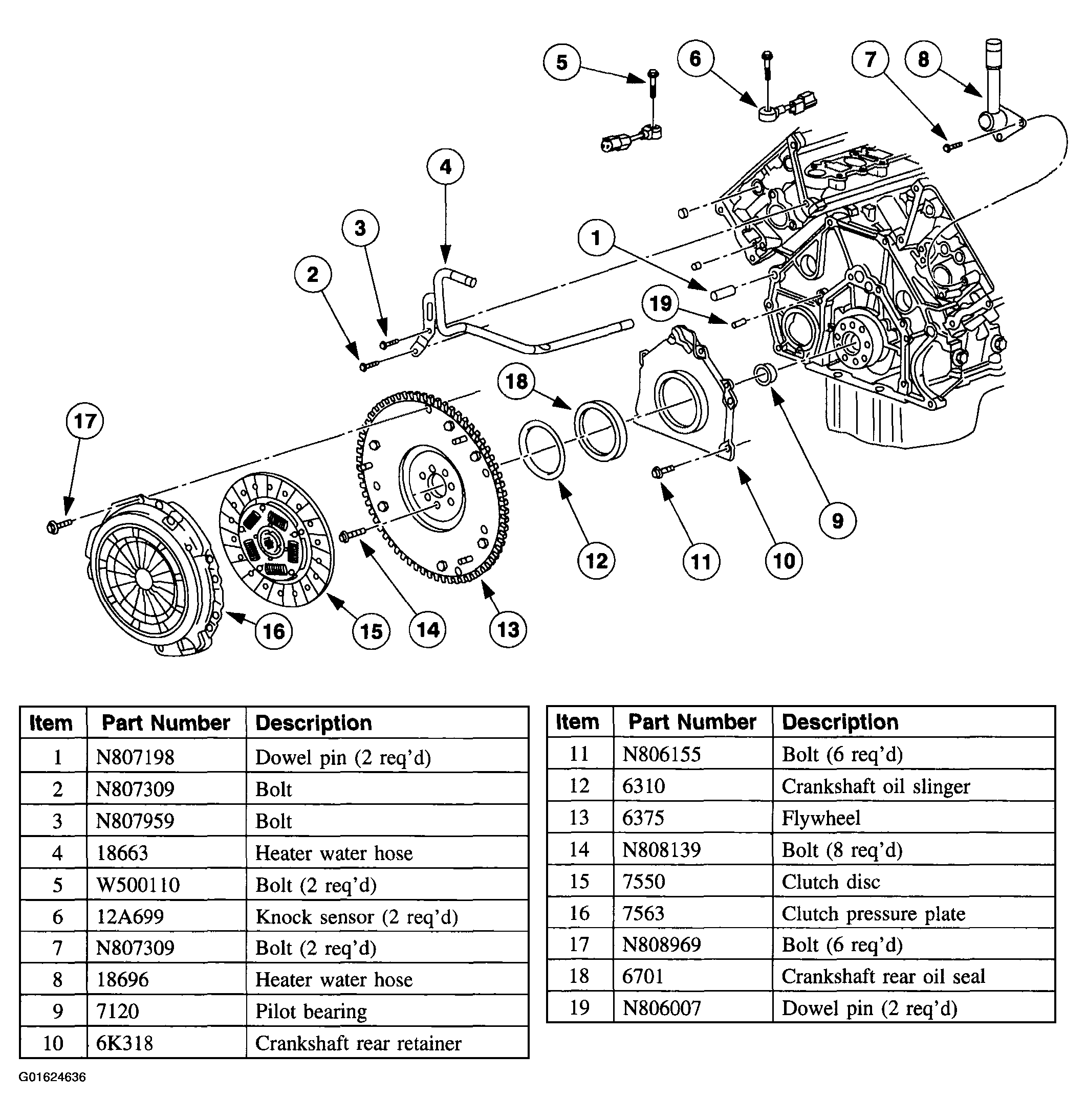

Fig 1: Identifying Components Of Engine - Cobra 4.6L (4V) (1 Of 8)

Courtesy of FORD MOTOR CO.

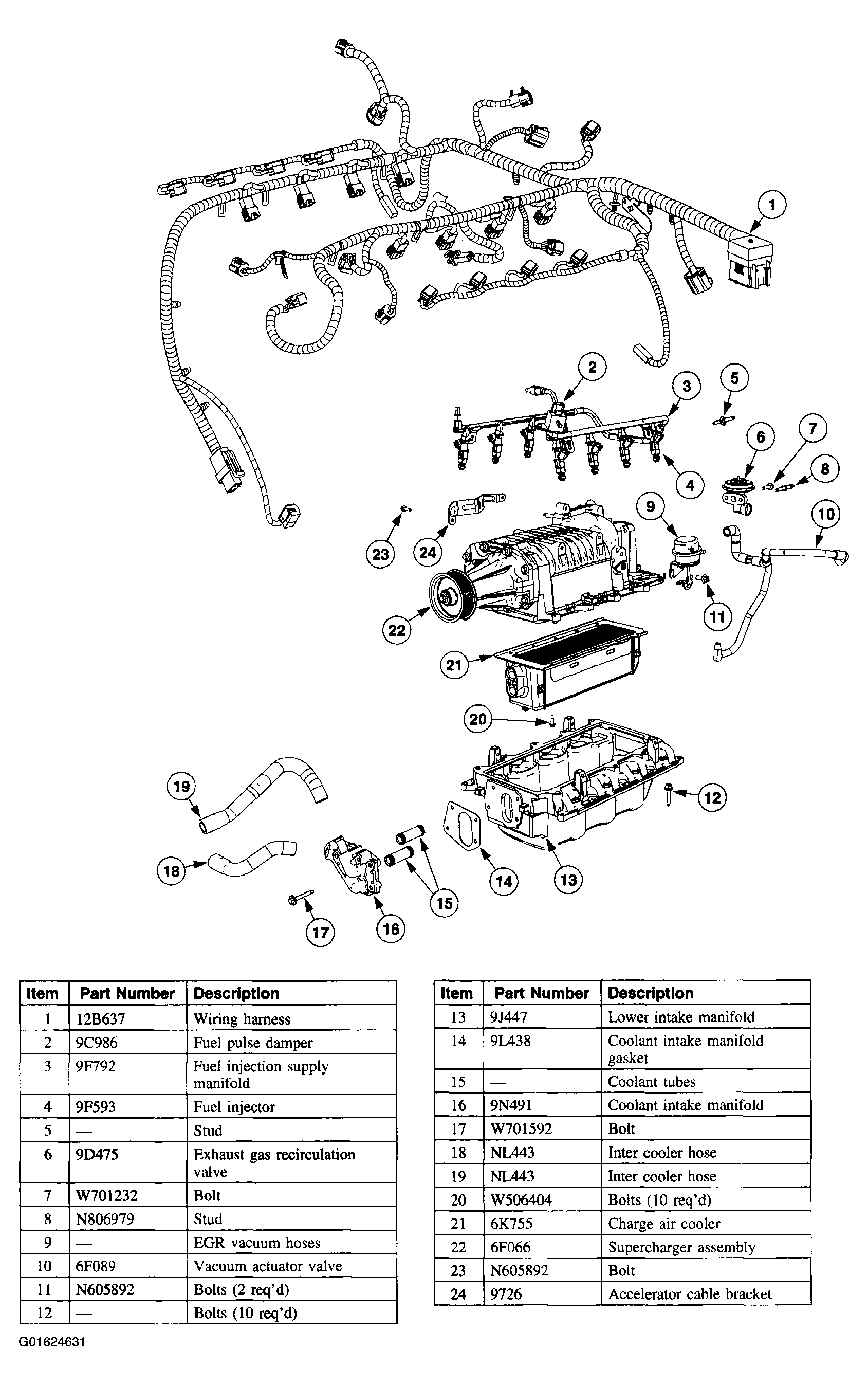

Fig 2: Identifying Components Of Engine - Cobra 4.6L (4V) (2 Of 8)

Courtesy of FORD MOTOR CO.

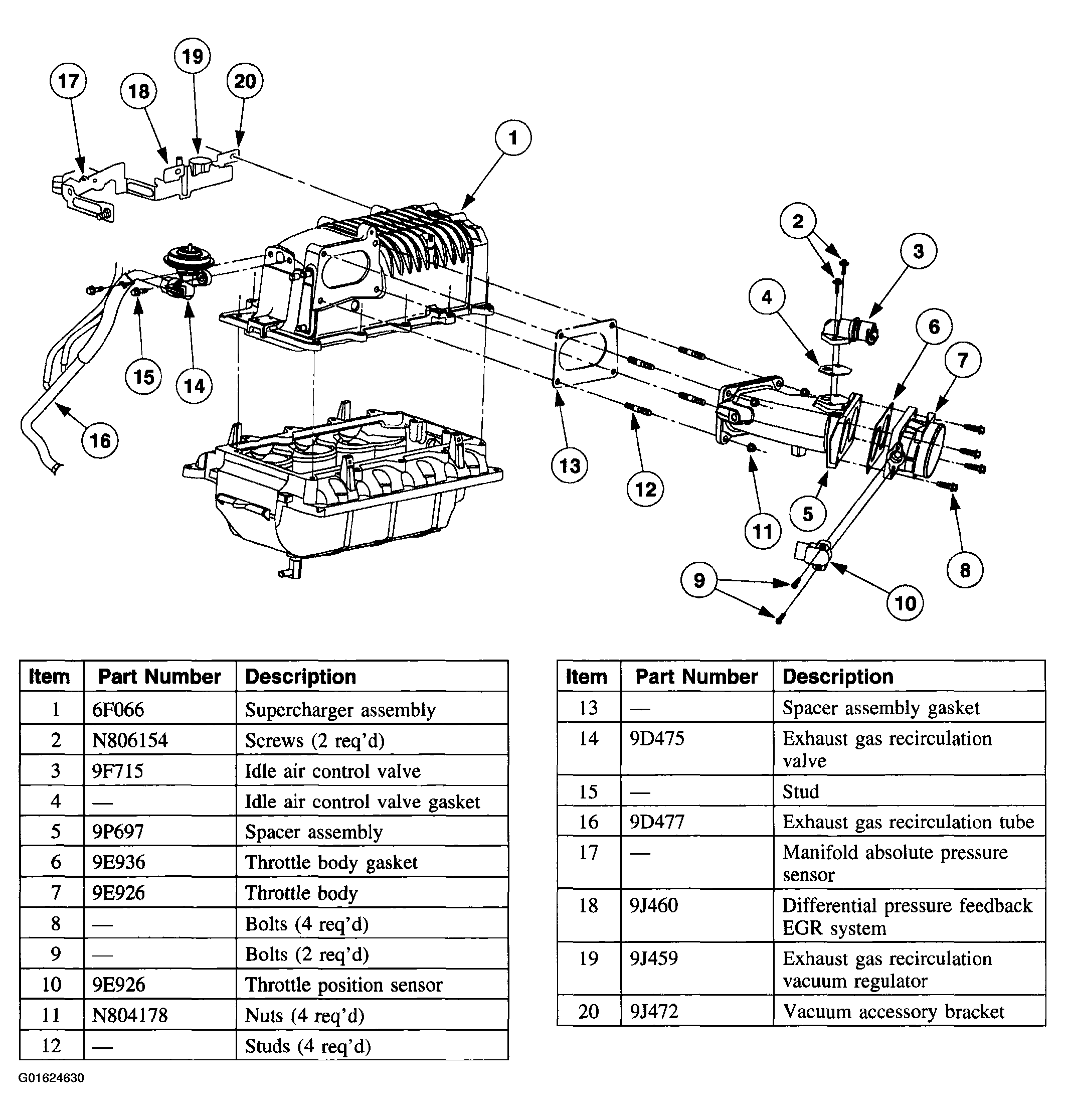

Fig 3: Identifying Components Of Engine - Cobra 4.6L (4V) (3 Of 8)

Courtesy of FORD MOTOR CO.

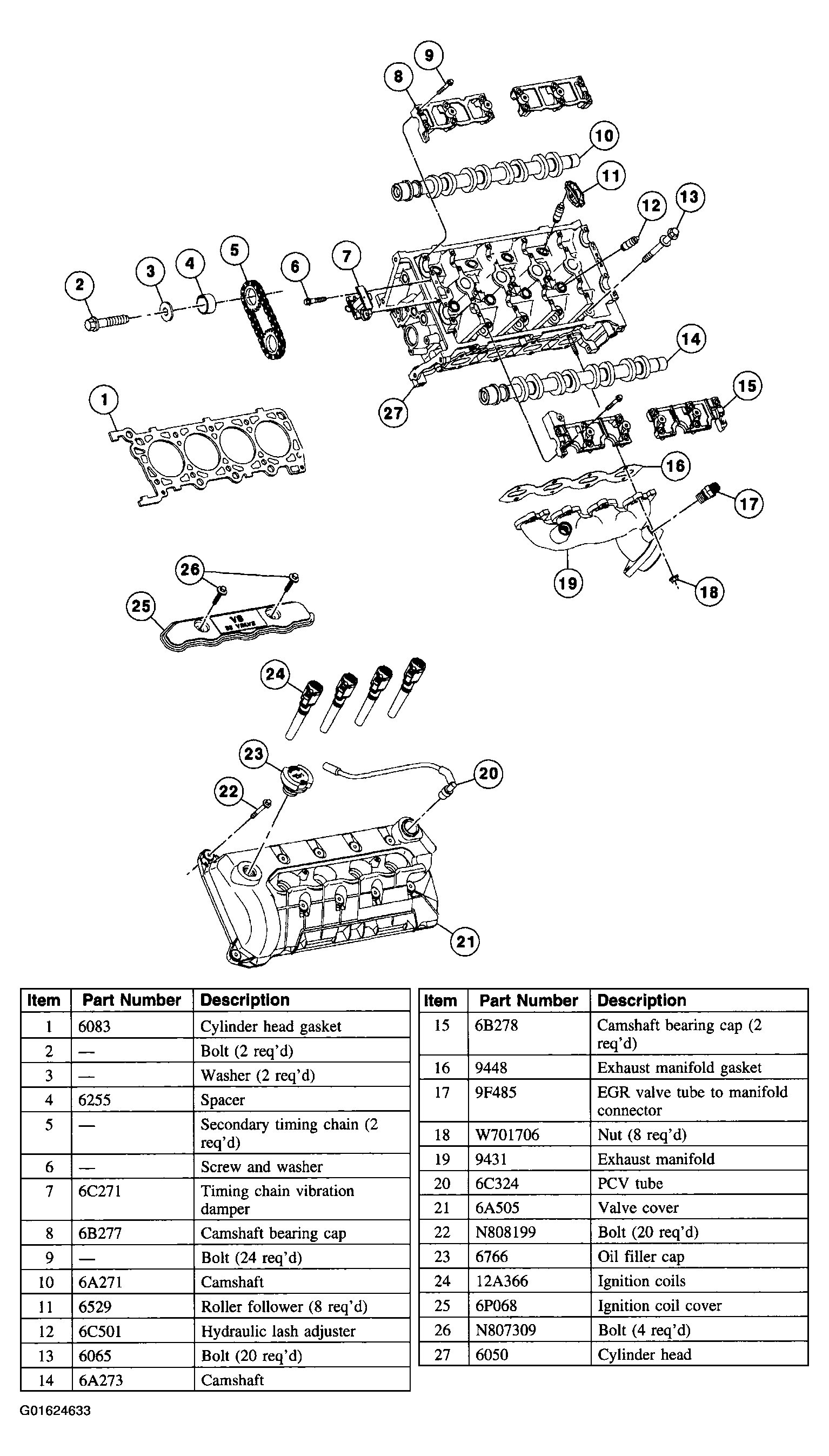

Fig 4: Identifying Components Of Engine - Cobra 4.6L (4V) (4 Of 8)

Courtesy of FORD MOTOR CO.

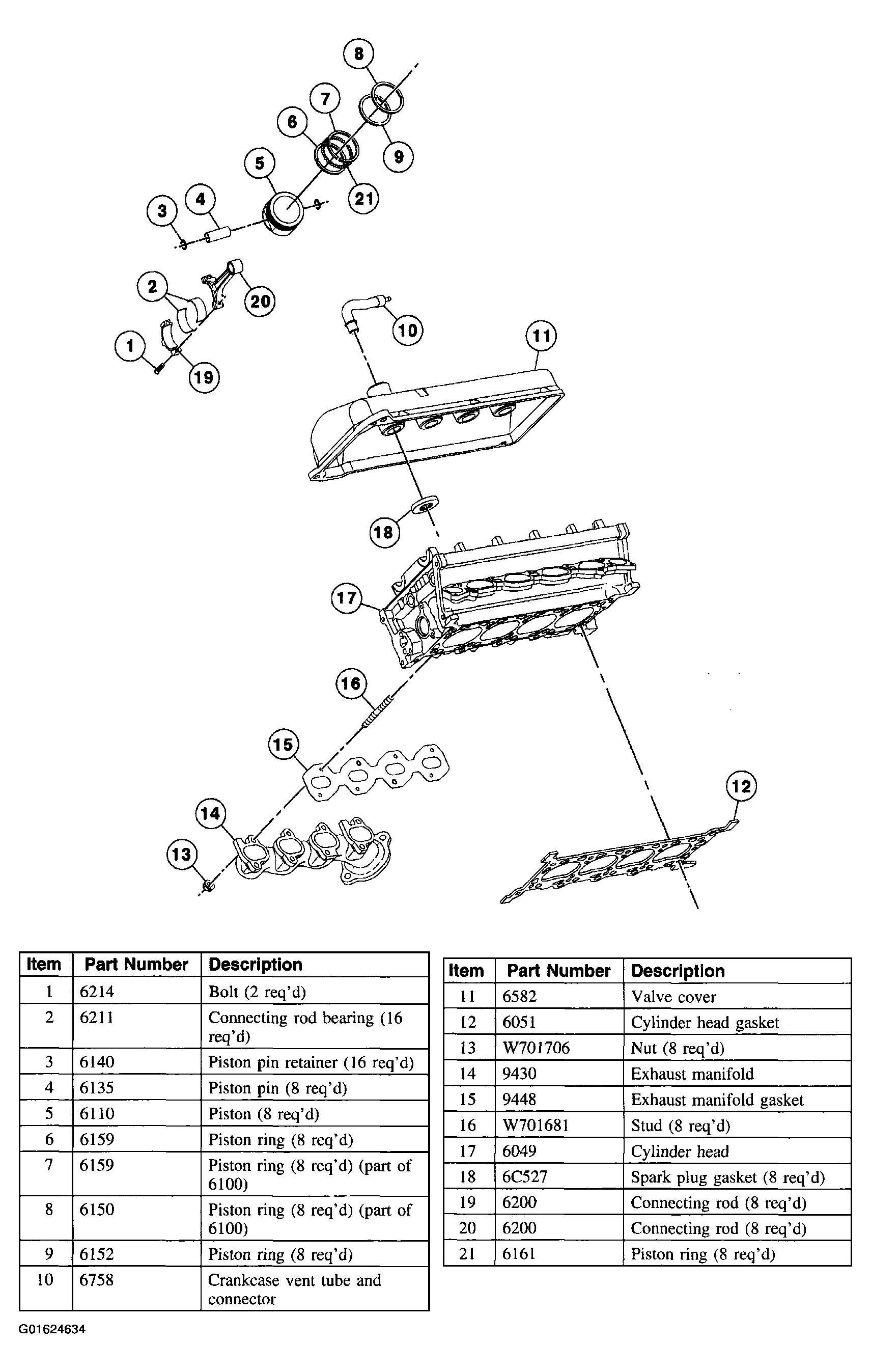

Fig 5: Identifying Components Of Engine - Cobra 4.6L (4V) (5 Of 8)

Courtesy of FORD MOTOR CO.

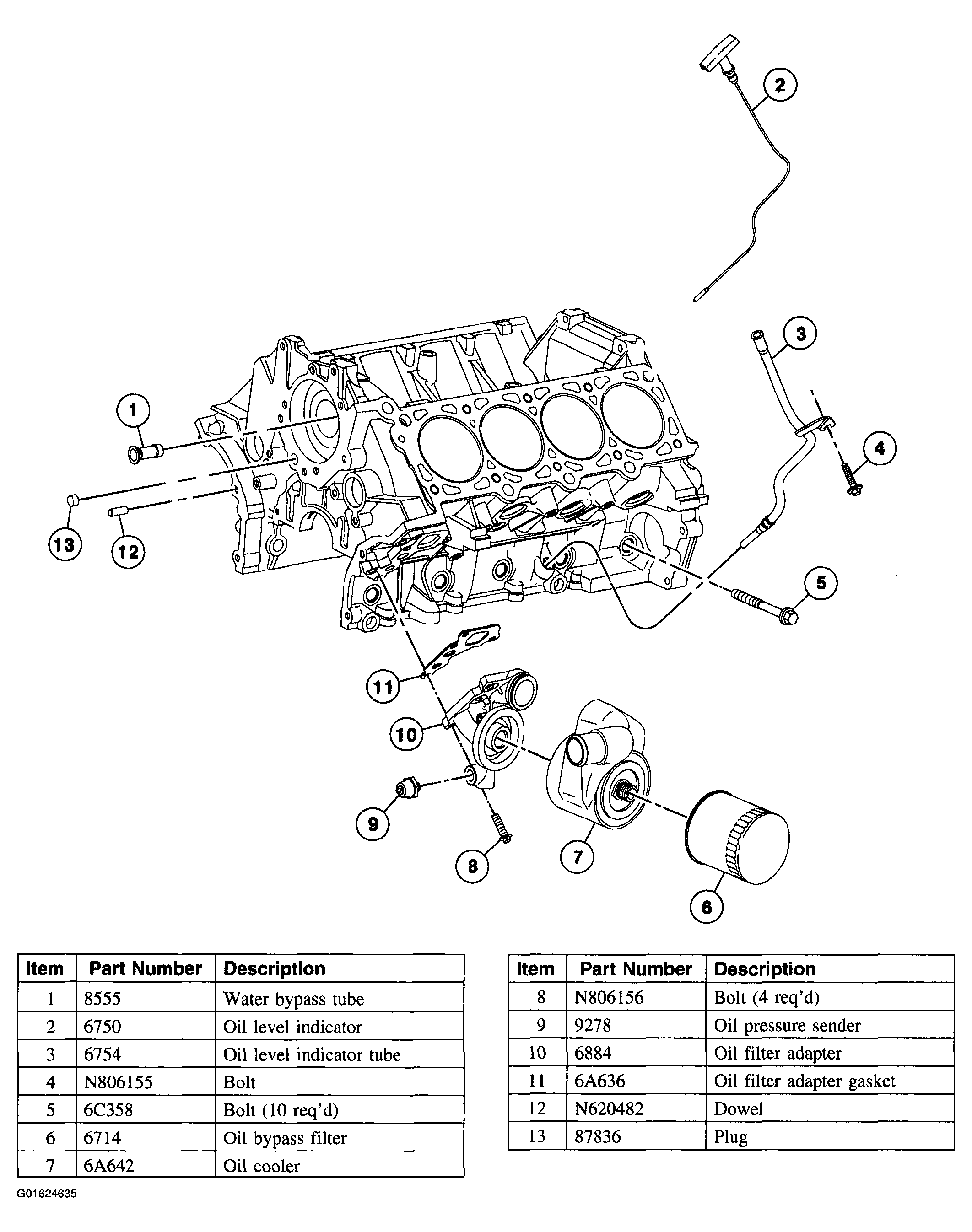

Fig 6: Identifying Components Of Engine - Cobra 4.6L (4V) (6 Of 8)

Courtesy of FORD MOTOR CO.

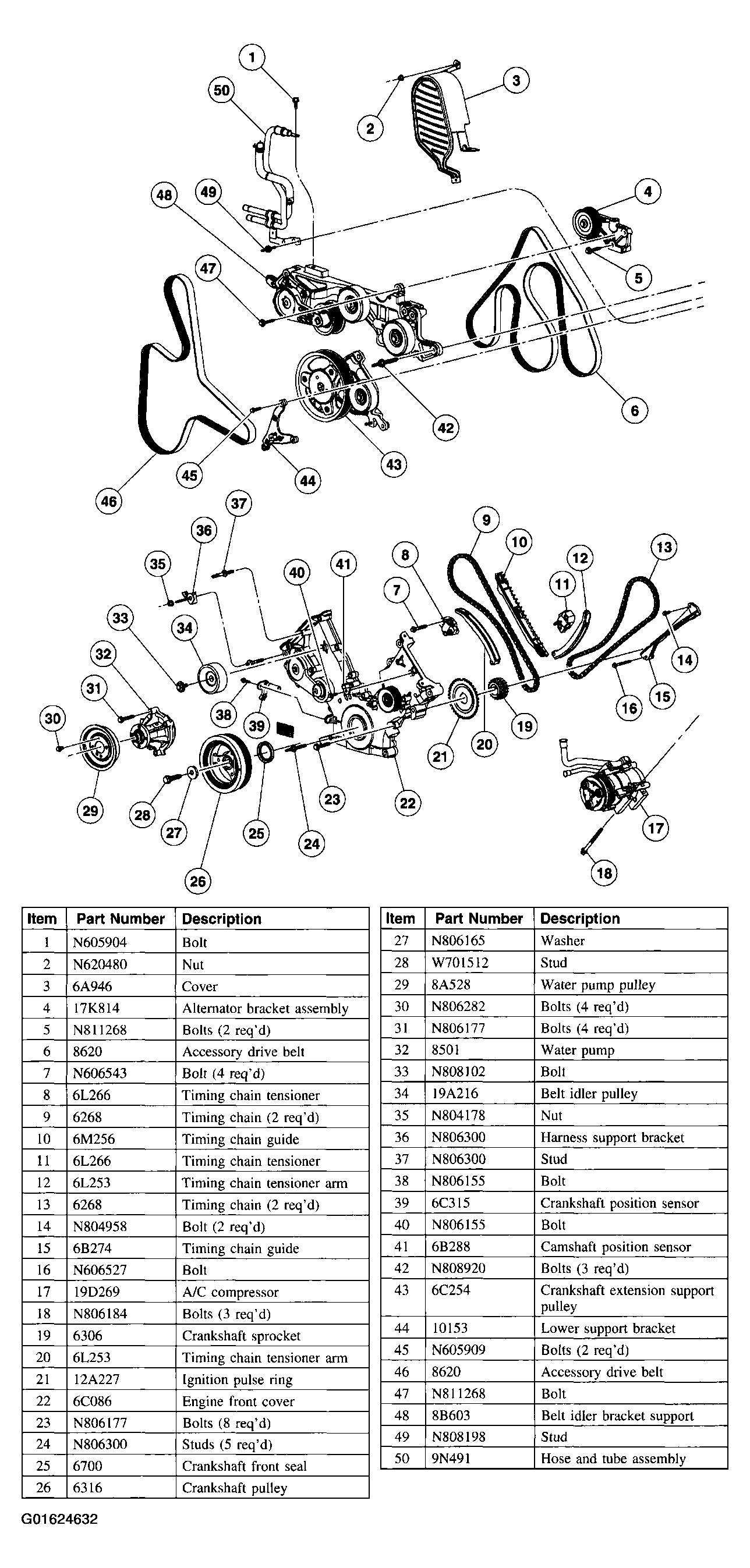

Fig 7: Identifying Components Of Engine - Cobra 4.6L (4V) (7 Of 8)

Courtesy of FORD MOTOR CO.

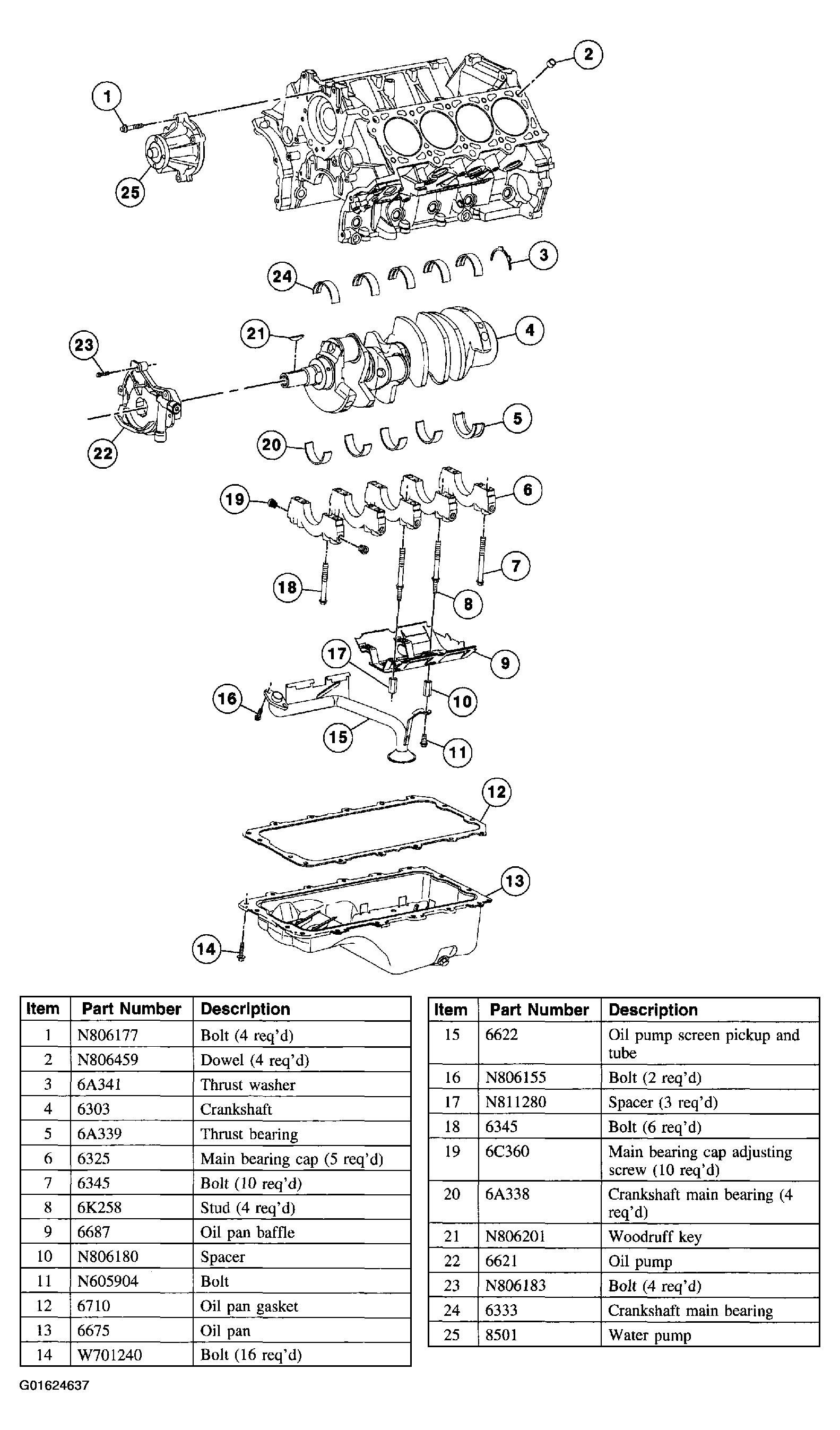

Fig 8: Identifying Components Of Engine - Cobra 4.6L (4V) (8 Of 8)

Courtesy of FORD MOTOR CO.
