Cylinder Head: Inspection
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the cylinder head for cracks, burned valves or seats and scratched or marred gasket mating surface.
- Measure the cylinder head thickness. If the deck-to-deck measurements are not within specifications, install a new cylinder head.
NOTE:
Cylinder heads used on the diesel engine cannot be resurfaced. Install a new cylinder head if it is cracked or warped.
NOTE:

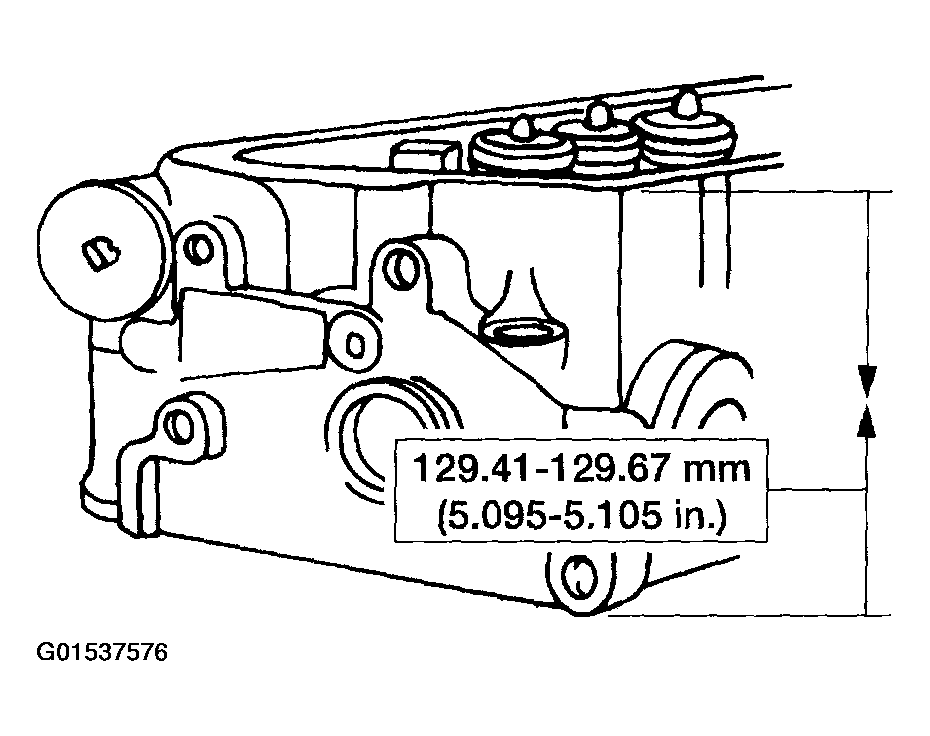

If it is suspected that the cylinder head has been resurfaced, using a suitable micrometer, measure the cylinder head thickness at four different points.
