7.3L (DIT) Engine

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

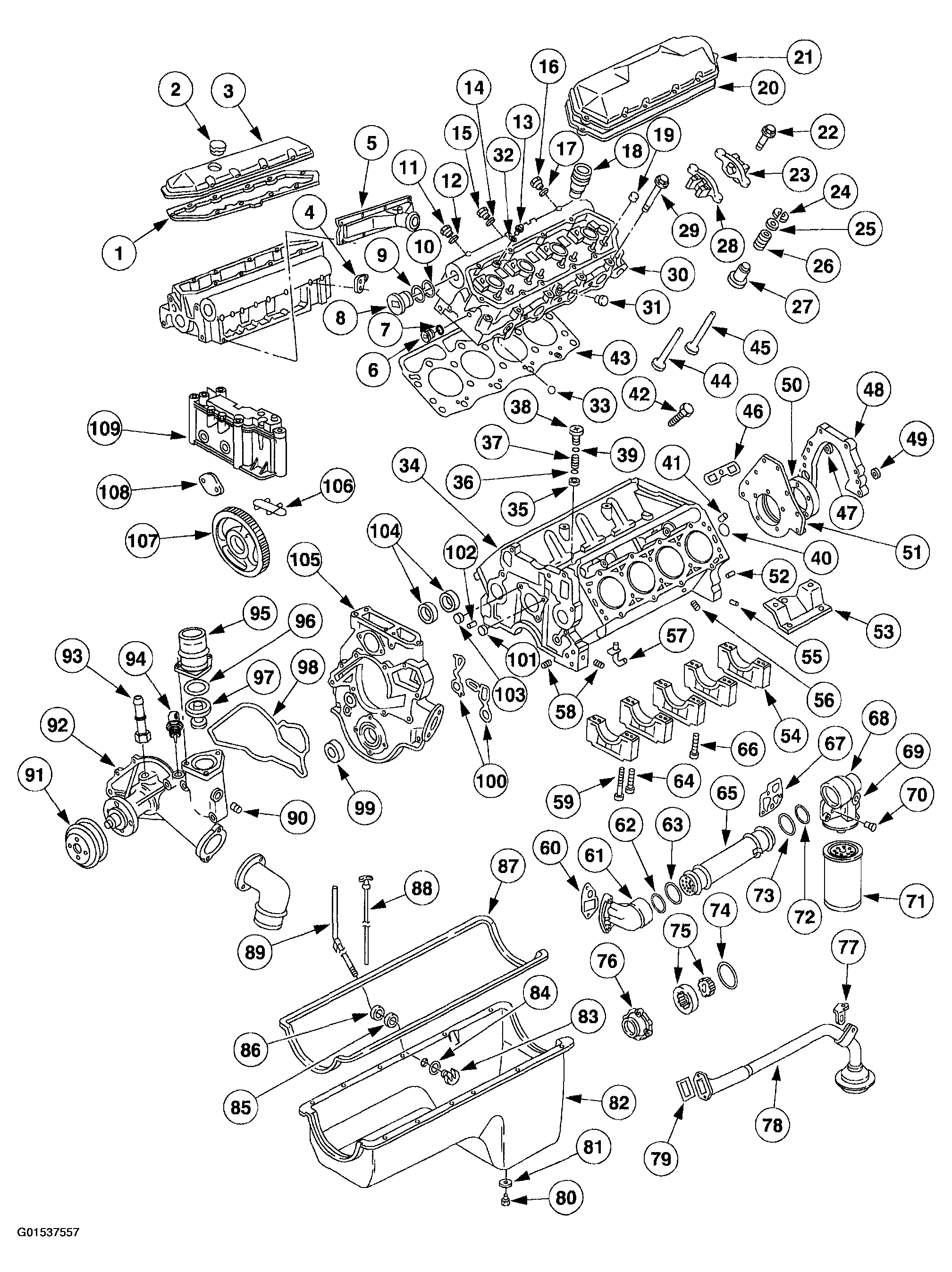

Fig 1: Identifying 7.3L (DIT) Engine Components
G01537557Courtesy of FORD MOTOR CO.

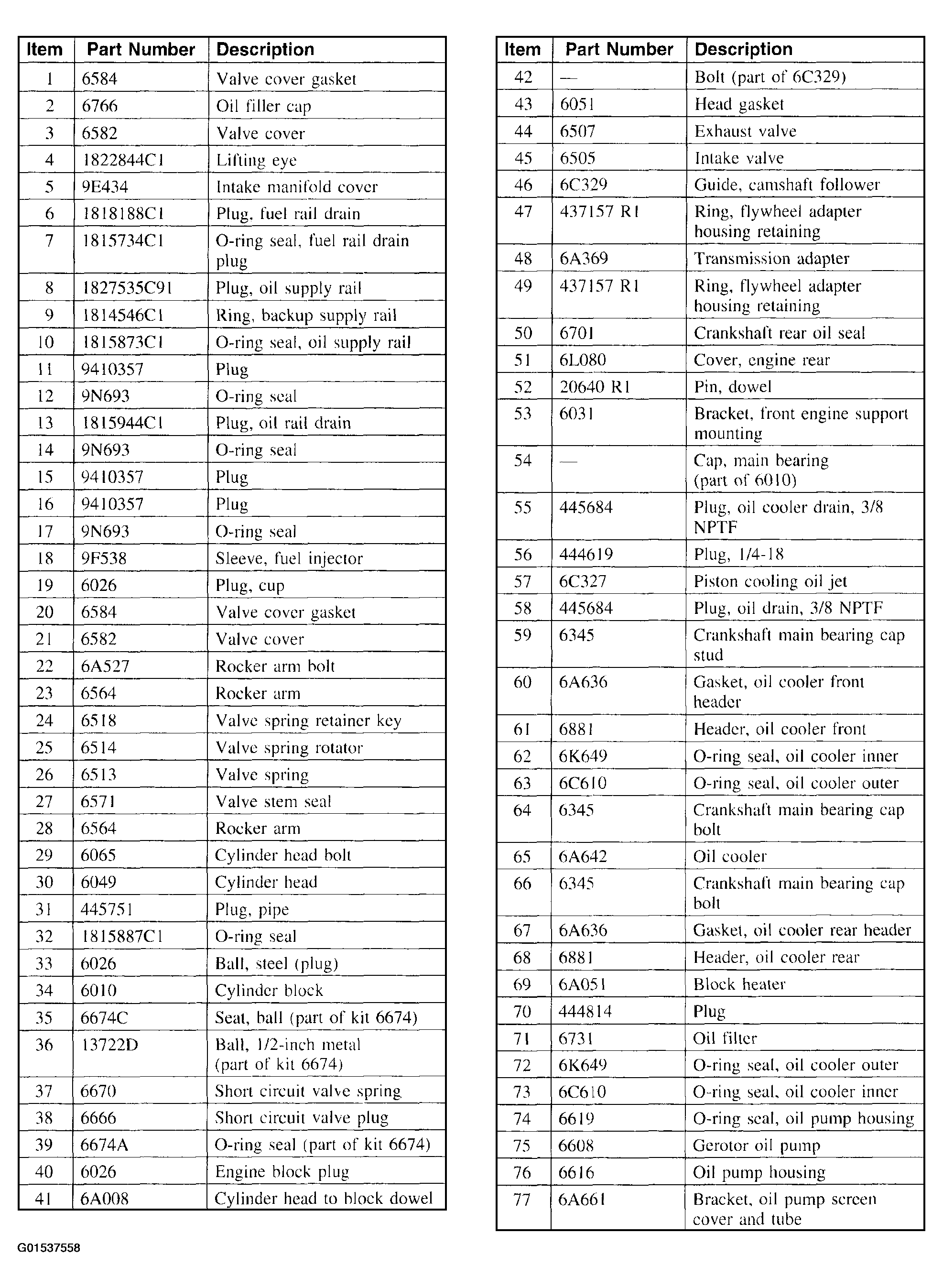

Fig 2: 7.3L (DIT) Engine Components Description Chart (Items 1-77)
G01537558Courtesy of FORD MOTOR CO.

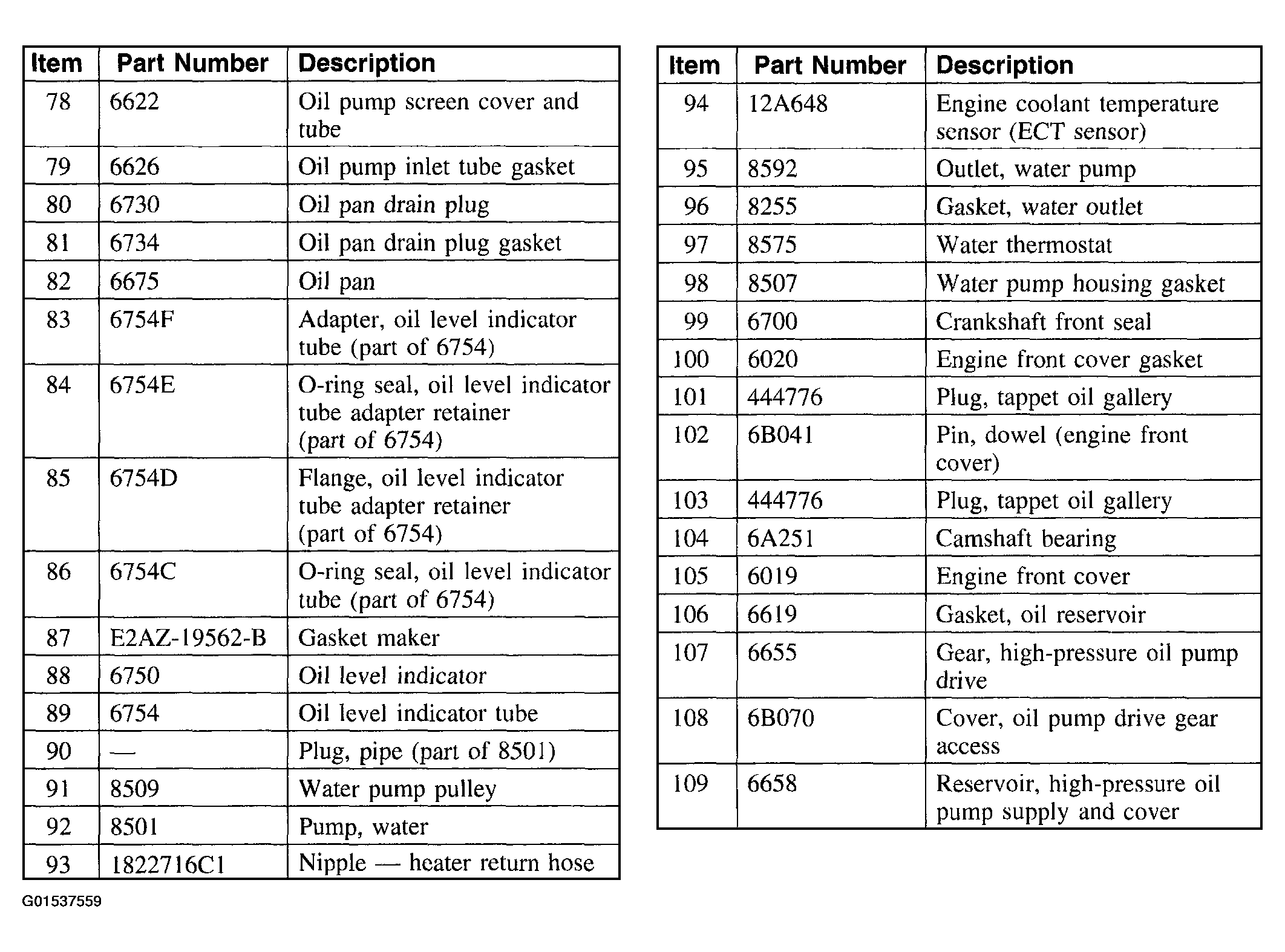

Fig 3: 7.3L (DIT) Engine Components Description Chart (Items 78-109)
G01537559Courtesy of FORD MOTOR CO.
