Pinpoint Test C: The Engine Does Not Reach Normal Operating Temperature

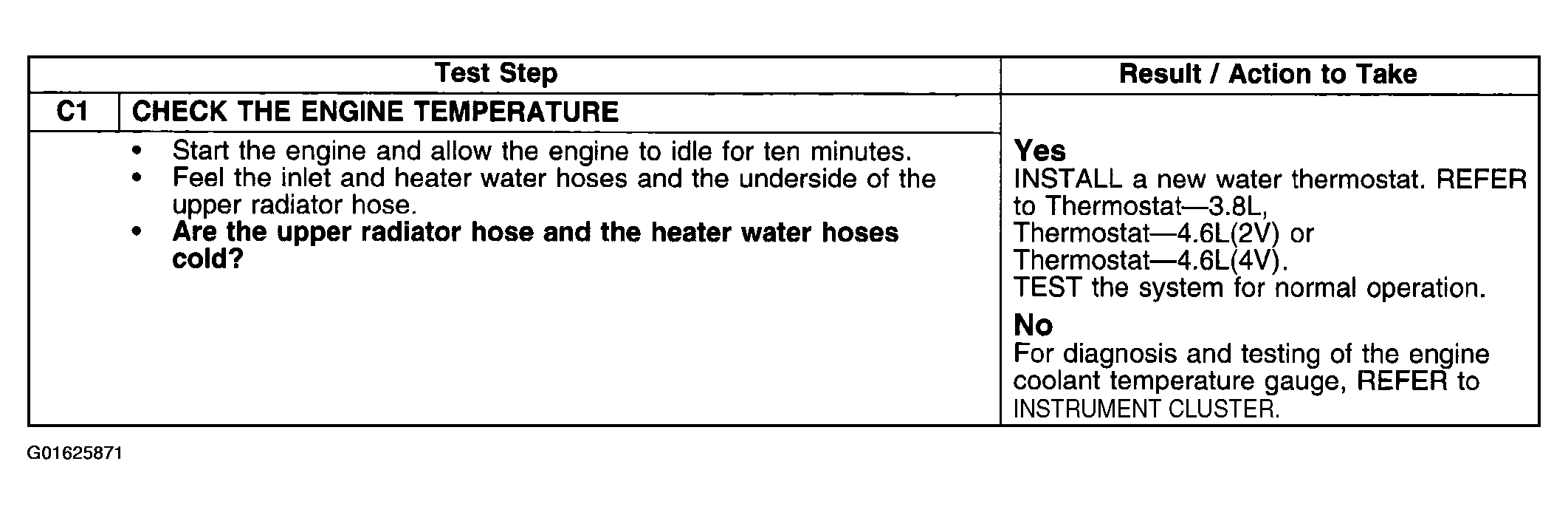

Fig 1: Pinpoint Test C: Engine Does Not Reach Normal Operating Temperature

G01625871

Courtesy of FORD MOTOR CO.
