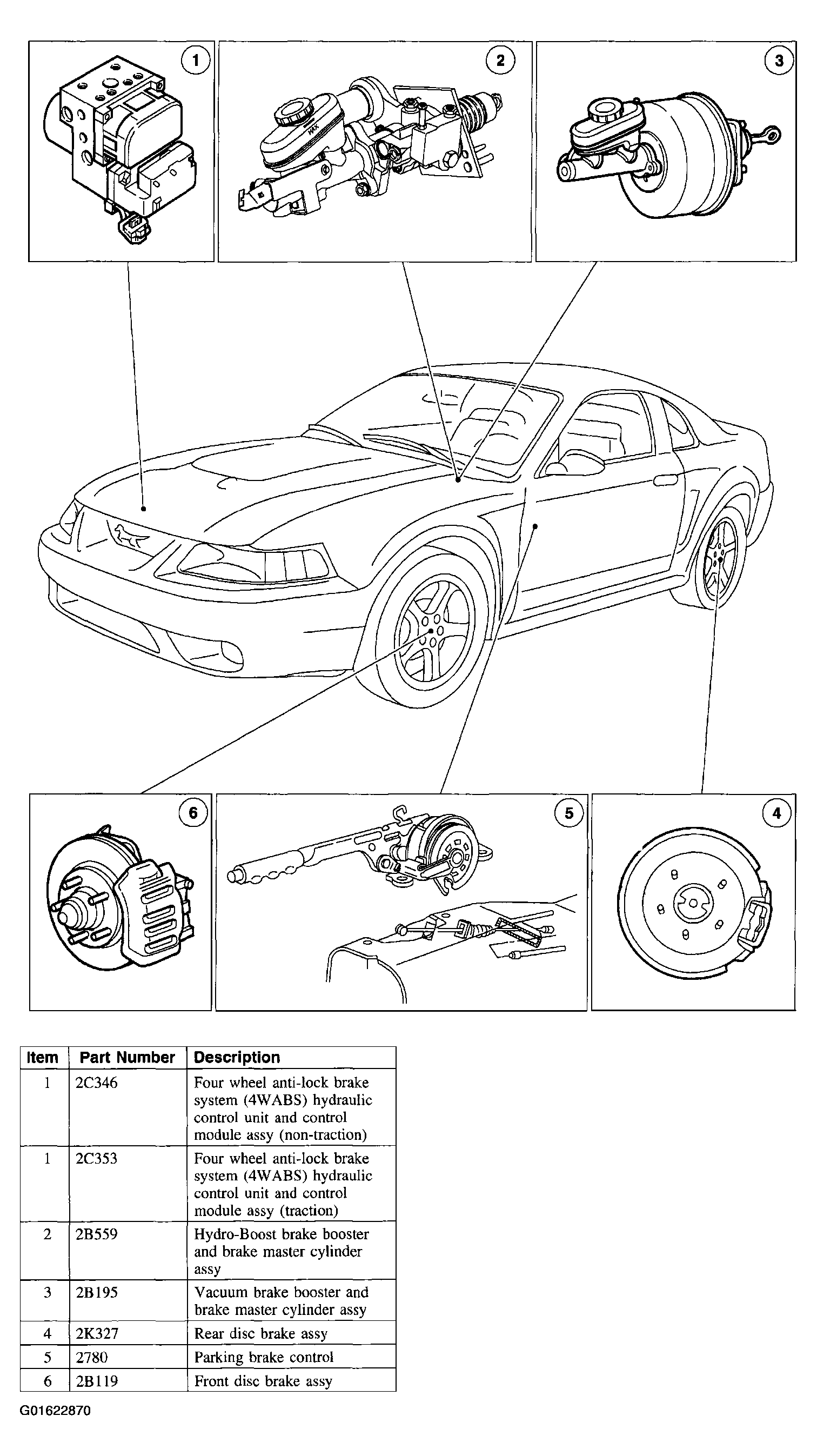

Component Locations
The vehicle is equipped with a vacuum-assisted or a hydro-boost power braking system. Refer to POWER BRAKE ACTUATION .
The braking system is a front-to-rear split hydraulic system. Refer to HYDRAULIC BRAKE ACTUATION .
The front wheel brakes utilize a dual piston brake caliper and disc brake system. Refer to DISC .
The rear brakes utilize a single piston brake caliper and disc brake system.
The parking brake system is a mechanical system that is controlled by an independent hand-operated parking brake control and is self-adjusting. Refer to PARKING BRAKE & ACTUATION .
A 4-wheel anti-lock brake system or anti-lock brake system with traction (control 4WABS) is optional equipment on all models except Cobra. Cobra has ABS and traction control as standard equipment.
Refer to ANTI-LOCK CONTROL-REAR .
