Window Regulator - Quarter: Removal

  1. Remove the quarter window glass. For additional information, refer to WINDOW GLASS, QUARTER .
  2. Remove the nut.

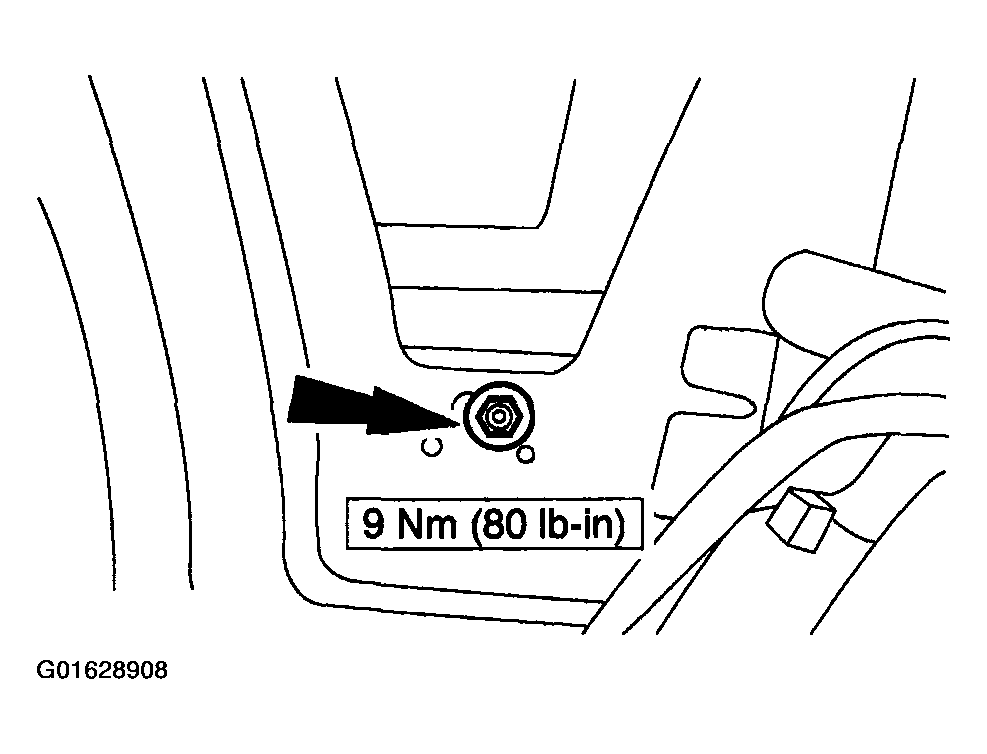

    Fig 1: Removing Quarter Window Glass Nut
    G01628908Courtesy of FORD MOTOR CO.
  3. Remove the screws and the rear quarter window regulator.

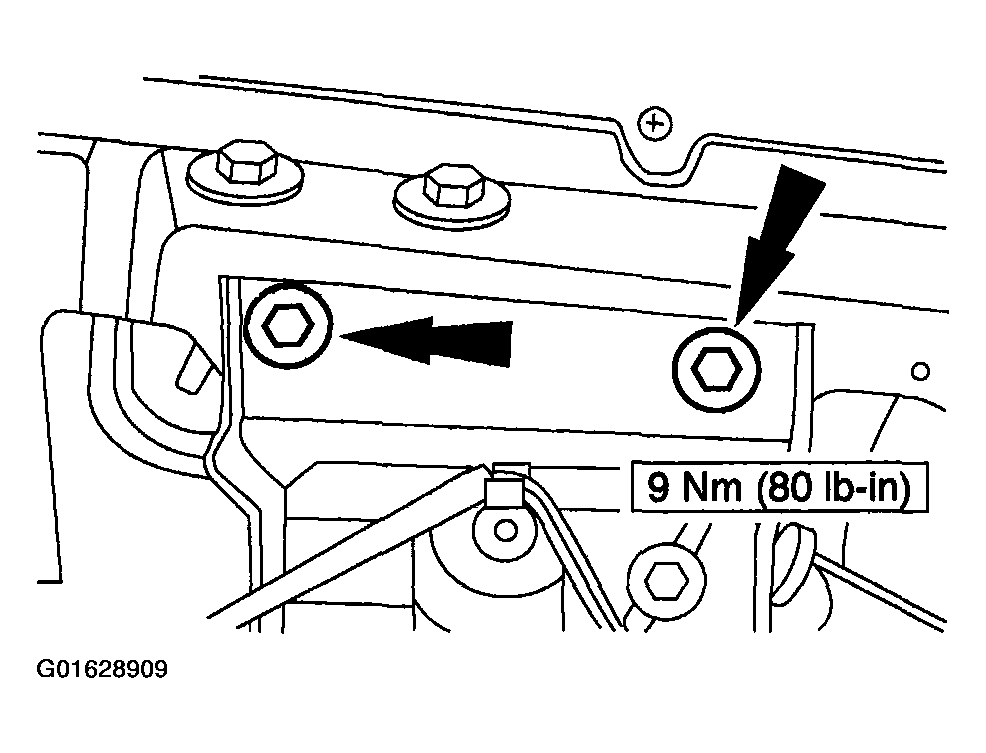

    Fig 2: Removing Screws And Rear Quarter Window Regulator
    G01628909Courtesy of FORD MOTOR CO.
