Door Window Glass Adjustment - Stabilizer

  1. Raise the door window glass to the full up position.
  2. Loosen the bolts.

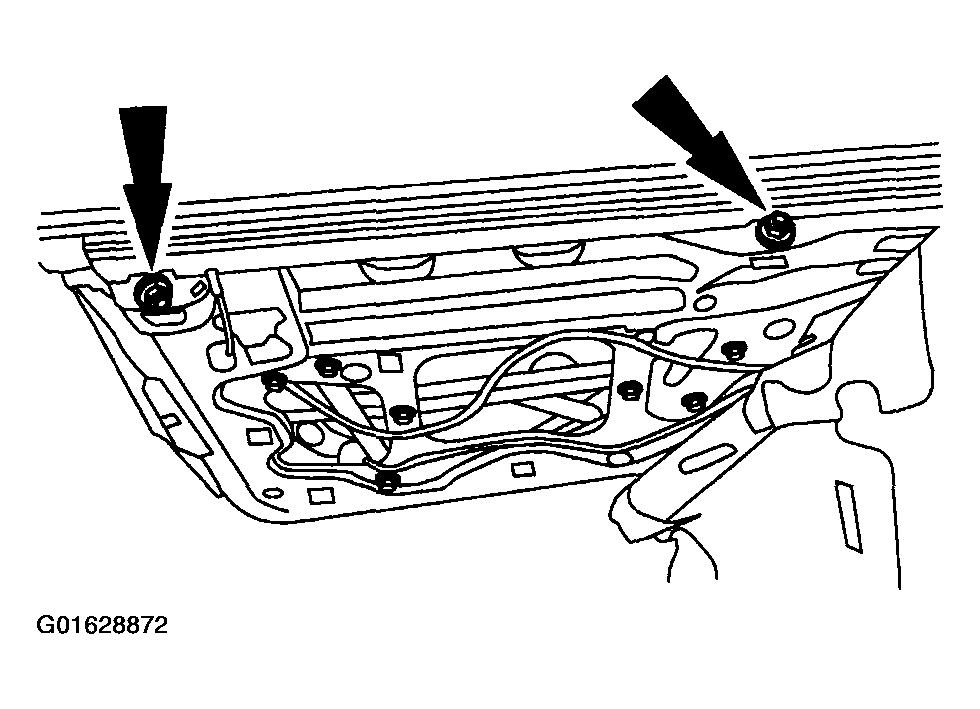

    Fig 1: Loosening Door Window Glass Bolts
    G01628872Courtesy of FORD MOTOR CO.
  3. Push the door window glass inner stabilizers firmly against the door window glass.
  4. Tighten the bolts.

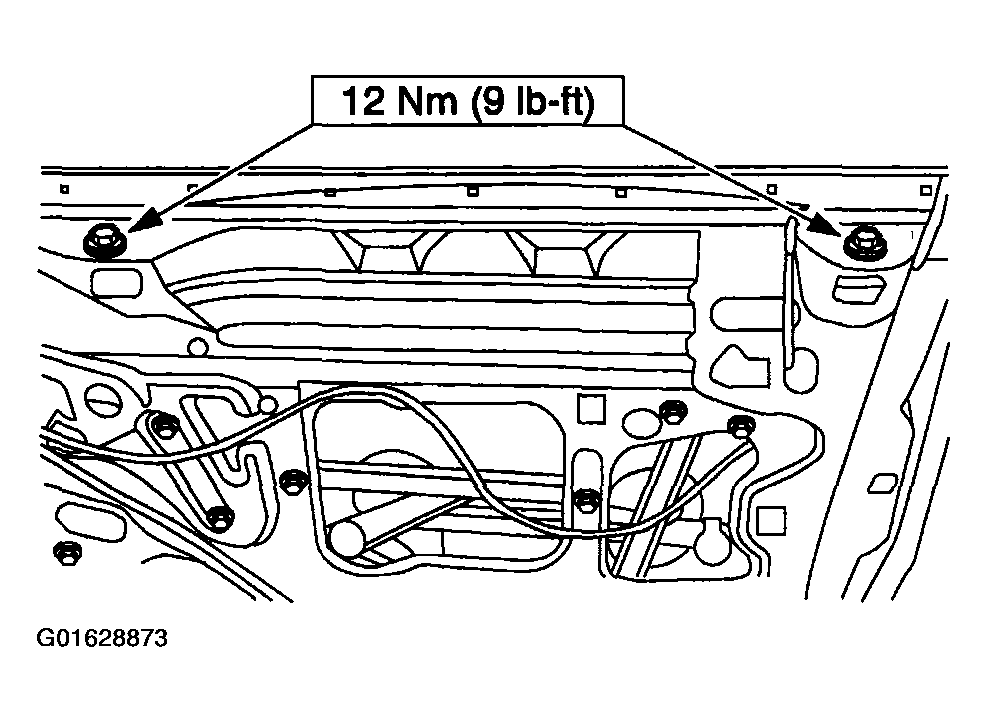

    Fig 2: Tightening Door Window Glass Bolts
    G01628873Courtesy of FORD MOTOR CO.
