Hydraulic Control Unit: Installation

    NOTE: The brake system must be bled after the HCU is installed or replaced. refer to BRAKE SYSTEM-GENERAL INFORMATION .

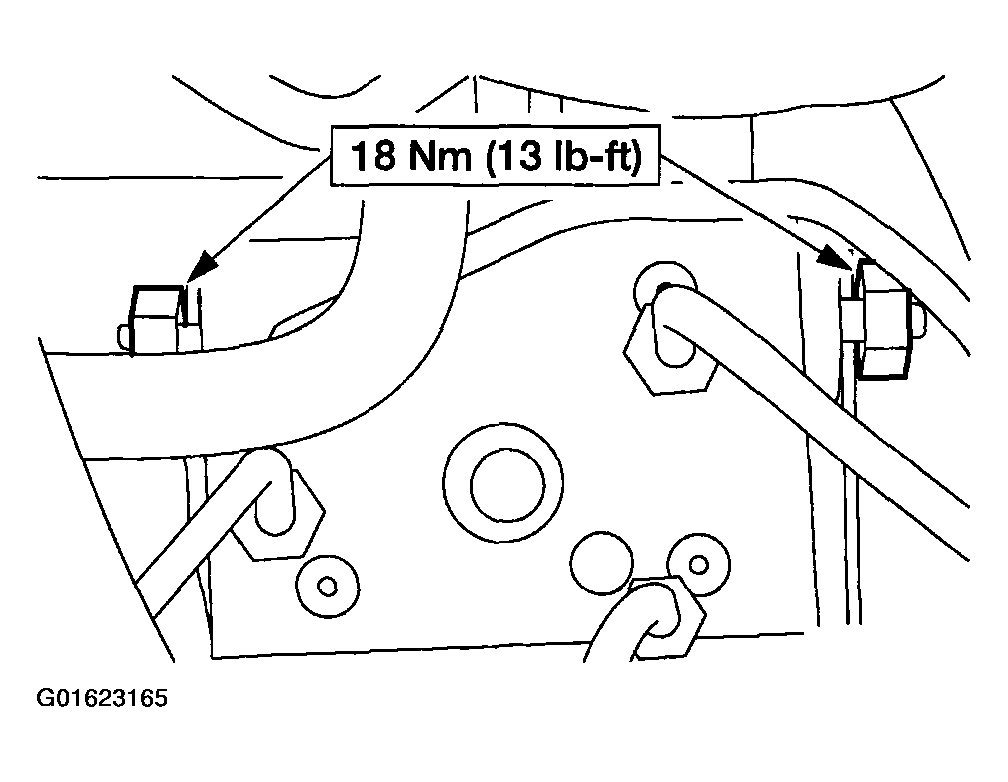

    Fig 1: Installing HCU Bracket Nuts To HCU
    G01623165Courtesy of FORD MOTOR CO.

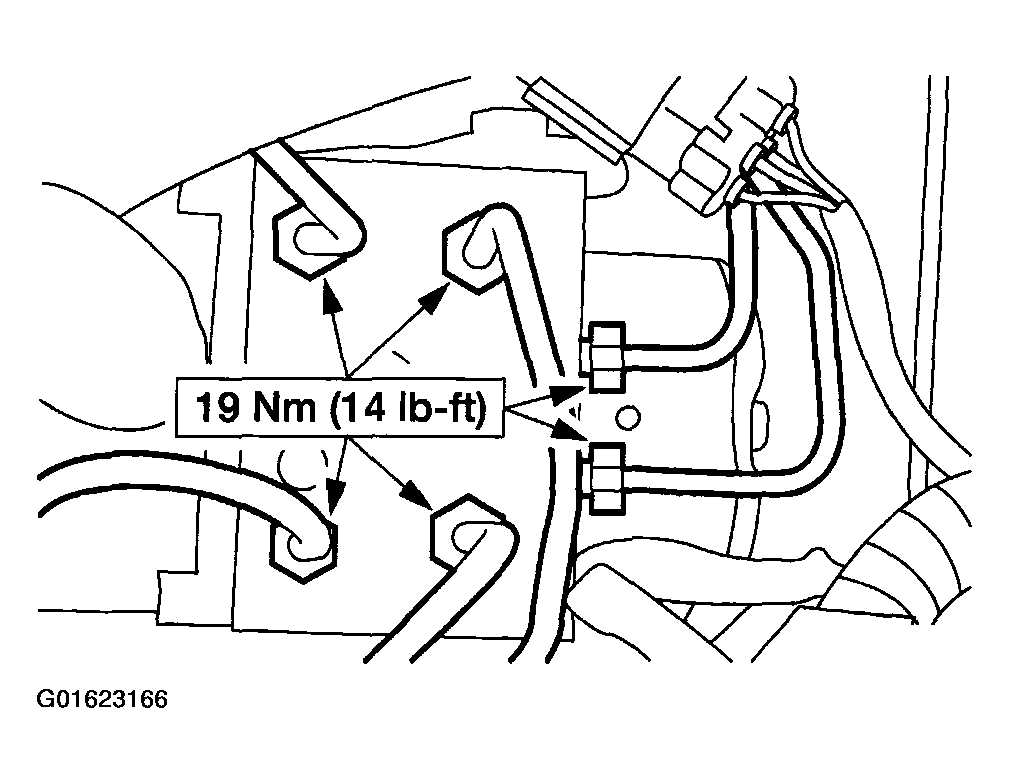

    Fig 2: Installing Brake Lines From Hydraulic Control Unit
    G01623166Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
