Removal And Installation: Switch: Removal

  1. Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY  .
    2. NOTE: All three switches are removed the same.

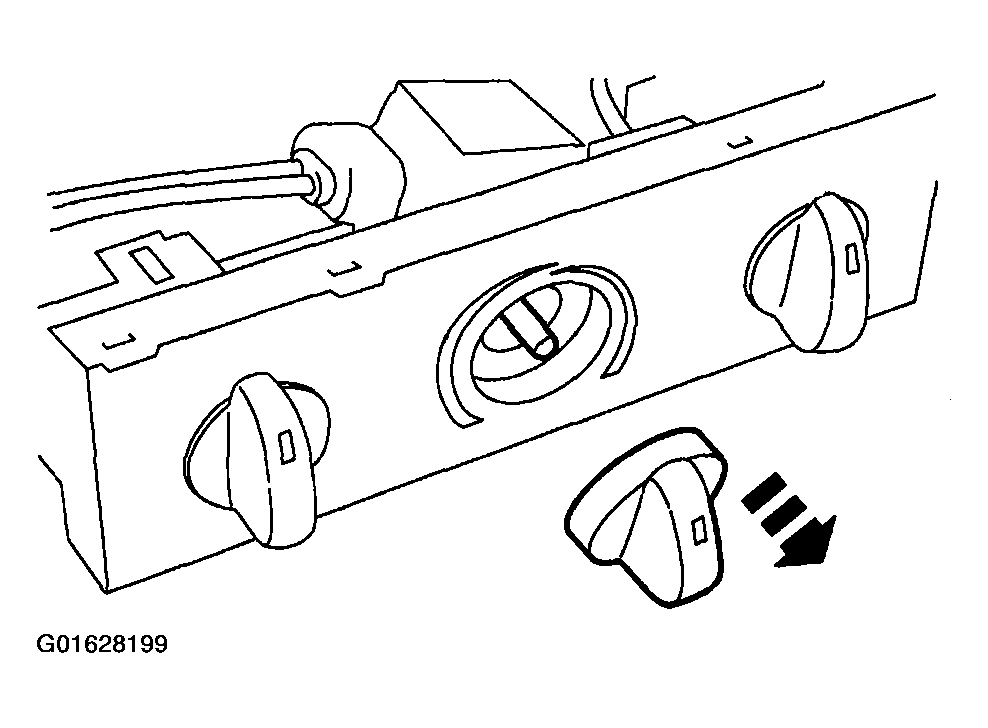

    Fig 1: Removing Knob
    G01628199Courtesy of FORD MOTOR CO.
  2. Remove the knob.
  3. Remove the screw.

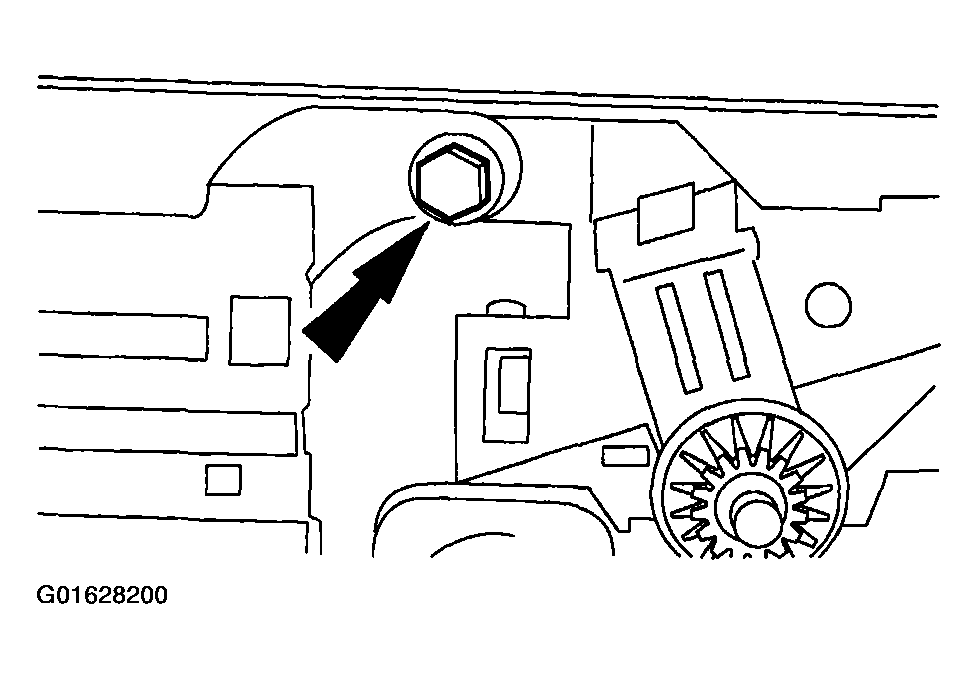

    Fig 2: Removing Switch Screw
    G01628200Courtesy of FORD MOTOR CO.
  4. Rotate the switch and remove it from the control head assembly.

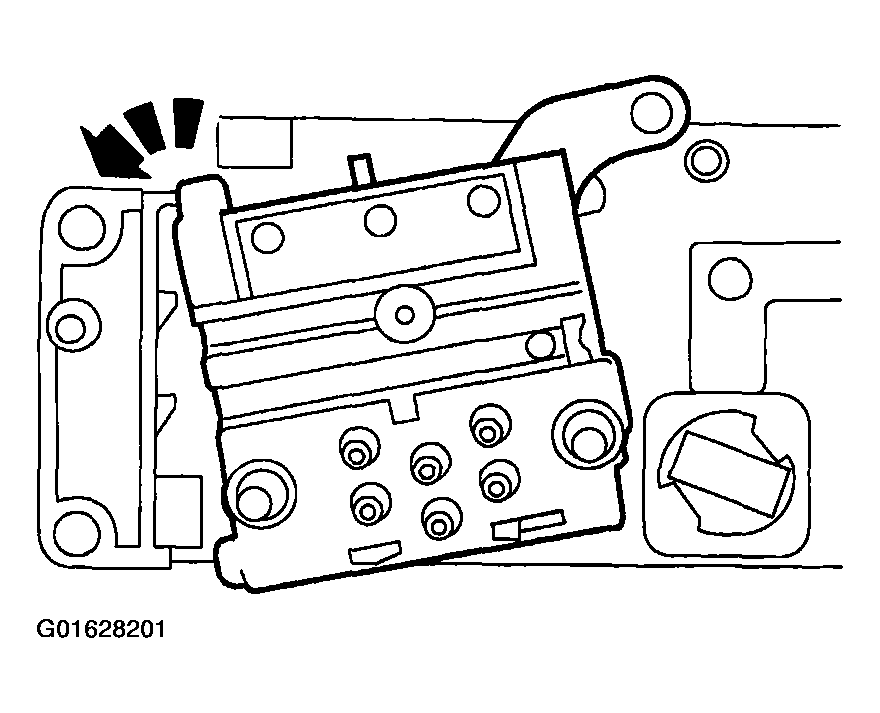

    Fig 3: Rotating Switch And Removing It From Control Head Assembly
    G01628201Courtesy of FORD MOTOR CO.
