Section 2 (Engine-3.8L): Removal: Engine: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
  1. All vehicles  Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
  2. Recover the A/C refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  3. Disconnect the battery negative cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Relieve the fuel pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
  5. Disconnect the hood ground strap.

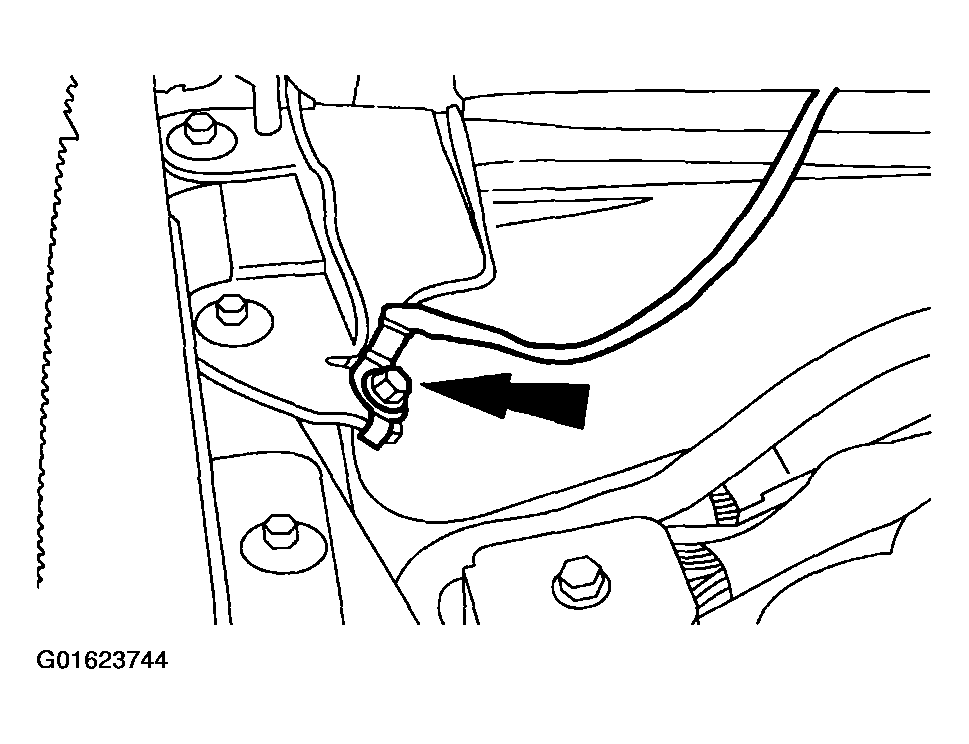

    Fig 1: Disconnecting Hood Ground Strap
    G01623744Courtesy of FORD MOTOR CO.
  6. Remove the hood (16612).

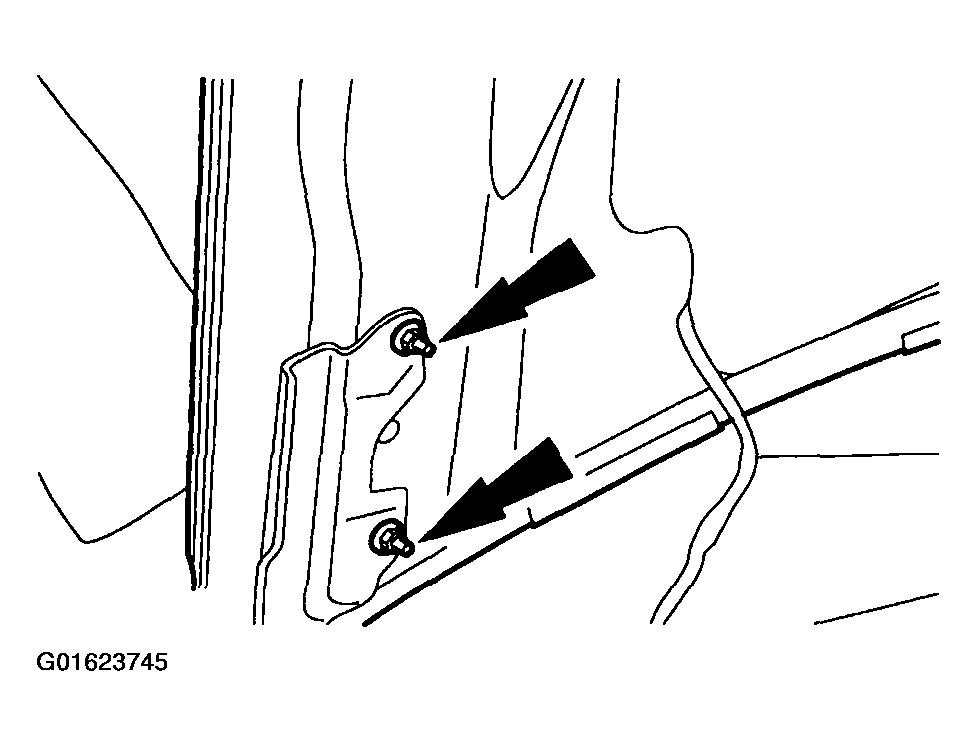

    Fig 2: Removing Hood
    G01623745Courtesy of FORD MOTOR CO.
  7. Disconnect the vacuum hose.

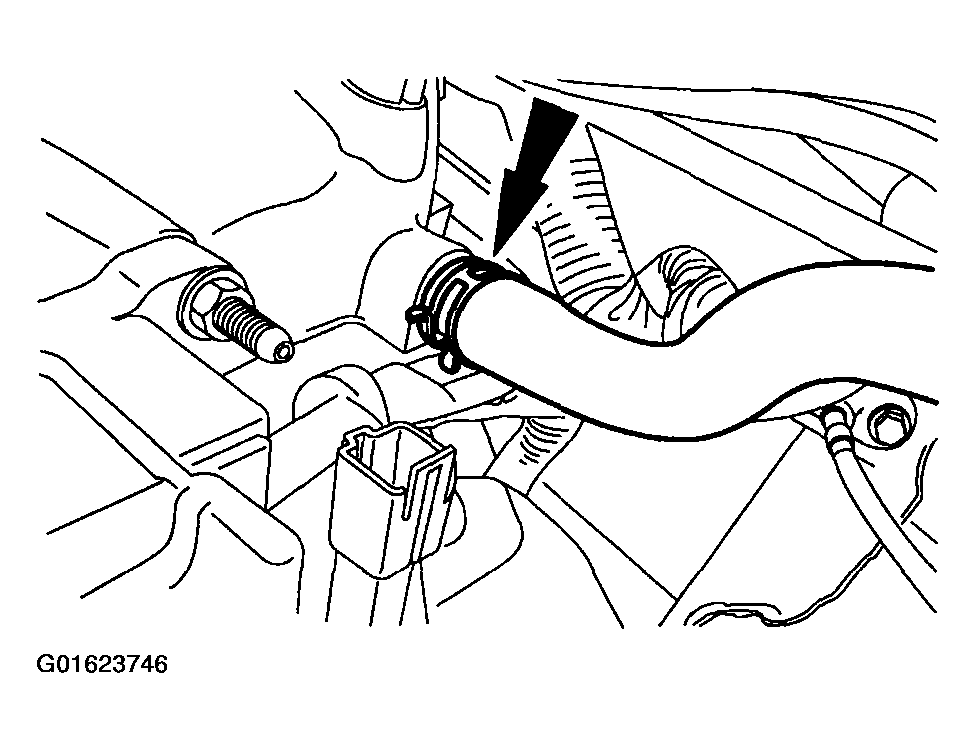

    Fig 3: Disconnecting Vacuum Hose
    G01623746Courtesy of FORD MOTOR CO.

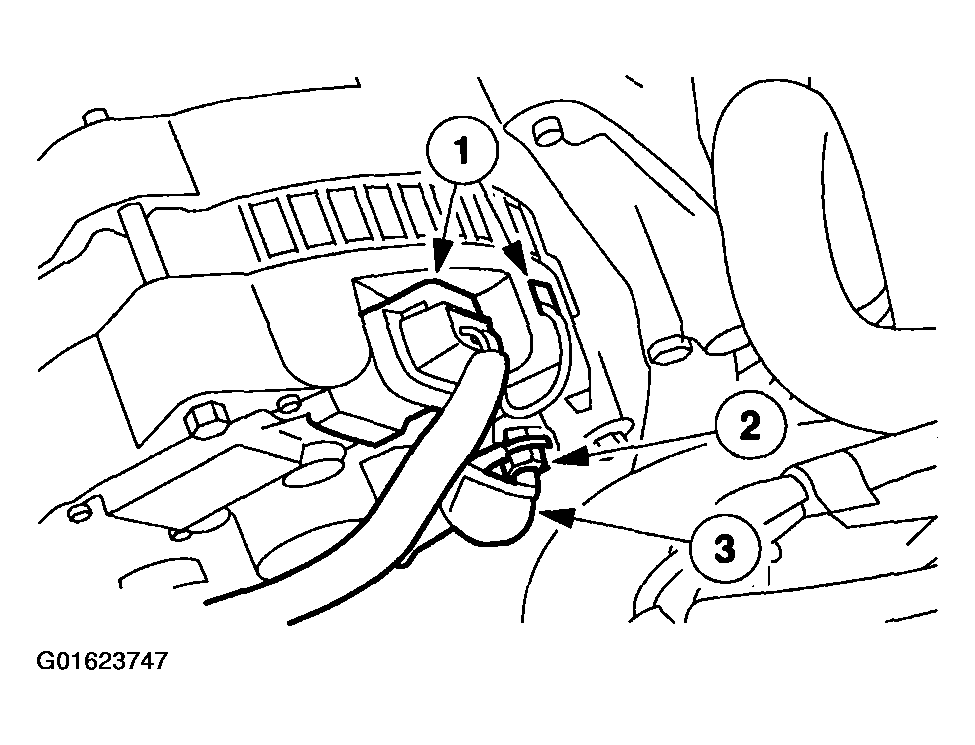

  8. Disconnect the generator (10346).
    1. Disconnect the connectors.
    2. Remove the nut.
    3. Remove the battery positive cable.
      Fig 4: Disconnecting Generator
      G01623747Courtesy of FORD MOTOR CO.
  9. NOTE: Place a suitable container under the pump

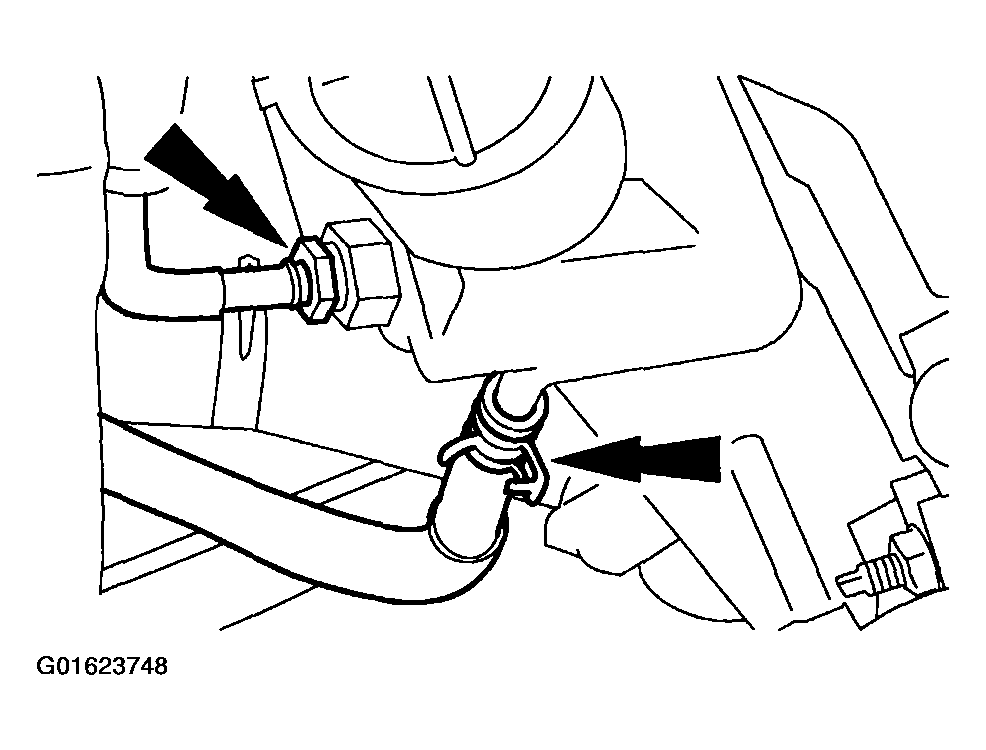

    Fig 5: Disconnecting Power Steering Pump
    G01623748Courtesy of FORD MOTOR CO.
  10. Disconnect the power steering pump (3A674).
  11. Disconnect the lower radiator hose (8286).

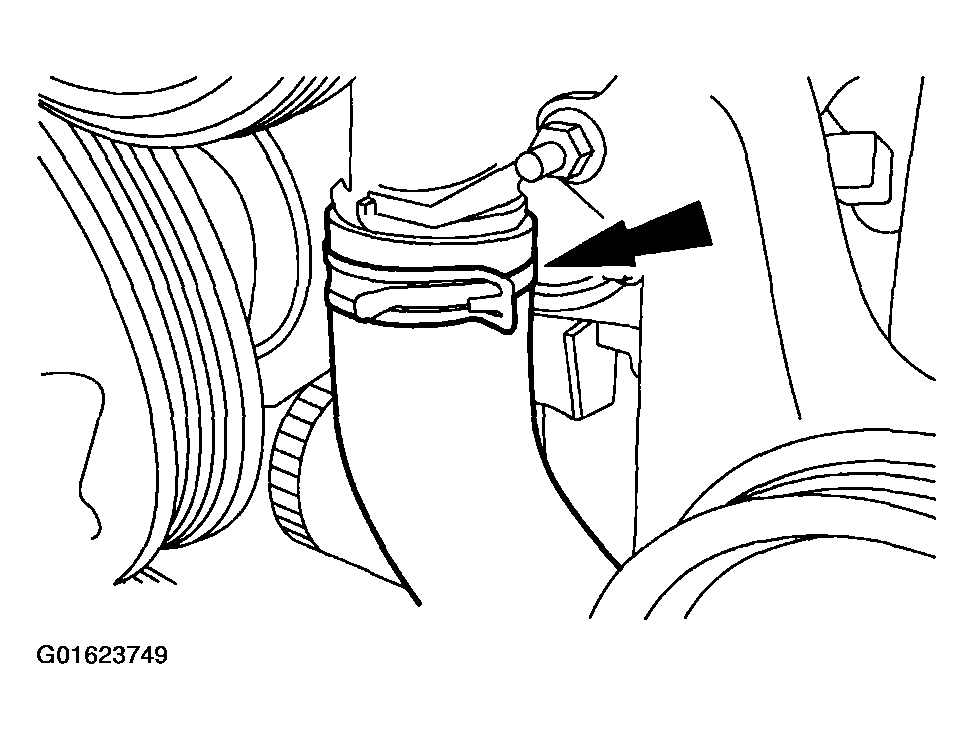

    Fig 6: Disconnecting Lower Radiator Hose (8286)
    G01623749Courtesy of FORD MOTOR CO.
  12. Disconnect the upper radiator hose (8620).

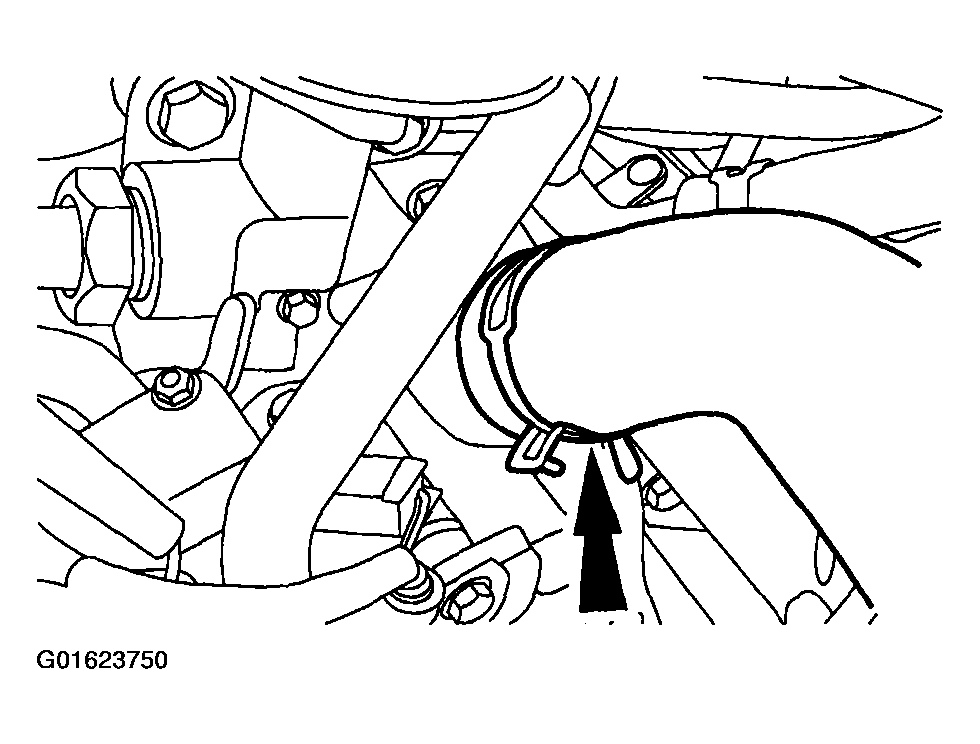

    Fig 7: Disconnecting Upper Radiator Hose
    G01623750Courtesy of FORD MOTOR CO.
  13. Remove the radiator coolant recovery reservoir (8A080).

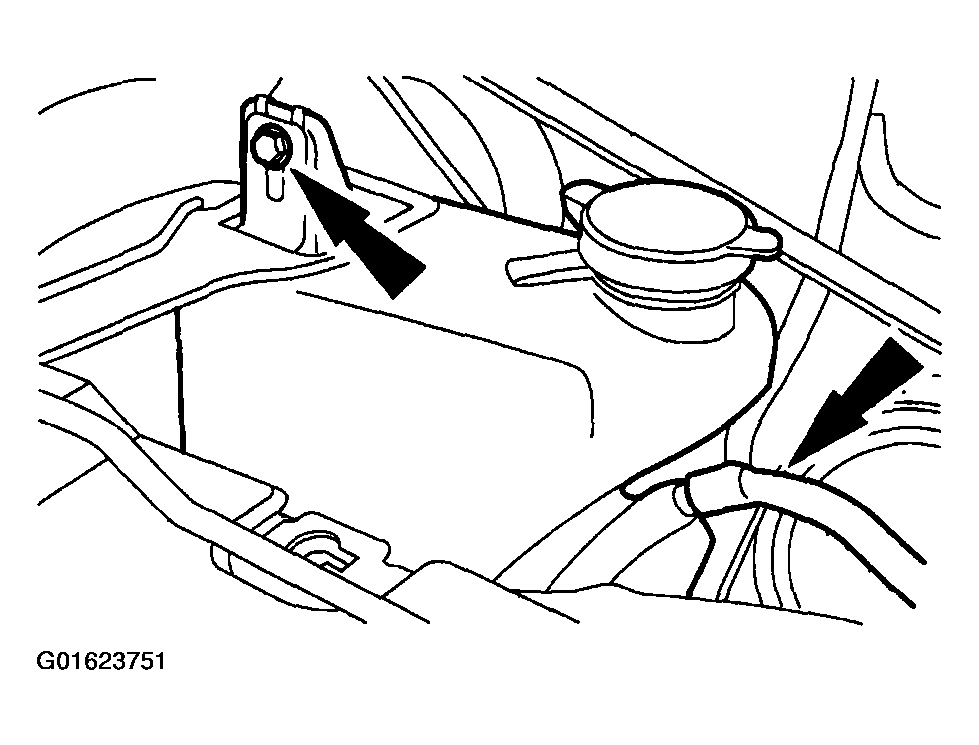

    Fig 8: Removing Radiator Coolant Recovery Reservoir
    G01623751Courtesy of FORD MOTOR CO.

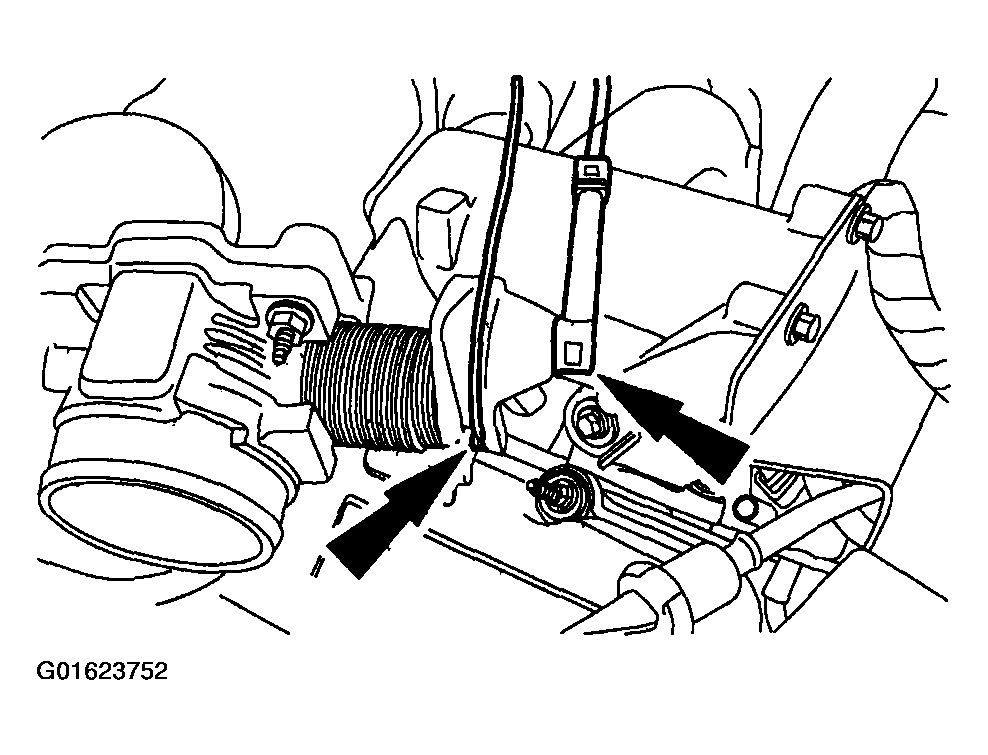

  14. Disconnect the accelerator cable and, if equipped, the speed control cable.
    Fig 9: Disconnecting Accelerator Cable
    G01623752Courtesy of FORD MOTOR CO.
  15. Position the accelerator cable bracket (9723) aside.
    • Remove the bolts.

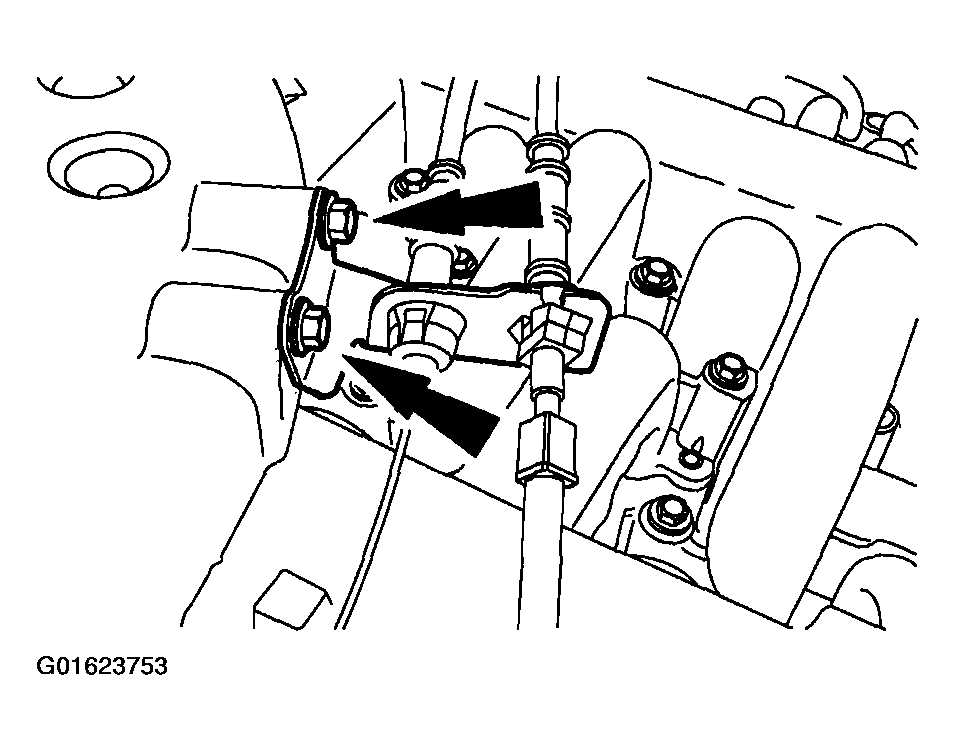

      Fig 10: Removing Accelerator Cable Bracket
      G01623753Courtesy of FORD MOTOR CO.
  16. Remove the air cleaner outlet tube (9B659) and the air cleaner assembly.
  17. Disconnect the A/C manifold and tube (19D734). For additional information, refer to AIR CONDITIONING .
  18. Disconnect the A/C compressor electrical connector.

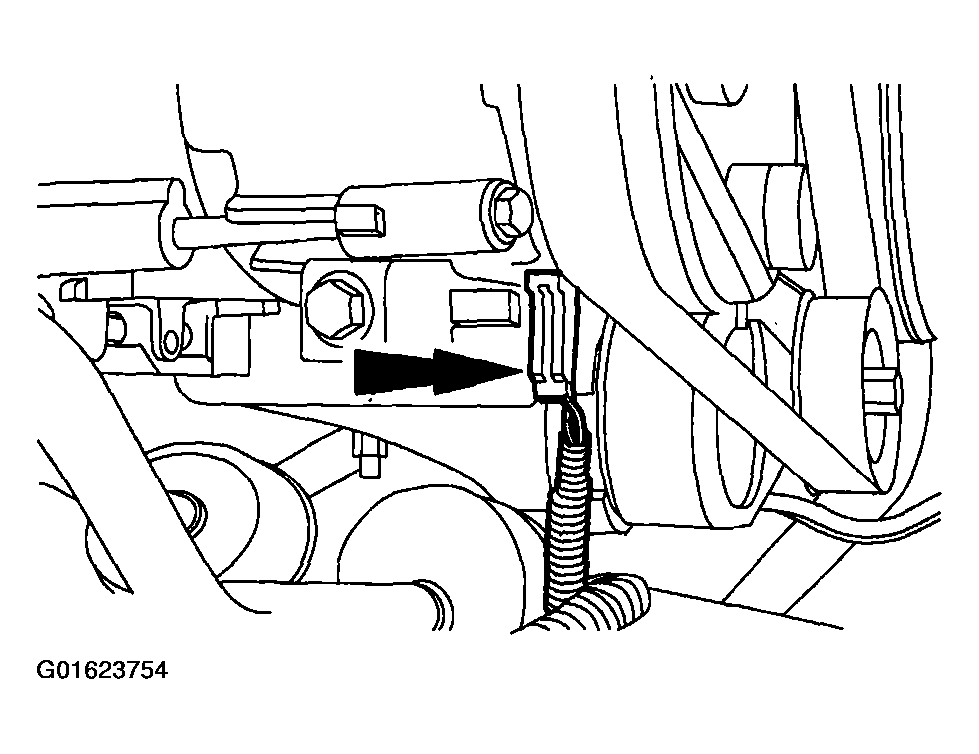

    Fig 11: Disconnecting A/C Compressor Electrical Connector
    G01623754Courtesy of FORD MOTOR CO.
  19. Disconnect the fuel supply line (9J337). For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
  20. Disconnect the heater hoses (12270).

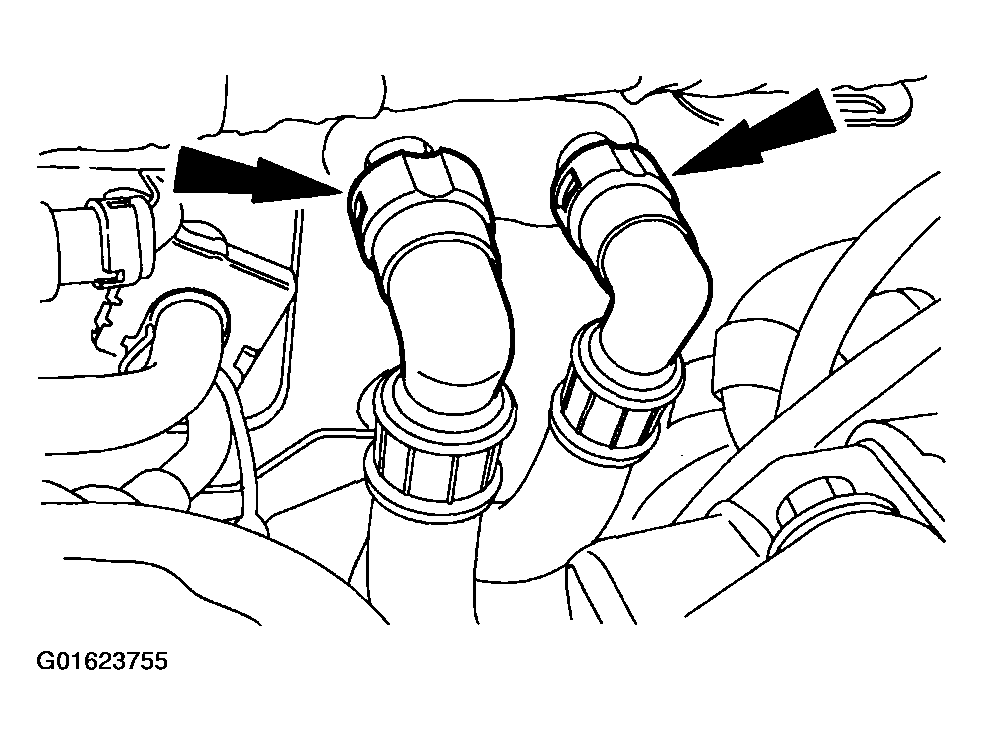

    Fig 12: Disconnecting Heater Hoses
    G01623755Courtesy of FORD MOTOR CO.
  21. Disconnect the following connectors:
    • 42-pin electrical connector
    • 16-pin electrical connector
    • 8-pin electrical connector
    • A/C pressure switch

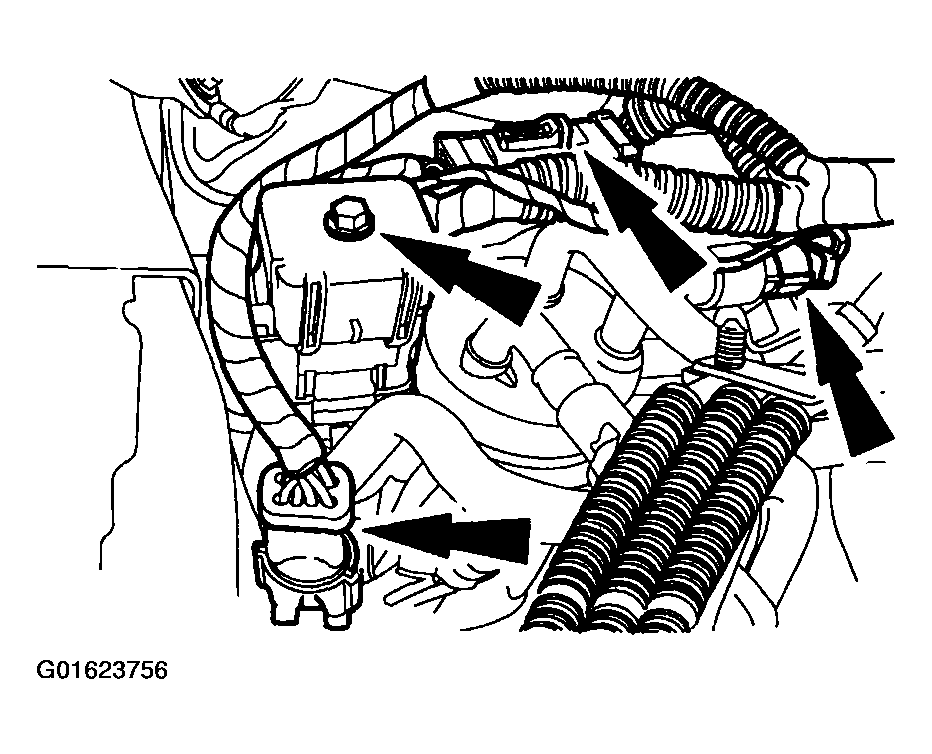

      Fig 13: Disconnecting 42-Pin, 16-Pin, 8-Pin Electrical Connectors And A/C Pressure Switch
      G01623756Courtesy of FORD MOTOR CO.

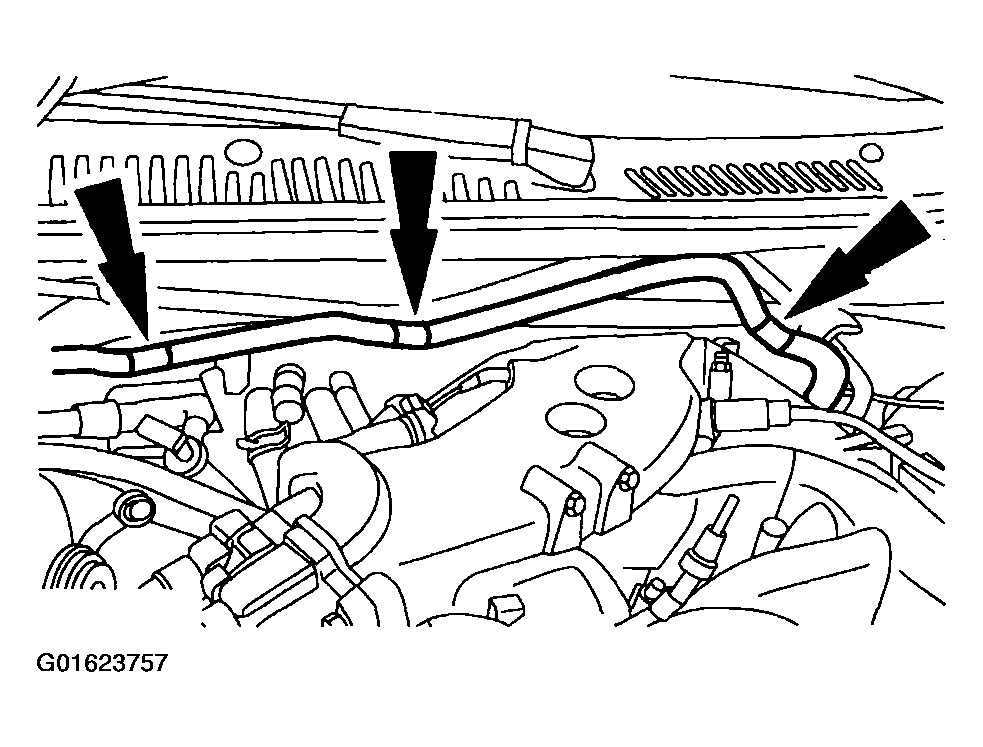

  22. Position the wire harness aside.
    Fig 14: Removing Wire Harness
    G01623757Courtesy of FORD MOTOR CO.

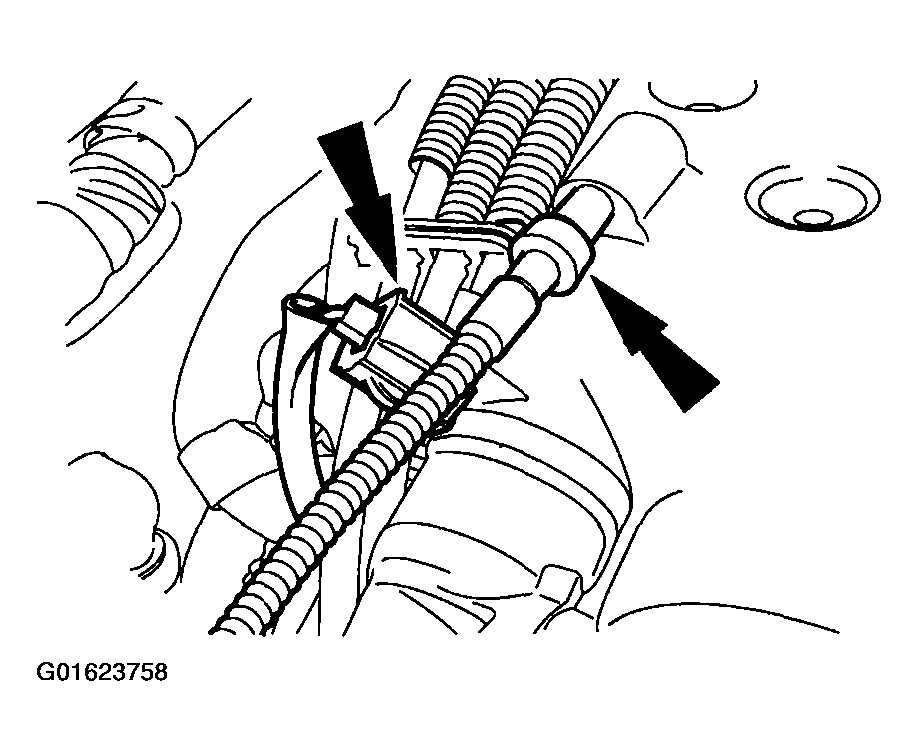

  23. Disconnect the connector and the vacuum tube.
    Fig 15: Disconnecting Connector And Vacuum Tube
    G01623758Courtesy of FORD MOTOR CO.
  24. Disconnect the evaporative emissions (EVAP) return tube (9G271).

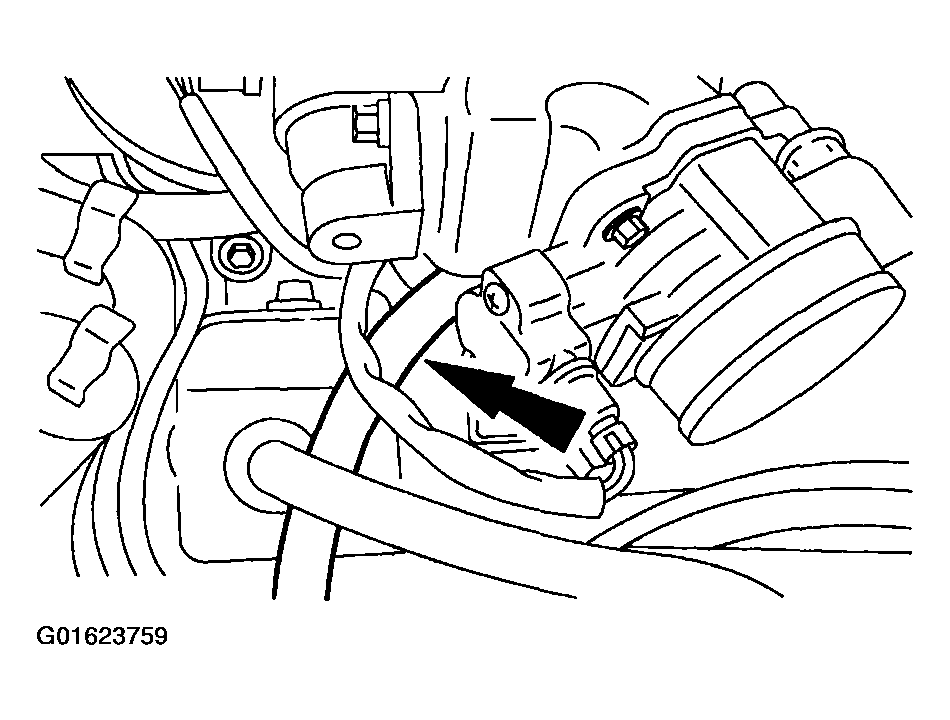

    Fig 16: Disconnecting Evaporative Emissions (EVAP) Return Tube
    G01623759Courtesy of FORD MOTOR CO.
  25. Raise the vehicle on a hoist.
  26. Remove the starter motor (11002). For additional information, refer to STARTERS .
  27. Remove the dual converter Y-pipe (5F250). For additional information, refer to EXHAUST SYSTEM .
  28. Remove the bracket.

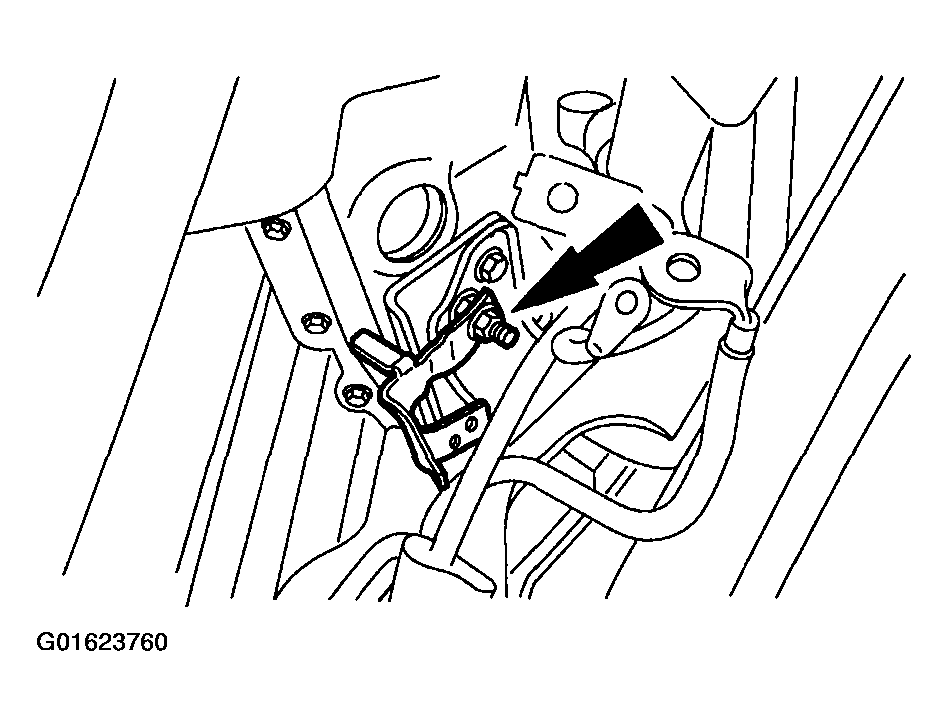

    Fig 17: Removing Bracket
    G01623760Courtesy of FORD MOTOR CO.
  29. Remove the bracket.
    • Remove the nut.

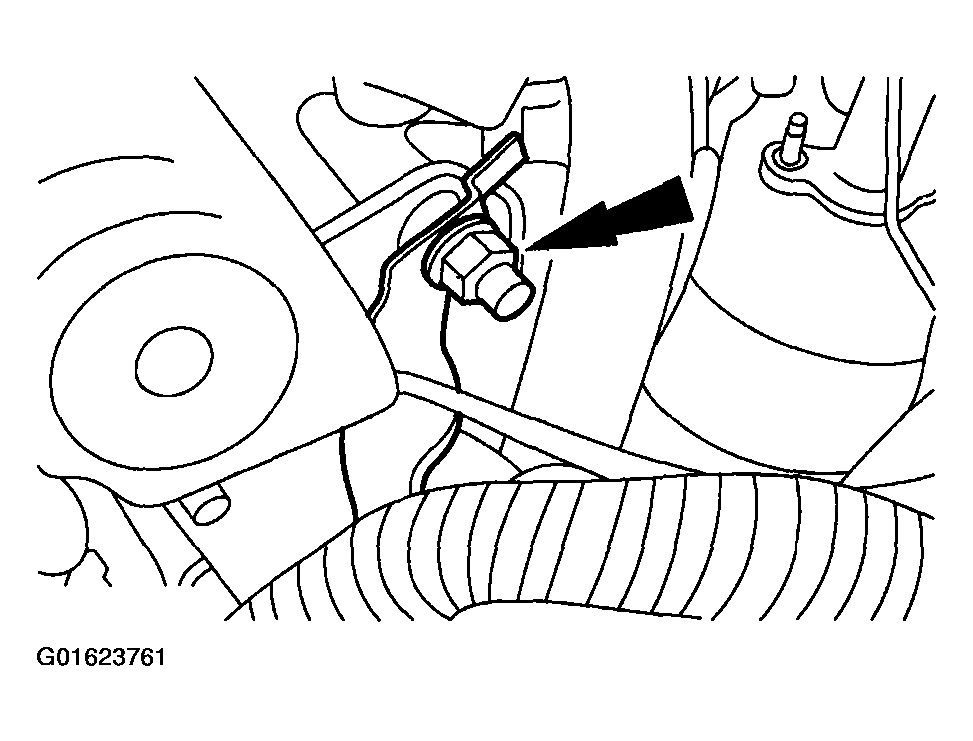

      Fig 18: Removing Bracket Nut
      G01623761Courtesy of FORD MOTOR CO.
  30. Disconnect the engine ground strap.
    • Remove the nut.

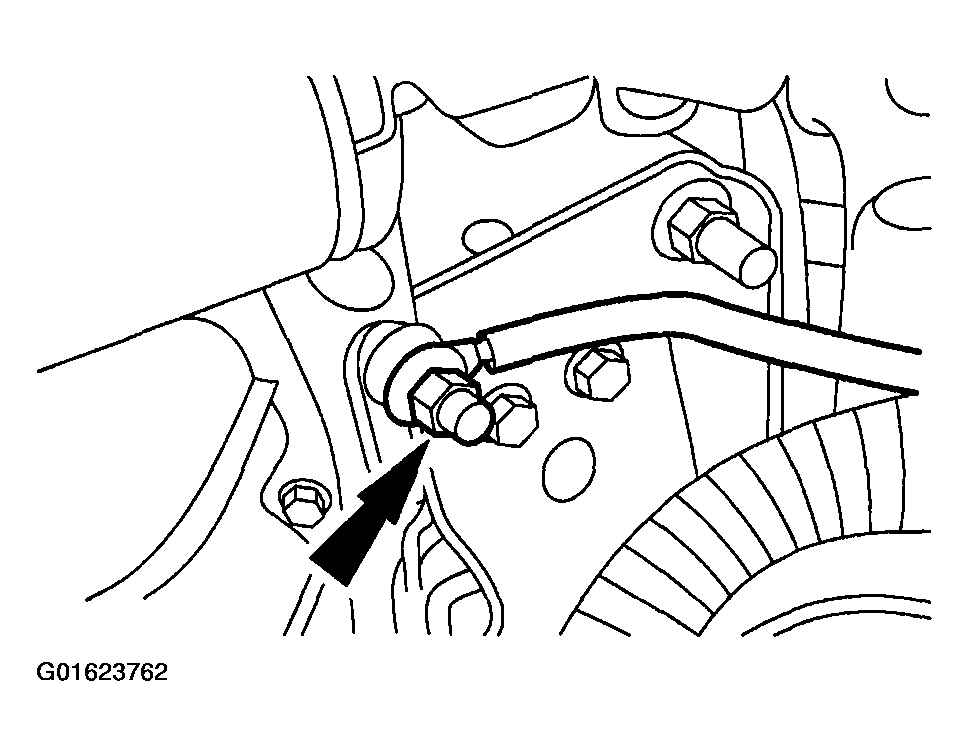

      Fig 19: Disconnecting Engine Ground Strap
      G01623762Courtesy of FORD MOTOR CO.
  31. Remove the bracket.

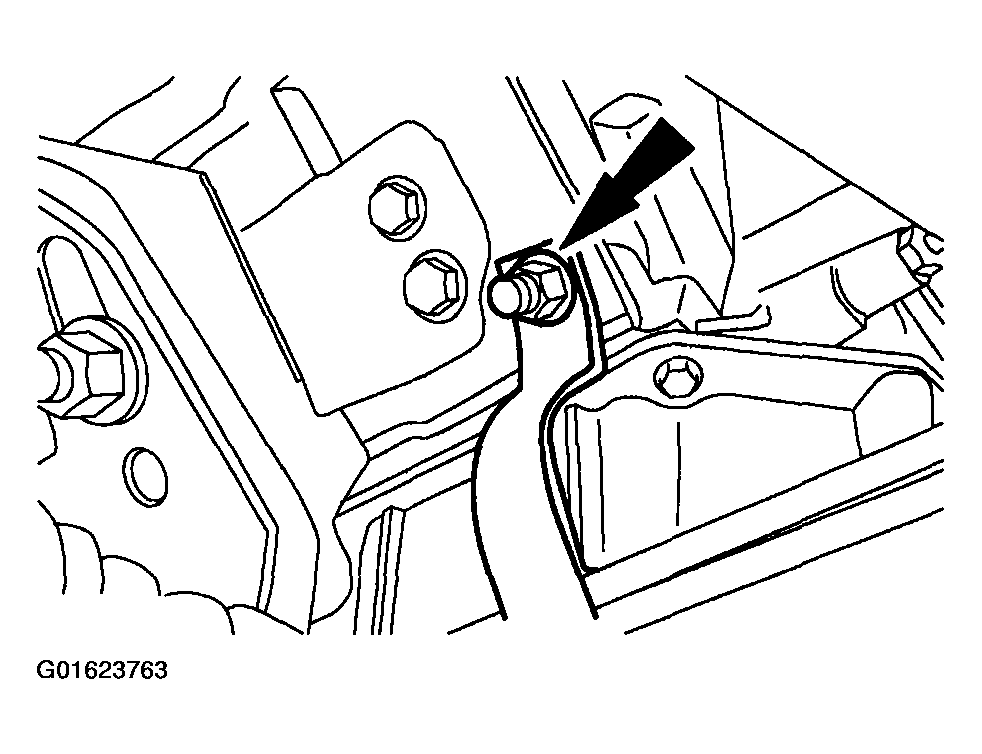

    Fig 20: Removing Bracket
    G01623763Courtesy of FORD MOTOR CO.
  32. Vehicles equipped with manual transmission  Remove the transmission. For additional information refer to MANUAL TRANSAXLE-T50D .

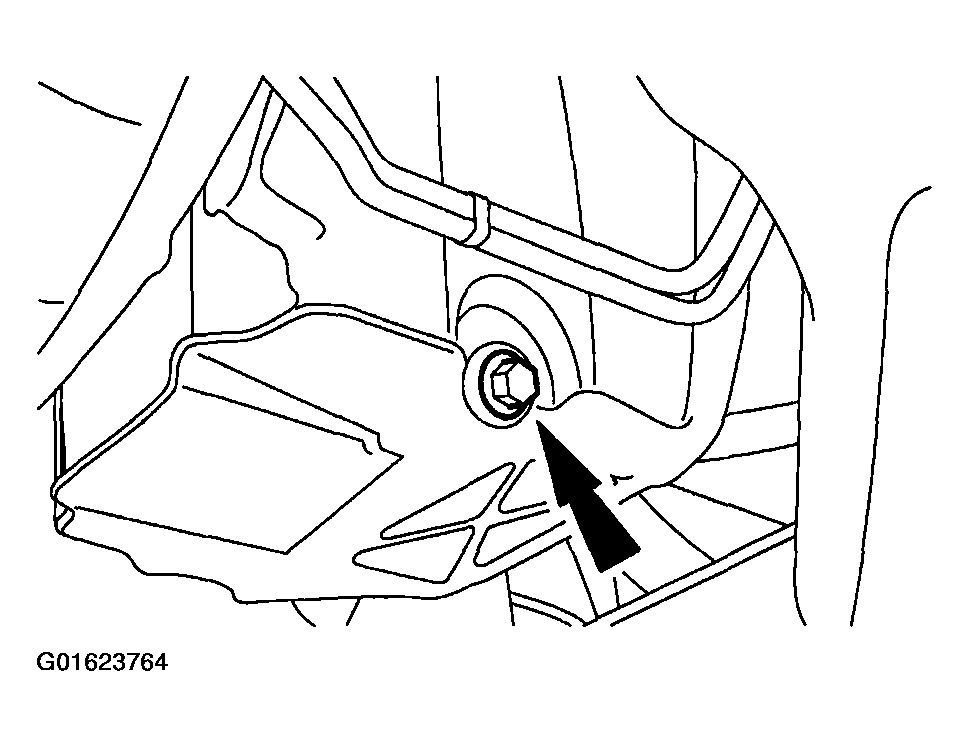

  33. Drain the engine oil.
    • Remove the oil drain plug.
      Fig 21: Removing Oil Drain Plug
      G01623764Courtesy of FORD MOTOR CO.
  34. Vehicle equipped with automatic transmission  Remove the access cover.

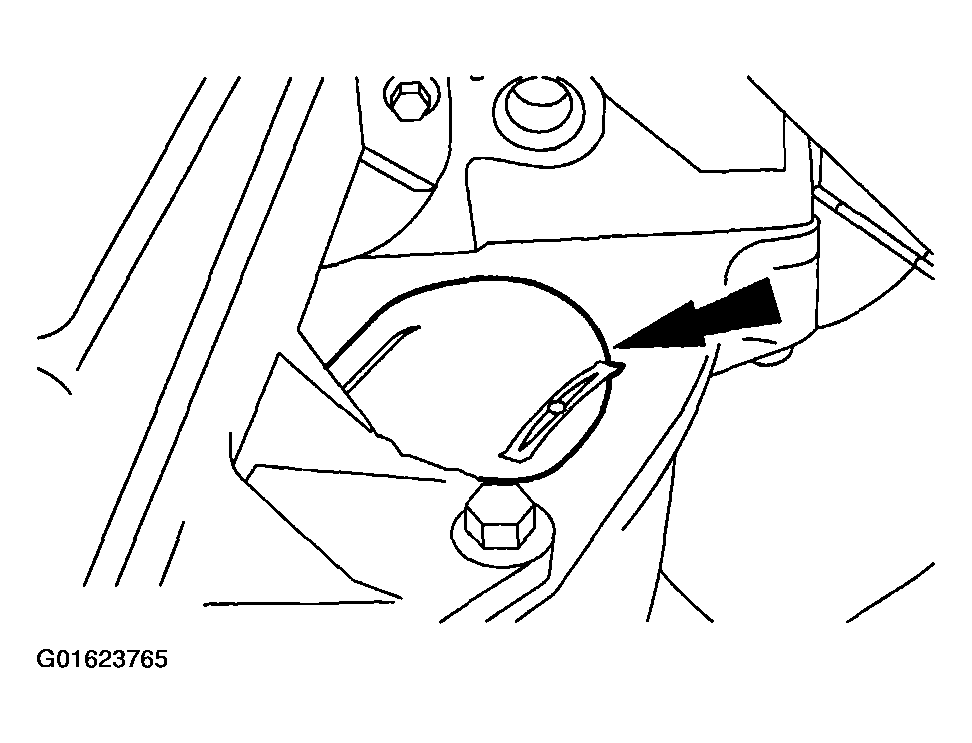

    Fig 22: Removing Access Cover
    G01623765Courtesy of FORD MOTOR CO.
  35. NOTE: Discard the torque converter nuts. Disconnect the torque converter (7902)
    • Remove the four nuts.

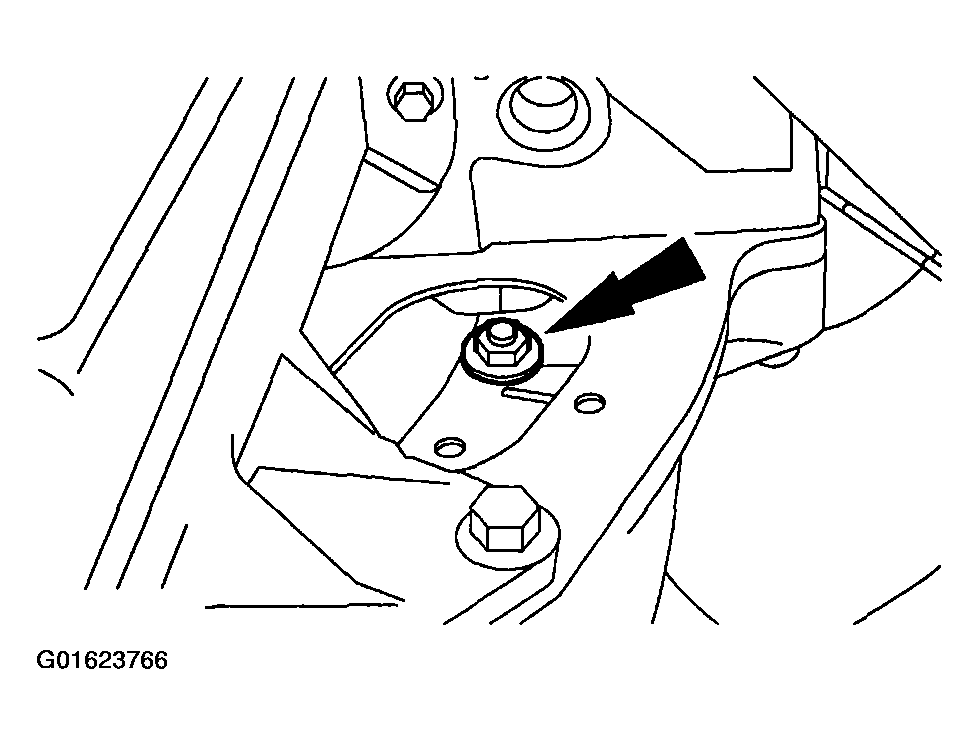

      Fig 23: Removing Torque Converter Nuts
      G01623766Courtesy of FORD MOTOR CO.
  36. Remove the oil pan-to-transmission bolts.
    Fig 24: Removing Oil Pan-To-Transmission Bolts
    G01623767Courtesy of FORD MOTOR CO.
  37. Remove the upper bell housing bolts.

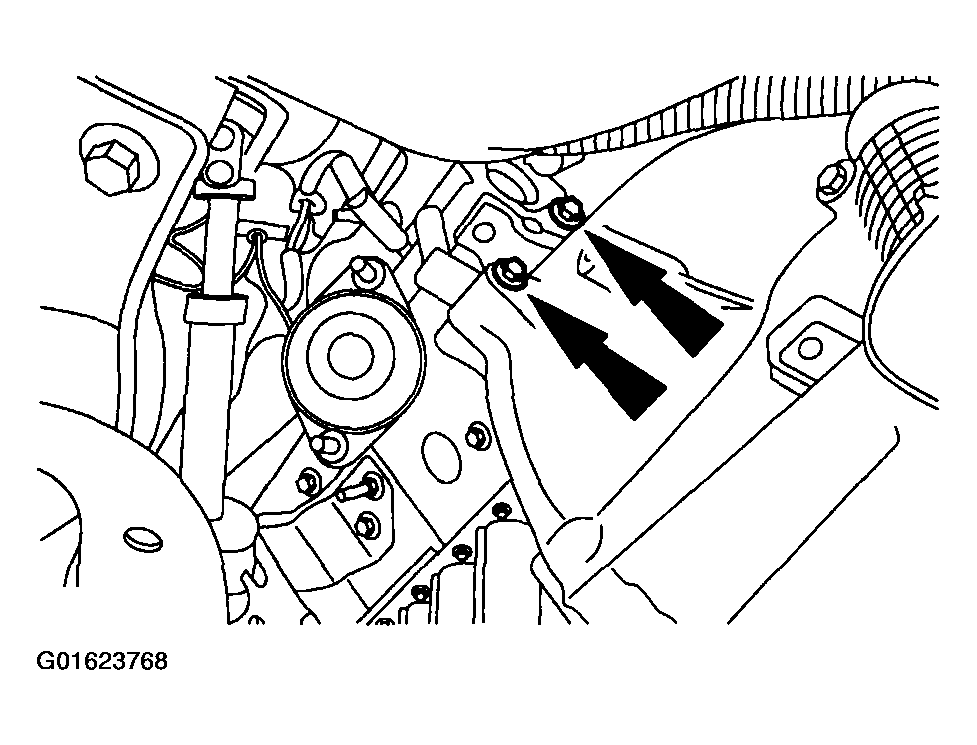

    Fig 25: Removing Upper Bell Housing Bolts
    G01623768Courtesy of FORD MOTOR CO.
  38. Remove the transmission oil filler tube (7A228).

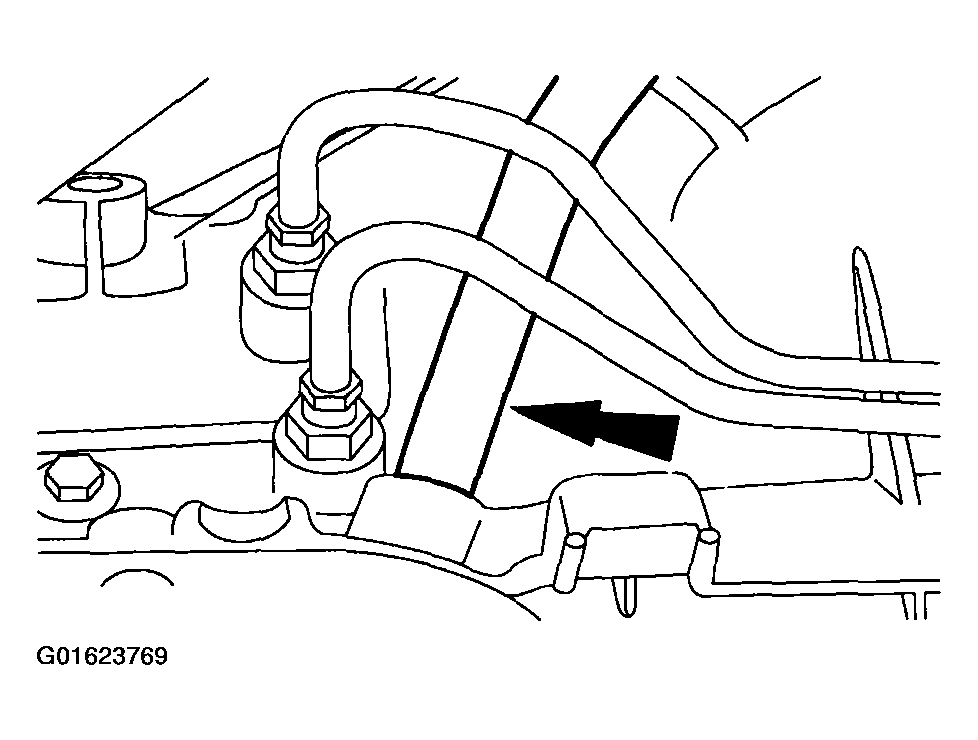

    Fig 26: Removing Transmission Oil Filler Tube
    G01623769Courtesy of FORD MOTOR CO.

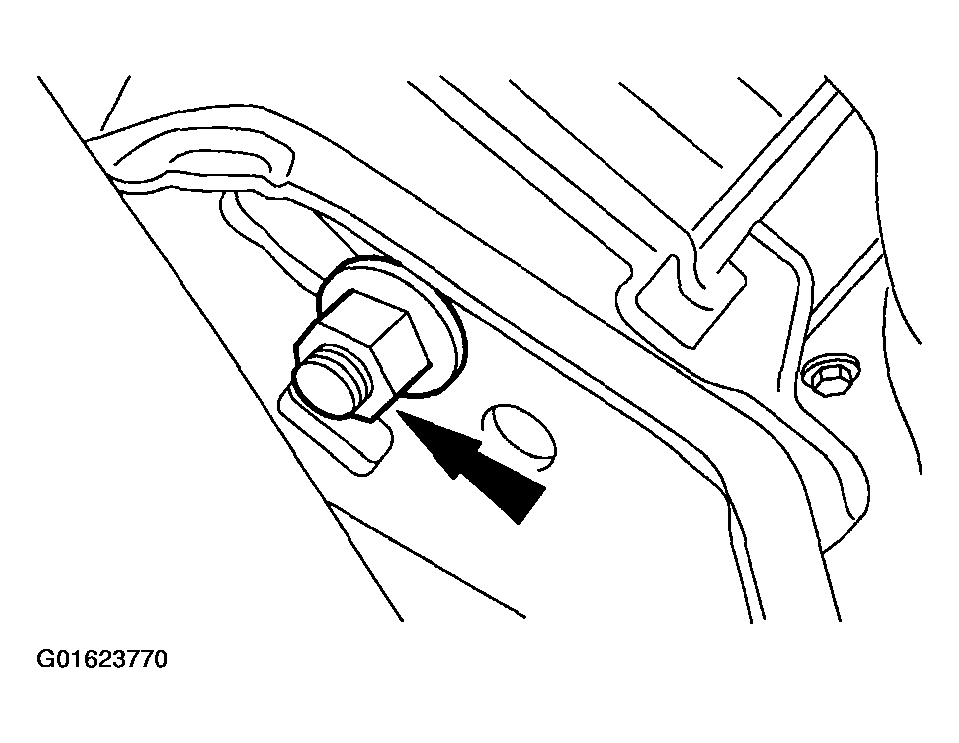

  39. All vehicles  Remove the RH engine mount nut.
    Fig 27: Removing RH Engine Mount Nut
    G01623770Courtesy of FORD MOTOR CO.
  40. Remove the LH engine mount nut.

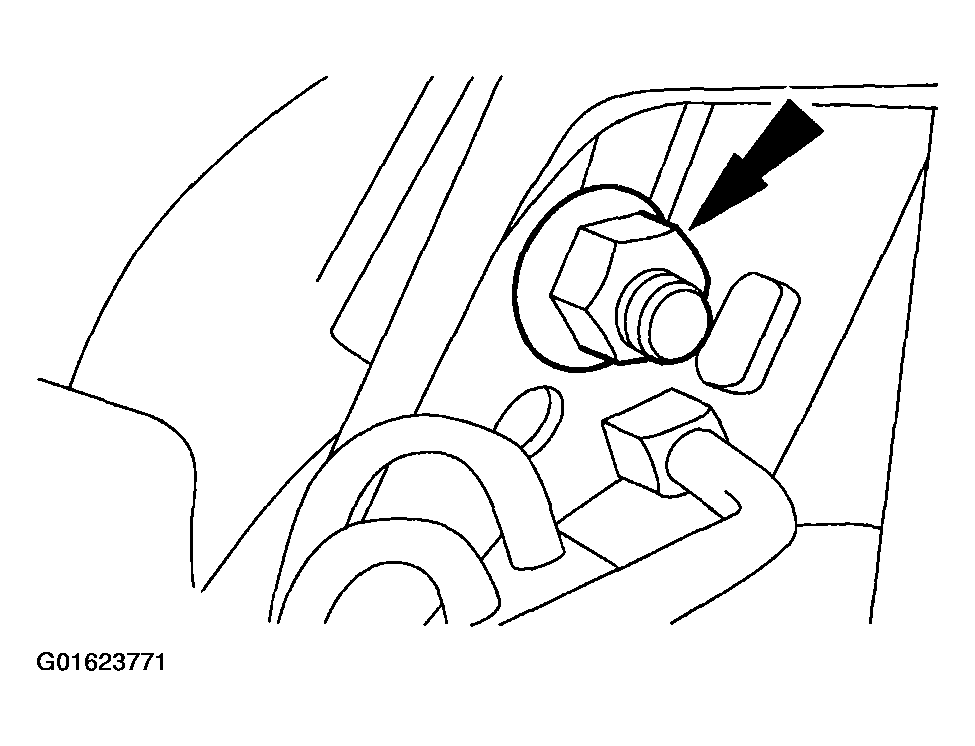

    Fig 28: Removing LH Engine Mount Nut
    G01623771Courtesy of FORD MOTOR CO.
  41. Lower the vehicle.
  42. Support the transmission.
  43. Install the special tool.

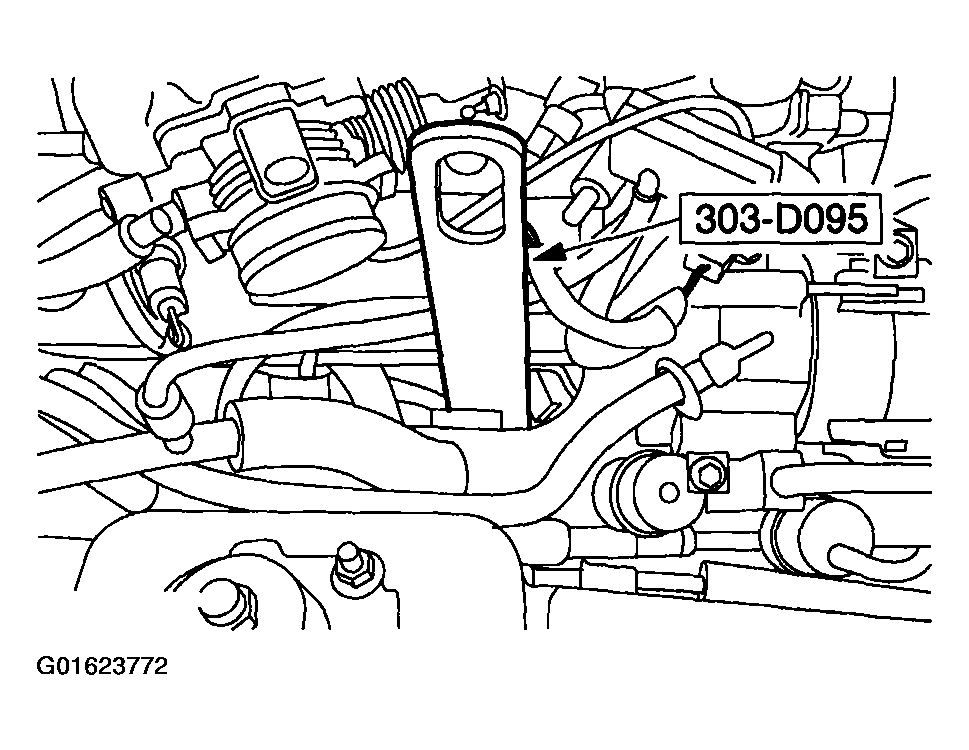

    Fig 29: Installing Special Tool
    G01623772Courtesy of FORD MOTOR CO.

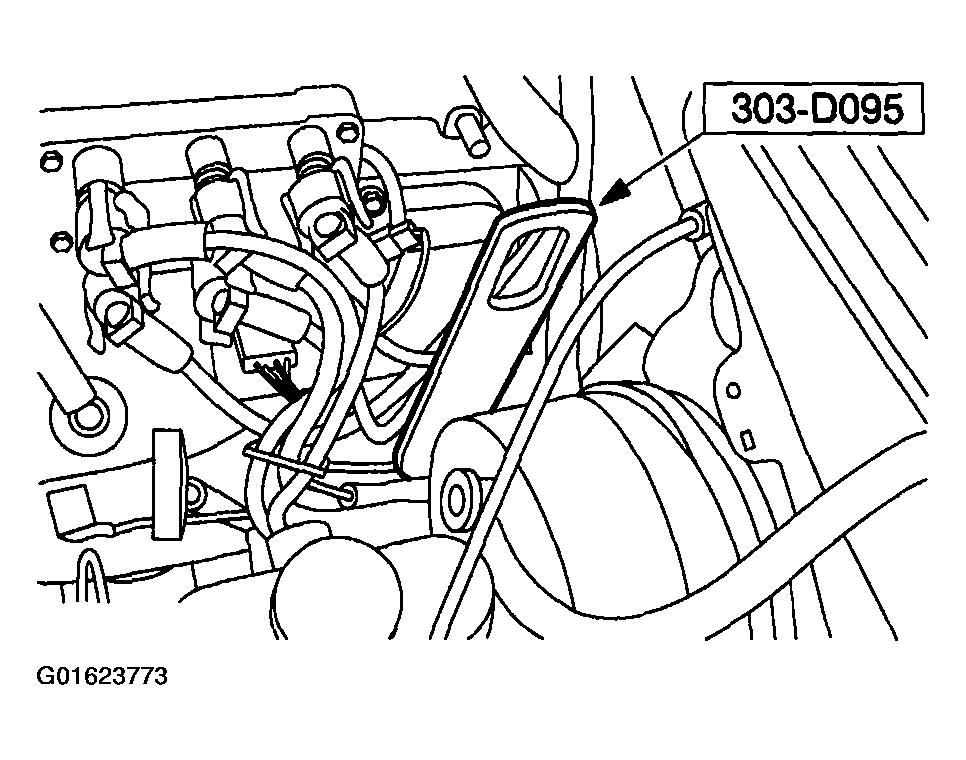

  44. Install the special tools.
    Fig 30: Installing Special Tools
    G01623773Courtesy of FORD MOTOR CO.
  45. Using the special tool, remove the engine.

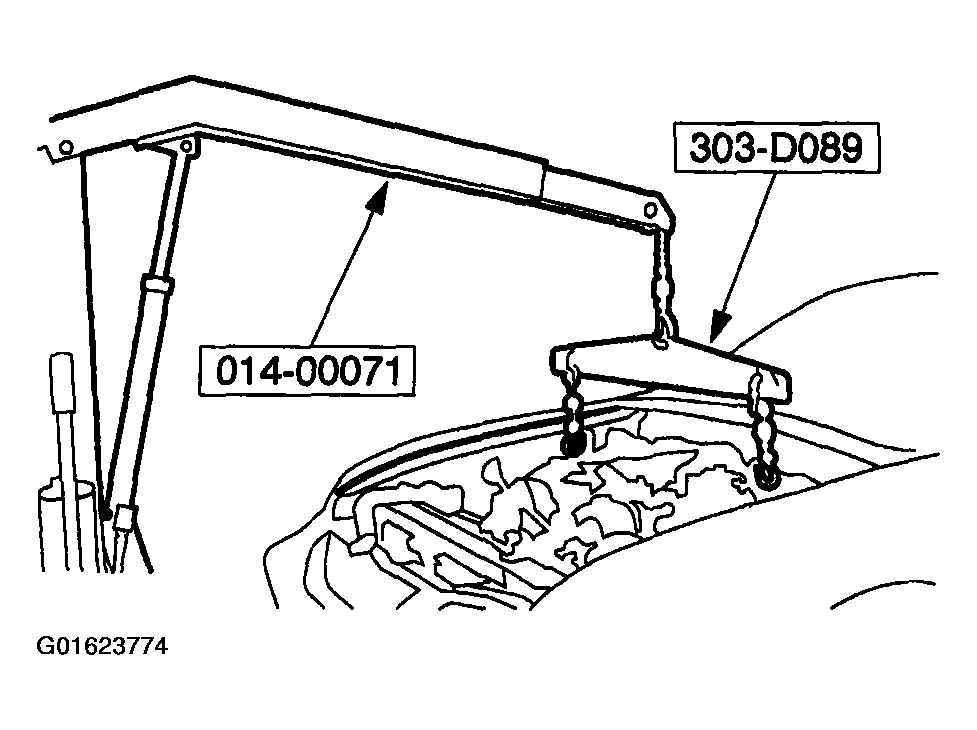

    Fig 31: Removing Engine
    G01623774Courtesy of FORD MOTOR CO.
  46. If necessary, remove the flywheel (6375) and the separator plate (6A372).
    • Remove the bolts.
      Fig 32: Removing Flywheel
      G01623775Courtesy of FORD MOTOR CO.
  47. Mount the engine on a suitable engine stand.
