Inspection and Verification

NOTE: If any concerns are noted with the speedometer, stoplamps, or horn, address those concerns by referring to their associated sections before continuing speed control diagnosis.

Verify the customer concern by operating the speed control system.
Visually inspect for obvious signs of mechanical and electrical damage.

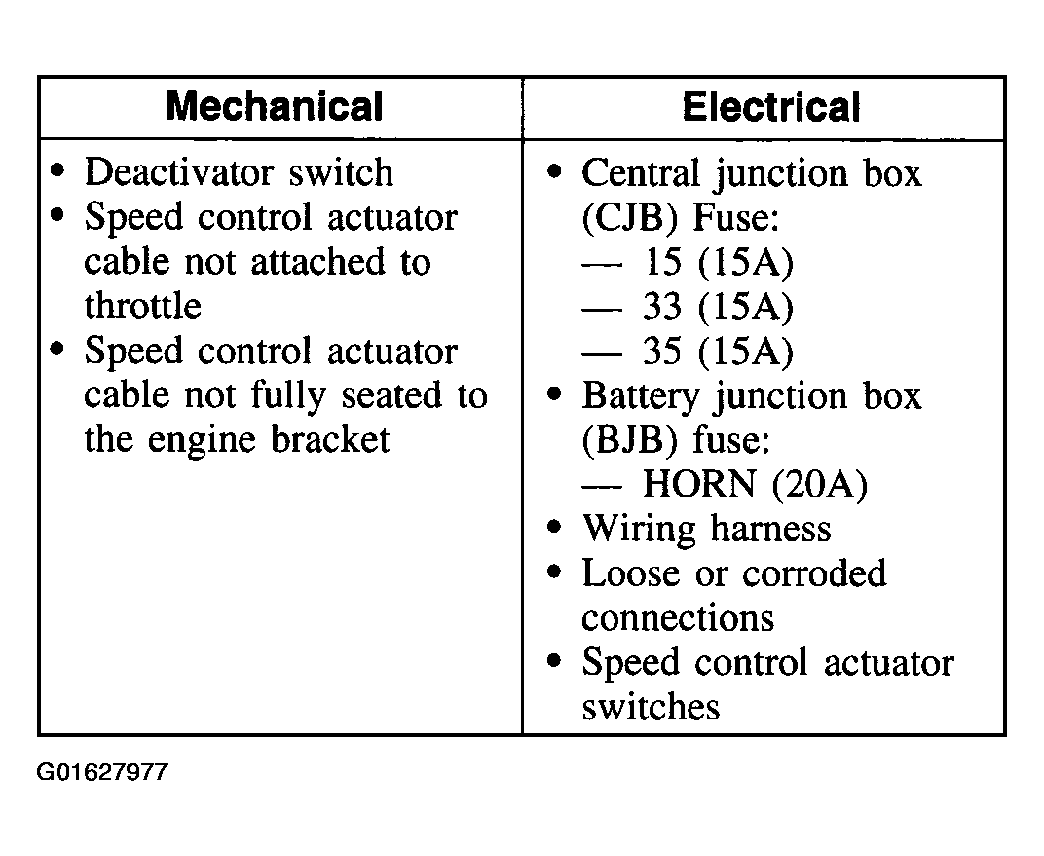

Fig 1: Identifying Speed Control Visual Inspection Chart
Courtesy of FORD MOTOR CO.
If the fault is not visually evident, verify the symptom and Go to the SYMPTOM CHART .
