Wheel Alignment Specifications
Wheel Alignment Specifications

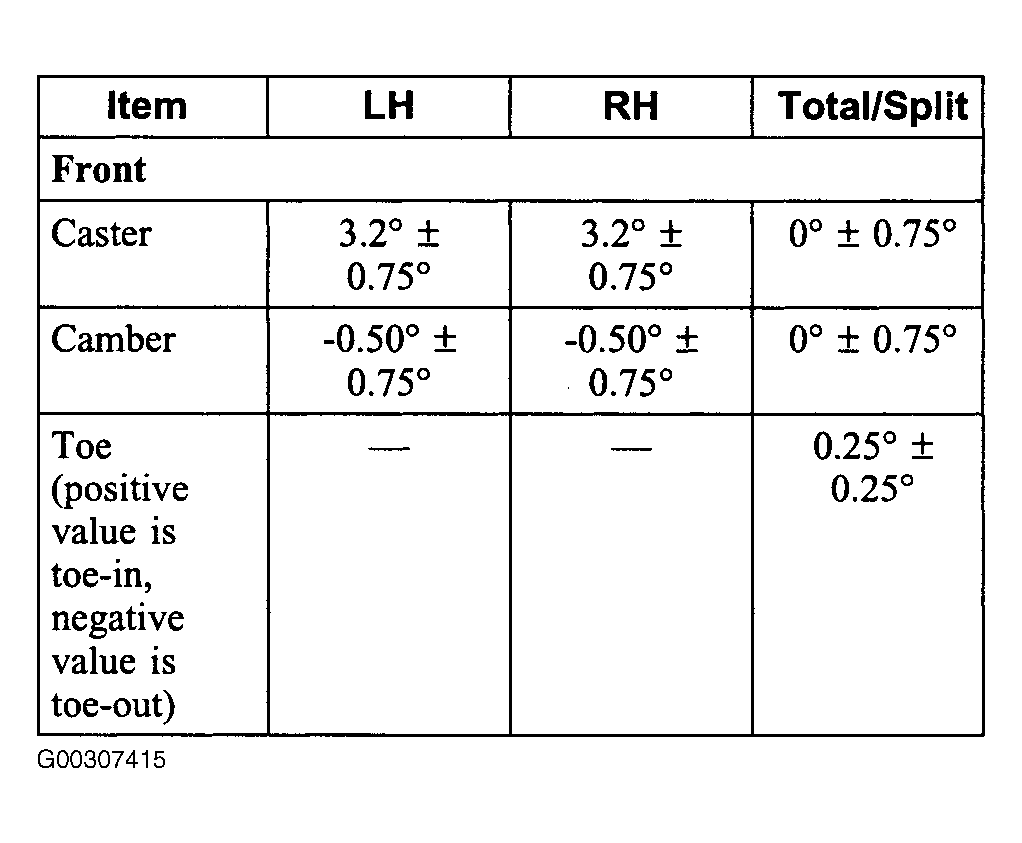

Fig 1: Wheel Alignment Specifications (Base & GT)
Courtesy of FORD MOTOR CO.

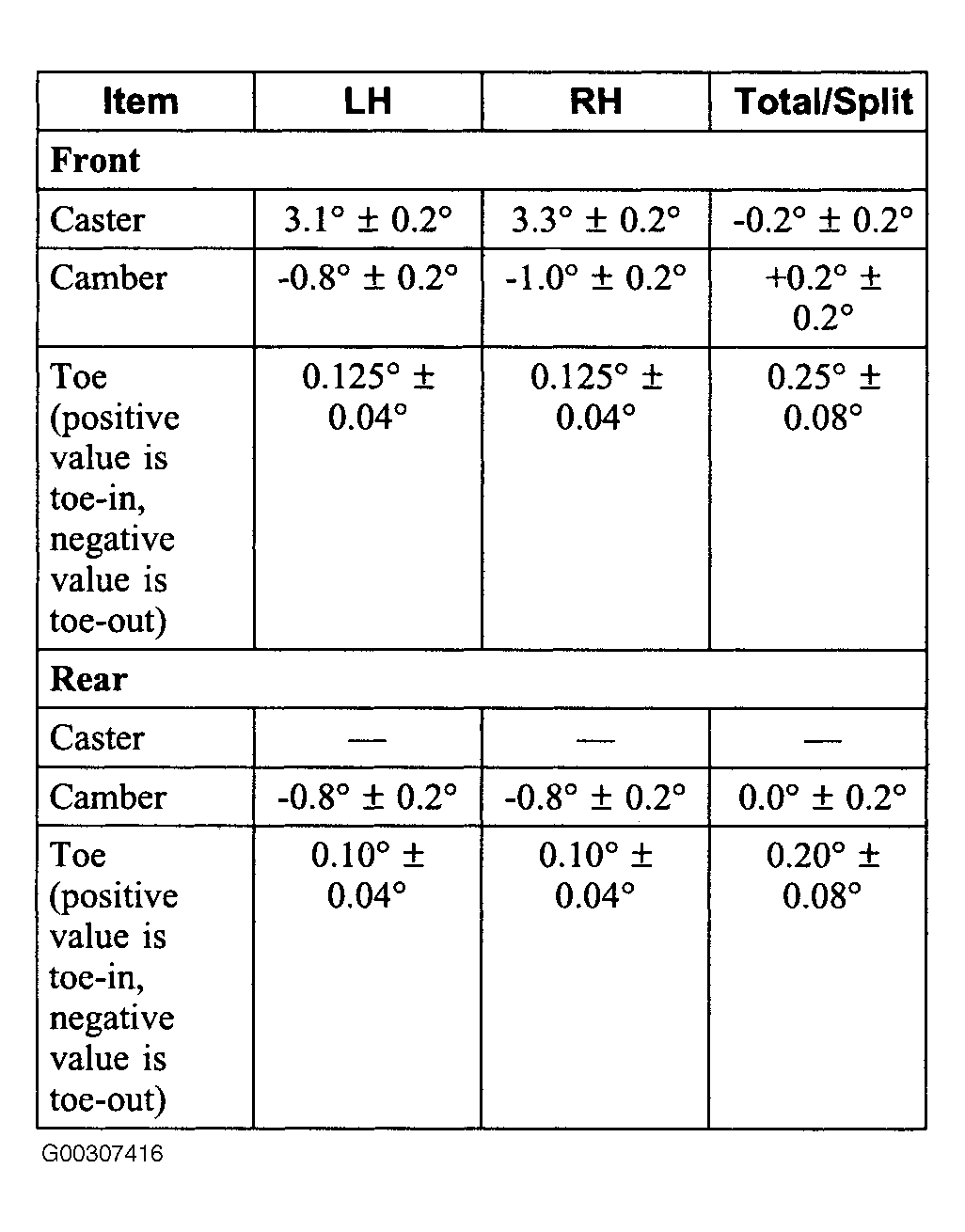

Fig 2: Wheel Alignment Specifications (Cobra)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
