Input Shaft And Bearing: Disassembly

  1. Using the special tool and a press, remove the input bearing (7025).

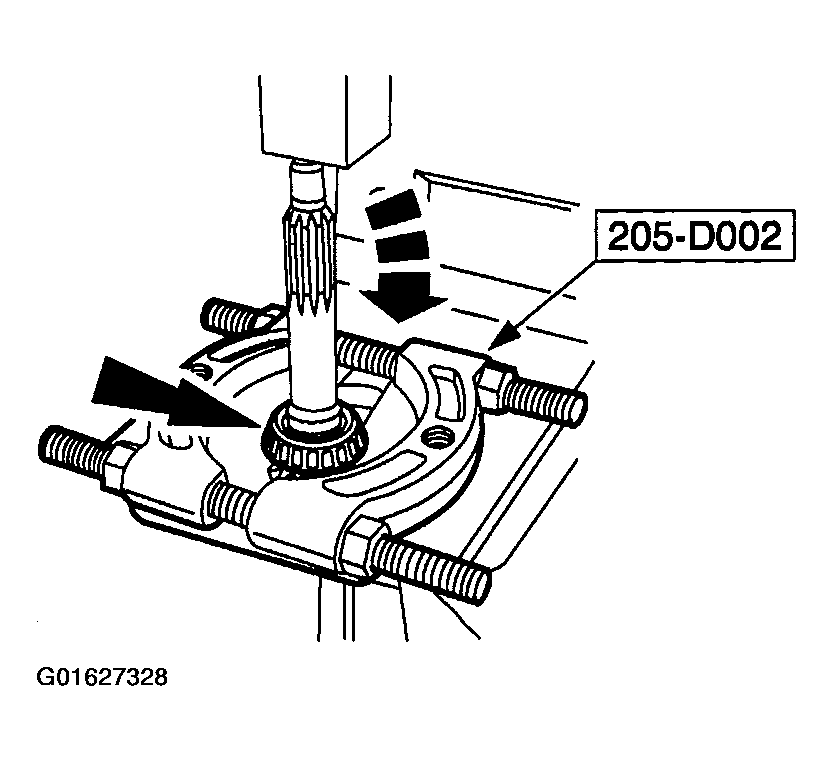

    Fig 1: Removing Input Bearing (7025)
    G01627328Courtesy of FORD MOTOR CO.
  2. Remove the bearing race and the end play selective shims.

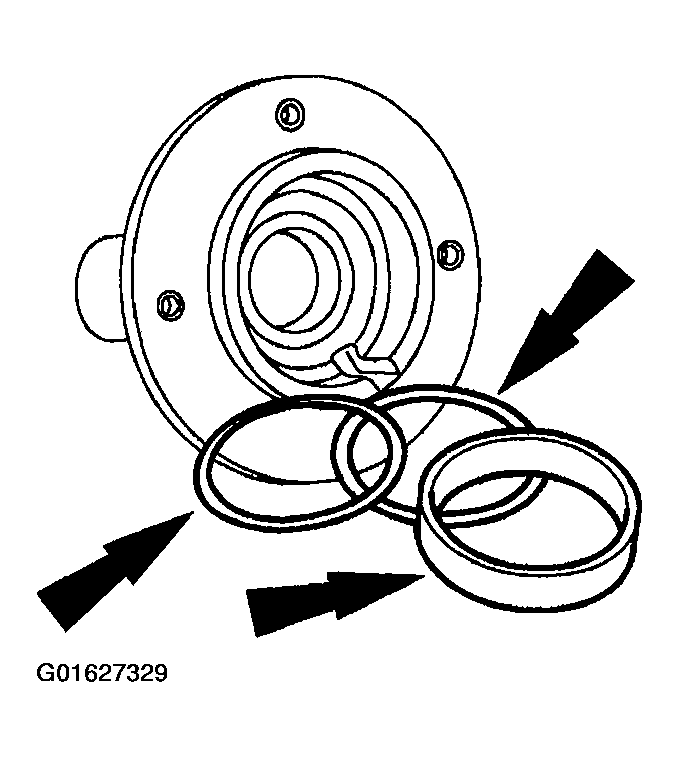

    Fig 2: Removing Bearing Race And End Play Selective Shims
    G01627329Courtesy of FORD MOTOR CO.
  3. Remove the input shaft seal (7052).
