Input Shaft And Bearing: Assembly

Using the special tool, install the input shaft seal.

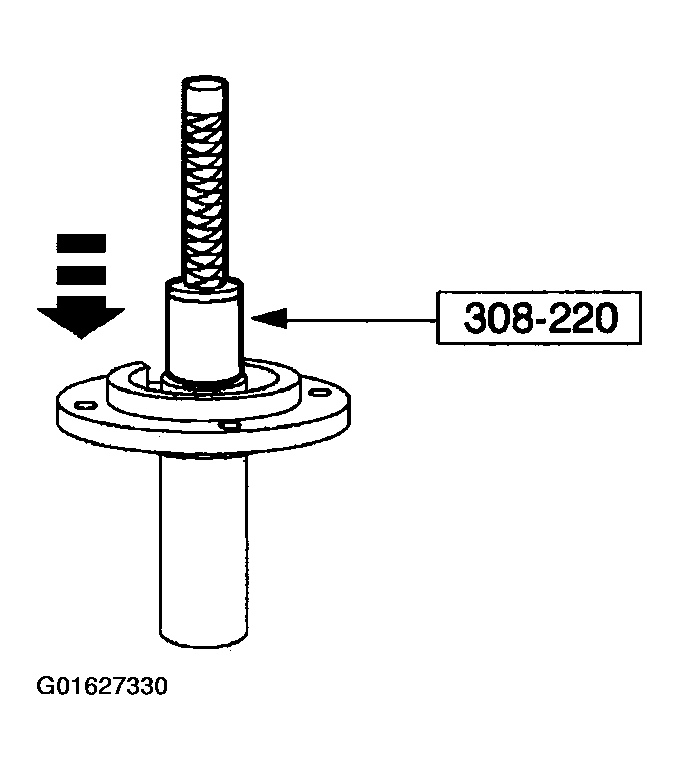

Fig 1: Installing Input Shaft Seal
Courtesy of FORD MOTOR CO.

NOTE: In installing a new input shaft seal as part of a transmission overhaul, do not install the end play selective shims at this time.

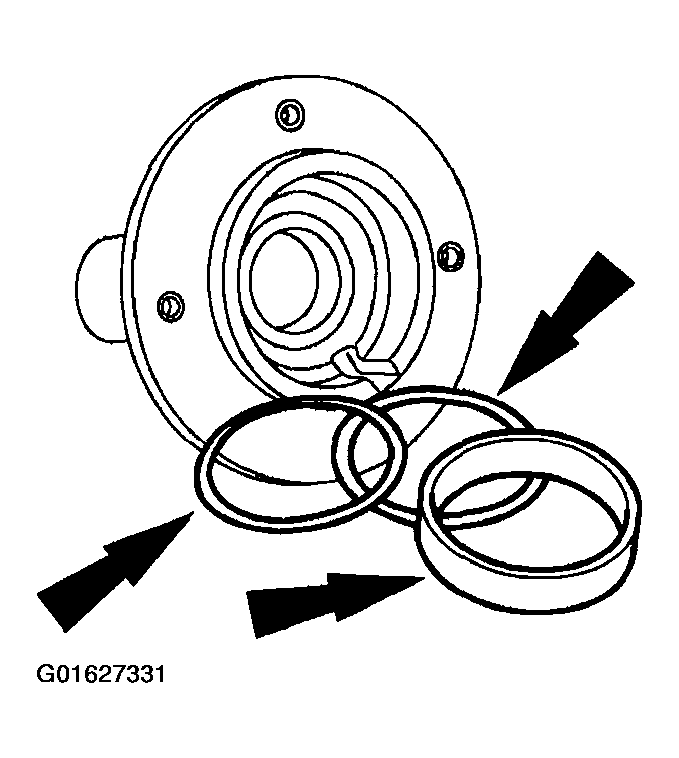

Fig 2: Installing End Play Selective Shims And Bearing Race

Courtesy of FORD MOTOR CO.

Install the end play selective shims and the bearing race.
Using a press and a capped length of pipe, install the input bearing.

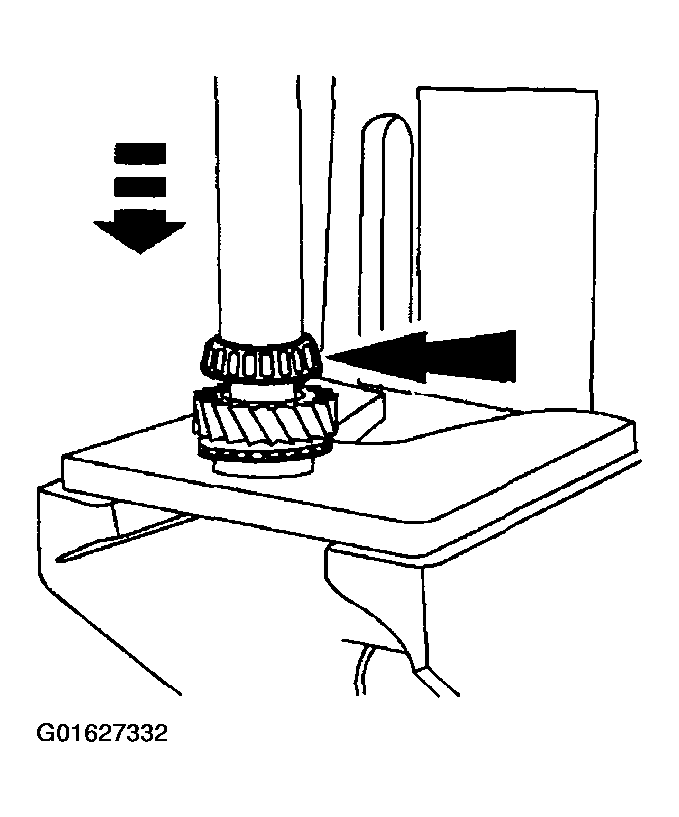

Fig 3: Installing Input Bearing
Courtesy of FORD MOTOR CO.
