Countershaft Bearing: Disassembly

Using the special tool and a press, remove the countershaft bearing assembly (7F431).

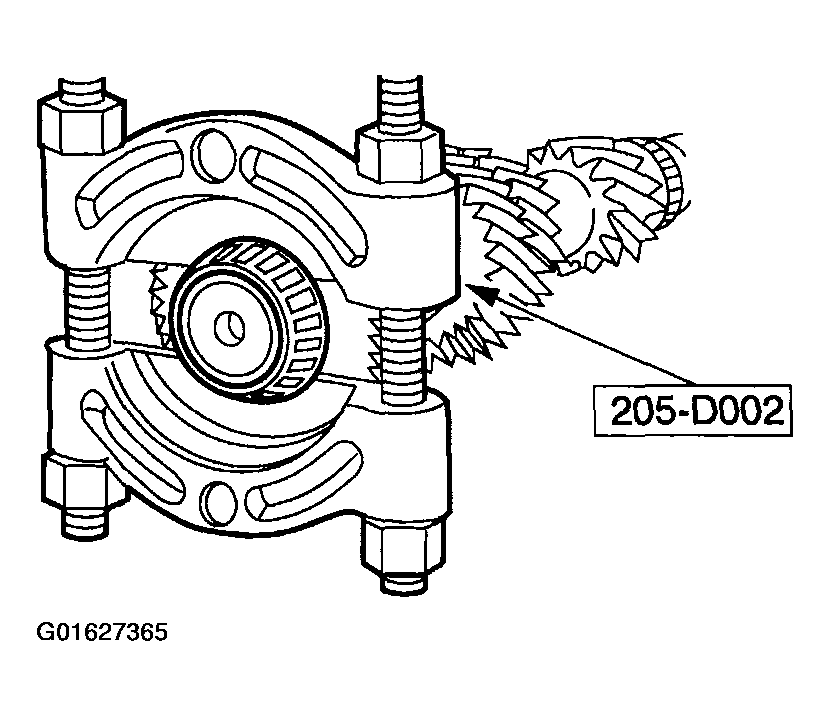

Fig 1: Removing Countershaft Bearing Assembly (7F431)
Courtesy of FORD MOTOR CO.

CAUTION: Failure to correctly support the case (7005) during bearing race removal will result in permanent distortion of the case.

NOTE: Remove the front countershaft bearing race only if damaged or worn.

Using the special tools and a press, remove the bearing race and the countershaft front bearing seal (7693).

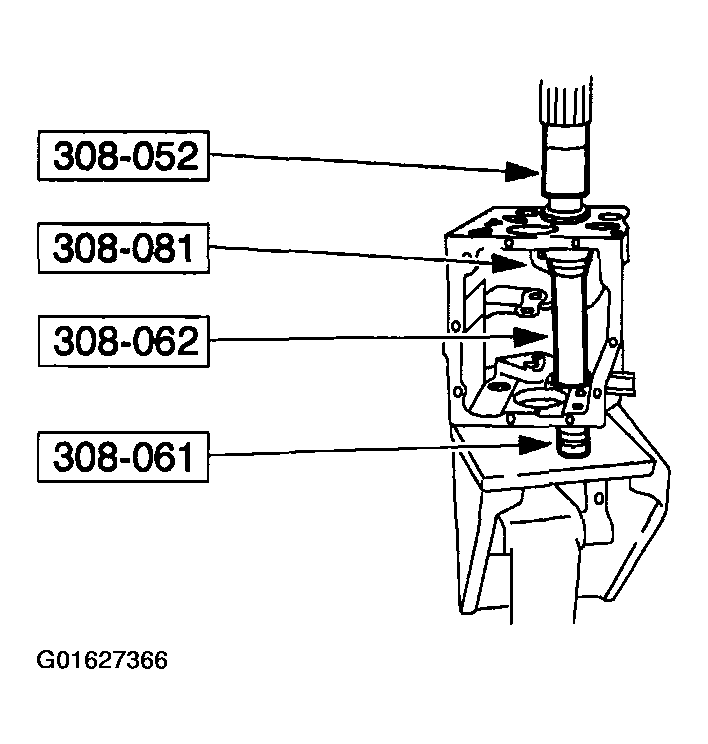

Fig 2: Removing Bearing Race And Countershaft Front Bearing Seal (7693)

Courtesy of FORD MOTOR CO.
