Removal and Installation

  1. Remove the clutch. For additional information, refer to CLUTCH .
  2. Remove the flywheel bolts.

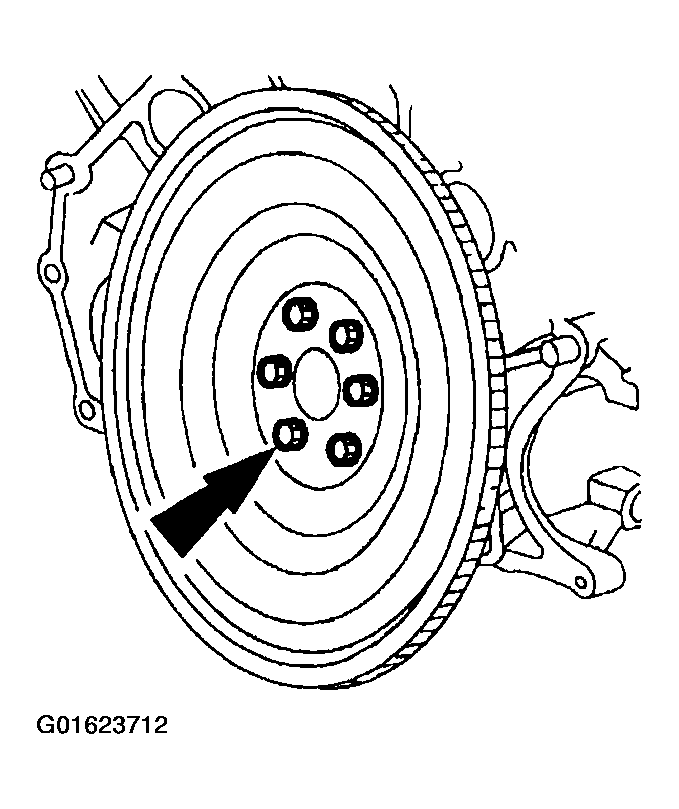

    Fig 1: Removing Flywheel Bolts
    G01623712Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

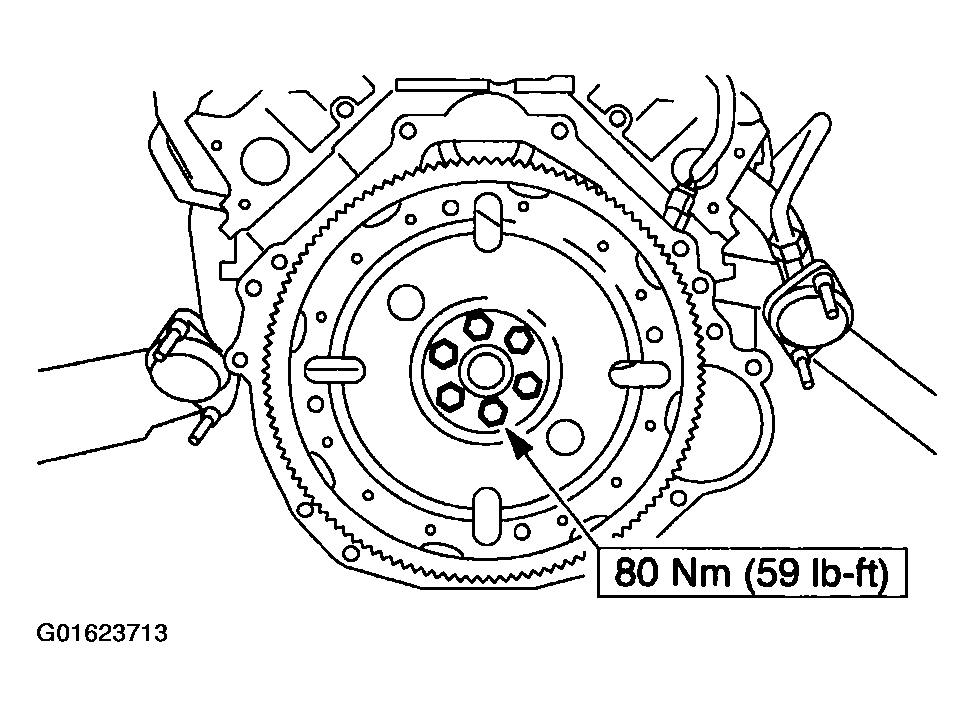

    Fig 2: Installing Flywheel Bolts
    G01623713Courtesy of FORD MOTOR CO.
