Disassembly and Assembly

    All Vehicles

  1. Remove the seat track. For additional information, refer to SEAT TRACK  in this section.
  2. Remove the seat backrest. For additional information, refer to FRONT SEAT BACKREST  in this section.

    3. Vehicles With Power Seat

  3. Remove the screws in the power seat control switch.
    Fig 1: Removing Power Seat Control Switch
    G01628789Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connector and remove the power seat control switch.
    Fig 2: Removing Power Seat Control Switch
    G01628791Courtesy of FORD MOTOR CO.

    5. Vehicles With Standard Power Lumbar

  5. Remove the lumbar control switch (14C715).
    Fig 3: Removing Lumbar Control Switch
    G01628792Courtesy of FORD MOTOR CO.
  6. Disconnect the power lumbar support air hoses.
    Fig 4: Disconnecting Power Lumbar Support Air Hoses
    G01628793Courtesy of FORD MOTOR CO.
  7. Disconnect the lumbar seat control switch electrical connector and remove the lumbar control switch.

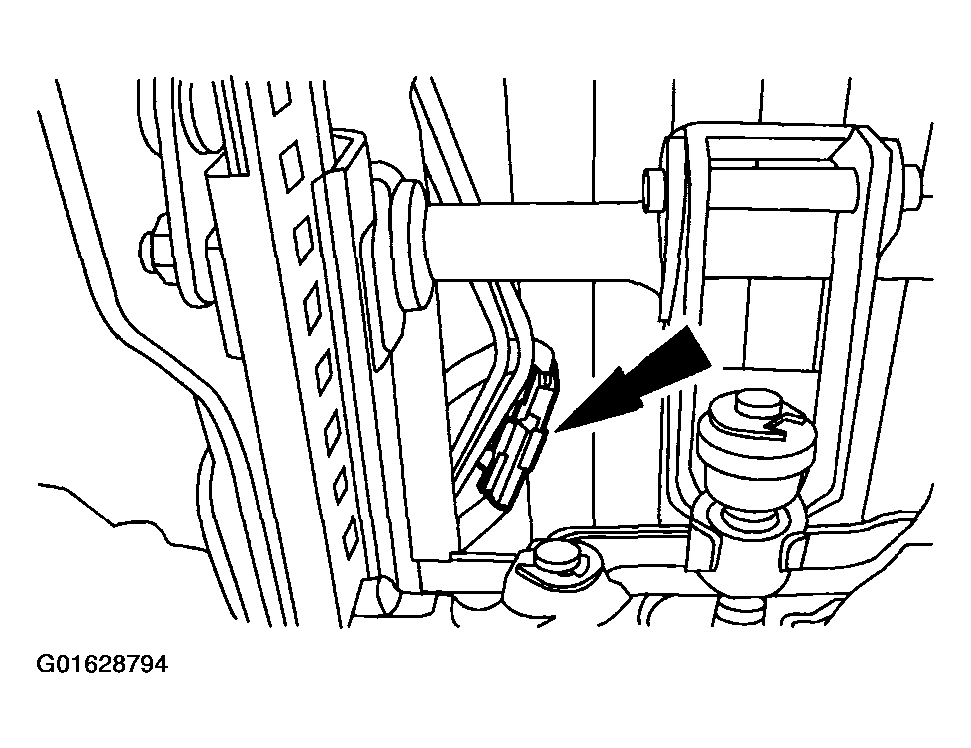

    Fig 5: Removing Lumbar Seat Control Switch
    G01628794Courtesy of FORD MOTOR CO.

    8. Vehicles With Power Bolster And Lumbar

    NOTE: For vehicles with lumbar and bolster, the pump and solenoid module are serviced as part of the seat cushion frame.

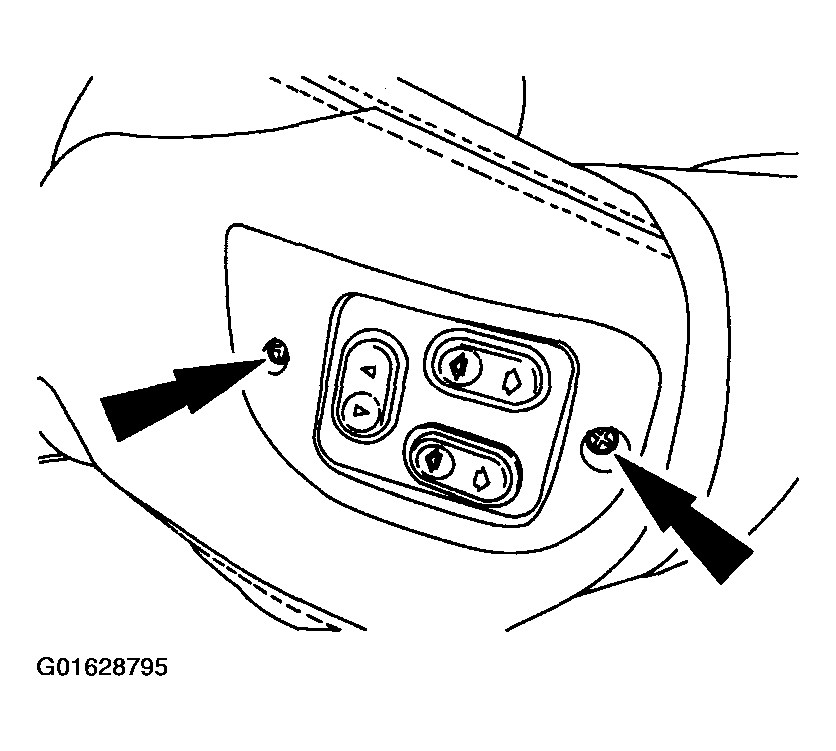

    Fig 6: Removing Power Lumbar And Bolster Seat Switch Screws
    G01628795Courtesy of FORD MOTOR CO.
  8. Remove the power lumbar and bolster seat switch screws.
  9. Disconnect the lumbar and bolster control switches.

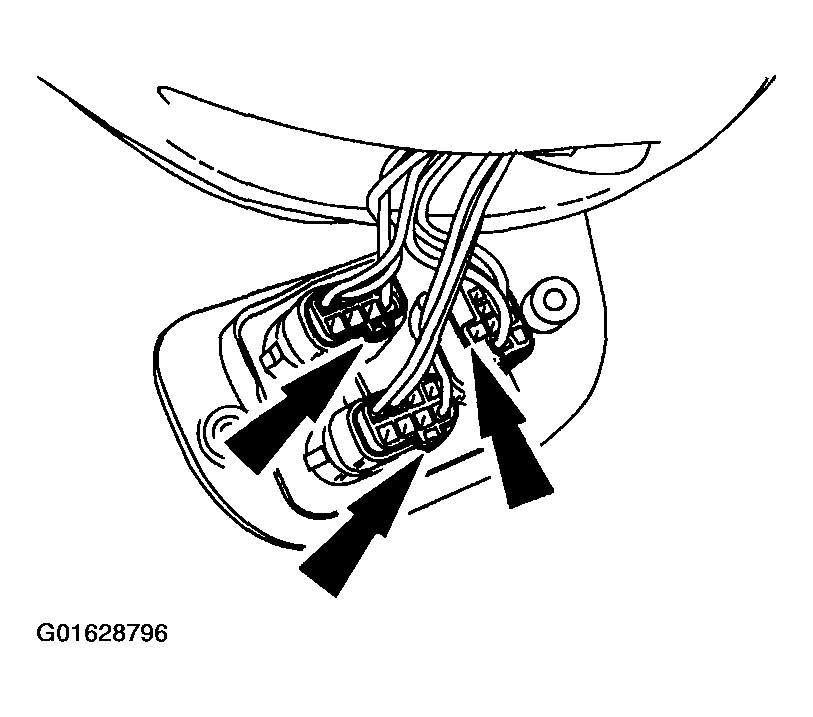

    Fig 7: Disconnecting Lumbar And Bolster Control Switches
    G01628796Courtesy of FORD MOTOR CO.

    10. All Vehicles

  10. Remove the J-clips.
    Fig 8: Removing J - Clips
    G01628797Courtesy of FORD MOTOR CO.
  11. Remove the hog rings.
    Fig 9: Removing Hog Rings
    G01628798Courtesy of FORD MOTOR CO.
  12. Remove the front seat cushion cover (62900) from the front seat cushion pad (632A22).
    Fig 10: Removing Front Seat Cushion Cover
    G01628799Courtesy of FORD MOTOR CO.
  13. Remove the front seat cushion frame and spring (63100).

    14. Vehicles With Power Cushion Bolster

  14. Disconnect the hoses from the two bolster adjuster pads (one shown) and slide the bolster adjuster pad up and off the seat cushion frame.
    Fig 11: Disconnecting Hoses From Bolster Adjuster Pad
    G01628800Courtesy of FORD MOTOR CO.

    15. All Vehicles

  15. To assemble, reverse the disassembly procedure.
